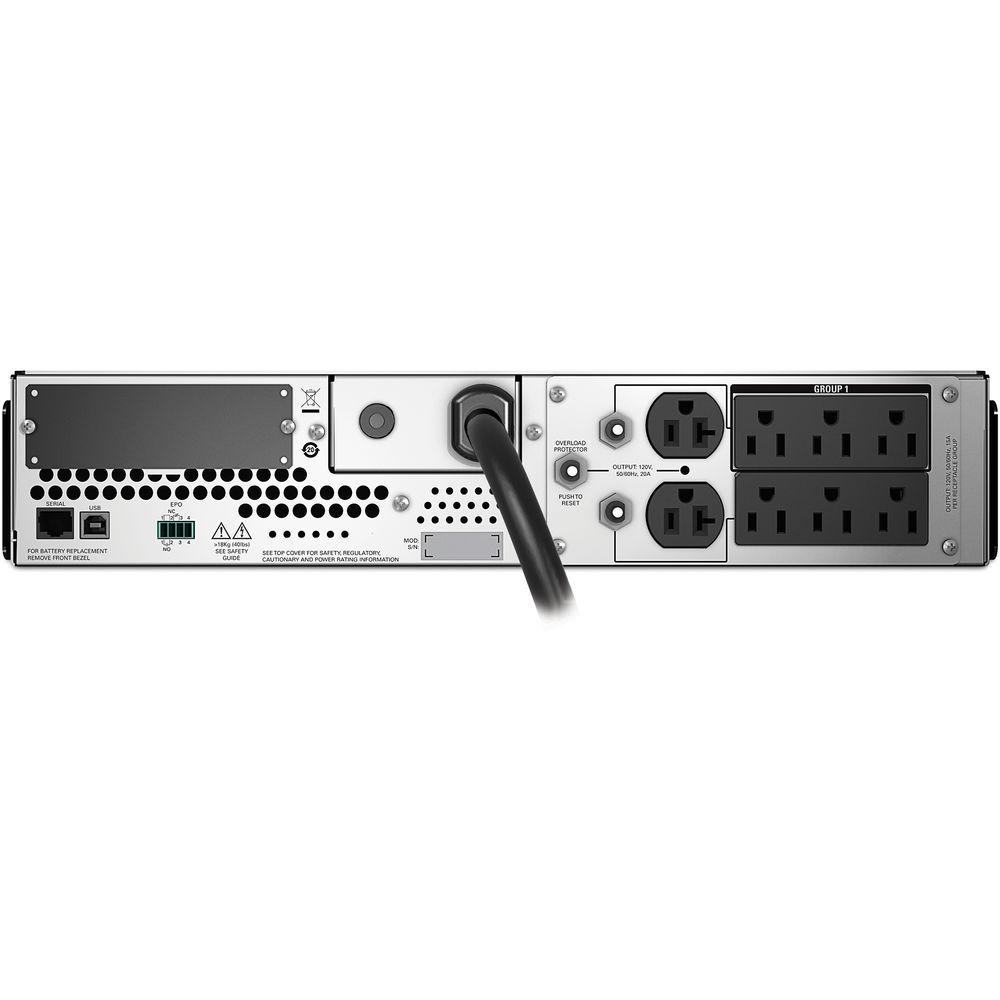

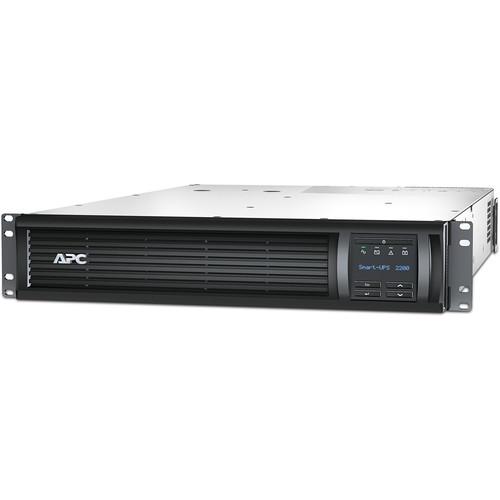

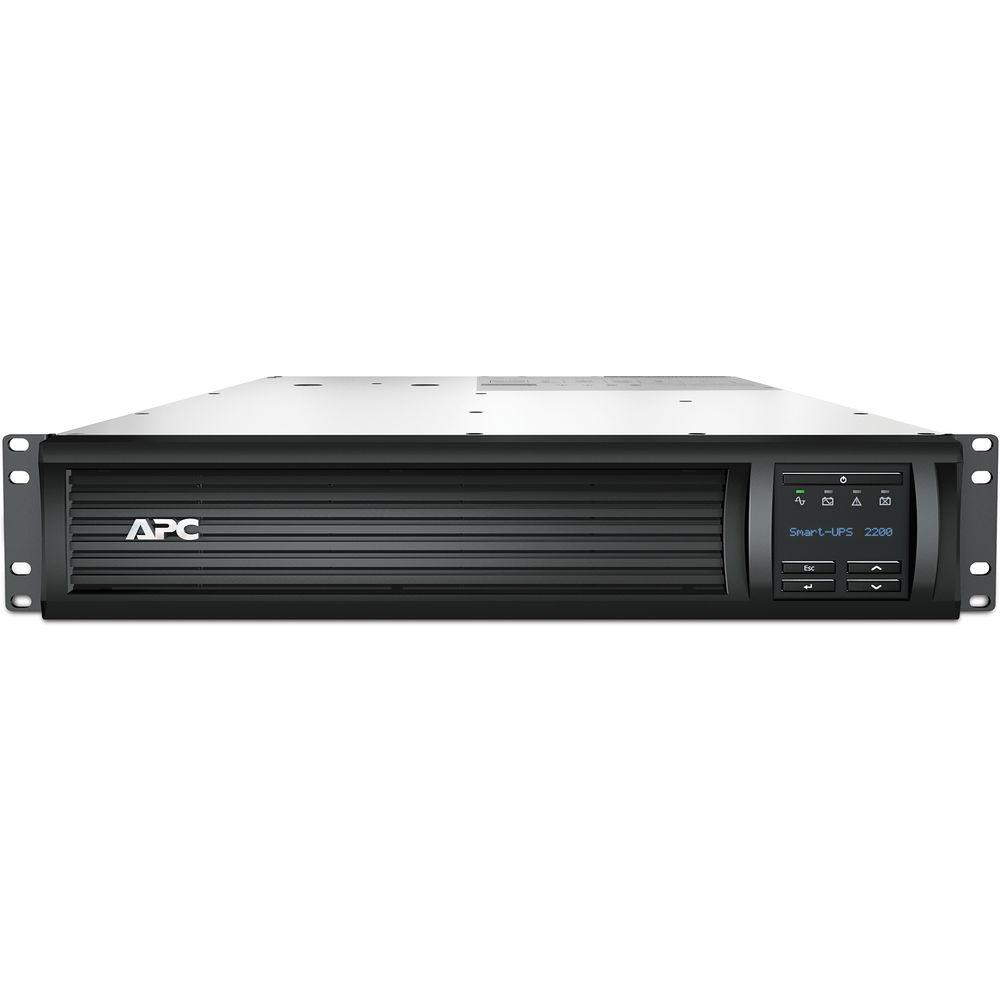

Product description The SMT2200RMUS Smart Uninterruptable Power Supply from APC features six NEMA 5-15R and two NEMA 5-20R output connections along with a output power capacity of 1980 watts. Integrated line interactive technology found within this UPS redirects the battery's DC current path from the normal charging mode to supplying current when power is lost.
Along with enhanced output capacity found in this UPS, you also benefit from a 120 volt nominal input voltage and a 50/60 Hz ± 3 Hz auto sensing input frequency. Input connectivity is provided via an integrated NEMA 5-20P connector with a cord length of 8 ft (2.44 m). Input voltage ranges from 82 to 143 volts for main operations along with an adjustable range of 75 to 154 volts. Additionally, this Smart UPS comes equipped with a maintenance-free sealed lead-acid battery with typical recharge time of 3 hours. Main Features - Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive Replace Battery Date
- Dynamically provides month and year when battery replacement is recommended to aide in long term maintenance planning.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power condition to achieve very high operating efficiency without sacrificing any protection.
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users.
- Pure Sine Wave Output On Battery
- Simulates utility power to provide an enhanced degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single Switched Outlet Group
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- StruxureWare Central Compatible
- Enables centralized management via StruxureWare Central.
- High Online Efficiency
- Reduces utility costs, generates less heat.
- SmartSlot
- Customize UPS capabilities with management cards.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs.
Availability - Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Manageability - Network Manageable
- Provides remote power management of the UPS over the network.
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED Indicators
- Quickly understand unit and power status with visual indicators.
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable Circuit Breakers
- Enables a quick recovery from overload events.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Adaptability - Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
UPC: 731304305613 In the Box APC SMT2200RMUS 1920 Watt Smart Uninterruptable Power Supply Rack Mounting Brackets Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Limited 2-Year Manufacturer Warranty for Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SMT2200RMUS 1920 Watt Smart Uninterruptable Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 2200VA Specs | | | Total Outlets | 6 x NEMA 5-15R
2 x NEMA 5-20R | | Plug Type | NEMA 5-20P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | | | Surge Energy Rating | 530 Joules | | Maximum Wattage | 1920 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 1920 VA | | Thermal Dissipation | 215 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | RBC43 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 3.4 x 18.9 x 26.9" / 86.0 x 480.0 x 683.0 mm | | Weight | 93.3 lb / 42.3 kg | | | | Package Weight | 113.0 lb | | Box Dimensions (LxWxH) | 38.5 x 23.5 x 10.0" |
