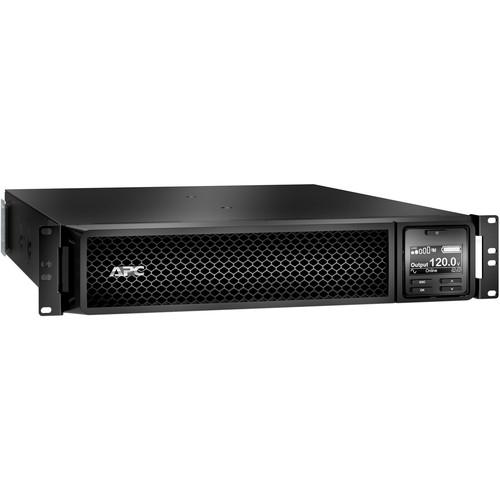

Product description Designed to provide power and protection for network closets, server rooms, retail offices, banking, medical labs, and industrial applications, the SRT1500RMXLA Smart-UPS Battery Backup from APC has been built for customers who want a powerful and efficient UPS with smart management options. Equipped with Unity Power Factor and a graphical LCD interface that provides information for an improved user experience, this UPS provides up to 54.6 minutes of use at 200W, 19.3 minutes of use at 500W, 12.6 minutes of use at 700W, 8.9 minutes of use at 900W, 7.6 minutes of use at 1000W, and 4.9 minutes of use at 1300W.

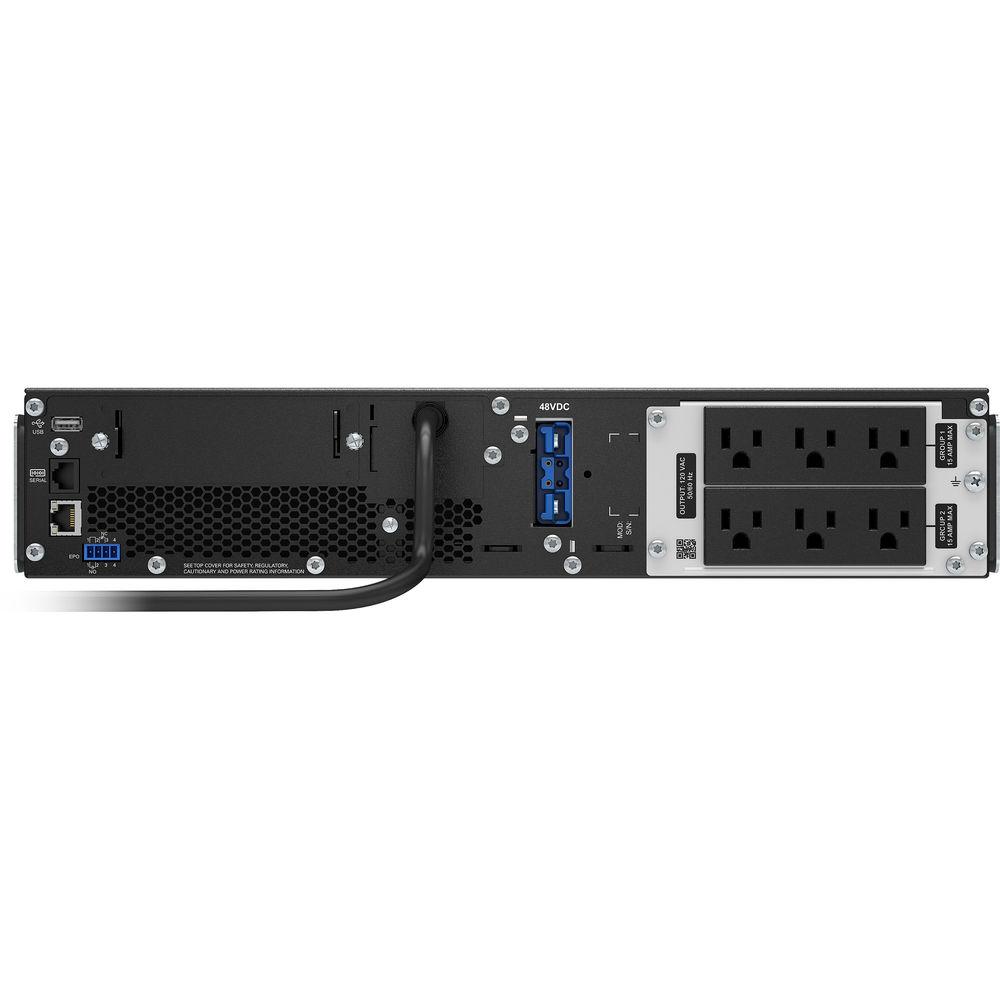

APC's SRT1500RMXLA features an output of 1350W / 1500 VA, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R battery backup outlets, a surge energy rating of 480 joules, double conversion online topology, and a sine waveform. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty. General Features - Power Density
- More real power in watts, 0.9 pf on the SRT1500RMXLA
- Green / ECO Mode
- The SRT1500RMXLA can achieve 95% efficiency, which helps save utility and cooling costs while still maintaining performance and reliability. This operating mode bypasses unused electrical components in good power conditions to achieve higher operating efficiency without sacrificing protection and maintaining Energy Star compliance
- No Battery Needed
- The SRT1500RMXLA can immediately protect equipment when power returns after a complete discharge of the battery
- Built-In Energy Meter
- Measures energy use and displays UPS efficiency in various modes of operation for energy tracking
- Optional Additional Battery Packs
- These can be added to increase the overall runtime for business-critical devices such as mid-range Windows/Linux servers, business-critical servers, Wi-Fi applications, data network backbones, data storage, medical labs, imaging systems, ATM machines, programmable logical controllers (PLCs), cellular sites, and Voice-over IP devices (VoIP)
- Switched Outlet Groups
- Provides the ability to control a group of receptacles independent from the main UPS. This feature allows several options such as the ability for you to reboot hung devices without cycling the entire UPS, the shedding of non-critical loads based on a wide variety of parameters, scheduling time off to conserve energy, and sequenced turn on/off
- Enhanced Intelligent Battery Management
- Temperature compensated charging extends life and advanced algorithms recommend a replacement date. The UPS can inform users which batteries need to be replaced in advance and automatically detect when additional battery packs are added
- Graphical LCD

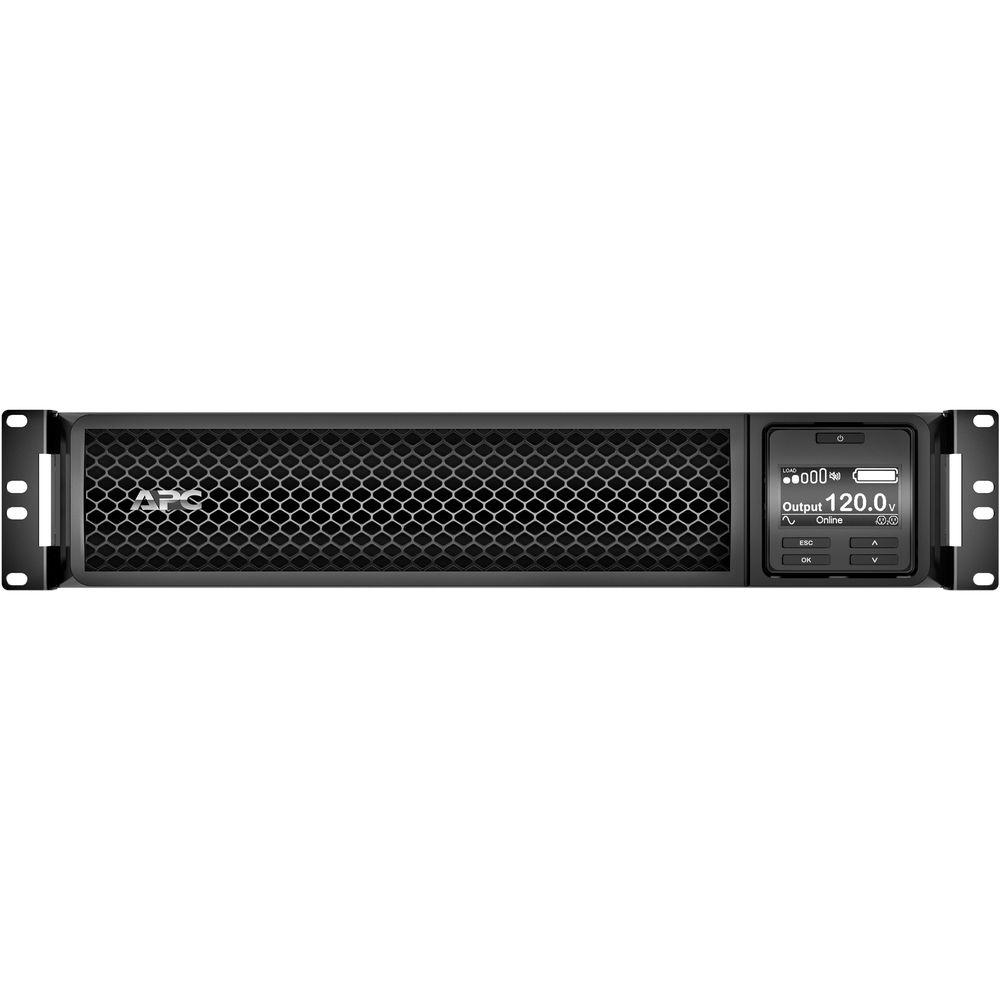

- An intuitive backlight LCD provides information on load indicator, battery charge, output/input voltage, runtime, load, and battery health. It is also available in multiple languages. The backlight's different colors allow users to identify the UPS' normal vs. attention status
Smart-UPS On-Line Features & Benefits Availability - Automatic Restart of Loads
- Automatically starts up the connected equipment upon the return of utility power
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Hot-Swappable Batteries
- Helps to ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent and precision charging.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault
Manageability - Network Manageable
- Provides remote power management of the UPS over the network.
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager
- Serial Connectivity
- Provides management of the UPS via a serial port
- SmartSlot
- Customize UPS capabilities with management cards
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
Adaptability - Plug-and-Play External Batteries
- Helps ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Rack/Tower Convertible

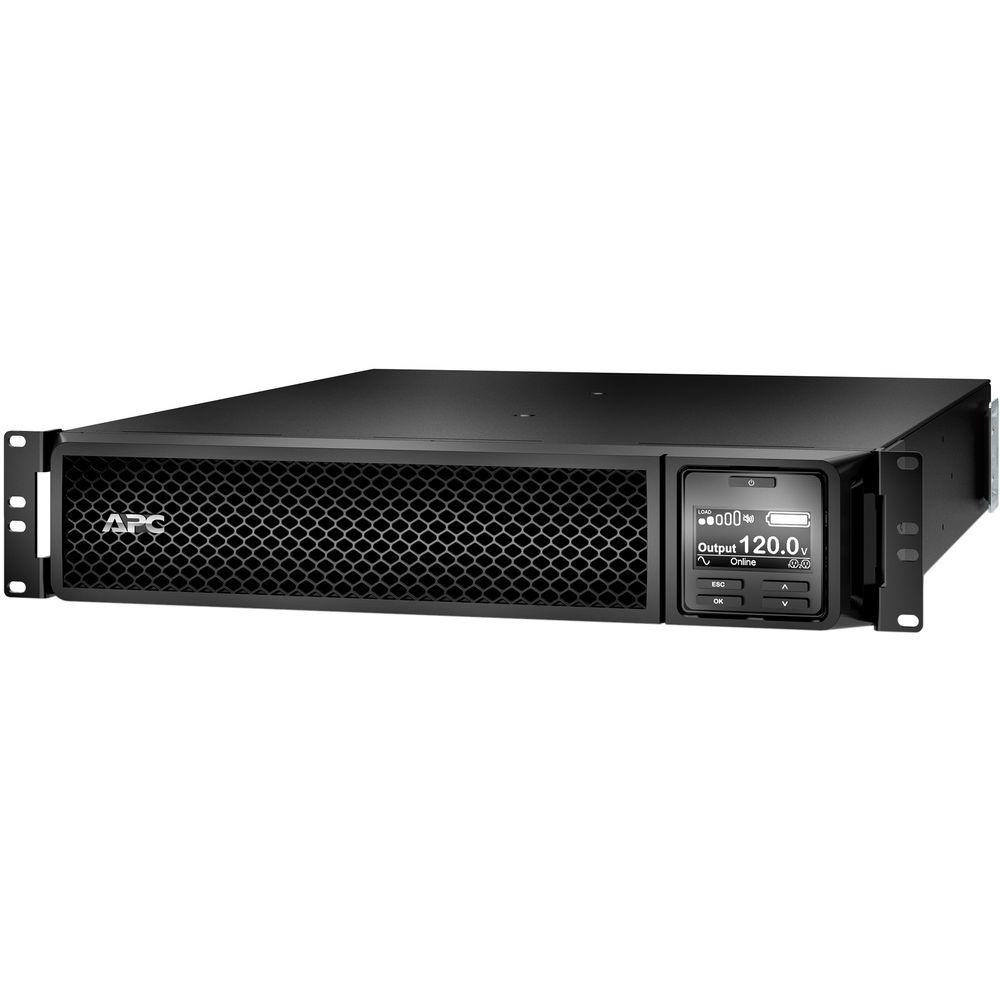

- The SRT1500RMXLA can be mounted into a 2 RU rack or enclosure
- Flash Upgradeable Firmware
- Install maintenance releases of firmware remotely using FTP
Serviceability - User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time To Repair (MTTR)
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Automatic Self-Test
- Periodic battery self-tests ensure early detection of a battery that needs to be replaced
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Protection - Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Resettable Circuit Breaker
- User-friendly recoveries from overloads and no need to replace fuses
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling
UPC: 731304330073 In the Box APC SRT1500RMXLA Smart-UPS Battery Backup Limited 2-Year Battery Warranty Limited 3-Year Warranty More from Manufacturer zbaxbfeqtxvcbbsy More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SRT1500RMXLA Smart-UPS Battery Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Smart-UPS SRT 1500VA Specs | | | Output Power Capacity | 1350 W / 1500 VA | | Max Configurable Power | 1350 W / 1500 VA | | Nominal Output Voltage | 120 V | | Output Voltage Distortion | Less than 2% | | Output Frequency (Sync to Mains) | 50/60 Hz ±3 Hz | | Load Crest Factor | 3:1 | | Topology | Double Conversion Online | | Waveform Type | Sine | | Output Connections | 6 x NEMA 5-15R (Battery Backup) | | Bypass | Built-in | | | | Nominal Input Voltage | 120 V | | Input Frequency | 47 to 70 Hz (auto-sensing) | | Input Connections | NEMA 5-15P | | Cord Length | 6.0' / 1.8 m | | Input Voltage Range for Main Operations | 90 to 150 V | | Number of Power Cords | 1 | | | | Battery Type | Maintenance-free, leakproof, and sealed lead-acid battery with suspended electrolytes | | Included Battery Modules | 1 | | Typical Recharge Time | 3 hours | | Replacement Battery | APCRBC155 | | Expected Battery Life | 3 to 5 years | | RBC Quantity | 1 | | Extendable Run Time | 1 | | Extended Run Options | APC-Smart-UPS-SRT-1500 VA-RM-120 V | | | | Interface Ports | RJ45, Serial, Smart-Slot, and USB | | Control Panel | Multi-function LCD status and control console | | Audible Alarms | Audible and visible alarms prioritized by severity | | Emergency Power Off (EPO) | Yes | | Available SmartSlot Interface Quantity | 1 | | | | Surge Energy Rating | 480 joules | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Relative Humidity | 0 to 95% (non-condensing) | | Operating Elevation | 0 to 10,000' / 0 to 3048 m | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Storage Relative Humidity | 0 to 95% (non-condensing) | | Storage Elevation | 0 to 50,000' / 0 to 15,240 m | | Audible Noise | 50 dBA (at 3.3' / 1.0 m from surface of unit) | | Protection Class | IP 20 | | | | Approvals | CSA C22.2 No.107.3-05, ENERGY STAR V1.0 (USA), FCC Part 15 Class A, UL 1778 | | | | Color | Black | | Rack Height | 2 RU | | Dimensions | 3.35 x 17.0 x 20.0" / 8.51 x 43.2 x 50.8 cm | | Weight | 48.5 lb / 22.0 kg | | | | Package Weight | 64.35 lb | | Box Dimensions (LxWxH) | 29.0 x 23.0 x 9.0" |
