User Manual for APC SurgeArrest 11-Outlet Surge Protector with Phone and Video Protection Click to enlarge the picture
Contents of the user manual for the APC SurgeArrest 11-Outlet Surge Protector with
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC SurgeArrest 11-Outlet Surge Protector with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

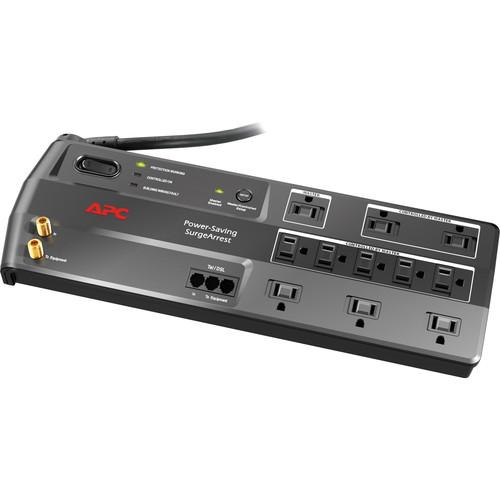

Product description Protect your devices with the SurgeArrest 11-Outlet Surge Protector from APC. With 11 outlets, two coaxial cable connectors, and three telephone cable connectors, this surge protector will prevent damage from electrical power surges and spikes to many devices.
The surge protector has a 180° rotating cord retainer to offer strain relief and flexible positioning. There are six block outlets for larger transformer boxes, as well as five outlets for smaller plugs. To conserve electricity, the outlets automatically cut power to idle connected equipment. Status indicator LEDs alert you of any change to the power supply and an audible alarm provides a failure notification when there has been damage from a strike or surge. - Protection
- Lightning and surge protection to prevent damage to your equipment from electric power surges and spikes.
- Data-Line Protection
- Protection of data lines (coaxial and phone lines) ensures complete protection of your equipment from surges from back-door electric surges traveling through data lines.
- 180° Rotating Cord Retainer with Right-Angle Plug
- A 180° rotating cord with strain relief offers flexible positioning and in routing the power cord, and the right-angle plug allows the cord to be closer to the wall for a clean look.
- Noise Filtering
- Attenuates EM and RF interference that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
- Power-Saving Outlets
- Automatically cuts power to idle equipment to conserve electricity.
- Resettable Circuit Breaker
- Easy recovery from overloads with no need to replace a fuse.
- Transformer Block Spacing
- Six block outlets allow bulky transformers to be plugged in without interfering with other outlets.
- Status Indicators
- Identifies dangerous wiring problems before you plug in your equipment. The surge protector will warn you via LED indicators if its circuitry has been damaged and if it is unable to continue to provide full protection. An indicator illuminates when the connected equipment draws more power than the unit's capacity.
- Fail Safe Mode
- Once circuits have been compromised, the unit disconnects equipment from the power supply, ensuring that no damaging surges reach your equipment.
- Plug-Activated Safety Shutters
- Shutters protect accidental contact with unused outlets.
- Catastrophic Event Protection
- MOVs and thermal fuse components ensure quick reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over-voltage, excess power cannot reach your equipment.
- Phone Line Splitter
- Allows use of two different types of equipment at once, such as a modem and phone.
UPC: 731304269236 In the Box APC SurgeArrest 11-Outlet Surge Protector with Phone and Video Protection Coaxial Cable Telephone Cable Limited Lifetime Warranty Limited $150,000 Connected Equipment Warranty More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SurgeArrest 11-Outlet Surge Protector with Phone and Video Protection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC P11GTV Specs | | | Outlets | 11 x NEMA 5-15R | | USB Ports | None | | Ethernet | None | | Coaxial | 2 | | RJ11 | 2 | | | | AC Input Power | 120 VAC, 60 Hz | | Surge Energy Rating | 3400 Joules | | Clamping Response Time | < 1 ns | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | | | Cable Length | 6' / 1.8 m | | Cable Management | None | | Dimensions (L x W x H) | 1.6 x 4.7 x 14.3" / 4.0 x 12.0 x 36.0 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 17.0 x 10.0 x 2.0" |
