User Manual for APC SurgeArrest Professional 7-Outlet with Phone Protection Click to enlarge the picture
Contents of the user manual for the APC SurgeArrest Professional 7-Outlet with Phone
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC SurgeArrest Professional 7-Outlet with Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

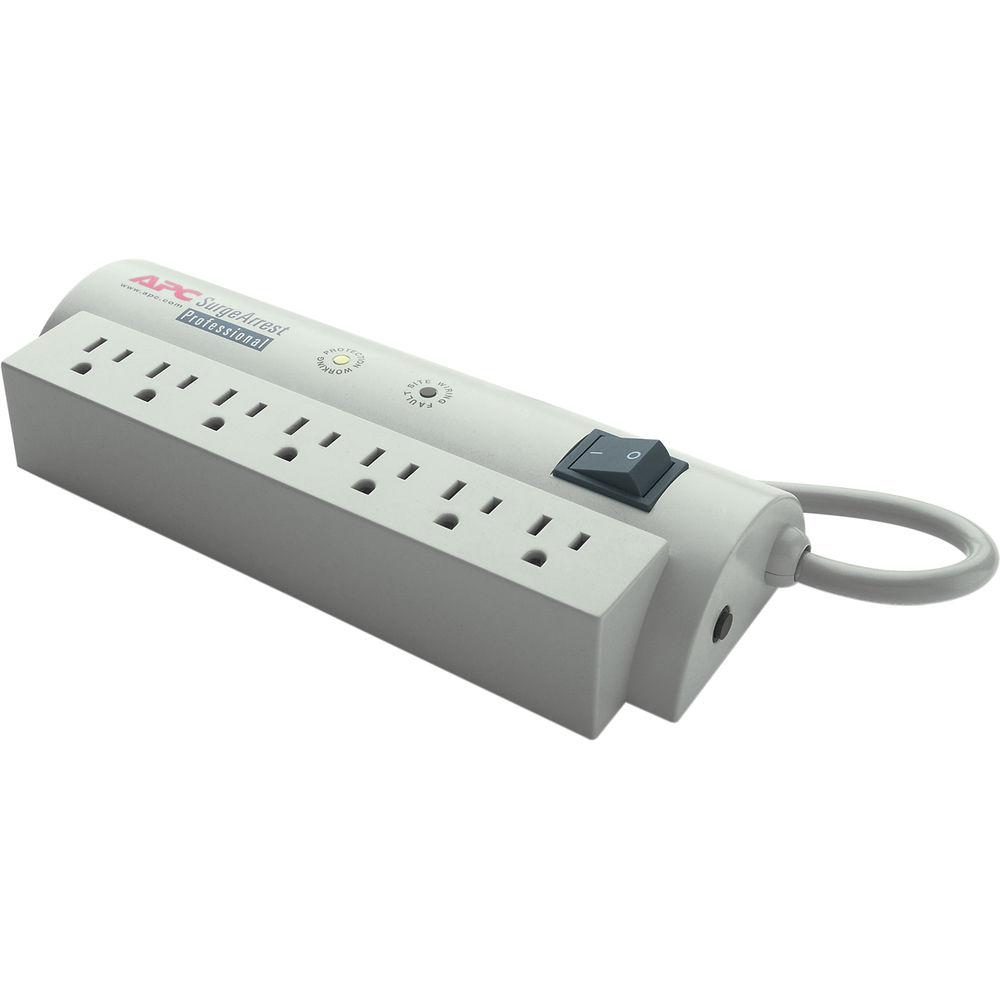

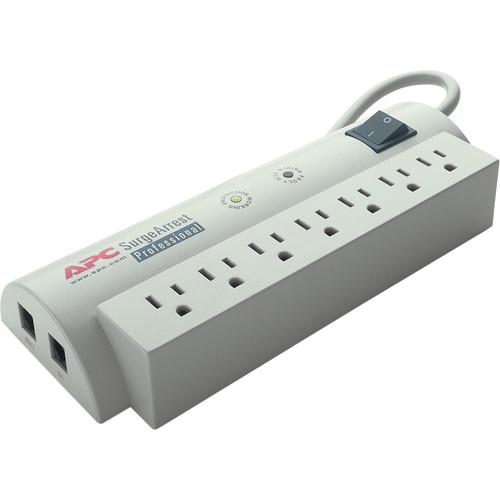

Product description The beige SurgeArrest Professional 7-Outlet with Phone Protection from APC allows you to power up to seven electronic devices using a single wall outlet. The power strip features surge protection, protecting against surges of up to 1680 joules in strength. The power strip features a phone-line splitter, which allows you to use two pieces of equipment at once, such as a modem and a phone. Protection of data lines (Ethernet, coaxial, and phone-lines) ensures complete protection of your equipment from surges. It is important to protect your equipment from "back door" surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power-lines. It thus provides protection that your equipment needs. - Right-Angle Plug
- The right-angle plug allows for equipment and furniture to be placed close to the wall than with a standard power cord. Reduces cord stress too
Protection - Lightning and Surge Protection
- Prevents equipment damage from power surges and spikes
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- Stringent testing ensures that APC's surge protectors will safeguard your equipment and data from potentially damaging surges and spikes
- Data-Line Protection
- Protection of data lines (Ethernet, coaxial, and phone lines) ensures complete protection of your equipment from surges. It is important to protect your equipment from "back door" surges traveling through data lines, since they can be as damaging to your equipment as surges traveling over power-lines
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment
Safety - Catastrophic Event Protection
- SurgeArrest components such as MOVs and thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over-voltage, excess power cannot reach your equipment
- Fail Safe Mode
- Many surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. However, SurgeArrest is fail-safe, which means that once the circuit of an APC SurgeArrest has been compromised, the unit disconnects the equipment from the power supply, ensuring that no damaging surges reach your equipment
- Overload Indicator
- This indicator illuminates when connected equipment draw more power than the unit's capacity. To remedy the condition, unplug less vital equipment
Convenience - Receptacle Shock Safety Shutters
- Shutters protect users from accidental contact with unused outlets
- Phone Line Splitter
- Allows use of two pieces of equipment at once, such as a modem and a phone
- 180° Rotating Cord Retainer
- A 180° rotating cord with strain relief offers flexibility in positioning the SurgeArrest and in routing the power cord
- Transformer Block Spacing
- Connect bulky transformer block plugs without covering up other outlets
- Adjustable Cable Management
- Keeps cords and cables neat and organized
- Building Wiring Fault Indicator
- Informs users of potentially dangerous wiring problems in the wall circuit
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power-line surge and is unable to provide protection. If it is still under warranty, APC will then replace your damaged SurgeArrest free of charge
UPC: 731304000181 In the Box APC SurgeArrest Professional 7-Outlet with Phone Protection 2 x 6' Telephone Cable Limited Lifetime Warranty More from Manufacturer vwvbwwdbrxcstvxsbxu Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SurgeArrest Professional 7-Outlet with Phone Protection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PRO7T Specs | | | Wall Plug Type | NEMA 5-15P | | Outlets | 7 x NEMA 5-15R | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 15 A | | Surge Energy Rating | 1680 Joules | | Maximum Spike Current | 13,000 A | | Clamping Voltage | 330 V | | EMI/RFI Noise Filtration | 60 dB (100 kHz to 10 MHz) | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | | | Cable Length | 6' / 1.8 m | | Cable Management | None | | Dimensions (L x W x H) | 4.3 x 2.0 x 10.5" / 108.0 x 51.0 x 267.0 mm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 12.5 x 6.9 x 2.2" |
