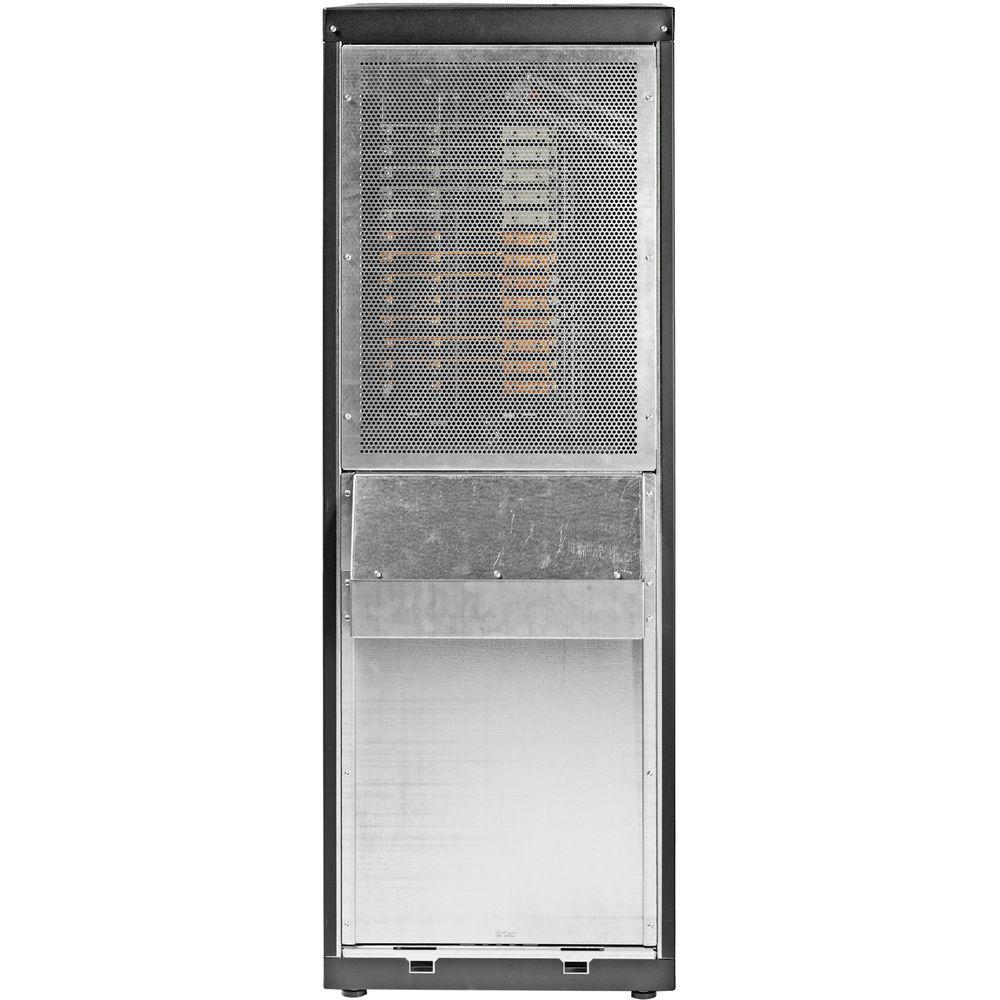

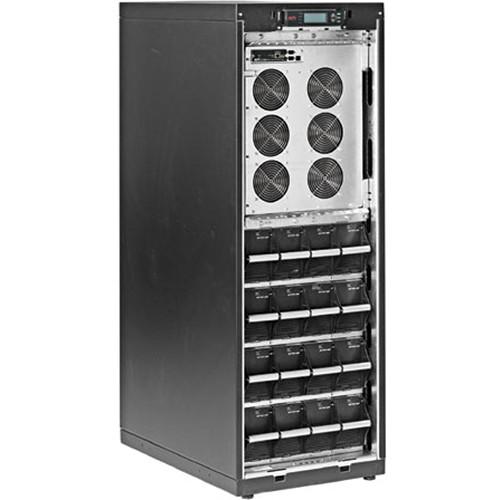

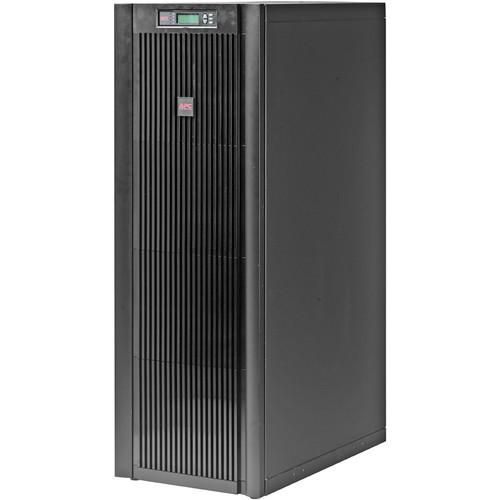

User Manual for APC SUVTP15KF4B4S Smart-UPS VT with 4 Battery Modules Click to enlarge the picture
Contents of the user manual for the APC SUVTP15KF4B4S Smart-UPS VT with 4
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC SUVTP15KF4B4S Smart-UPS VT with 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC SUVTP15KF4B4S Smart-UPS with 4 Battery Modules has up to a 47 minute run time and is expandable for additional battery modules. It can increase total power capacity by using multiple uninterruptible power supplies simultaneously, and power the connected equipment with multiple uninterruptible power supplies to increase system redundancy. - Parallel-capacity capable - increases total power capacity by using multiple uninterruptible power supplies simultaneously
- Parallel-redundant capable - power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
- Dual mains input - increases availability by allowing the UPS to be connected to two separate power sources
- Scalable runtime - allows additional run time to be quickly added as needed
- Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Generator compatible - ensures clean, uninterrupted power to protected equipment when generator power is used
- Automatic internal bypass - supplies utility power to the connected loads in the event of a UPS power overload or fault
- Battery modules connected in parallel - delivers higher availability through redundant batteries
- Battery replacement without tools - Enables fast battery replacement, lowering mean time to repair (MTTR).
- Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
- Shippable with modules installed - enables pre-installation UPS staging and testing and faster installation
- Modular design - provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules
- Network manageable provides remote power management of the UPS over the network
- InfraStruXure Manager compatible - enables centralized management via the APC InfraStruXure Manager
- LCD display - alpha-numeric display which displays system parameters and alarms
- Audible alarms - provides notification of changing utility power and UPS power conditions
- Programmable frequency ensures compatibility with different input frequencies
- LED status indicators - quickly understand unit and power status with visual indicators
- SmartSlot allow you to customize UPS capabilities with management cards
- Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature
- Manual maintenance bypass reduces installation costs by eliminating the need for an external mechanical bypass
- Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging
- Frequency and voltage regulation gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Cold-start capable - provides temporary battery power when the utility power is out
In the Box APC SUVTP15KF4B4S Smart-UPS VT with 4 Battery Modules UPS Network Management Card with Environmental Monitoring Bolt Down Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the APC SUVTP15KF4B4S Smart-UPS VT with 4 Battery Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC VT 15KVA Specs | | | SmartSlot Interface | 1 | | Communications | Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Maximum Current | 80 A | | Maximum Wattage | 12,000 W | | Input Voltage Range | 208 to 220 VAC | | Input Voltage Adjustable Range | 165 to 240 VAC | | Input Frequency | 50/60 Hz ± 10 Hz | | Output Voltage Range | 120 to 220 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 15,000 VA | | Circuit Breaker Rating | 125 A | | Thermal Dissipation | 3276 BTU/Hour | | Maximum Efficiency | 93.0% | | Waveform | Sine Wave | | | | Cells | 4 | | Full-Load Runtime | 27 Minutes | | Charging Time | 5 Hours | | Replacement Battery | VRLA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -58 to 104°F / -50 to 40°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 3333' / 1000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 54 dBA | | | | Dimensions (W x H x D) | 59.0 x 20.6 x 32.0" / 149.9 x 52.3 x 81.3 cm | | Weight | 1320.8 lb / 599.1 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
