User Manual for APC Symmetra LX 16kVA Click to enlarge the picture
Contents of the user manual for the APC Symmetra LX 16kVA
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Symmetra LX 16kVA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

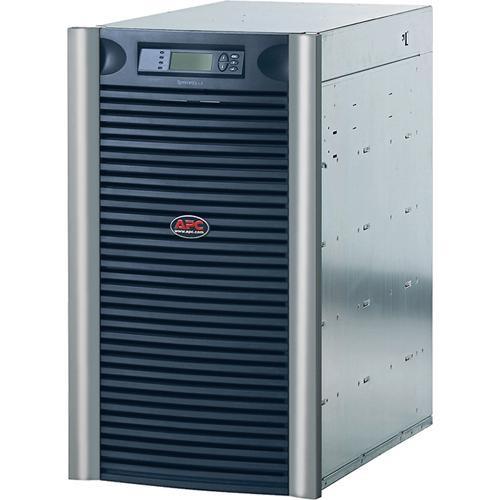

Product description The Symmetra LX 16kVA from APC is a professional surge protector, designed for use in server rooms and data centers.. Featuring an integrated Uninterruptible Power Supply (UPS) system, the Symmetra s battery can power devices for up to 17.1 minutes at half-load capacity. The UPS features can power both 208/240V and 120V devices, and features a 19U rackmount form factor for professional installation. - Battery lasts for 17.1 minutes at half-load and 6 minutes at full-load
- 19U rackmount form factor
- RS-232 serial port for communication
- Includes Web/SNMP management card for Ethernet management
In the Box APC Symmetra LX 16kVA Rack Mounting Support Rails Temperature Probe Web/SNMP Management Card Software CD-ROM Documentation CD Installation Guide Limited 2-Year Warranty More info from APC bqytzsfewvddtwbydseaav Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Symmetra LX 16kVA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

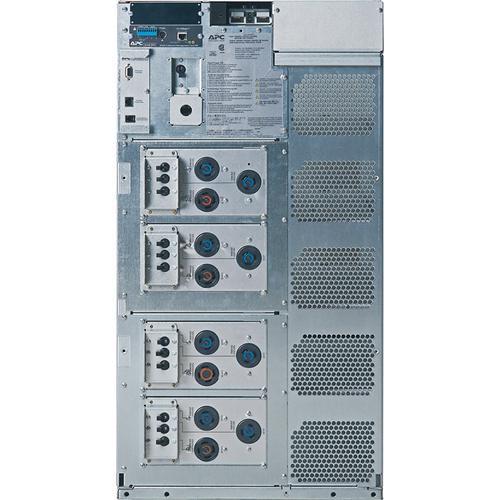

Technical parametersAPC 16kVA Specs | | | Total Outlets | 4 x NEMA L14-30R
8 x NEMA L5-20R | | Data Line Protection | RJ45 | | Communications | Serial | | | | Maximum Wattage | 12,800 W | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 96 to 138 VAC | | Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) | | Output Voltage Range | 120 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 16,000 VA | | Crest Factor | 5:1 | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 6 Minutes | | Half-Load Runtime | 17.1 Minutes | | Replacement Battery | SYBT5 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Dimensions (W x H x D) | 18.6 x 32.9 x 27.1" / 47.2 x 83.6 x 68.8 cm | | Weight | 631.0 lb / 286.8 kg | | | | Package Weight | 749.0 lb | | Box Dimensions (LxWxH) | 41.5 x 39.25 x 23.6" |
