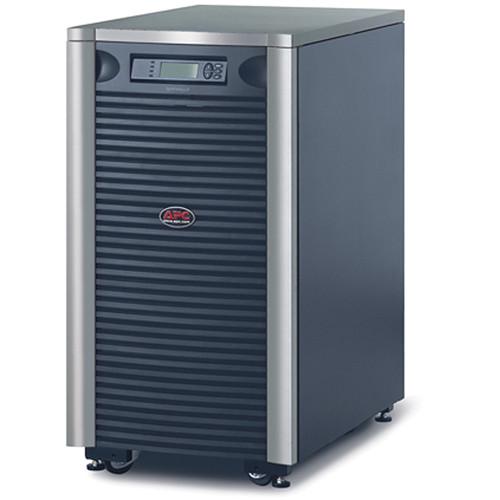

User Manual for APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower Click to enlarge the picture
Contents of the user manual for the APC Symmetra LX 8kVA Scalable to
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Symmetra LX 8kVA Scalable to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Symmetra LX 8kVA Scalable to 16kVA N+1 Tower from APC provides a continuous supply of power to connected devices in the event of an AC power loss. It also provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. The UPS provides high availability through redundancy by allowing configuration with one more power module than necessary, to support the connected load. It ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement. With automatic internal bypass, it supplies utility power to the connected loads in the event of a UPS power overload or fault and also automatically starts up the connected equipment upon the return of utility power. Availability - Removable Input/Output Wiring Tray
- Allows quick and easy installation and maintenance of the UPS
- Modular Design
- Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules
- Configurable for N+1 Internal Redundancy
- Provides high availability through redundancy by allowing configuration with one more power module than necessary, to support the connected load
- Redundant Intelligence Modules
- Provides high availability to the UPS connected loads, by giving redundant communication paths to critical UPS functions
- Hot-Swappable Intelligence and Power Modules
- It ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Power Modules Connected in Parallel
- Enhances availability by allowing immediate, seamless recovery from isolated module failures
- Battery Modules Connected in Parallel
- Delivers higher availability through redundant batteries
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
Scalability - Scalable Power Capacity
- Reduces UPS over-sizing costs by allowing quick power upgrades, within the same footprint
- Scalable Runtime
- Allows additional run time to be quickly added as needed
- Plug and Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
- Field-Replaceable Power Distribution Panel
- Ensures compatibility with equipment that has different plug types
- Programmable Frequency
- Ensures compatibility with different input frequencies
Manageability - Manageable External Batteries
- Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime
- Network Manageable
- Provides remote power management of the UPS over the network
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure Manager

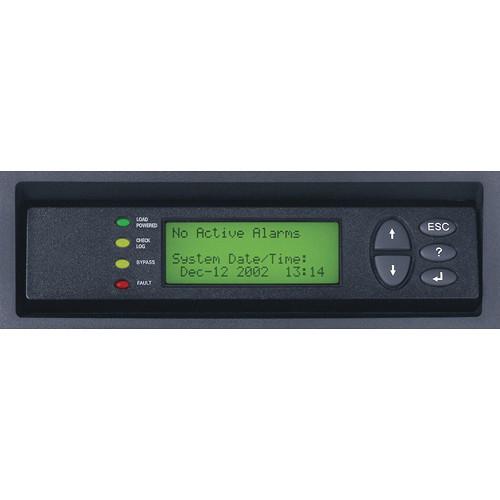

- LCD Display
- Alpha-numeric display which displays system parameters and alarms
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging

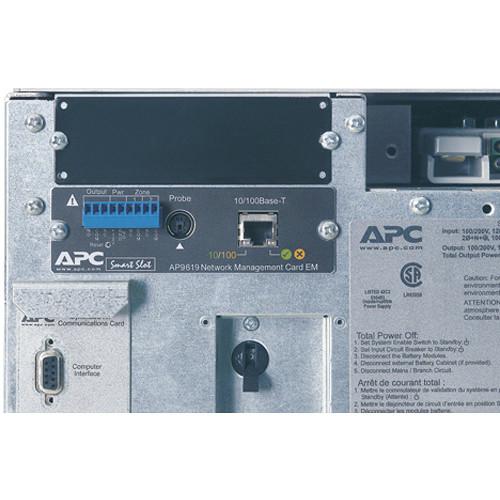

- SmartSlot
- Customize UPS capabilities with management cards
Serviceability - Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition
- User-Replaceable Intelligence Modules
- Enables simple upgrades and replacements of the intelligence modules
- User-Replaceable Power Modules
- Enables simple upgrades and replacements of the power modules
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Protection - Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling
- Generator Compatible
- Ensures clean, uninterrupted power to the loads in the event of an extended power outage
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304221777 In the Box APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower Web/SNMP Management Card CD with Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Symmetra LX 8kVA Scalable to 16kVA N 1 Tower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SYA8K16P Specs | | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Maximum Wattage | 6400 W | | Input Voltage Range | 96 to 240 VAC | | Input Frequency | 50/60 Hz ± 5 Hz (Auto Sensing) | | Output Voltage Range | 120 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <5% | | Load Capacity | 8000 VA | | Thermal Dissipation | 4995 BTU/Hour | | Crest Factor | 5:1 | | Waveform | Sine Wave | | | | Cells | 2 | | Chemistry | Lead-Acid | | Charging Time | 3 Hours | | Replacement Battery | SYBT5 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 15,000' / 4500 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 19.0 x 36.9 x 28.6" / 48.3 x 93.7 x 72.6 cm | | Weight | 484.0 lb / 219.6 kg | | | | Package Weight | 521.0 lb | | Box Dimensions (LxWxH) | 46.5 x 39.25 x 23.6" |
