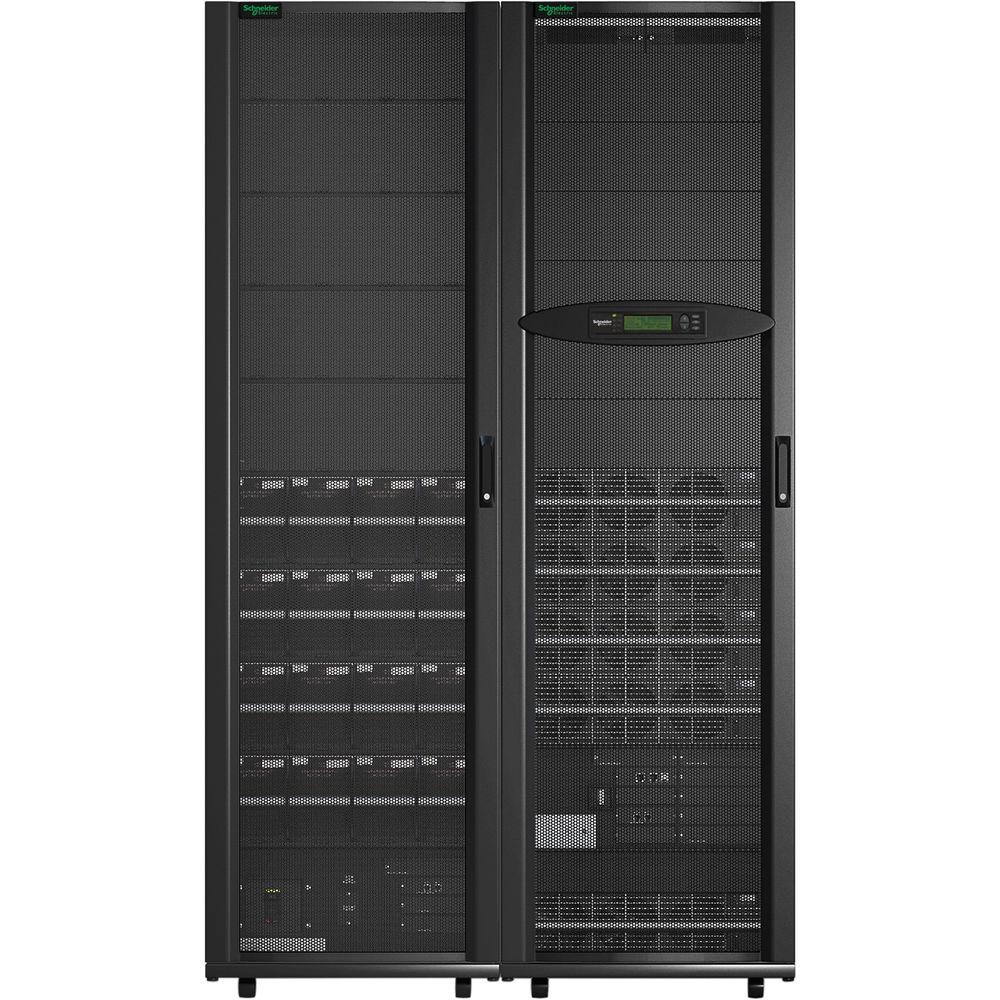

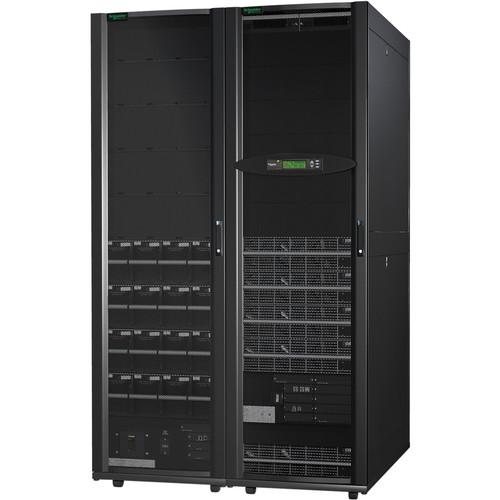

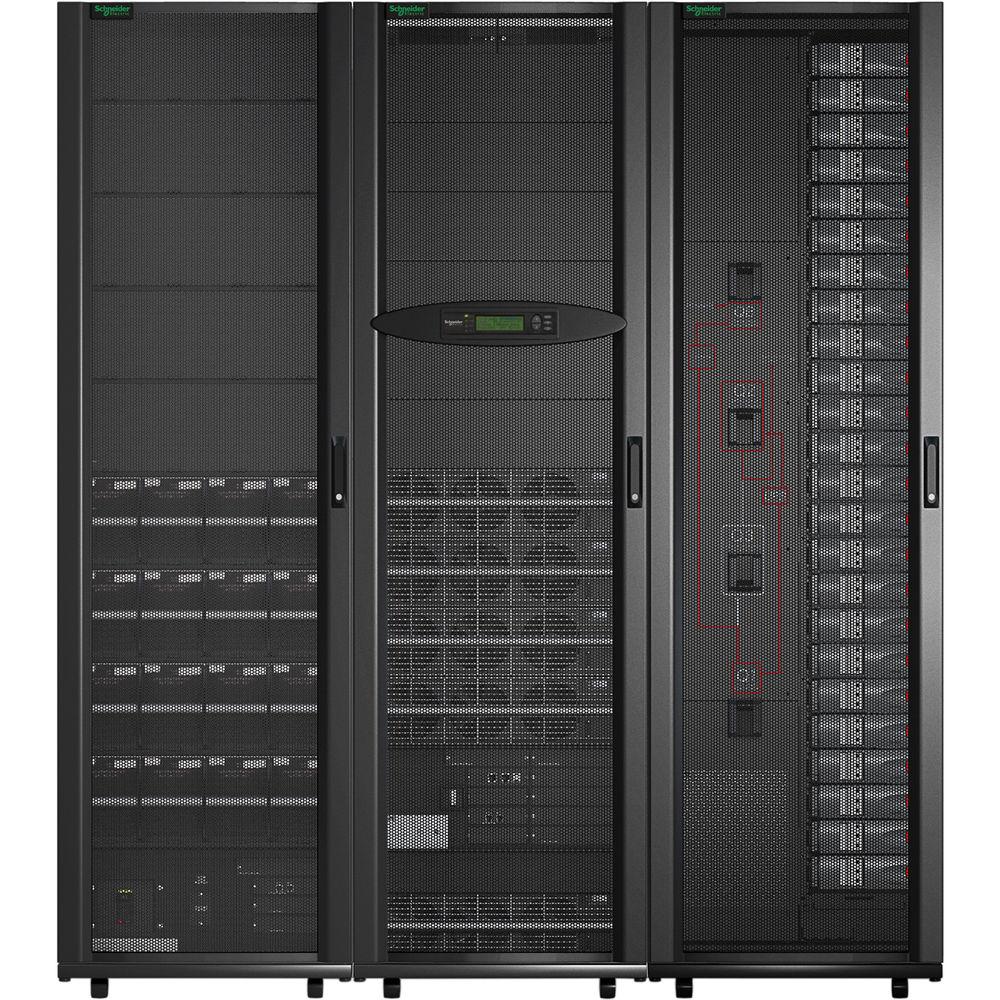

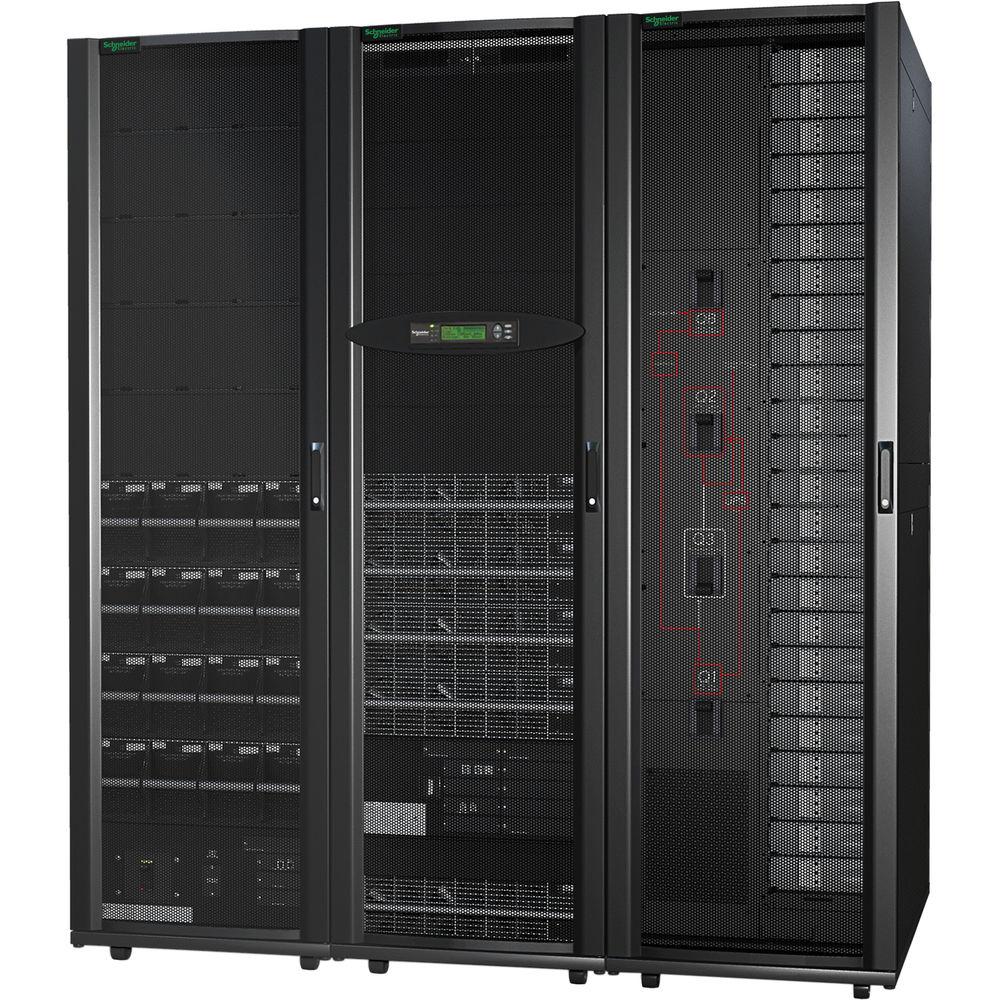

User Manual for APC Symmetra PX 40kW UPS Click to enlarge the picture
Contents of the user manual for the APC Symmetra PX 40kW UPS
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Symmetra PX 40kW UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Suitable for use in small to medium data centers and high-density zones, the Symmetra PX 40kW UPS from APC is a modular, high-efficiency 3-phase UPS that is scalable up to 100kW. Its batteries can provide 44 minutes of runtime for connected components at 10kW, 18 minutes of runtime at 20kW, 10 minutes of runtime at 30kW, and 6 minutes of runtime at 40kW. It also provides an output capacity of 40kW / 40 kVA, one Hard Wire 5-wire (3PH + N + G) battery backup outlet, an input voltage of 208V @ 40-70 Hz, and utilizes double conversion online topology, a sine waveform, DB-9 RS-232 and SmartSlot interfaces, and an LCD status and control console. Its battery modules can be recharged in around two hours, and this UPS can be also expanded for increased runtimes.
Included are 4 x Symmetra PX 10kW Power Modules (208V), 16 x Symmetra PX 9Ah Battery Units, one Symmetra PX Battery Frame for 400V PX 96/160kW & 208V PX 100kW for 9 Battery Modules, and one Symmetra PX 100kW Power Frame (208V). Protection is provided by a limited 1-year onsite repair or replace warranty with factory authorized 5x8 start-up. SY40K100F Features - Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Advanced Electrical Features
- Good power conditioning, low harmonic distortion through IGBT rectifier, input power factor correction, and improved power efficiency.
- Automatic Self-Test
- Periodic battery self-test helps ensure early detection of a battery that needs to be replaced.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance.
- Battery Modules Connected in Parallel
- Delivers higher availability through redundant batteries.
- Battery Replacement without Tools
- Enables fast battery replacement, lowering the Mean Time to Repair (MTTR).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Manageable External Batteries
- Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtimes.
- Swappable Batteries
- Allows quick addition of runtime capacity or the replacement of existing battery modules. Installed modules are automatically recognized by the system.
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature.
Symmetra PX Features & Benefits Manageability - Integrates with StruxureWare Data Center Expert
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions.
- LED Status Indicators
- Understand unit and power status with visual indicators.
Total Cost of Ownership - Fully-Rated Power kVA Equals kW
- Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads.
- 5x8 Start-Up Service Included
- Required for full coverage of factory warranty.
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling.
Sustainability - ENERGY STAR for UPS
- Establishes that the efficiency of the UPS is in the top 25% of the market as verified by third party testing.
Agility - Programmable Frequency
- Ensures compatibility with different input frequencies.
- SmartSlot
- Customize UPS capabilities with management cards.
- Scalable Power Capacity
- Reduces UPS over-sizing costs by allowing quick power upgrades, within the same footprint, later.
Availability - Network Manageable
- Provides remote power management of the UPS over the network.
- Modular Design
- Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Redundant Intelligence Modules
- Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
- Configurable for N+1 Internal Redundancy
- Provides high availability through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
- Swappable Power Modules
- Allows quick addition of power capacity or replacement of existing power modules. Installed modules are automatically recognized by the system.
- Power Modules Connected in Parallel
- Enhances availability by allowing immediate, seamless recovery from isolated module failures.
UPC: 731304282617 In the Box APC Symmetra PX 40kW UPS 4 x Symmetra PX 10kW Power Modules (208V, High Efficiency) 16 x APC Symmetra PX 9Ah Battery Units (High Performance) 1 x APC Symmetra PX Battery Frame for 400V PX (96/160kW & 208V PX 100kW) for 9 Battery Modules 1 x APC Symmetra PX 100kW Power Frame (208V) Network Management Card 5x8 Start-Up Service Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Symmetra PX 40kW UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SY40K100F Specs | | | SmartSlot Interface | 2 | | Communications | Serial | | Topology | Double Conversion | | Transfer Time | 2 ms | | | | Maximum Current | 332 A | | Maximum Wattage | 40,000 W | | Nominal Input Voltage | 208 VAC | | Input Voltage Adjustable Range | 177 to 239 VAC | | Input Frequency | 50/60 Hz ± 10 Hz | | Output Voltage Range | 120 to 208 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <2% | | Load Capacity | 40,000 VA | | Maximum Efficiency | 94.7% | | Power Factor Correction | 0.98 | | Waveform | Sine Wave | | | | Charging Time | 2 Hours | | Replacement Battery | VRLA | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 3333' / 1000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 67 dBA | | | | Dimensions (W x H x D) | 79.2 x 47.2 x 42.1" / 201.1 x 120.0 x 107.0 cm | | Weight | 2548.8 lb / 1156.1 kg |
