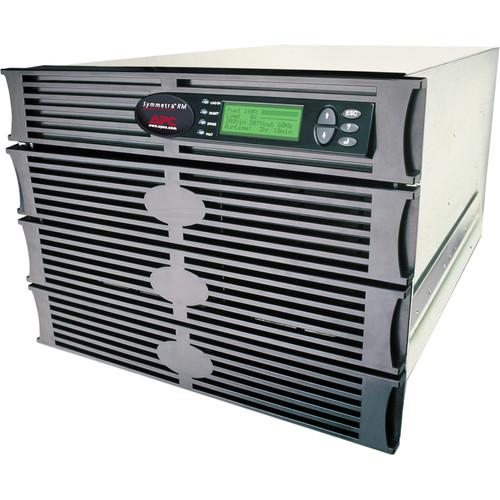

User Manual for APC Symmetra RM 6kVA to 6kVA N 1 Single Phase UPS and Scalable Double-Conversion Click to enlarge the picture
Contents of the user manual for the APC Symmetra RM 6kVA to 6kVA
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Symmetra RM 6kVA to 6kVA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Provided by third party: The Symmetra RM brings the proven and patented Symmetra Power Array technology in a rack-mountable form. With more servers, storage products and other mission-critical IT equipment becoming rack-based, the need is increasing for high availability innovative rack-based power solutions. Symmetra RM meets this need with scalable, redundant units.

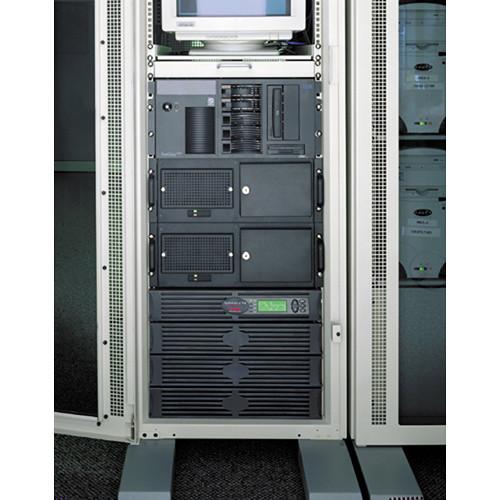

Symmetra Rack Mount is an ideal solution for branch office locations, small and medium business data centers, internetworking and telecom racks, and all other high availability applications. In addition to the advantages of hot-swappability and redundancy, rack users can also benefit from Symmetra's self-diagnosing, scalable components and integrated Web/SNMP management features.
- Key Features
-
- Avoids costly power problems by keeping your IT equipment and data protected and available.. Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events
- Modular, Scalable, Redundant Architecture future proof initial investment, improves equipment availability, and simplifies maintenance.. Symmetra LX's redundant N+1 architecture enables the unit to withstand a failures of an intelligence module, battery or power module. Modules are easily replaceable in the field. Customers can add additional power modules or batteries after initial equipment purchase to accommodate loads of up to 16 kVA

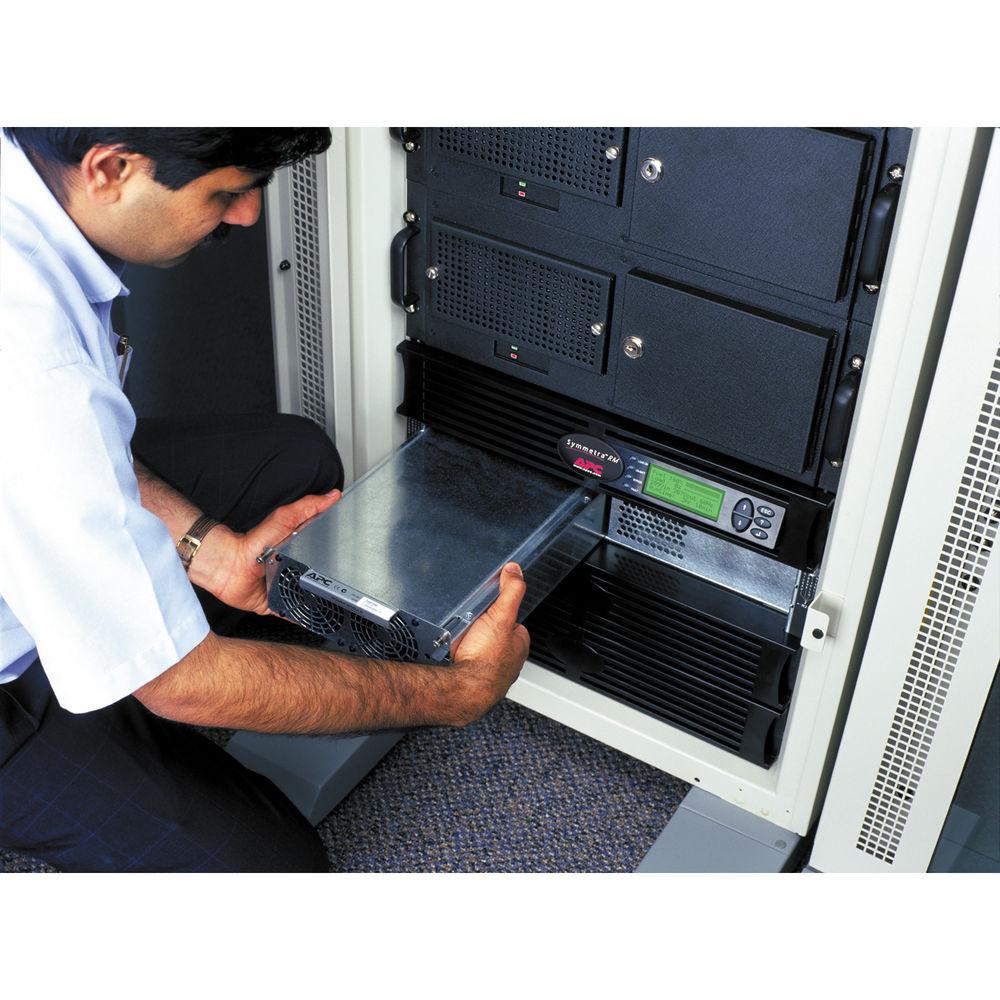

- Low operating and maintenance costs with proven reliability and intelligent battery management.. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down
- Save time with easy and convenient remote accessibility.. Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities
- Peace of mind that comes with complete equipment compatibility and reliability of a market leader.. Safety agency tested and approved means that you can deploy Symmetra with confidence that they meet or exceed the industry's most rigorous standards
In the Box APC Symmetra RM 6kVA to 6kVA N+1 Single Phase UPS and Scalable Double-Conversion (208/240V) CD with software, Rack Mounting brackets, Rack Mounting support rails, User Manual Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Symmetra RM 6kVA to 6kVA N 1 Single Phase UPS and Scalable Double-Conversion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

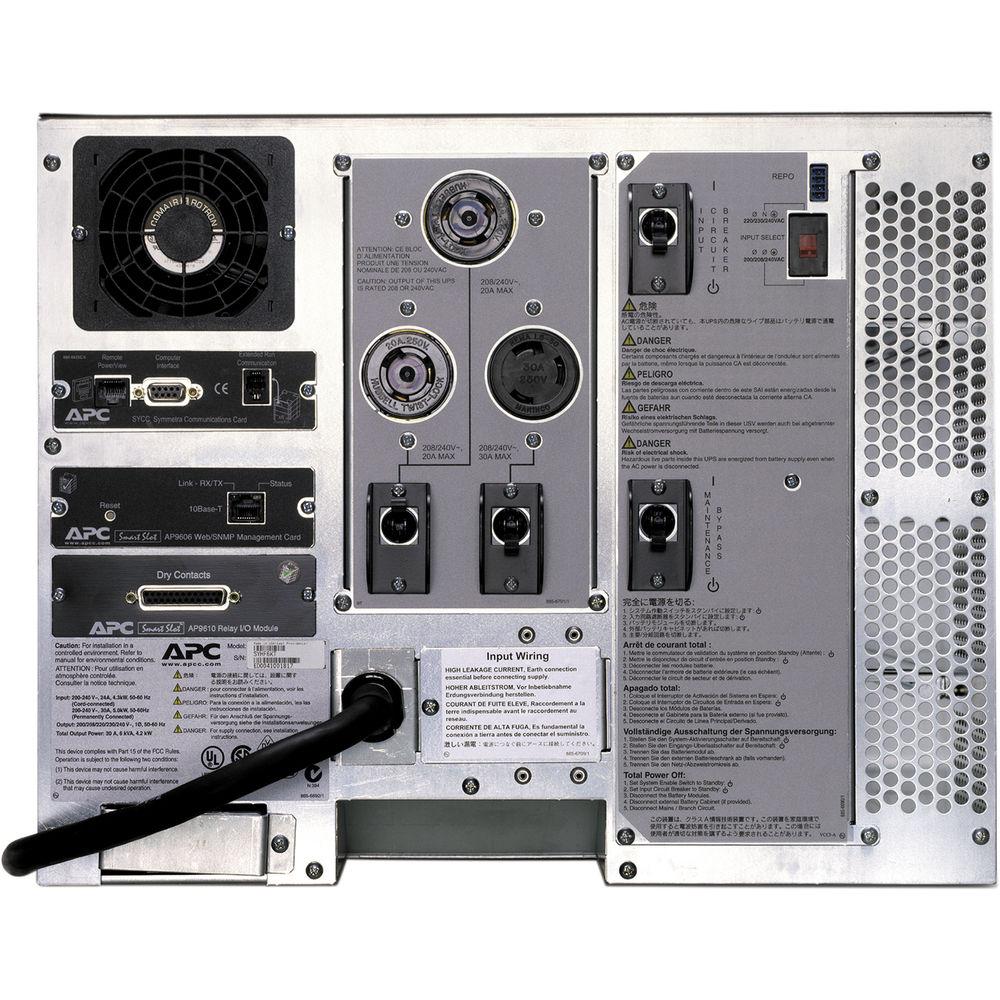

Technical parametersAPC Symmetra RM Specs | | | Device Type | Power array - rack-mountable | | Battery Enclosure Type | Plug-in module | | Height (Rack Units) | 8U | | Color | Black | | Localization | Canada, United States | | | | Input Voltage | AC 208/240 V | | Input voltage range | AC 155 - 276 V | | Frequency Provided | 57 - 63 Hz | | Frequency Required | 50/60 Hz | | Input Connectors | 1 x power NEMA L6-30 | | Power Output Connectors Details | 2 x power NEMA L6-20
1 x power NEMA L6-30 | | Output Voltage | AC 208/240 V 57 - 63 Hz | | Power Capacity | 4200 Watt | | Output Waveform | Sinewave | | Surge Suppression | Yes | | Compliant Standards | CSA, UL 1778 | | | | Quantity | 3 | | Technology | Lead acid | | Run Time (Up To) | 12.4 min at full load | | Recharge Time | 4 hours | | | | Remote Management Interface | Ethernet 10/100 | | Remote Management Protocol | SNMP, Telnet, HTTP | | | | Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9)
1 x LAN - RJ-45 | | Expansion Slots | 2 (total) / 1 (free) x SmartSlot | | | | Cables Included | Power cable 6 ft | | Rack Mounting Kit | Included | | Features | Audible alarm | | Compliant Standards | FCC Class A certified | | | | Software Included | APC PowerChute Symmetra Bundle | | | | Service & Support | Limited warranty - parts and labor - 2 years | | | | Min Operating Temperature | 32
