Product description The 5-in-1 Smartphone Lens Kit with Remote Shutter from Apexel bundles four lenses together, including a 10x telephoto lens, a 198° / 0.28x fisheye lens, a 0.63x wide-angle lens, and a 15x macro lens. Designed for Apple and Android devices, such as the iPhone 7, 6S, 6S Plus, 6, 6 Plus, 5S, and SE, Samsung S6, S6 Edge, S7, and S7 Edge, plus HTC, Sony, the LG G6 and G5 and more, also included is a tripod, a phone holder, a universal lens clip, a Bluetooth camera shutter remote with an operating distance of up to 30', a cleaning cloth, four lens covers, and a waterproof bag. Protection is provided by a limited 30-day warranty. General Features - Enhanced Photos & Videos

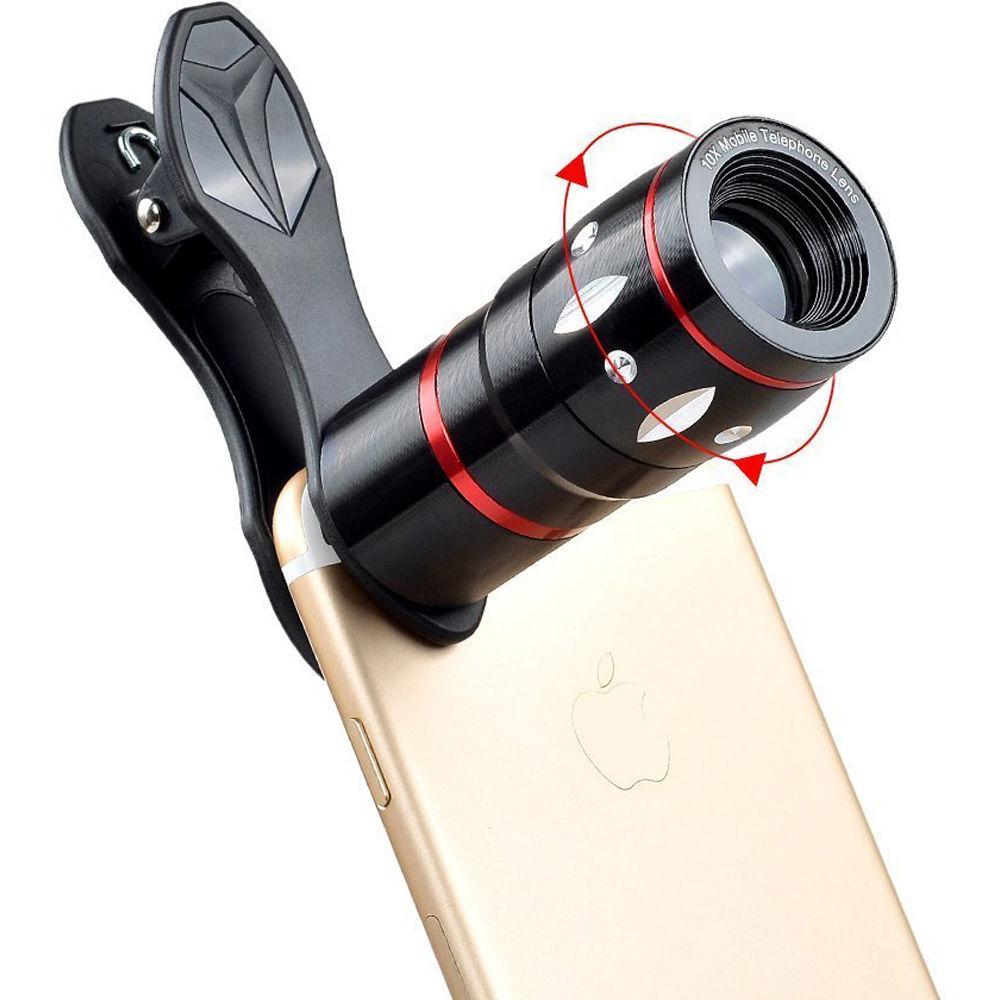

- A 10x telephoto lens delivers improved image quality from long distances, while the fisheye lens gives your images a round, fishbowl effect. The macro lens captures extreme close-up images in crisp detail, and a wide-angle lens captures expansive scenes, such as cityscapes and group shots.
- Bluetooth Camera Shutter Remote
- Designed for taking selfies or group shots that include the photographer from a distance of up to 30', you only need to pair the remote control with your smartphone once. Then, choose the camera app you want to use and press the button of the remote control to capture your shot.
- Wide-Angle and Macro Lenses: A 2-in-1 Set

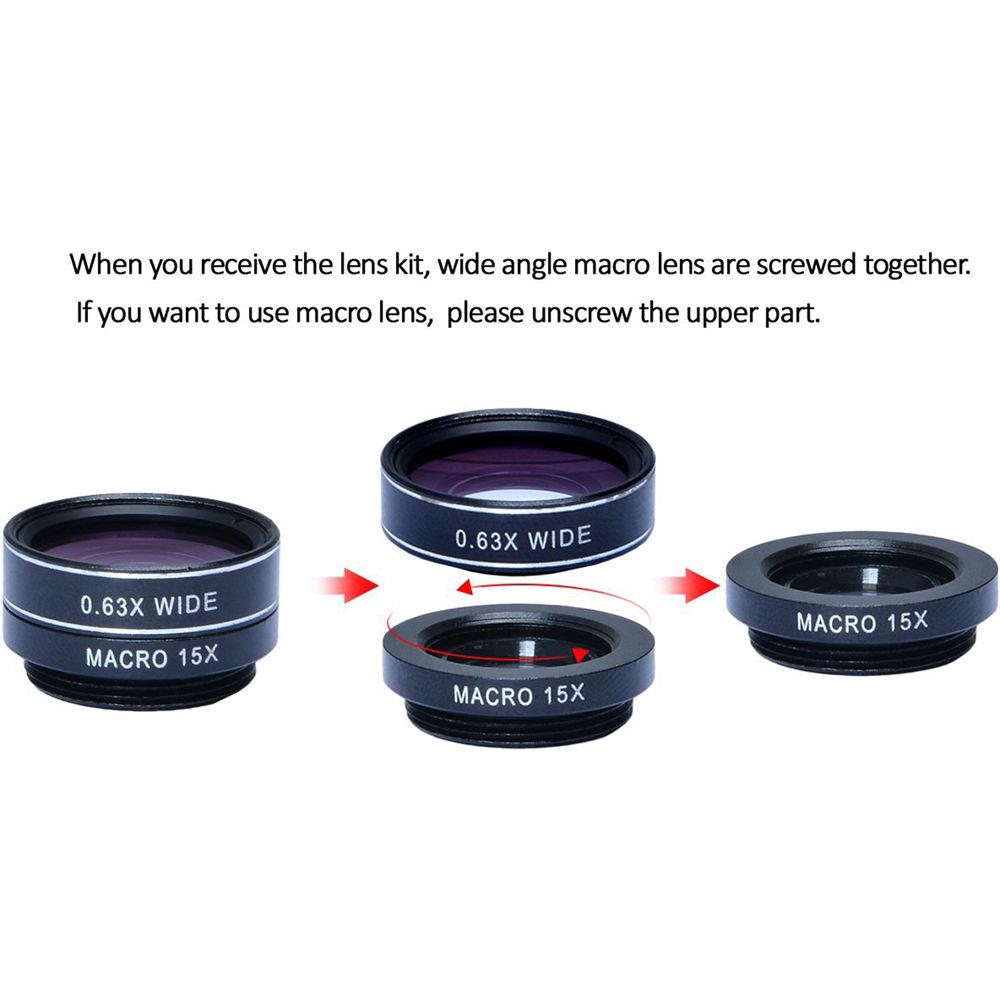

- These two small lenses are screwed together for easy storage. To use the wide-angle, simply attach both lenses to the clip provided. To use the macro lens, simply unscrew the wide-angle lens.
- Wide Range of Compatible Devices

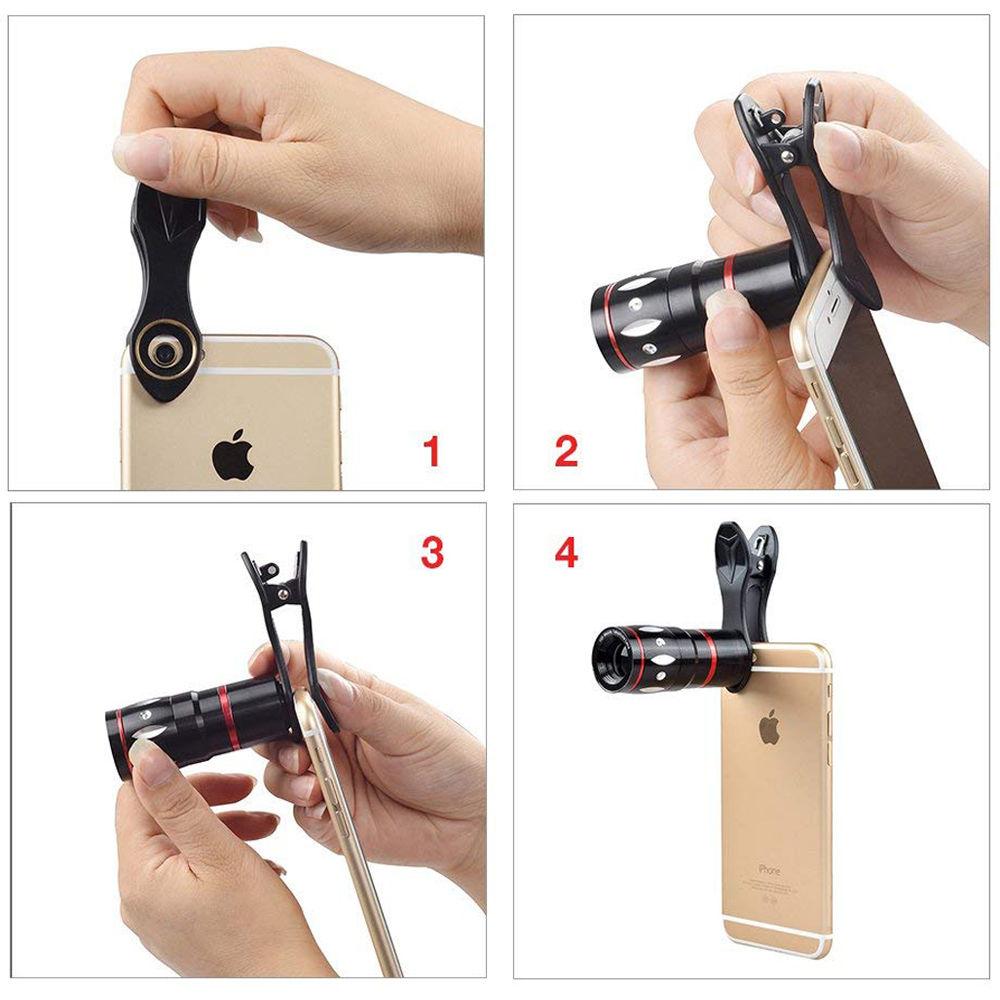

- An included universal lens clip features a portable, removable, and solid clip-on design that attaches to almost all smartphones including iPhone 7, 6S, 6S Plus, 6, 6 Plus, 5S, and SE, Samsung Galaxy S6, S6 Edge, S7, and S7 Edge, plsu HTC, Sony, the LG G6 and G5, and many others. Before you use this phone lens, please remove your phone's protective case to avoid image degradation.
- Camera 360 App
- For the majority of devices, there is no app download necessary, as the remote will automatically pair with your device via Bluetooth. However, for the Sony Xperia S, HTC One, and X+ users, simply download the "Camera 360" app in the Google Play store to use the remote.

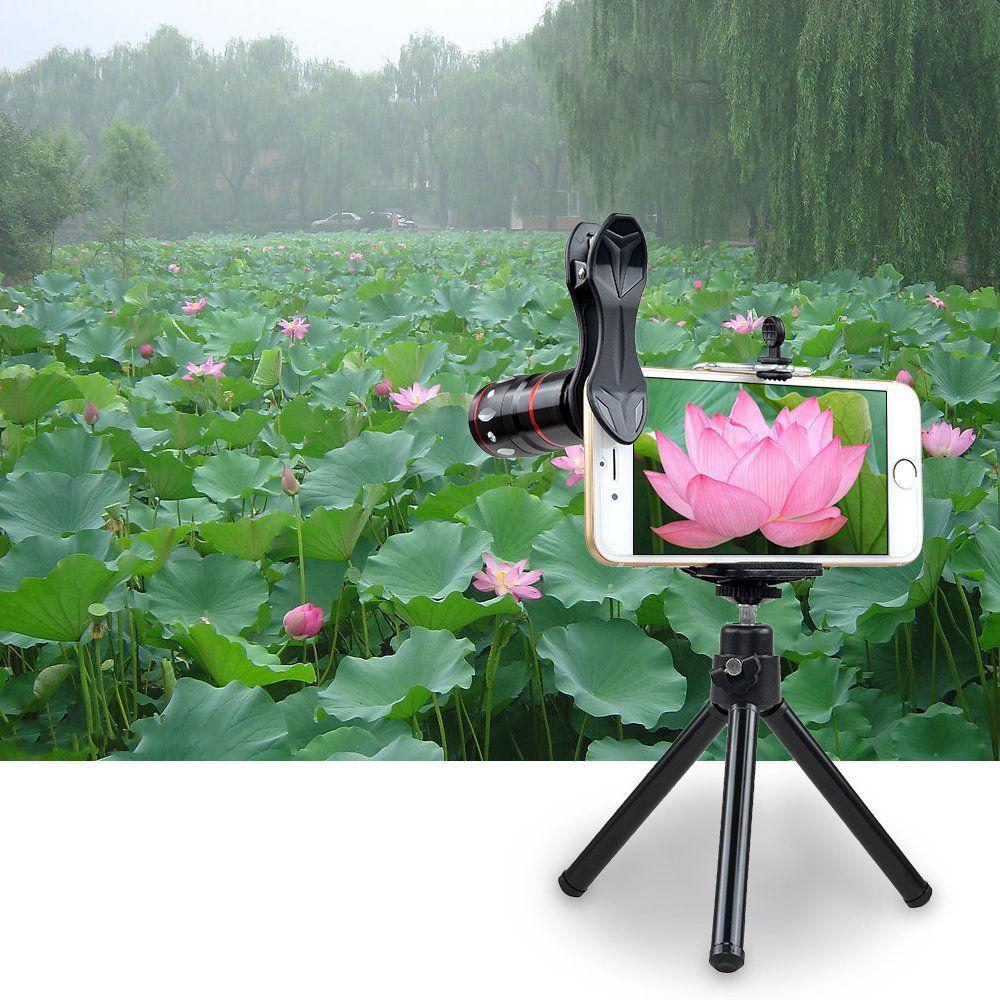

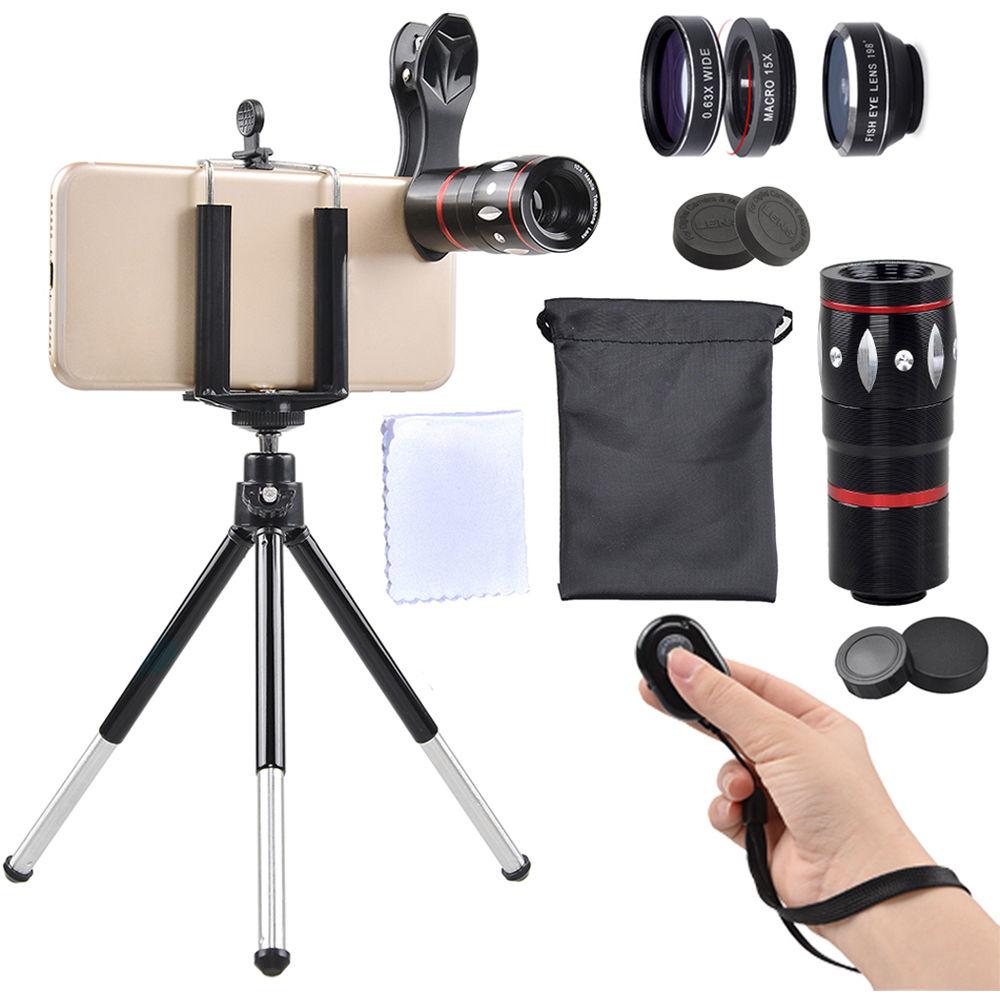

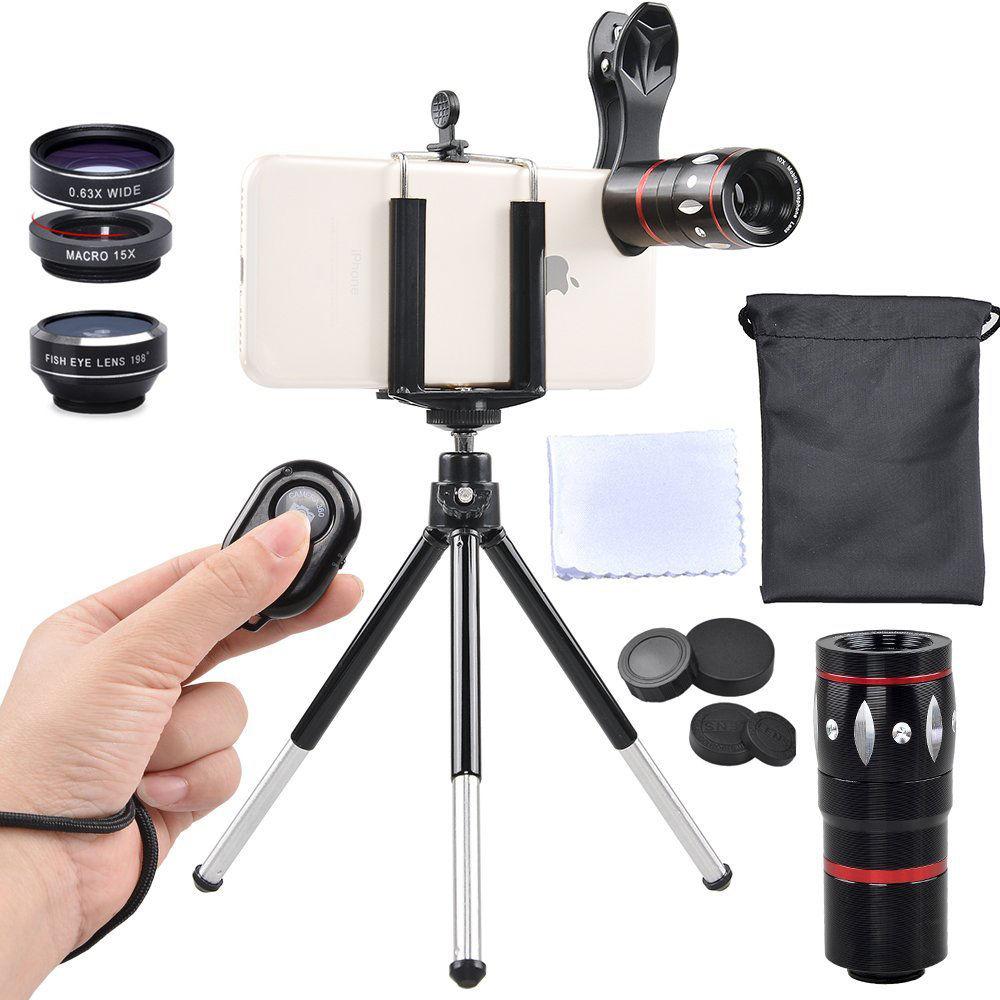

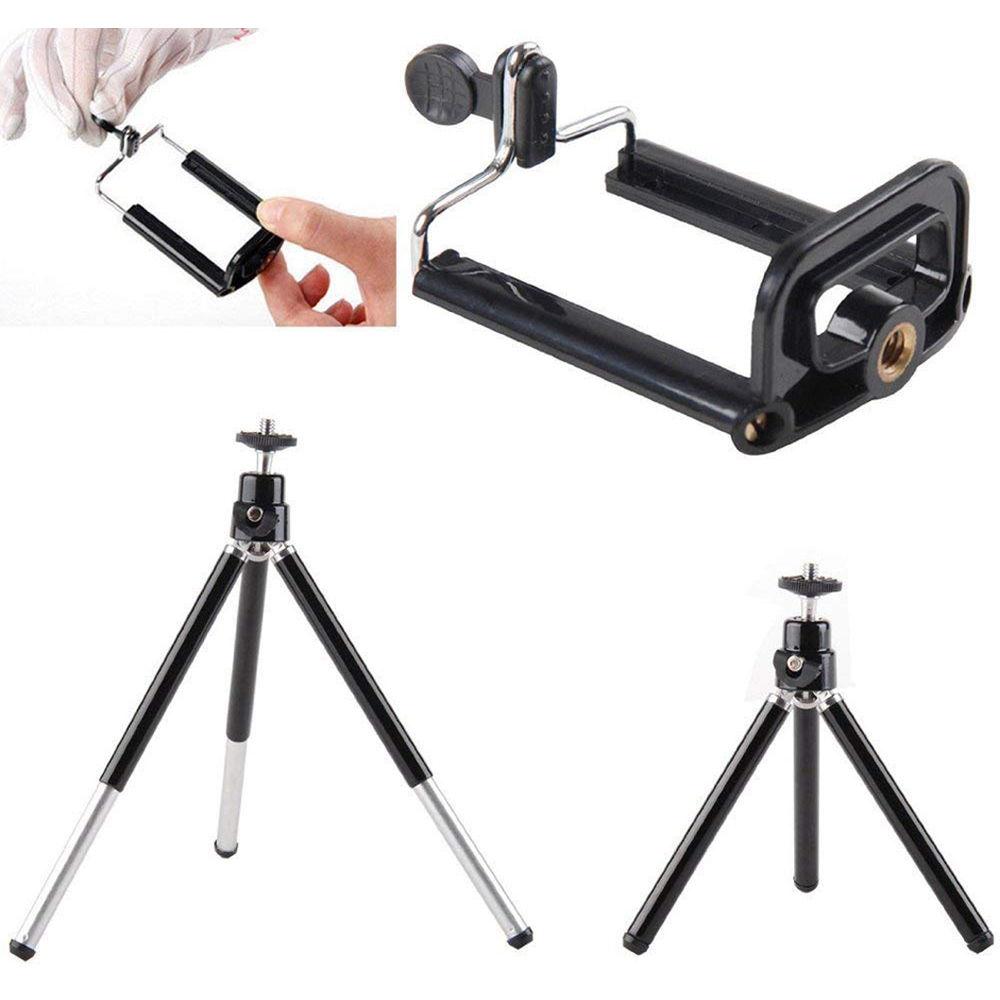

UPC: 602596833538 In the Box Apexel 5-in-1 Smartphone Lens Kit with Remote Shutter 10x Telephoto Lens 198° / 0.28x Fisheye Lens 0.63x Wide-Angle Lens 15x Macro Lens Tripod Phone Holder Universal Lens Clip Bluetooth Camera Shutter Remote Cleaning Cloth 4 x Lens Covers Waterproof Bag Limited 30-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apexel 5-in-1 Smartphone Lens Kit with Remote Shutter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApexel JS10X-BK Specs | Telephoto Lens | Magnification: 10x
Max Diameter: 28 mm
Length: 70 mm
Note: Screw focusing ring when the image is not clear | | Fisheye Lens | Angle of View: 198°
Magnification: 0.28x
Lens Construction: 3 elements in 3 groups
Max Diameter: 25 mm
Length: 15 mm
Note: Be sure that the lens is placed directly in front of your phone's camera lens, as this will help to avoid image blurring | | Wide-Angle Lens | Magnification: 0.63x
Lens Construction: 2 elements in 2 groups
Max Diameter: 20 mm
Length: 5 mm
Note: When shooting pictures, it is suggested that the wide-angle lens be used in a wide-open area in order to get better photos. Upon item receipt, the wide-angle lens and macro lens are screwed together | | Macro Lens | Magnification: 15x
Lens Construction: 1 element in 1 group
Max Diameter: 20 mm
Length: 6 mm
Focusing Distance: 0.39 to 0.91" / 10 to 23 mm
Note: In order to get a pronounced effect when using this lens, you need to place the transparent cap on the surface of object that you want to shoot, make sure you don't block your light source, and keep 0.8 x 1.2" / 2 to 3 cm from the subject. | | | | Package Weight | 0.42 lb | | Box Dimensions (LxWxH) | 6.9 x 3.65 x 1.55" |
