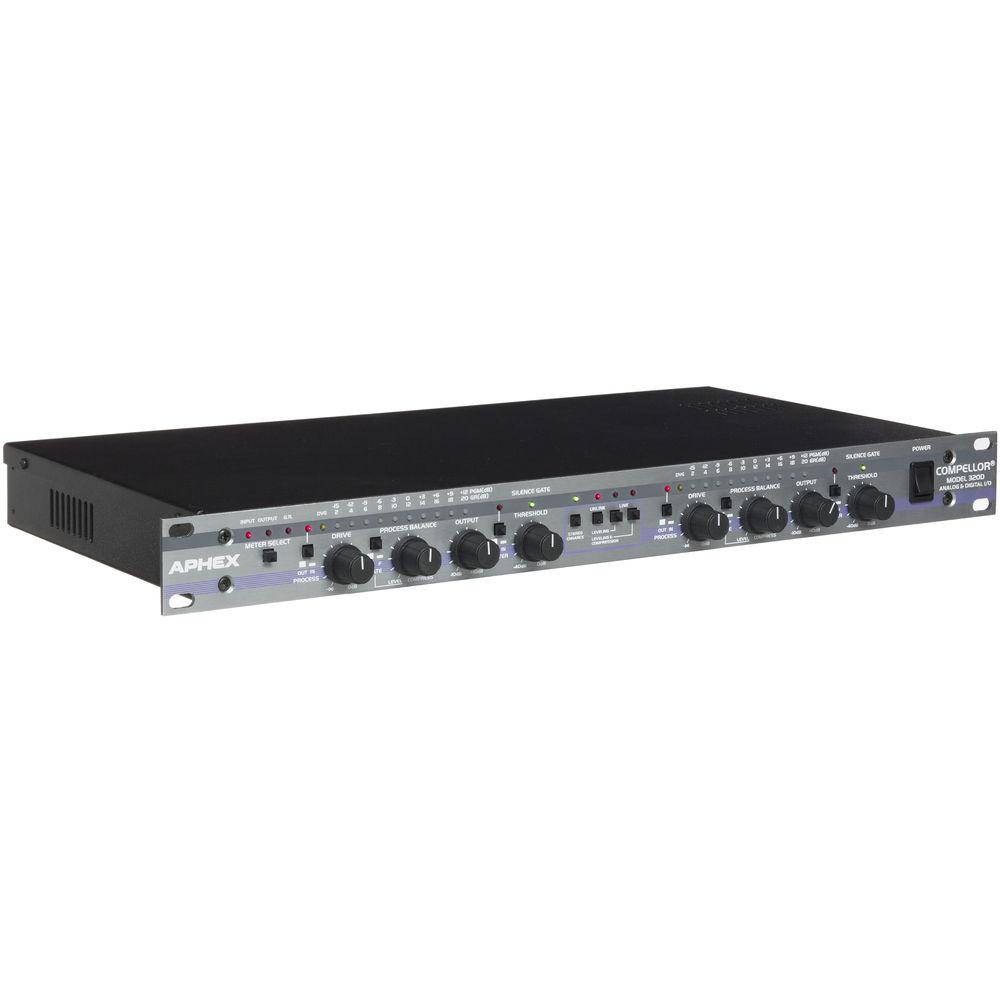

User Manual for Aphex 320D COMPELLOR - Dual Channel Automated Compressor Leveler Limiter with Digital Inputs and Outputs Click to enlarge the picture
Contents of the user manual for the Aphex 320D COMPELLOR - Dual Channel
- Product category: Dynamics Processors Aphex
- Brand: Aphex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aphex Dynamics Processors
 |
User manual for the Aphex 320D COMPELLOR - Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aphex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aphex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aphex product will considerably shorten its lifespan!
|

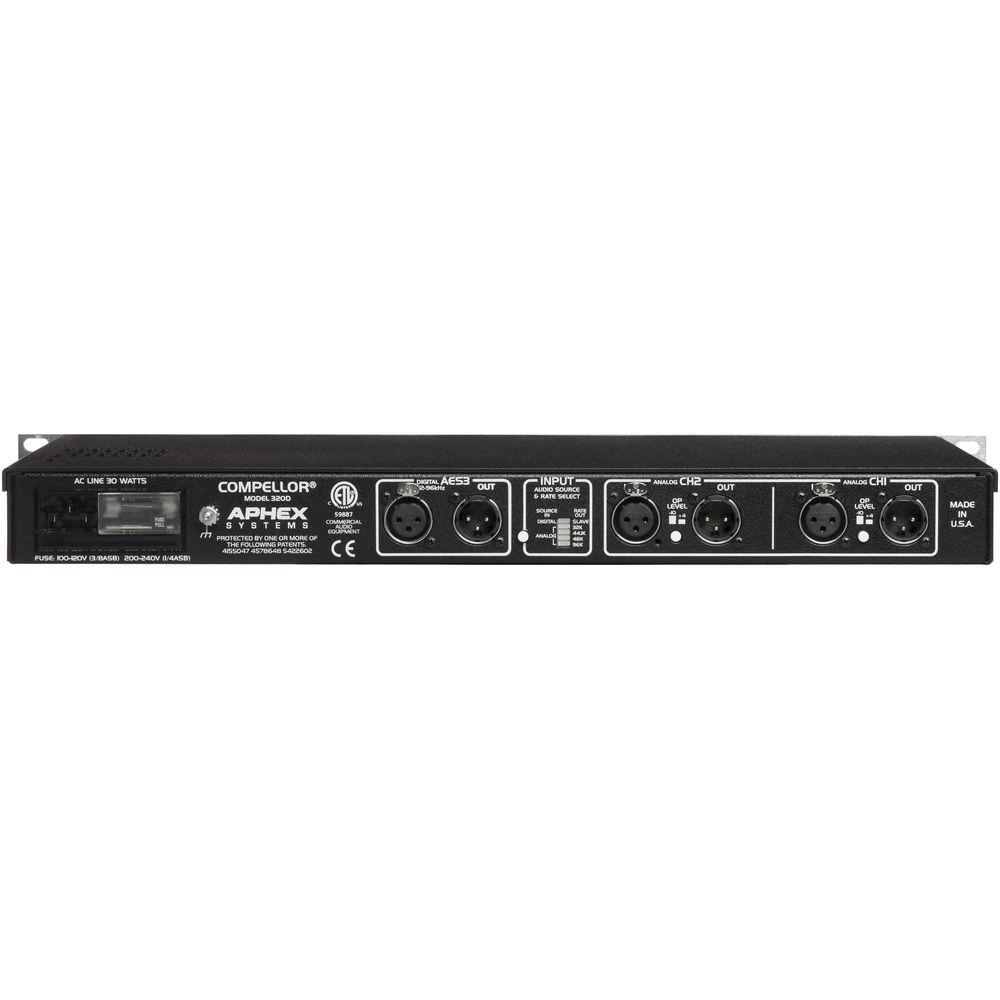

Product description The Aphex 320D delivers "intelligent" compressor action, leveling and peak limiting simultaneously. It can be used to solve audio level problems and improve audio signals in the broadcast or recording studio, tape duplication house, film-dubbing studio or in live sound applications. For digital interfacing, the unit contains a high quality 24-bit, low-noise codec to receive digital audio and transmit digital audio. Once the incoming digital audio is converted by the DAC section, it passes through the compellor as normal audio. The audio output is then converted back to digital by the ADC section of the codec. The rear panel AES3 jacks are standard professional 110Ω interfaces. There is no word clock input or output. Synchronizing is done from the AES3 input signal or an internal clock. Patented control circuits include analog computers that continuously analyze the input signal, and vary the control characteristics to provide for virtually undetectable operation, regardless of the dynamics of the program. Extremely easy to operate, the user only needs to set the Drive level to generate the desired amount of processing, set the Process Balance control between Leveling and Compression and adjust the Output level for unity gain. The 320D is then ready to provide complete dynamic control - smooth, inaudible compression, increased system gain, desired program density and the freedom from constant "gain riding" - all performed automatically. Its unique circuit design actually enhances transient qualities, thus making even heavy processing undetectable. The 320D provides the option of Dual Mono or Stereo operation. In mono mode, unit provides two completely independent channels of processing. In Stereo mode, the user can choose between linking only the leveling control signals or linking both the compression and leveling signals. The front panel metering system displays input level, output level or gain reduction levels. All potentiometers are detented for accurate resetting of controls. A Leveling Speed (fast/slow) switch is located on the front panel, as is the defeat switch for the peak limiter. Operating reference levels are selectable from -10dBV, +4dBu or +8dBu. - Two channels of automatic compression/leveling/limiting
- Dual mono or stereo operation
- Digital AES/EBU input and output with 24-bit/96kHz resolution A/D and D/A converters
- Intelligent Automated Gain Control (AGC) for consistent program levels
- "Invisible" compression characteristics assure tighter dynamics and virtually transparent performance
- Instantaneous peak limiting for effective system protection (user defeatable)
- Adaptive control circuits make for fast, simple set-up and no readjustment for varying program dynamics
UPC: 693714032100 In the Box Aphex 320D COMPELLOR - Dual Channel Automated Compressor/Leveler/Limiter with Digital Inputs and Outputs Power Cable Limited 2-Year Warranty User Manual PDF 706.8kbdqxbadwcuruxfseqvzyzydedffsx Table of Contents
|
Upload User Manual
Have you got an user manual for the Aphex 320D COMPELLOR - Dual Channel Automated Compressor Leveler Limiter with Digital Inputs and Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAphex 320D Specs | Function | Compressor/Leveler/Limiter | | Number of Channels | 2 | | Inputs | 2 x XLR analog
1 x XLR AES/EBU | | Output | 2 x XLR analog
1 x XLR AES/EBU | | Maximum Input Level | +25 dBu when set for +4 dBu operation | | Compression Threshold | Compressor: 30 dB below nominal level
Leveler: 30 dB below nominal level
Limiter: 12 dB below nominal level | | Compression Ratio | Compressor: 1.1:1 to 3:1 program dependent
Leveler: 20:1
Limiter: >30:1 | | Attack Time | Compressor: 5 to 50 mSec program dependent
Leveler: Frequency dependent
Limiter: 1 uSec | | Release Time | Compressor: 200 mSec to 1 sec program dependent
Leveler: 3 sec (fast), 10 sec (slow)
Limiter: 20 mSec | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | +20 dBu when set for +4 dBu operation | | Make-up Gain | Not specified by manufacturer | | Frequency Response | 10 Hz to 65 kHz | | Dynamic Range | Not specified by manufacturer | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 19.00 x 10.13 x 1.75" (48.26 x 25.73 x 4.45 cm) | | Weight | 8.0 lb (3.6 kg) | | Specialties | A Silence Gate feature detects significant gaps in the program material and freezes the processing, thus preventing noise "swell" or "build-up," a condition commonly audible in other automatic gain control devices. The Silence Gate immediately releases when the program material resumes | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 25.5 x 12.7 x 3.5" |
