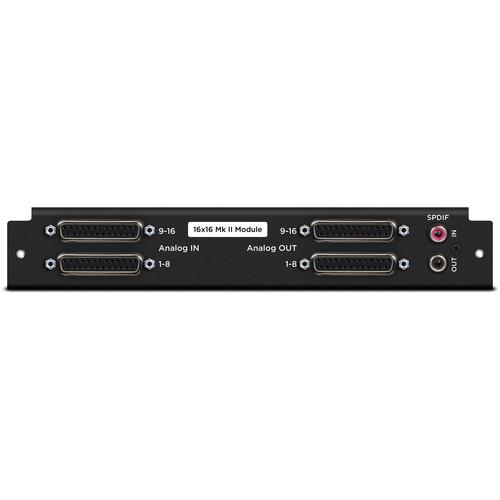

Product description The 16x16 Mk II Module from Apogee is a sixteen-channel analog input and sixteen-channel analog output module for the Symphony I/O Mk II. The module occupies one of the two slots available on the chassis. Additionally, two-channel coaxial S/PDIF input and output is also provided. The A/D circuit has been refined to offer a streamlined circuit design, resulting in the most transparent signal path to the A/D stage possible. A dual-sum A/D stage is utilized where two conversion stages are summed for each analog channel, offering the lowest distortion and the greatest dynamic range of any A/D converter Apogee has ever designed.
The D/A section has been optimized with a more powerful and robust output driver that is capable of driving virtually any input without a decrease in performance, regardless of the load presented by the connected gear. The analog inputs and outputs are offered on DB25 connectors and require optional breakout cables, available in various configurations to suit individual requirements. Note: Requires Symphony I/O Mk II Chassis with available card slot. - Analog-to-digital and digital-to-analog module for the Symphony I/O Mk II system
- Sixteen channels of balanced analog input and sixteen channels of balanced analog output
- Two channels of coaxial S/PDIF input and output
- Ultra-low latency conversion
- Entire audio path is DC coupled, resulting in ultra flat frequency response and extremely low phase error
UPC: 805676301549 In the Box Apogee Electronics 16x16 Mk II Module - Analog Input/Output Module for Symphony I/O Mk II Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics 16x16 Mk II Module - Analog Input Output Module for Symphony I O Mk II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics 16X16S2 Specs | ADC | 24-bit | | DAC | 24-bit | | Sample Rates | 44.1 to 192 kHz | | Analog Inputs | 2 x 25-pin D-Sub; 16 x channels total
Requires optional breakout cable | | Analog Outputs | 2 x 25-pin D-Sub; 16 x channels total
Requires optional breakout cable | | Digital Input Connectors | 1 x RCA coaxial S/PDIF | | Digital Output Connectors | 1 x RCA coaxial S/PDIF | | Word Clock | On chassis | | Power Requirements | From chassis | | Dimensions (WxDxH) | Fits slot on chassis | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 14.1 x 12.3 x 3.5" |
