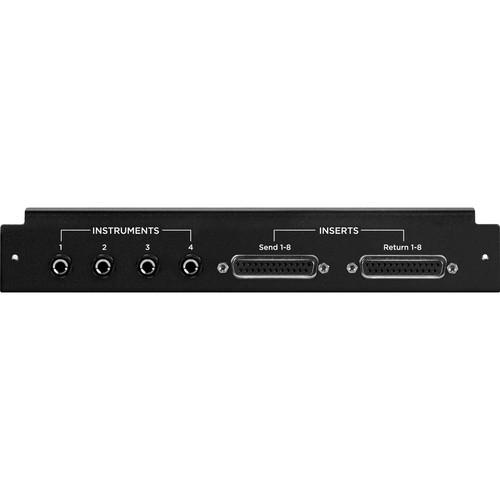

Product description The A8MP from Apogee is a module for the company's Symphony system that enhances the system's analog input by adding 8 microphone preamps. Additionally, up to 4 instrument inputs can be connected directly to the module and twin D-Sub connectors deliver 8 fully balanced inserts points.
Microphones do not connect directly to the Mic Preamp Module. They must be connected to the analog inputs of an analog I/O Module that has been installed in slot 1 of the Symphony chassis. The microphone preamps are then enabled in the Maestro software. Phantom power can also be enabled individually from the software. - Eight digitally controlled, 85dB microphone preamps
- Upgrades functionality of Analog I/O Module by adding microphone preamps to the existing line inputs
- Creates a direct connection between the Mic Preamp Module and the Analog I/O Module by inserting a microphone preamp stage before the line inputs
- Phantom power individually switchable (via Maestro)
- Four Hi-Z 1/4" instrument inputs capable of handling high level instruments
- Eight fully balanced insert points on 25-pin D-Sub connectors
UPC: 805676300788 In the Box Apogee Electronics A8MP - Microphone Preamp Module for Symphony I/O One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics A8MP - Microphone Preamp Module for Symphony I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics A8MP Specs | ADC | 24-bit | | DAC | 24-bit | | Sample Rates | Up to 192kHz | | Analog In | 4 x 1/4" TS phone
1 x 25-pin D-Sub Insert Returns (requires optional breakout cable) | | Input Impedance | 10kΩ | | Maximum Input Level | +4dB setting: +24dBu
-10dB setting: +6dBV | | Analog Outputs | 1 x 25-pin D-Sub Insert Sends (requires optional breakout cable) | | Output Impedance | 25Ω | | Maximum Output Level | ∞ to +24dBu | | Digital Input Connectors | No | | Digital Output Connectors | No | | Dynamic Range | A/D: 120dB, A-weighted
D/A: 129dB, A-weighted | | THD + N | A/D: -113dB @ 20dBu (0.00024%)
D/A: -117dB @ 20dBu (0.00014%) | | Frequency Response | A/D: 1Hz to 20kHz (+/-0.05dB)@ 44.1kHz
D/A: DC to 20kHz (+/-0.05dB)@ 44.1kHz | | Word Clock | On chassis | | Power Requirements | From chassis | | Dimensions (WxDxH) | Fits slot on chassis | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 14.2 x 13.7 x 3.6" |
