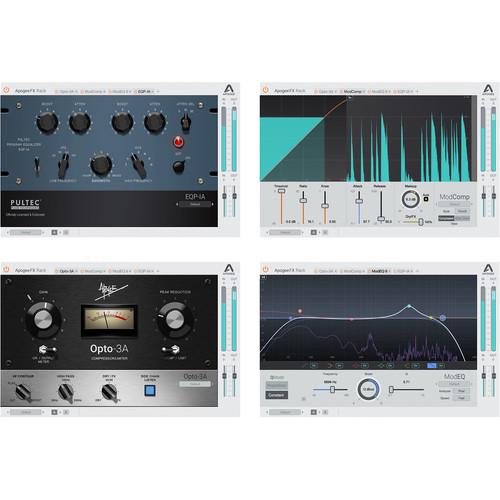

Product description The Apogee Electronics FX Rack Bundle is a set of dynamics and equalizer plug-ins designed for use in native DAW ecosystems or with select Apogee hardware. It includes four plug-ins—the EQP-1A program equalizer, the ModComp visual compressor, the ModEQ 6 parametric EQ, and the Opto-3A vintage compressor. This macOS-compatible bundle supports AAX, Audio Units, VST, and VST2 plug-in formats, and can be powered by your computer's CPU or via the DSP in Apogee Element Series or Ensemble Thunderbolt audio interfaces (available separately). - EQP-1A - FX Rack Pultec Program Equalizer Plug-In (Version 1, Download) Version 1 of the Apogee Electronics EQP-1A is an FX Rack Pultec program equalizer plug-in merging the sound of the legendary EQP-1A hardware equalizer with multiple powering, routing, and monitoring modes. It can be powered by your computer's CPU without Apogee hardware, or via the DSP in Apogee Element Series or Ensemble Thunderbolt audio interfaces (available separately), making it ideal for producers, beatmakers, and audio engineers with mobile rigs or studio-based systems. When used with qualified Apogee hardware, it allows real-time printing through the Apogee Control Software, or low-latency monitoring while linked to a mirrored instance in your DAW.Licensed and endorsed by Pulse Techniques, this plug-in was thoroughly modeled from a Pulse Pultec EQP-1A hardware unit to provide its renowned EQ curves and nonlinearities. Each of the two bands features frequency selection and separate controls for boost and attenuation. View and manage your gain staging via large I/O meters and dedicated input and output faders. The EQP-1A supports AAX, Audio Units, VST, and VST2 plug-in formats on macOS-equipped computers.

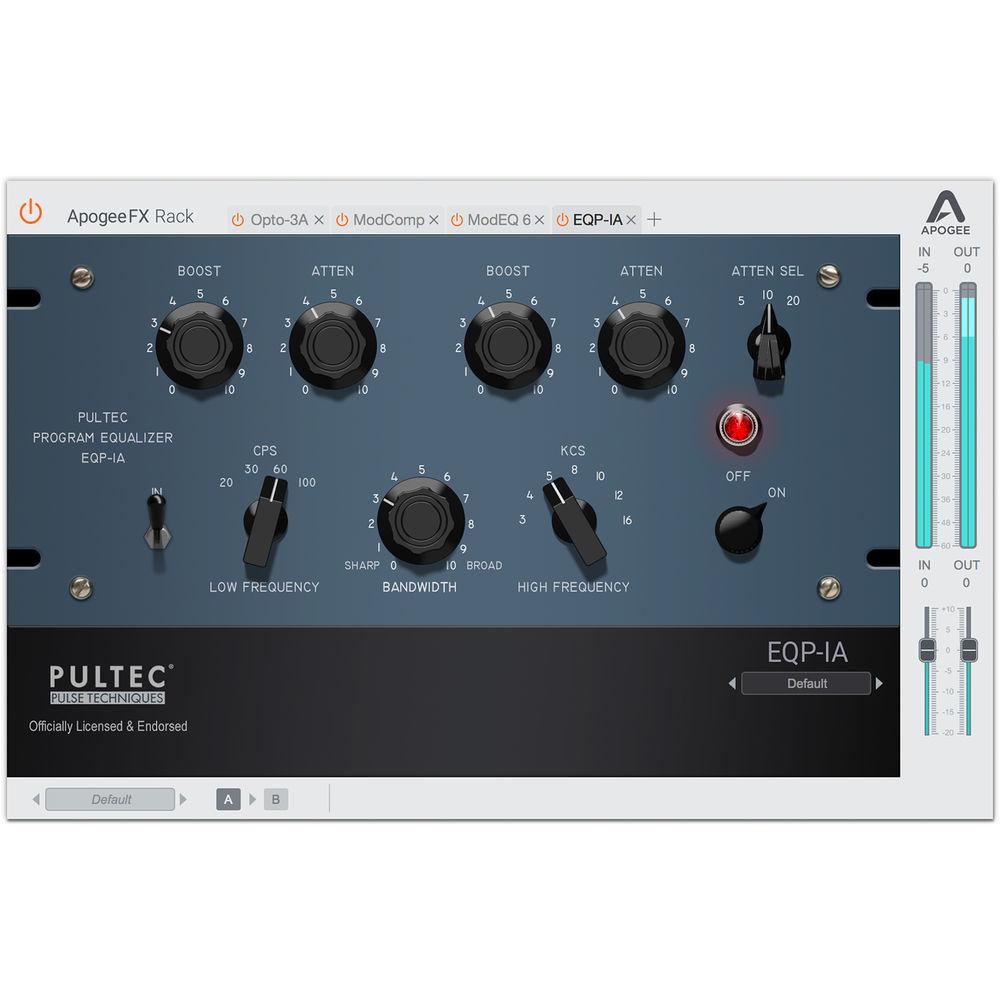

- EQP-1A Features
-
- Precisely recreates the unique characteristics of the Pultec EQP-1A
- Broad EQ curves allow gentle and powerful tone shaping
- Interaction of EQ bands creates curves used by engineers for decades
- Recreates circuit nonlinearities of the analog EQP-1A
- Officially licensed and endorsed by Pulse Techniques, the manufacturer of the new Pultec EQP-1A used to model the Apogee plug-in
- Runs on native CPU power or via Apogee hardware DSP in Element Series and Ensemble Thunderbolt audio interfaces
- Two bands of EQ with separate per-band boost and attenuation knobs
- Sharp to broad bandwidth control
- Low-frequency selector at 20/30/60/100 Hz
- High-frequency selector at 3/4/5/8/10/12/16 kHz
- High-frequency attenuation selector at 5/10/20 kHz
- Large input and output meters
- Dedicated input and output faders
- FX Rack Features
-
- Native Mode: Use Apogee FX Rack plug-ins like any standard native plug-in in your Mac-based DAW without Apogee hardware connected
- Print Mode: Apply Apogee FX directly to the Apogee hardware input—open the FX Rack in Apogee Control, apply the desired processing, then record—FX processing is printed to your DAW track
- DualPath Monitor Mode: Upon opening a native Apogee FX Rack in your DAW (and linking it to an Apogee hardware input), a parallel FX Rack is automatically opened in the low-latency monitoring path; changes made in either plug-in are instantly mirrored to maintain a consistent sound

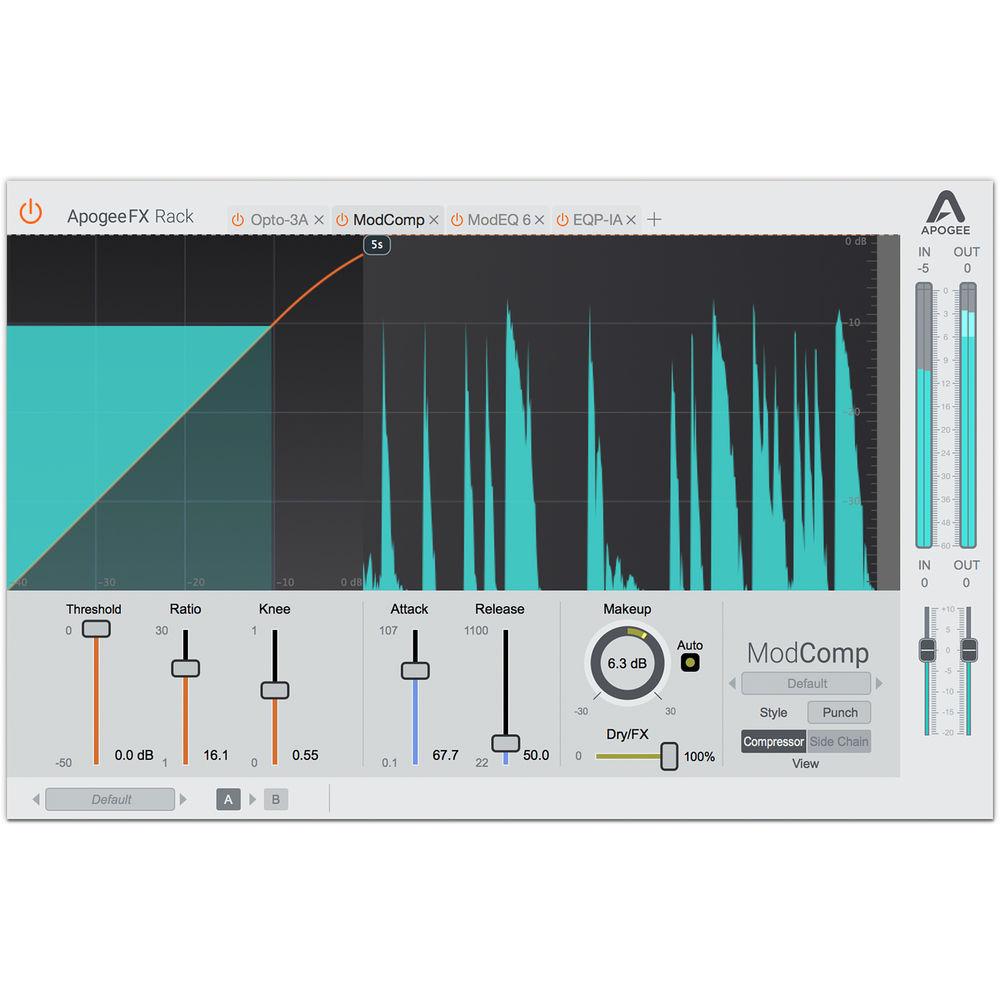

- ModComp - FX Rack Visual Compressor Plug-In (Version 1, Download) Version 1 of the Apogee Electronics ModComp is an FX Rack compressor/limiter plug-in merging traditional compressor controls with a large visual user interface and multiple powering, routing, and monitoring modes. It can be powered by your computer's CPU without Apogee hardware, or via the DSP in Apogee Element Series or Ensemble Thunderbolt audio interfaces (available separately), making it ideal for producers, beatmakers, and audio engineers with mobile rigs or studio-based systems. When used with qualified Apogee hardware, it allows real-time printing through the Apogee Control Software, or low-latency monitoring while linked to a mirrored instance in your DAW.With three selectable styles, a variety of ratios, and adjustable knee, threshold, attack, and release settings, the ModComp offers versatility suitable for individual instruments, stems, and mixes. Utilize the dry/FX slider for simple parallel processing, and apply make-up gain automatically or manually. A 2-band sidechain EQ enables tonal optimization of your trigger input signal. View and manage your gain staging via large I/O meters and dedicated input and output faders. The ModComp supports AAX, Audio Units, VST, and VST2 plug-in formats on macOS-equipped computers.
- ModComp Features
-
- Compressor/limiter with large visual user interface
- Three user-selectable styles—punch, easy, and level
- 2-band sidechain EQ
- Automatic or manual make-up gain
- Dry/FX mix for simple parallel processing
- Runs on native CPU power or via Apogee hardware DSP in Element Series and Ensemble Thunderbolt audio interfaces
- Adjustable threshold and knee
- Selectable ratio from 1:1 to 30:1
- Adjustable attack time from 0.1 to 107 ms
- Adjustable release time from 22 to 1100 ms
- Large input and output meters
- Dedicated input and output faders
- FX Rack Features
-
- Native Mode: Use Apogee FX Rack plug-ins like any standard native plug-in in your Mac-based DAW without Apogee hardware connected
- Print Mode: Apply Apogee FX directly to the Apogee hardware input—open the FX Rack in Apogee Control, apply the desired processing, then record—FX processing is printed to your DAW track
- DualPath Monitor Mode: Upon opening a native Apogee FX Rack in your DAW (and linking it to an Apogee hardware input), a parallel FX Rack is automatically opened in the low-latency monitoring path; changes made in either plug-in are instantly mirrored to maintain a consistent sound

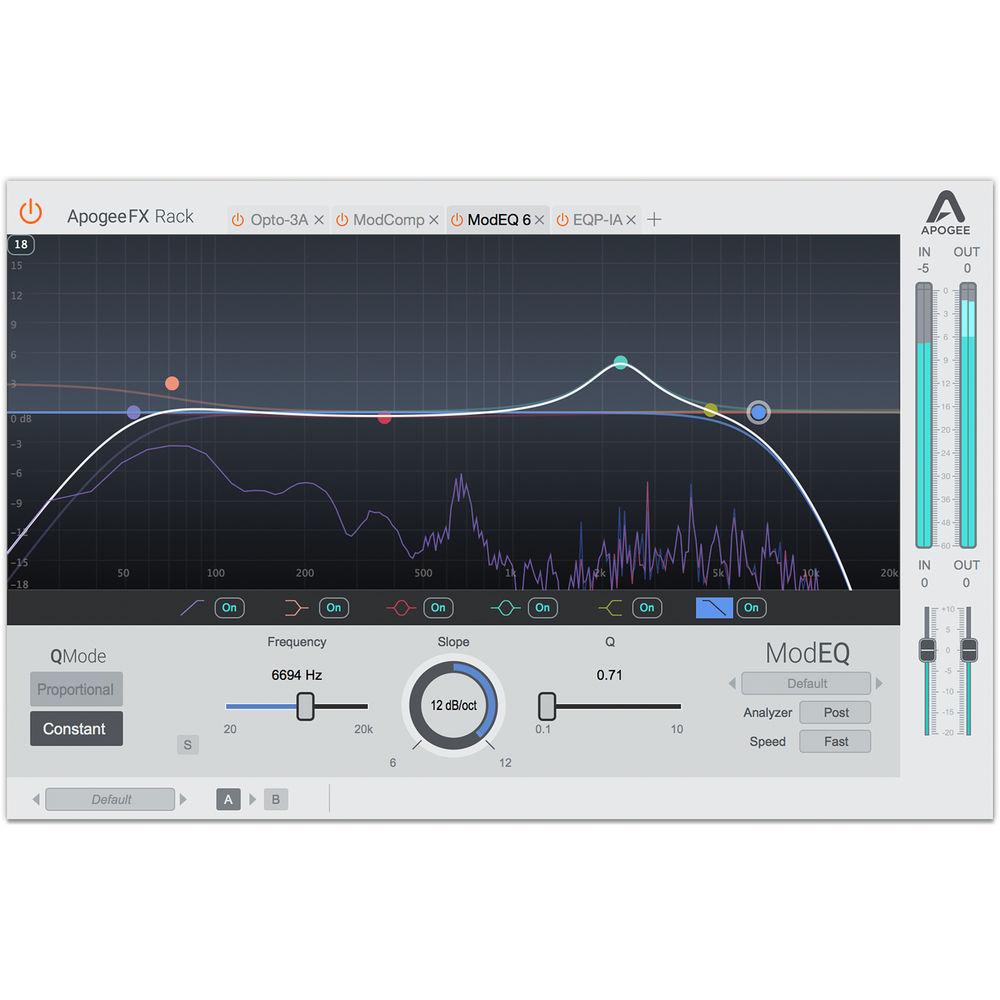

- ModEQ 6 - FX Rack 6-Band Visual Equalizer Plug-In (Version 1, Download) Version 1 of the Apogee Electronics ModEQ 6 is an FX Rack 6-band parametric equalizer plug-in merging flexible controls with a simple visual user interface and multiple powering, routing, and monitoring modes. It can be powered by your computer's CPU without Apogee hardware, or via the DSP in Apogee Element Series or Ensemble Thunderbolt audio interfaces (available separately), making it ideal for producers, beatmakers, and audio engineers with mobile rigs or studio-based systems. When used with qualified Apogee hardware, it allows real-time printing through the Apogee Control Software, or low-latency monitoring while linked to a mirrored instance in your DAW.With high- and low-pass filters, two peak/shelf bands, and two peak/notch bands, the ModEQ 6 offers versatility suitable for individual instruments, stems, and mixes. Each band features continuously adjustable frequency and bandwidth, which can set to proportional or constant Q mode. The customizable real-time spectrum analyzer and per-band solo functionality serve as powerful tools for determining tonal problems. View and manage your gain staging via large I/O meters and dedicated input and output faders. The ModEQ 6 supports AAX, Audio Units, VST, and VST2 plug-in formats on macOS-equipped computers.
- ModEQ 6 Features
-
- Parametric equalizer with simple visual user interface
- Six configurable bands—two peak/shelf bands, two peak/notch bands, and high- and low-pass filters
- Spectrum analyzer shows frequency content in real time
- Per-band solo functionality
- Selectable proportional or constant-Q mode
- Runs on native CPU power or via Apogee hardware DSP in Element Series and Ensemble Thunderbolt audio interfaces
- Continuously adjustable frequency and bandwidth
- Variable slope on filters
- Variable gain on peak/shelf/notch bands
- Color-coded bands for easy identification
- Large input and output meters
- Dedicated input and output faders
- FX Rack Features
-
- Native Mode: Use Apogee FX Rack plug-ins like any standard native plug-in in your Mac-based DAW without Apogee hardware connected
- Print Mode: Apply Apogee FX directly to the Apogee hardware input—open the FX Rack in Apogee Control, apply the desired processing, then record—FX processing is printed to your DAW track
- DualPath Monitor Mode: Upon opening a native Apogee FX Rack in your DAW (and linking it to an Apogee hardware input), a parallel FX Rack is automatically opened in the low-latency monitoring path; changes made in either plug-in are instantly mirrored to maintain a consistent sound

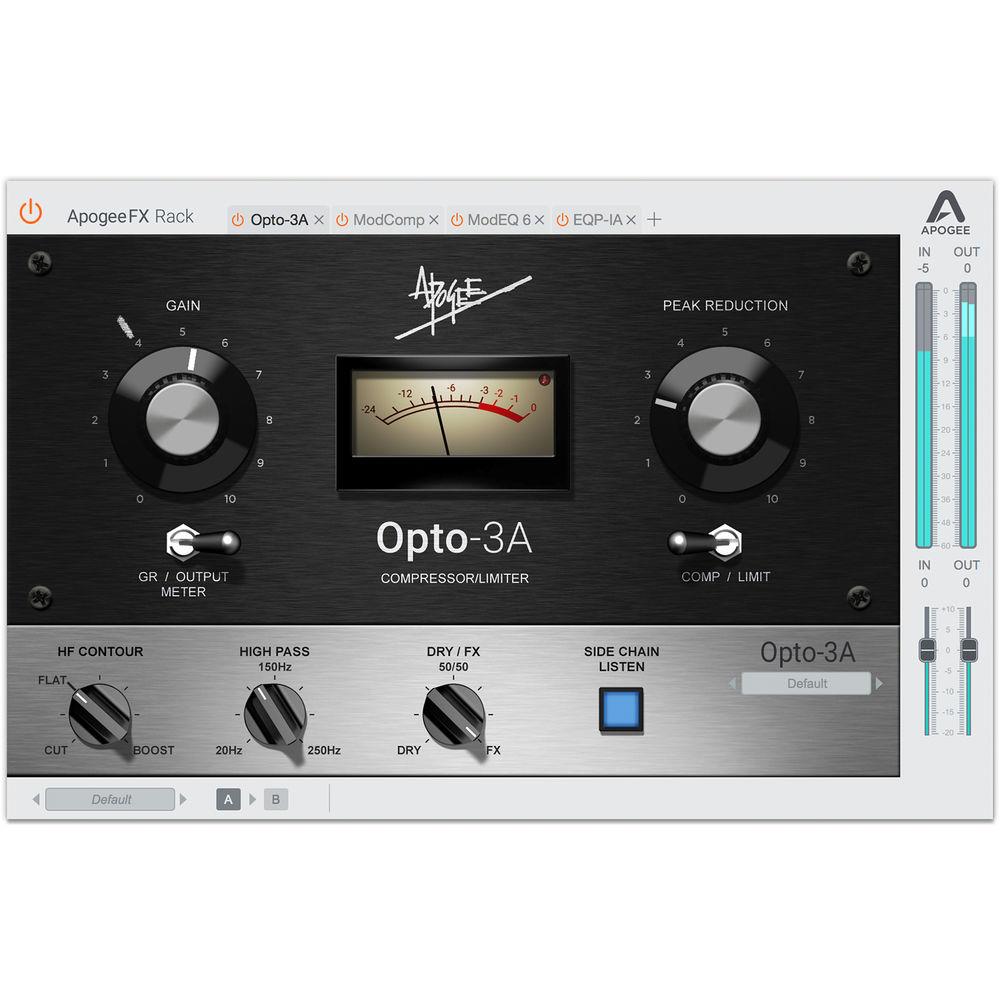

- Opto-3A - FX Rack Vintage Compressor Plug-In (Version 1, Download) Version 1 of the Apogee Electronics Opto-3A is an FX Rack vintage-style compressor/limiter plug-in merging optical compression performance with straightforward controls and multiple powering, routing, and monitoring modes. It can be powered by your computer's CPU without Apogee hardware or via the DSP in Apogee Element Series or Ensemble Thunderbolt audio interfaces (available separately), making it ideal for producers, beatmakers, and audio engineers with mobile rigs or studio-based systems. When used with qualified Apogee hardware, it allows real-time printing through the Apogee Control Software, or low-latency monitoring while linked to a mirrored instance in your DAW.With adjustable gain, peak reduction, and high-frequency emphasis, the Opto-3A offers versatility suitable for individual instruments, submixes, and stems. Utilize the dry/FX slider for simple parallel processing, and tweak the sidechain high-pass filter to prevent pronounced low frequencies from causing over-compression. View and manage your gain staging via large I/O meters, an assignable VU meter, and dedicated input and output faders. The Opto-3A supports AAX, Audio Units, VST, and VST2 plug-in formats on macOS-equipped computers.
- Opto-3A Features
-
- Optical compressor/limiter with vintage-style controls and tone
- Reproduces the reactive compression characteristics of modeled hardware
- Adjustable high-frequency emphasis via HF Contour control
- Sidechain high-pass filter
- Sidechain listen function
- Adjustable gain and peak reduction
- Dry/FX mix for simple parallel processing
- Runs on native CPU power or via Apogee hardware DSP in Element Series and Ensemble Thunderbolt audio interfaces
- Selectable comp/limit mode
- Assignable VU meter and peak LED can display output or gain reduction
- Large input and output meters
- Dedicated input and output faders
- FX Rack Features
-
- Native Mode: Use Apogee FX Rack plug-ins like any standard native plug-in in your Mac-based DAW without Apogee hardware connected
- Print Mode: Apply Apogee FX directly to the Apogee hardware input—open the FX Rack in Apogee Control, apply the desired processing, then record—FX processing is printed to your DAW track
- DualPath Monitor Mode: Upon opening a native Apogee FX Rack in your DAW (and linking it to an Apogee hardware input), a parallel FX Rack is automatically opened in the low-latency monitoring path; changes made in either plug-in are instantly mirrored to maintain a consistent sound
In the Box Bundle Items EQP-1A - FX Rack Pultec Program Equalizer Plug-In (Version 1, Download) dcrrrcearuqwacearszxzfcxbyssesadf ModComp - FX Rack Visual Compressor Plug-In (Version 1, Download) ModEQ 6 - FX Rack 6-Band Visual Equalizer Plug-In (Version 1, Download) Opto-3A - FX Rack Vintage Compressor Plug-In (Version 1, Download) Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics FX Rack Bundle - Dynamics and Equalizer Plug-Ins in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EQP-1A - FX Rack Pultec Program Equalizer Plug-In (Version 1, Download)
| System Requirements | macOS 10.12.6 or later
4 GB RAM (8 GB or more recommended)
Free Pace iLok account (physical iLok not required)
Host software that supports AAX Native, Audio Units version 2, VST, or VST2 formats
Tested and supported DAWs include Apple Logic Pro X, Avid Pro Tools 12 and later (Pro Tools 11 and earlier not supported), Ableton Live 10, and Steinberg Cubase 9.5 with VST or VST2 (VST3 not implemented) | - ModComp - FX Rack Visual Compressor Plug-In (Version 1, Download)
| System Requirements | macOS 10.12.6 or later
4 GB RAM (8 GB or more recommended)
Free Pace iLok account (physical iLok not required)
Host software that supports AAX Native, Audio Units version 2, VST, or VST2 formats
Tested and supported DAWs include Apple Logic Pro X, Avid Pro Tools 12 and later (Pro Tools 11 and earlier not supported), Ableton Live 10, and Steinberg Cubase 9.5 with VST or VST2 (VST3 not implemented) | - ModEQ 6 - FX Rack 6-Band Visual Equalizer Plug-In (Version 1, Download)
| System Requirements | macOS 10.12.6 or later
4 GB RAM (8 GB or more recommended)
Free Pace iLok account (physical iLok not required)
Host software that supports AAX Native, Audio Units version 2, VST, or VST2 formats
Tested and supported DAWs include Apple Logic Pro X, Avid Pro Tools 12 and later (Pro Tools 11 and earlier not supported), Ableton Live 10, and Steinberg Cubase 9.5 with VST or VST2 (VST3 not implemented) | - Opto-3A - FX Rack Vintage Compressor Plug-In (Version 1, Download)
| System Requirements | macOS 10.12.6 or later
4 GB RAM (8 GB or more recommended)
Free Pace iLok account (physical iLok not required)
Host software that supports AAX Native, Audio Units version 2, VST, or VST2 formats
Tested and supported DAWs include Apple Logic Pro X, Avid Pro Tools 12 and later (Pro Tools 11 and earlier not supported), Ableton Live 10, and Steinberg Cubase 9.5 with VST or VST2 (VST3 not implemented) |
