User Manual for Apogee Electronics Groove - 24-Bit 192 kHz USB DAC and Headphone Amplifier For Mac and PC Click to enlarge the picture
Contents of the user manual for the Apogee Electronics Groove - 24-Bit 192
- Product category: Headphone Amplifiers Apogee Electronics
- Brand: Apogee Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apogee Electronics Headphone Amplifiers
 |
User manual for the Apogee Electronics Groove - 24-Bit 192 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apogee Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apogee Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apogee Electronics product will considerably shorten its lifespan!
|

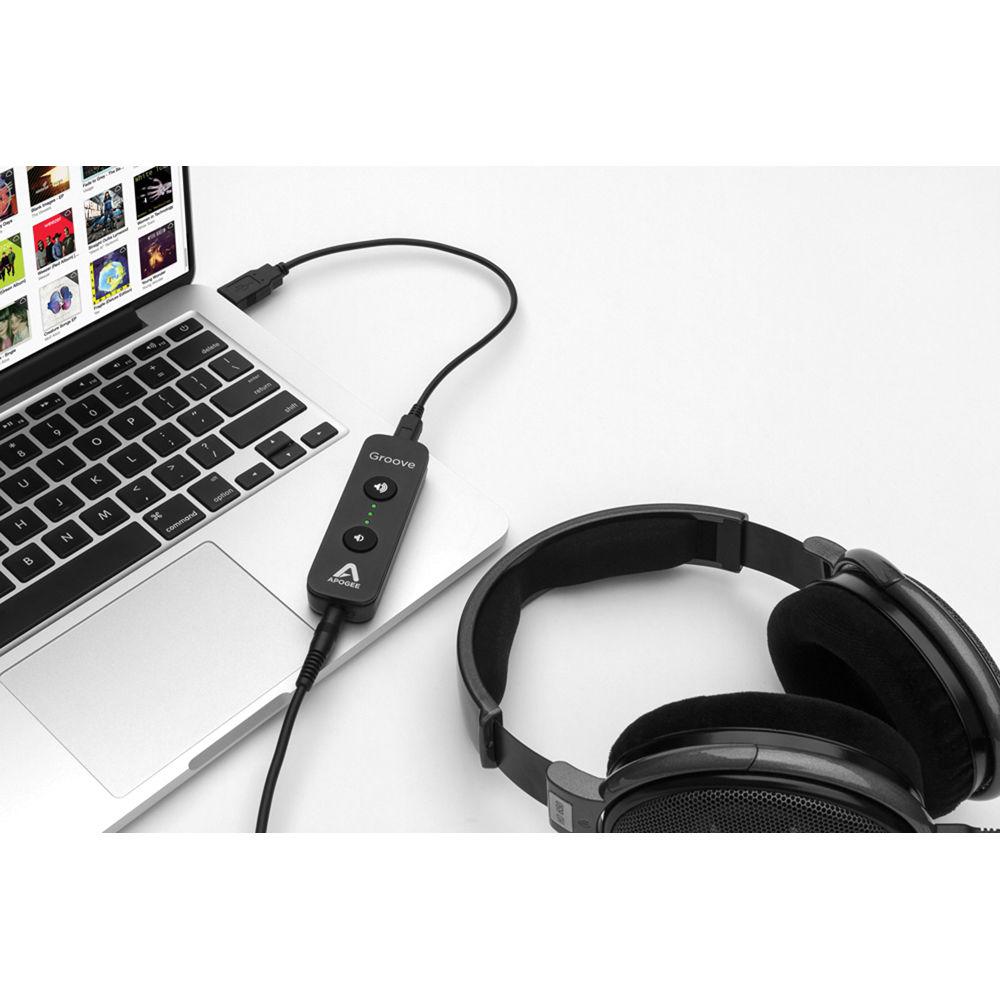

Product description Perfect Gifts for the Working Person: 4 Pocket-Sized DACs Read More Designed for the discerning audiophile, mixing, and mastering engineer alike, the Apogee Groove is a 24-bit 192 kHz USB DAC and Headphone Amplifier for both Mac and PC computer systems. The DAC is powered by your computer's USB bus and can be used with either headphones or powered monitors using a Y cable from the unit's 1/8" stereo output.
Small enough to fit in the palm of your hand and built in the USA from premium aluminum, the device leverages an 8-converter ESS Sabre 32-Bit DAC chip in a novel Quad Sum arrangement. Both the left and right channels of the stereo feed utilize four digital to analog converters which are summed together to lower distortion and improve dynamic range. The device also implements a Constant Current Drive design which provides ample power at any impedance and ensures a smooth and balanced frequency response.

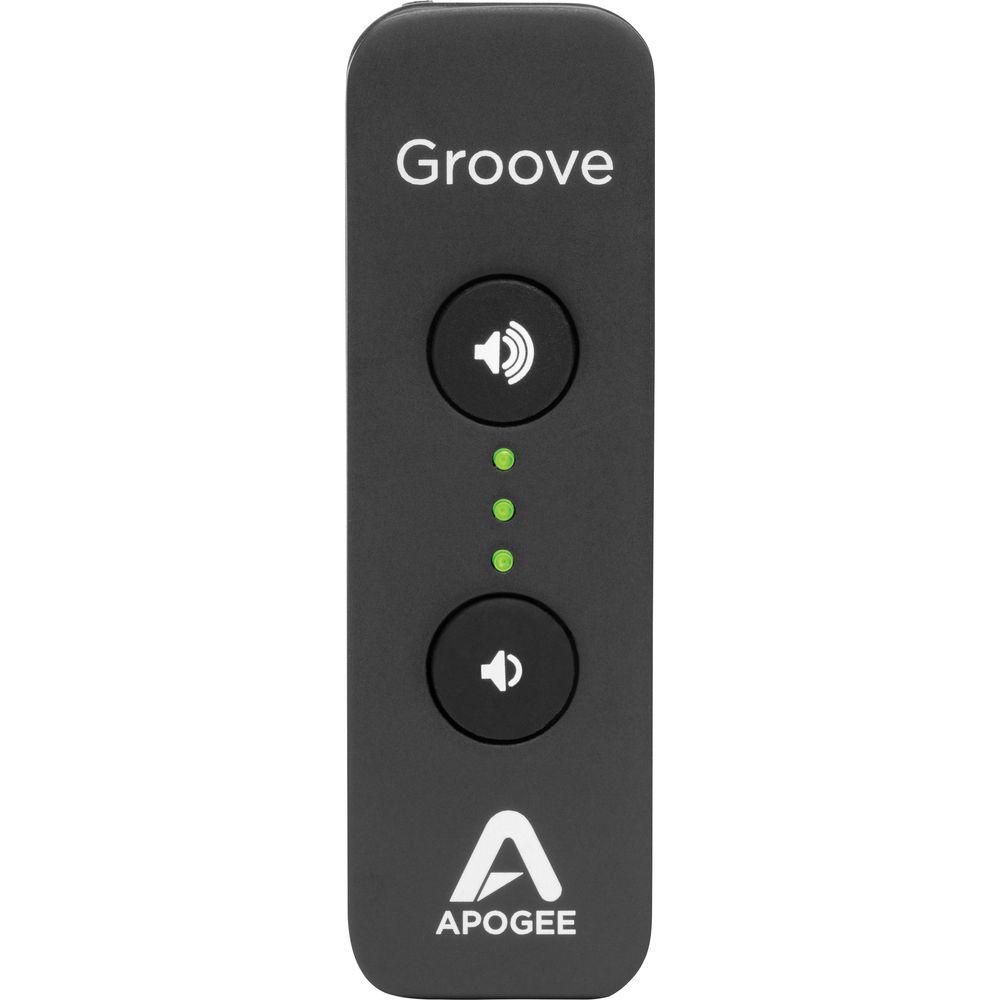

Simply connect the unit to your Mac or PC computer via the included USB micro B cable to enhance the listening experience of your favorite DAW or music program such as iTunes, Spotify, Tidal, Pandora, and more. LED illuminated volume up and volume down/mute buttons provide hands on control of your listening experience. An integrated leash loop allows you to attach a leash to the unit to help keep it safe. It also comes with a convenient carrying pouch. - Quad Sum DAC
- Utilizes four digital to analog converters per channel for reduced distortion and improved dynamic range
- Constant Current Drive
- Ensures ample power and a smooth frequency response to headphones of different impedance
- Recommended Headphones
- Sennheiser HD 800
Sennheiser HD 650
Sennheiser HD 380 Pro
Sennheiser Momentum UPC: 805676301419 In the Box Apogee Electronics Groove - 24-Bit 192 kHz USB DAC and Headphone Amplifier For Mac and PC USB Cable Carrying Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Groove - 24-Bit 192 kHz USB DAC and Headphone Amplifier For Mac and PC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics GROOVE Specs | Mac System Requirements | Computer: Intel Mac 1.5 GHz or faster
Memory: 2 GB RAM minimum, 4 GB recommended
OS: 10.8 or greater
Connection and Power: Any available USB port
Driver: Mac Core Audio. No download or installation necessary | | PC System Requirements | PC or laptop manufactured after January 2006
Intel Core 2 @ 1.6 GHz or AMD equivalent
Memory: 1 GB RAM minimum
Windows 7 (32 and 64 bit)
Windows 8 (32 and 64 bit)
Windows 8.1 (32 and 64 bit)
Connection and Power: Any available USB port

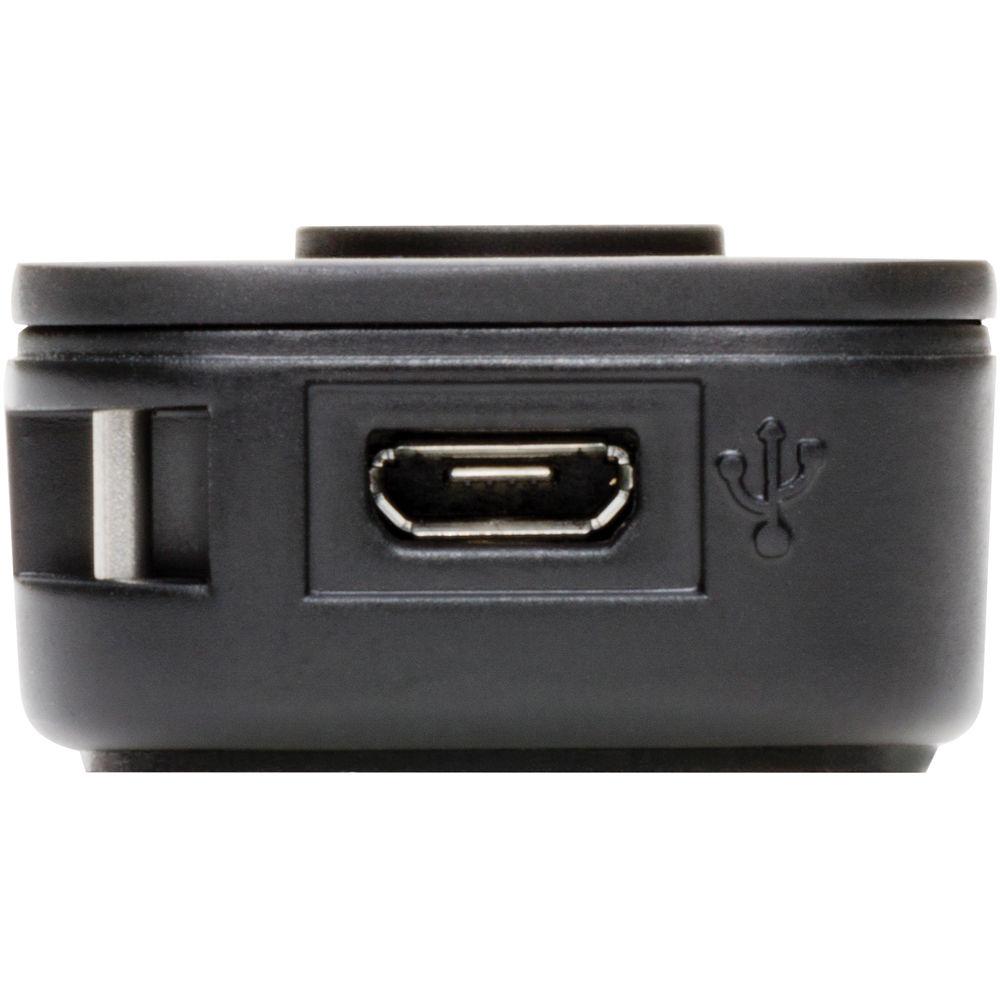

Driver: Register to download from Apogee's website | | I/O | 1x USB Micro B

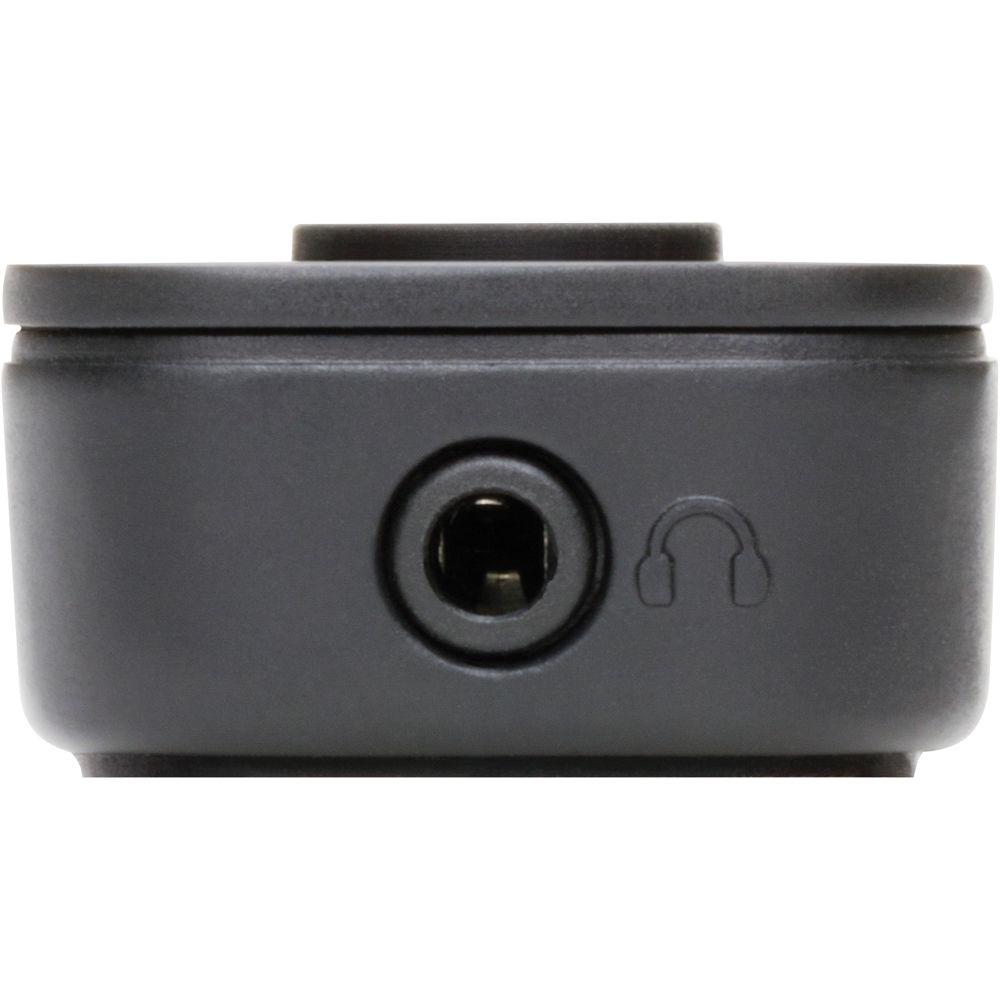

1x 1/8" (3.5 mm) stereo | | | | Resolution | Up to 24-bit at 192 kHz | | Chip | 8-channel ESS DAC (4 DACs per channel) | | THD+N | 600 ohm load at 16 dBu: -107 dB
30 ohm load at 10.5 dBu: -100 dB | | Dynamic Range | 117 dB (a-weighted) | | Frequency Response | 10 to 20,000 Hz ±0.2 dB | | Max Output | Into 30 ohms: 225 mW
Into 600 ohms: 40 mW | | Power | 5 V, 500 mA, via USB 2.0 bus | | Dimensions (L x W x H) | 3.74 x 1.18 x 0.63" (95 x 30 x 16 mm) | | Weight | 0.10 lb (45.35 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.1 x 3.1 x 2.2" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
