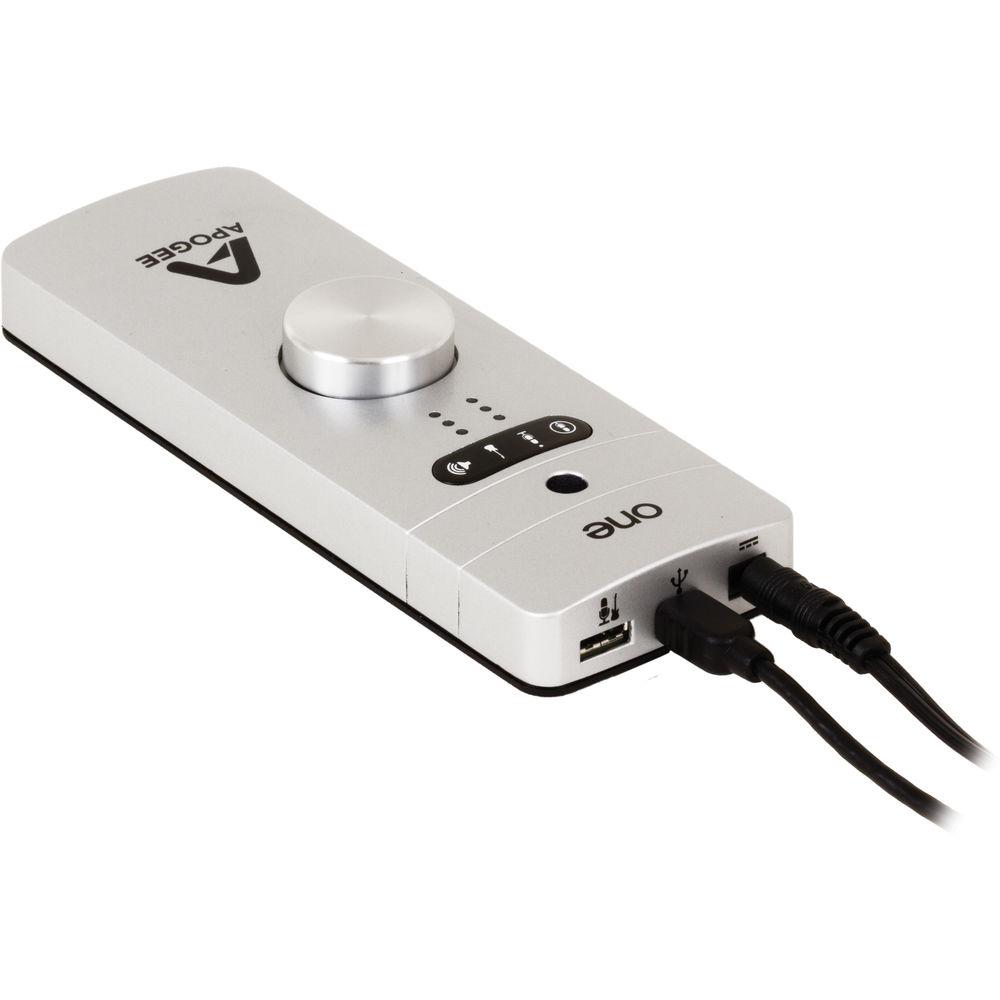

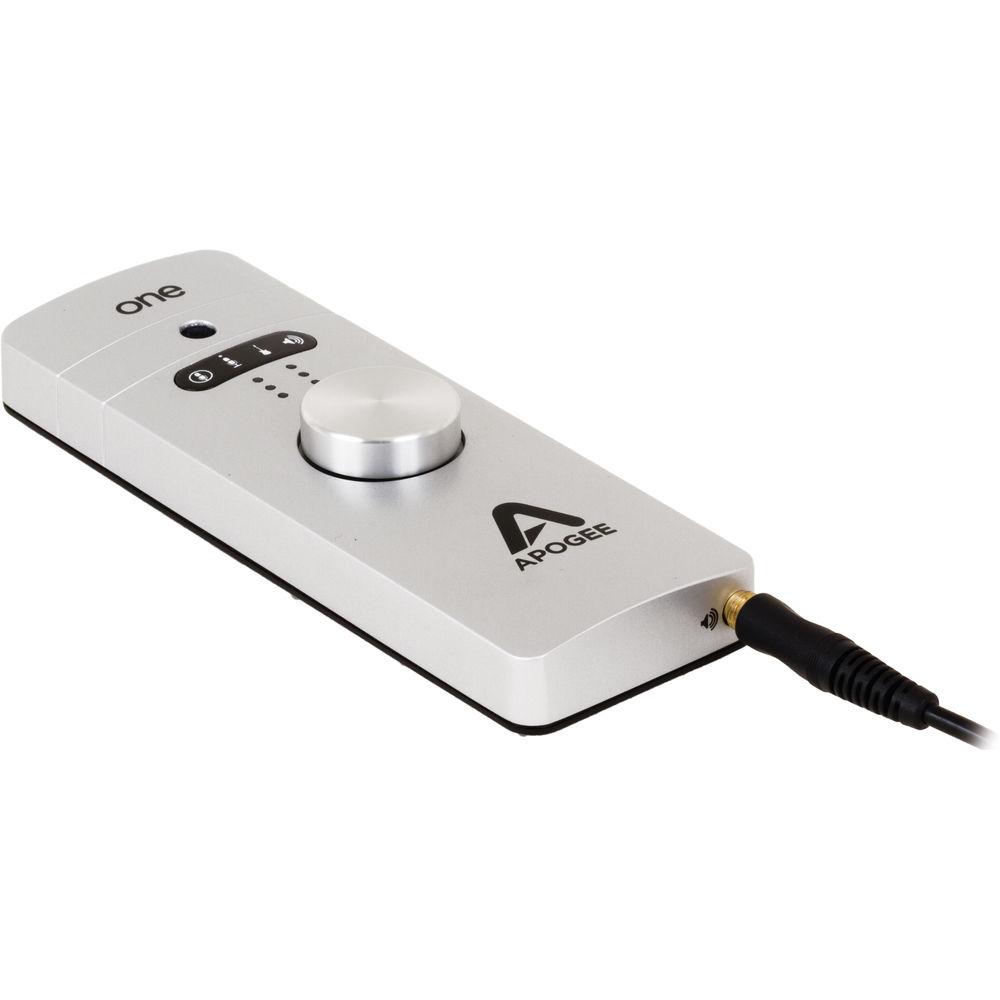

User Manual for Apogee Electronics ONE for Mac 10 USB 2.0 Audio Interface with Built-In Microphone Click to enlarge the picture
Contents of the user manual for the Apogee Electronics ONE for Mac 10
- Product category: Audio Interfaces & Systems Apogee Electronics
- Brand: Apogee Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apogee Electronics Audio Interfaces & Systems
 |
User manual for the Apogee Electronics ONE for Mac 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apogee Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apogee Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apogee Electronics product will considerably shorten its lifespan!
|
Product description Apogee's ONE is a USB 2.0 audio interface with a built-in microphone and features their award-winning sound quality. It is designed to work easily with Apple's GarageBand, Logic, Final Cut, or any Core Audio-compliant application. The implementation of the product is as elegant as it is simple to set up and operate.

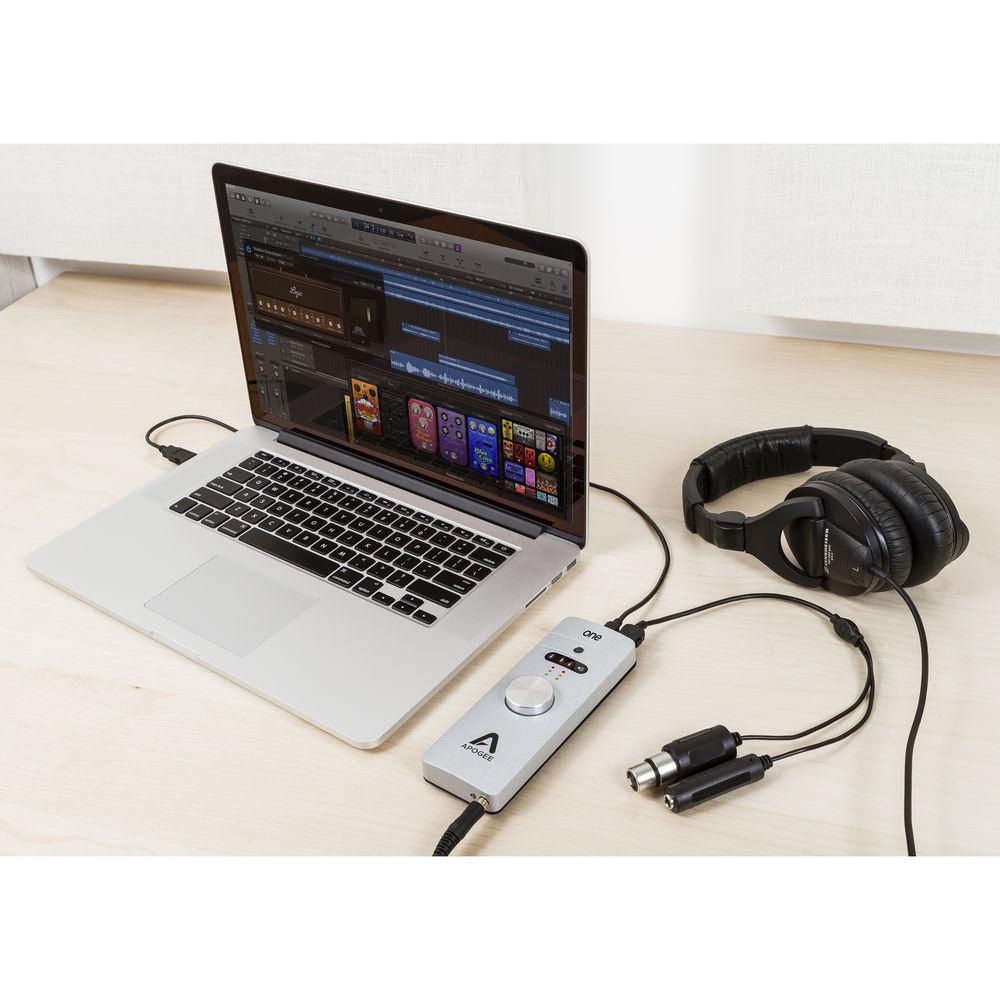

There are several input options provided, and the device allows for up to two simultaneous inputs. One option is to use the built-in, omnidirectional condenser microphone, housed in a specially tuned enclosure that delivers surprisingly good results. Another option is to use the included breakout cable, which provides a 1/4" instrument (hi-Z) input and an XLR input for an external microphone. This allows for two simultaneous inputs, either the instrument signal and internal microphone, or the instrument signal and the external microphone.The built-in microphone preamps provide a very respectable 62 dB of gain and full 48V phantom powering. Both the external microphone and instrument inputs exhibit extremely low noise and transparent signal paths, making it the ideal solution for recording or performing live with a Mac. Output is supplied by the 3.5mm (1/8") jack on the front, allowing connection to either headphones or powered speakers.

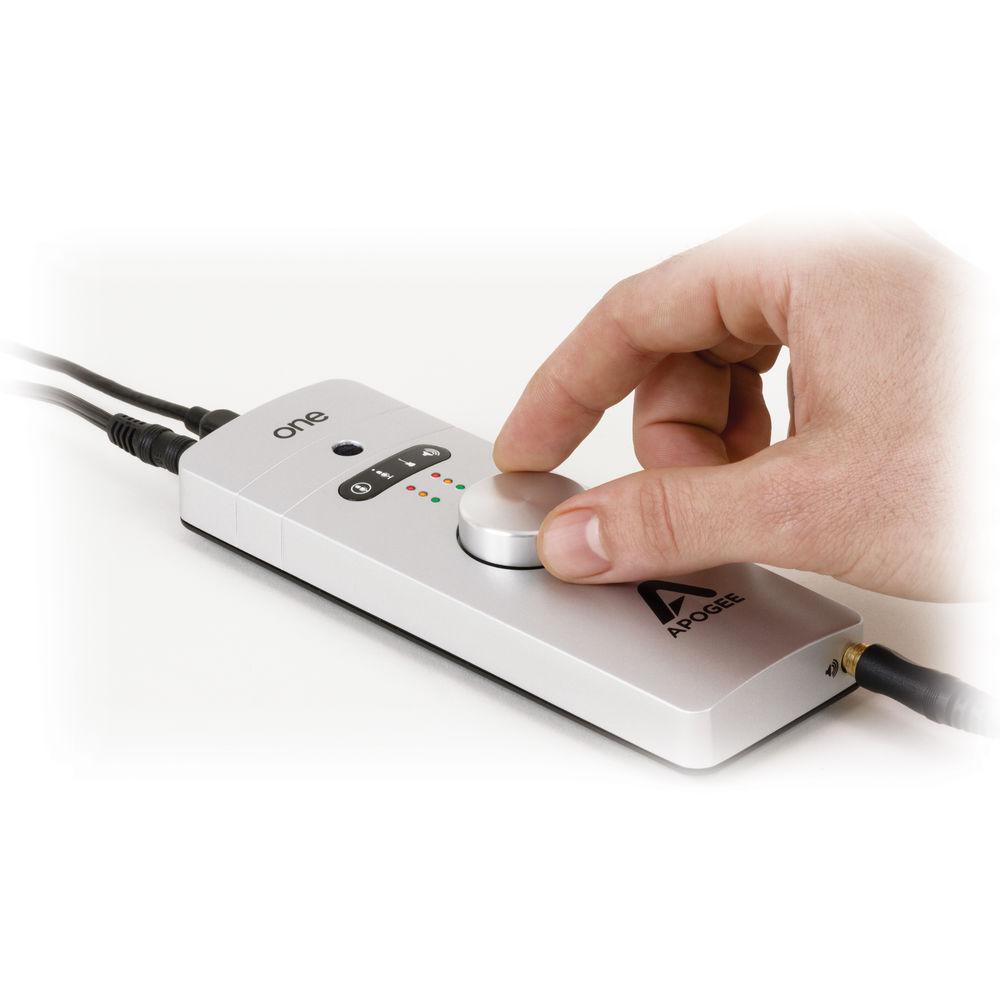

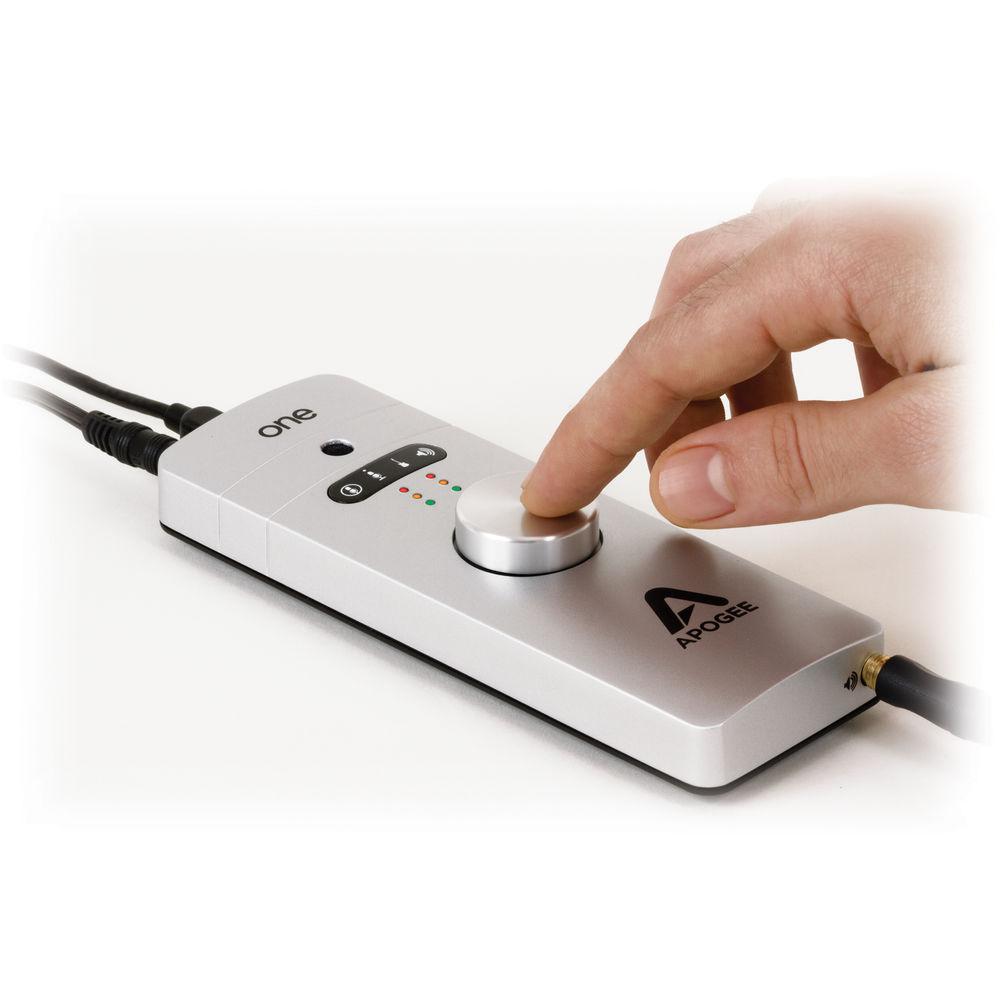

A single encoder knob provides direct access to the tuned-enclosure microphone, external microphone, or instrument selection, and to output functions for input level and volume adjustment. The unit's size makes it very travel-friendly, and when fitted with the included microphone stand mount, it becomes the ultimate portable recording solution for quickly capturing musical ideas, recording high-quality demos, rehearsals, podcasts, lectures, interviews, voice-overs, and more. - Two analog input, two analog output, USB 2.0 interface with built-in microphone for Mac OS X, with 24-bit / 96 kHz A/D and D/A converters
- High-quality, internal, omnidirectional condenser microphone allows for true portable operation for the singer/songwriter or guitarist
- Can be used with an external microphone via a preamp input with up to 62 dB of gain
- Accepts unbalanced 1/4" high-impedance instrument signals and provides 0 dB to 45 dB of gain
- Software selectable 48V phantom power
- Line-level 1/8" stereo output for headphones or unbalanced powered monitors
- Large multi-function encoder knob for input gain control and output level control
- 4 x encoder-function LED indicators
- 3-segment LED input and output metering
- Includes Apogee's Maestro software for advanced control and low latency mixing
- Compatible with any Core Audio-compliant audio application
- Ideal interface for improving a Mac computer's output and providing studio-quality stereo output of a user's iTunes library
- Custom Apogee ASIO audio driver and PC compatible version of Maestro for controlling audio interface settings/low latency monitoring from computers utilizing Windows 10 operating systems
UPC: 805676301617 In the Box Apogee Electronics ONE for Mac 10 USB 2.0 Audio Interface with Built-In Microphone Breakout Cable Mic Stand Clip Mini-USB to USB Type-A Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics ONE for Mac 10 USB 2.0 Audio Interface with Built-In Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics ONE Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | 1 x Mini-USB (USB 2.0) | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/4" (6.3 mm) Hi-Z Input
1 x 1/8" (3.5 mm) TRS Output XLR and 1/4" Input on Included Breakout Cable | | Digital I/O | 1 x Proprietary / Breakout Cable (I/O) Input | | MIDI I/O | None | | | | Gain Range | Hi-Z Inputs:
0 to 45 dB
Mic Inputs:
0 to 62 dB | | Max Input Level | Mic Inputs:
+14 dBu
Hi-Z Inputs:
+14 dBu | | | | Sample Rates | 96 kHz | | Bit Depth | 24-Bit (AD/DA Conversion) | | | | OS Compatibility | macOS 10
macOS 10.6.8
macOS 10.7.5 or Later | | Processor Requirement | Mac:
1.5 GHz Intel | | RAM Requirements | 2 GB (4 GB Recommended) | | Required Hardware | Available USB Port | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.8 x 6.8 x 4.3" |
