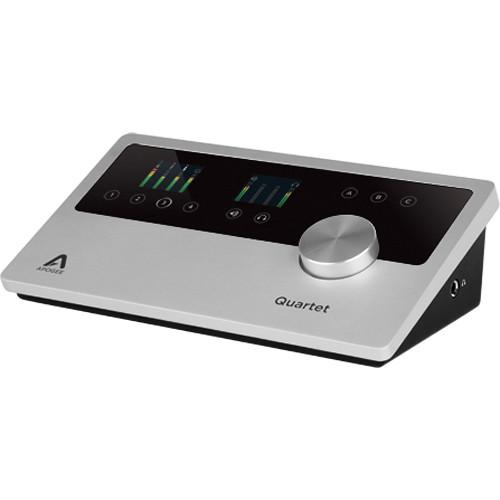

User Manual for Apogee Electronics Quartet USB 2.0 Audio Interface for Mac, iOS & Windows 10 with Lightning Connector Cable Click to enlarge the picture
Contents of the user manual for the Apogee Electronics Quartet USB 2.0 Audio
- Product category: Audio Interfaces & Systems Apogee Electronics
- Brand: Apogee Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apogee Electronics Audio Interfaces & Systems
 |
User manual for the Apogee Electronics Quartet USB 2.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apogee Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apogee Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apogee Electronics product will considerably shorten its lifespan!
|

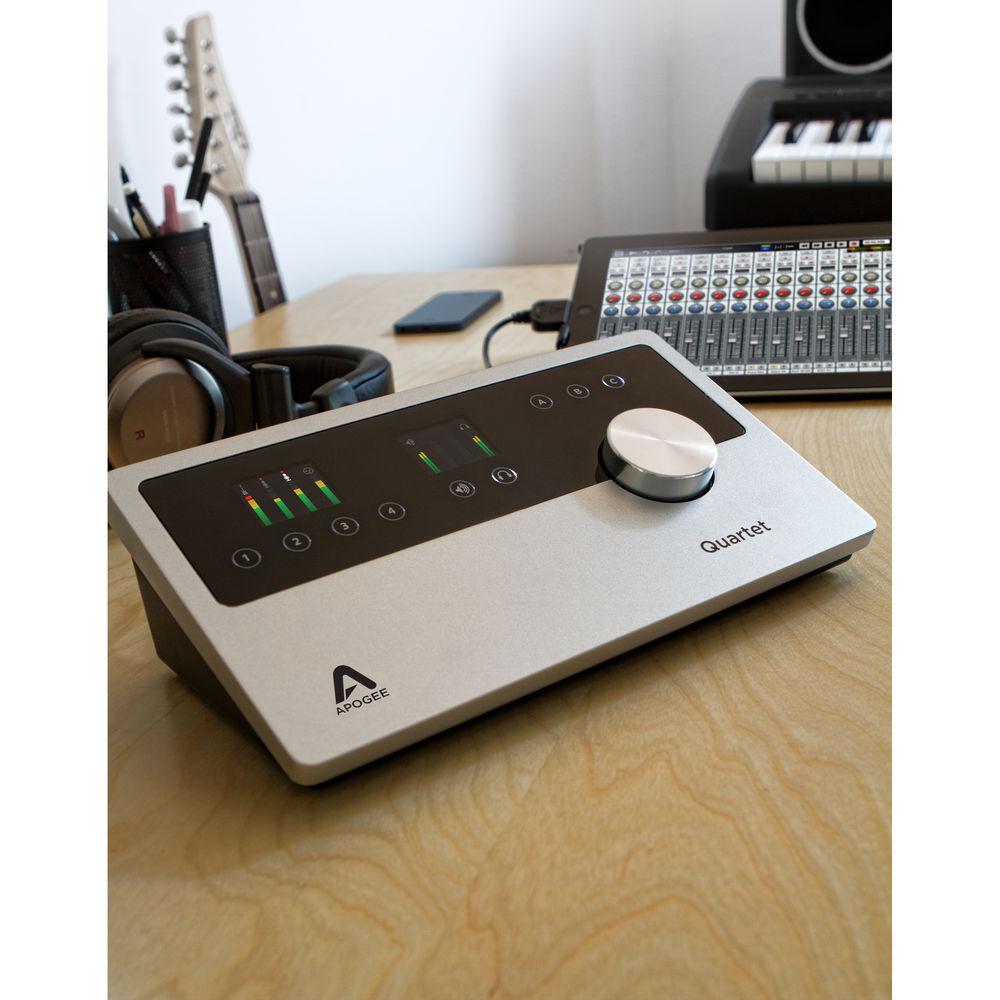

Product description The Quartet USB 2.0 Audio Interface for iPad, Mac and Windows 10 with Lightning Connector Cable from Apogee is a four-input/eight-output USB 2.0 audio/MIDI interface, which when paired with an optional ADAT Lightpipe equipped expander, allows for streaming up to twelve channels of audio into an Apple computer, iPad, iPhone or iPod touch. It will also work with any PC that utilizes Windows 10 operating systems. It features four microphone preamps with 75 dB of gain and combo XLR/TRS inputs for connecting microphones, instruments, or line-level signals.
Two TOSLink optical inputs, besides providing the option of eight-channel ADAT Lightpipe input, when used together, support SMUX for higher sample rate audio transfer. The rear panel houses six analog 1/4" TRS line-level outputs, a Wordclock output, and dual USB ports. One USB port is for connection to the Mac or iOS device, and the other supports USB MIDI input and output. A USB to Lightning cable is included for connecting to Lightning connector iOS devices such as the iPhone5, iPhone5c, iPhone5s, iPad Air, and 2nd generation iPad Mini. A side panel 1/4" TRS jack provides independent headphone output.
The balanced 1/4" outputs allow for referencing audio on up to three separate sets of monitors. Three "QuickTouch Pads" with LED highlight rings above the main controller knob can be assigned to different functions, such as mute and sum-to-mono. They can also be used to switch the analog outputs on or off, facilitating sound comparison on different kinds of speakers. Two color OLED displays supply detailed metering and other information, including gain level, headphone volume, and phantom power status.
Apogee Maestro software for Mac, iOS, and Windows 10 provides low latency monitoring and control of Quartet. The unit features special circuitry that makes a direct digital connection to iPad and iOS devices and is certified by Apple's MFi (Made for iOS) program. The Quartet is also able to charge an iPad for uninterrupted recording and mixing. With hundreds of music apps for iOS and iPad available and plug-and-play functionality, making music on these portable devices is easier than ever. - Quartet Features at a Glance
-

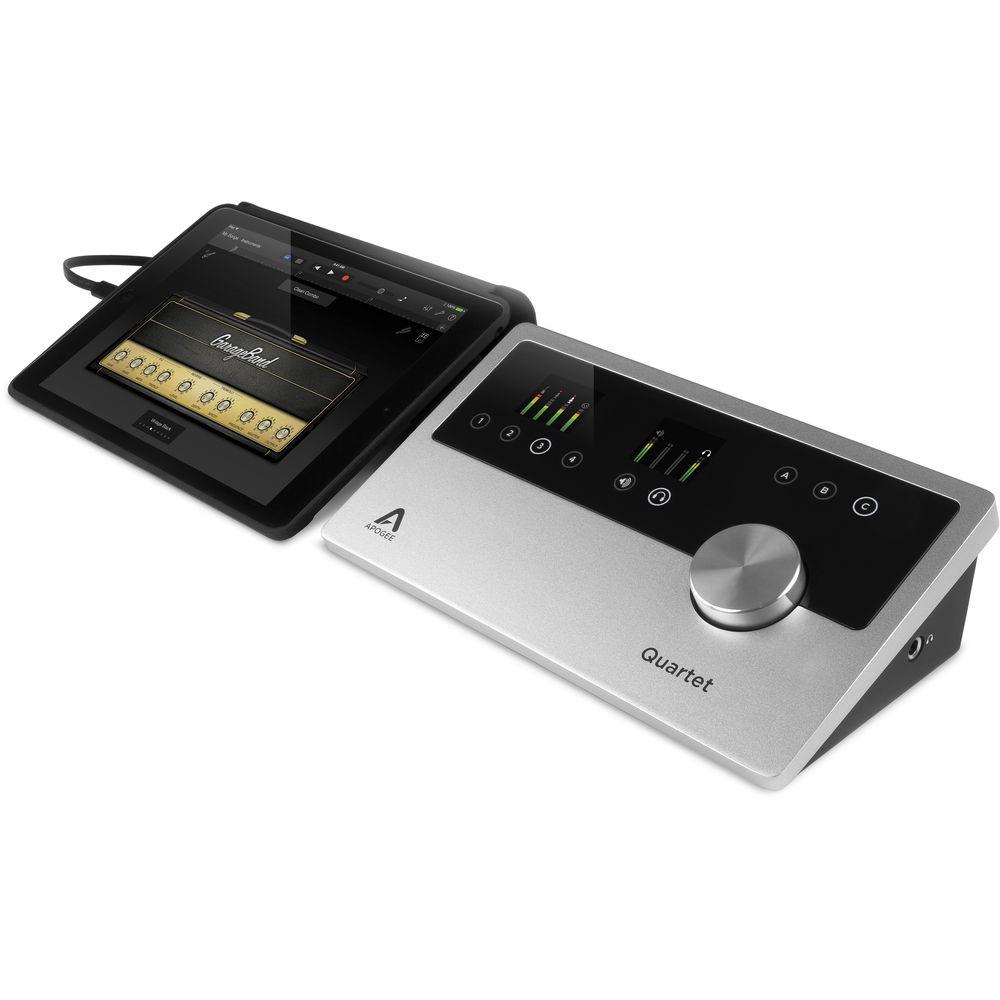

- Multi-channel audio interface for iPad
- Direct digital connection to iPod touch, iPhone, iPad
- Works with new iPhone 5, iPad (4th generation), iPad mini (Apple Lighting cable included)
- Works with GarageBand, Auria, MultiTrack and any Core Audio compliant app on iOS
- Works with GarageBand, Logic, Pro Tools, Ableton and any Core Audio compliant app on Mac
- Compatible with Windows 10 devices
- Low-latency monitoring, complete input/output control with Apogee's Maestro software (iOS and Mac)
- MIDI input/output (USB-A type connector)
- DC power supplies charge to iPod touch, iPhone or iPad
- USB 2.0 audio with 24-bit/192 kHz A/D and D/A conversion
- Four analog inputs with microphone preamps and selectable 48V phantom power
- ADAT/SMUX digital inputs
- Monitor control of up to three speaker sets
- Independent 1/4" stereo headphone output
- QuickTouch pads for input/output selection and advanced control
- Built with die-cast aluminum, steel and a scratch-resistant display panel
- Maestro Software
-
- Input type selection and level control
- Microphone preamp level control
- Speaker, headphone selection, and volume control
- Low-latency monitoring
- Clock source, sample rate setting
- Minimized tool bar view with System Status, volume controls, mute and clear meters buttons
- Comprehensive metering
- Intuitive audio routing
- Soft Limit and phase invert on each input

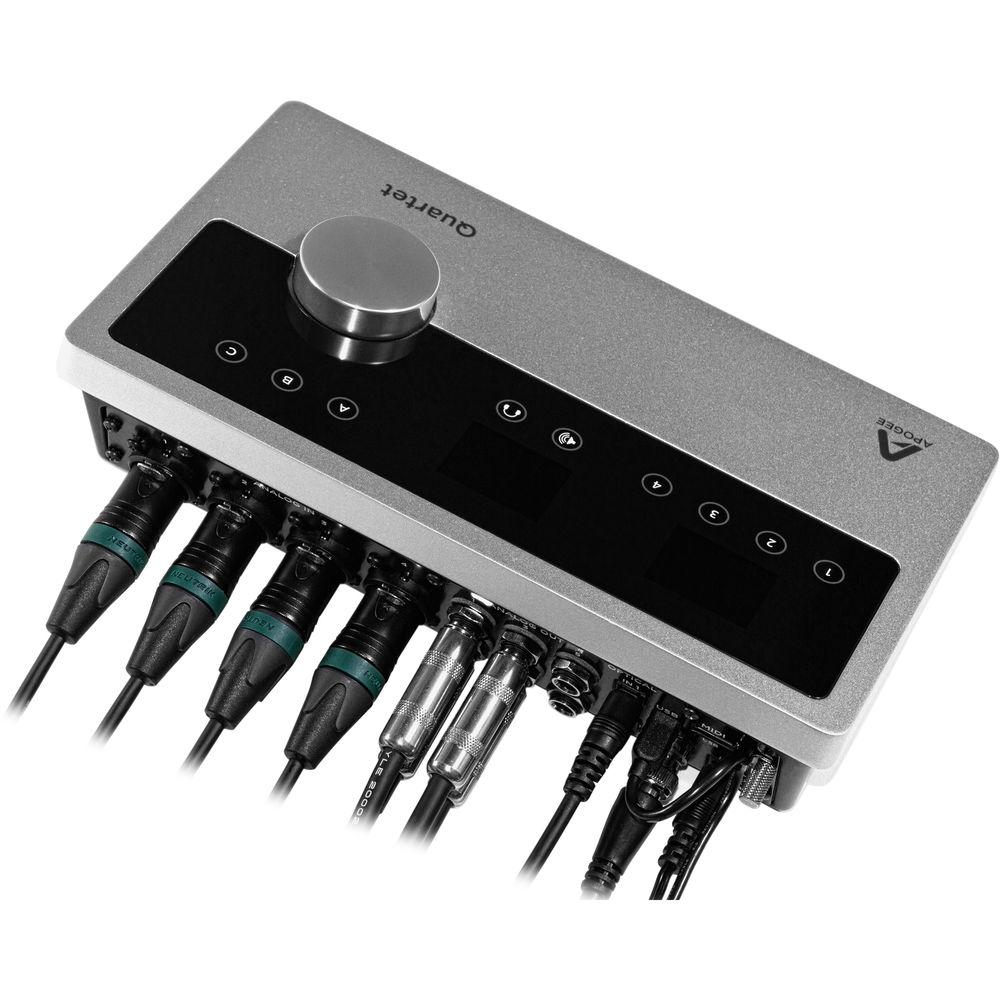

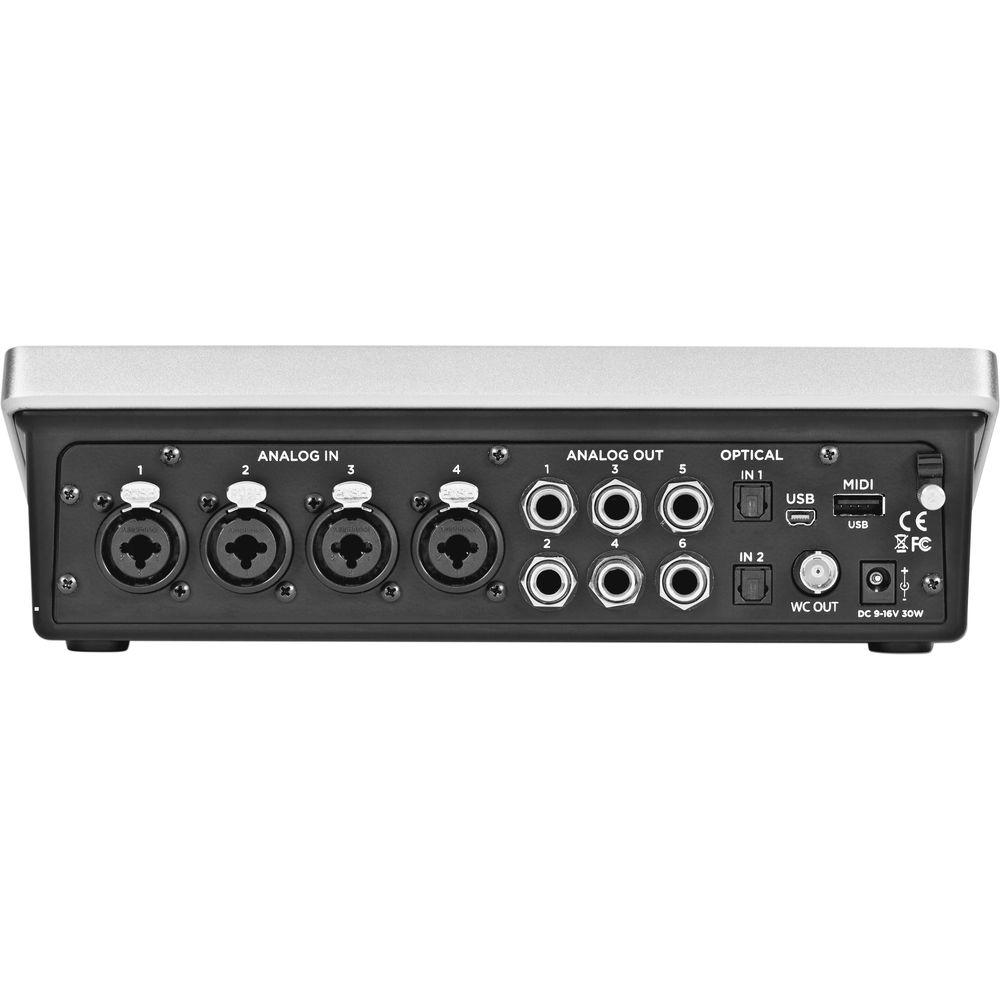

- Complete Connections
-
- Connect up to four microphones, instruments, keyboards or line inputs
- Plug in a MIDI controller or keyboard
- Expand with up to eight digital inputs via ADAT Lightpipe
- Monitor and mix in stereo with up to 3 sets of speakers, or in 5.1 surround
- USB 2.0 Interface
-
- USB 2.0 high-speed connectivity
- With advances in the Apple's Core Audio driver, USB 2.0 performs faster and with lower latency than FireWire 400
- While USB 3.0 offers approximately ten times the bandwidth of USB 2.0, USB 2.0 far exceeds the bandwidth Quartet requires for its potential twelve inputs and eight outputs
- Creative Control
-

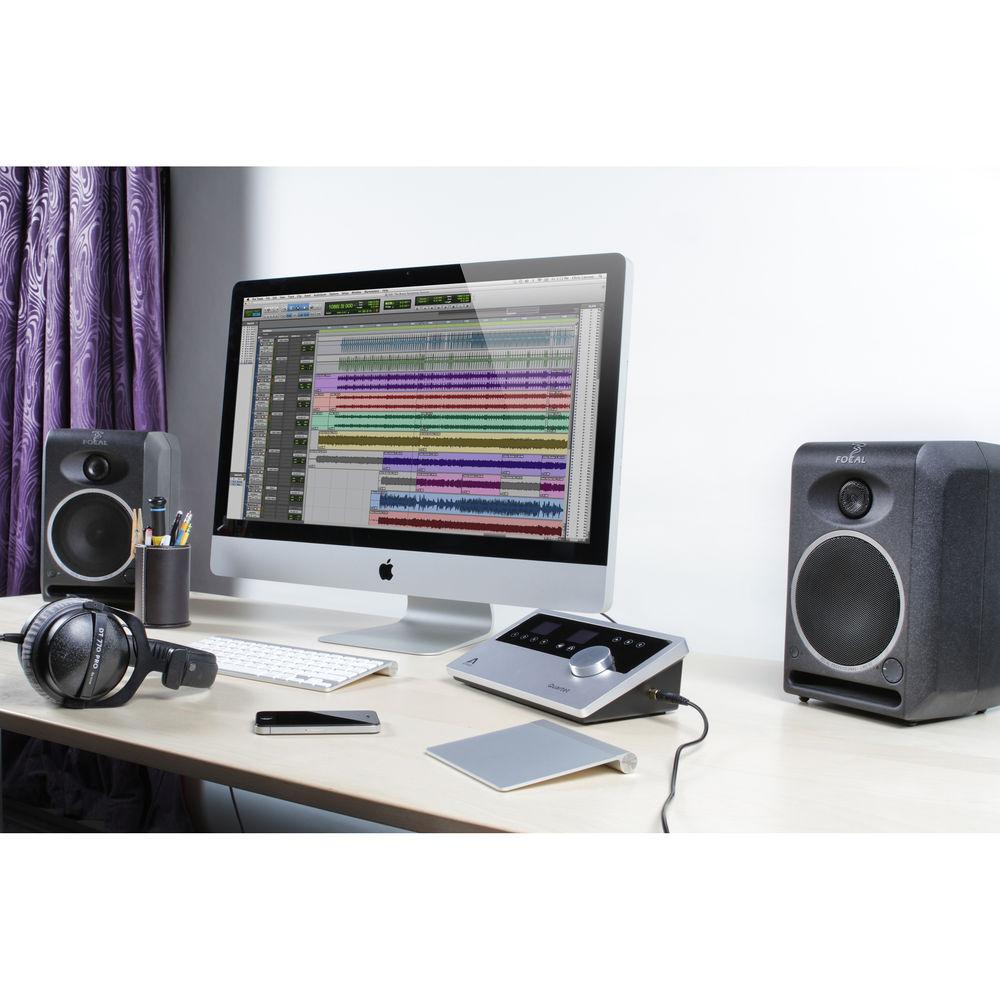

- Ergonomic, angular design and intuitive user interface make the unit a perfect studio control center for a Mac computer, a PC sporting Windows 10, or an iOS device
- Dual full-color screens for critical input and output detail
- QuickTouch Pads for easy I/O selection
- Single, large controller knob

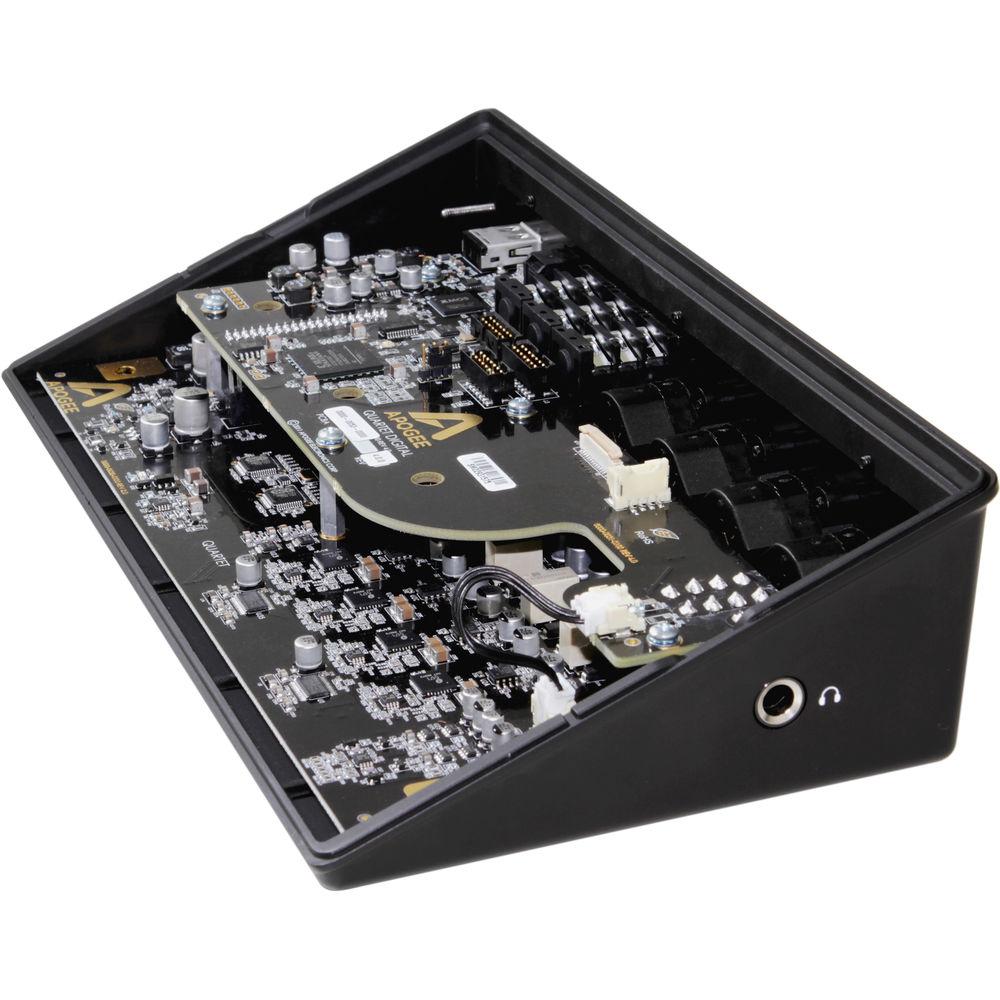

- AD/DA Converters
-
- Converters designed to deliver unadulterated recordings and a stellar listening experience
- Efficient circuitry and state-of-the-art components provide a simplified signal path that results in transparent recordings
- Mic Preamps
-
- Feature the latest components and offer seamless click-free transitions as the gain increases and decreases throughout the 0 to 75 dB gain range
- Allows for dialing in the perfect level, either with the controller knob or from within software
- Deliver ultra-low noise and smooth, crisp detail
- Suitable for all dynamic, condenser or ribbon microphones
- Digital Connections
-
- Eight channels of digital input via two ADAT optical connectors
- Connect an additional analog-to-digital converter with microphone preamps for additional inputs
- SMUX support for higher sample rate digital audio
- Wordclock output for synching an external A/D converter to Apogee's clock
- Analog Outputs
-
- Six balanced 1/4" TRS outputs allow for listening and comparing stereo mixes on up to three sets of speakers
- Mix audio or Final Cut video projects in 5.1 surround
- In live situations use all three stereo sets on stage, sending signal to the performer, the monitor mixer and front-of-house

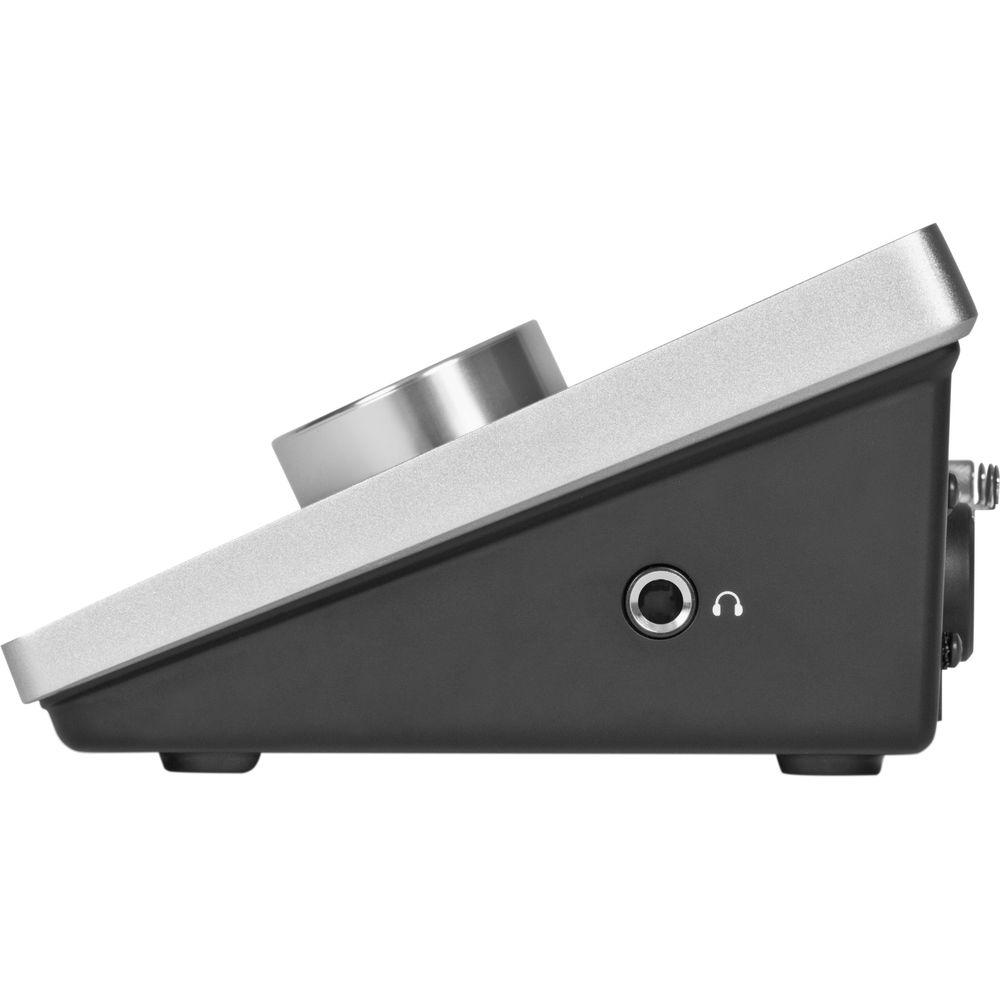

- Studio-quality 1/4" headphone output independently adjusts headphone levels separate from the main outputs
- MIDI
-
- Dedicated USB MIDI I/O connection for connecting a CoreMIDI compatible keyboard, synthesizer or DJ controller
- Leaves a USB port available on a Mac for external hard-drives and other devices, eliminating the need for an external MIDI interface
- USB Aggregation with Apogee Duet 2
-
- Duet 2 users can add more channels of Apogee conversion to their existing setups by adding Quartet
- Connect both Quartet and Duet 2 to a Mac's USB ports and aggregate the two devices for a combined total of six analog inputs and twelve analog outputs

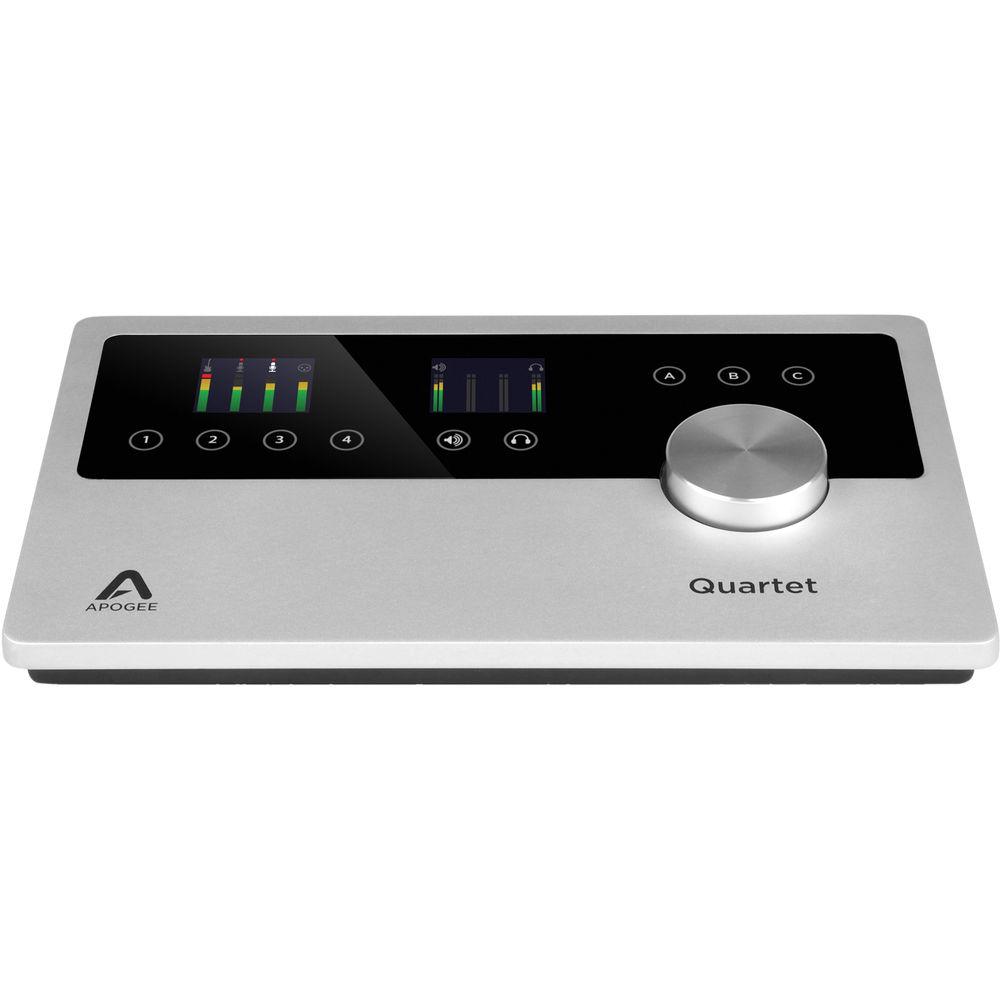

- Displays
-
- Two high-resolution OLEDs deliver all the visual feedback critical for recording and monitoring
- Without looking at a computer, Quartet displays metering, levels, grouping and phase, muting, phantom power and Soft Limit for all inputs and outputs
- QuickTouch Pads
-
- Easily access all important recording and monitoring functions
- Tap a QuickTouch Pad on the top panel to select an input or output and easily adjust level with the controller knob
- All input and output touchpads feature an LED highlight ring (the ring of the active touchpad is brighter)
- ABC
-
- Three additional configurable touchpads (labeled A, B, C) allow for quick access to output functions such as Mute Outputs, Dim Outputs, Sum to Mono, Clear Meters or Engage Speaker Set selection
- Each function can be assigned to a touchpad using a drop-down menu within Apogee's Maestro 2 application
- A, B, C selectors can be configured in Apogee's Maestro software to switch between up to three pairs of speakers allowing the Quartet to function like a standard monitor controller
- Soft Limit
-
- Prevents digital clipping that causes distortion by instantaneously rounding off transient peaks before they hit the analog-to-digital converter
- Allows for several more decibels of apparent level to be recorded while subtly providing an analog-like warmth to the sound

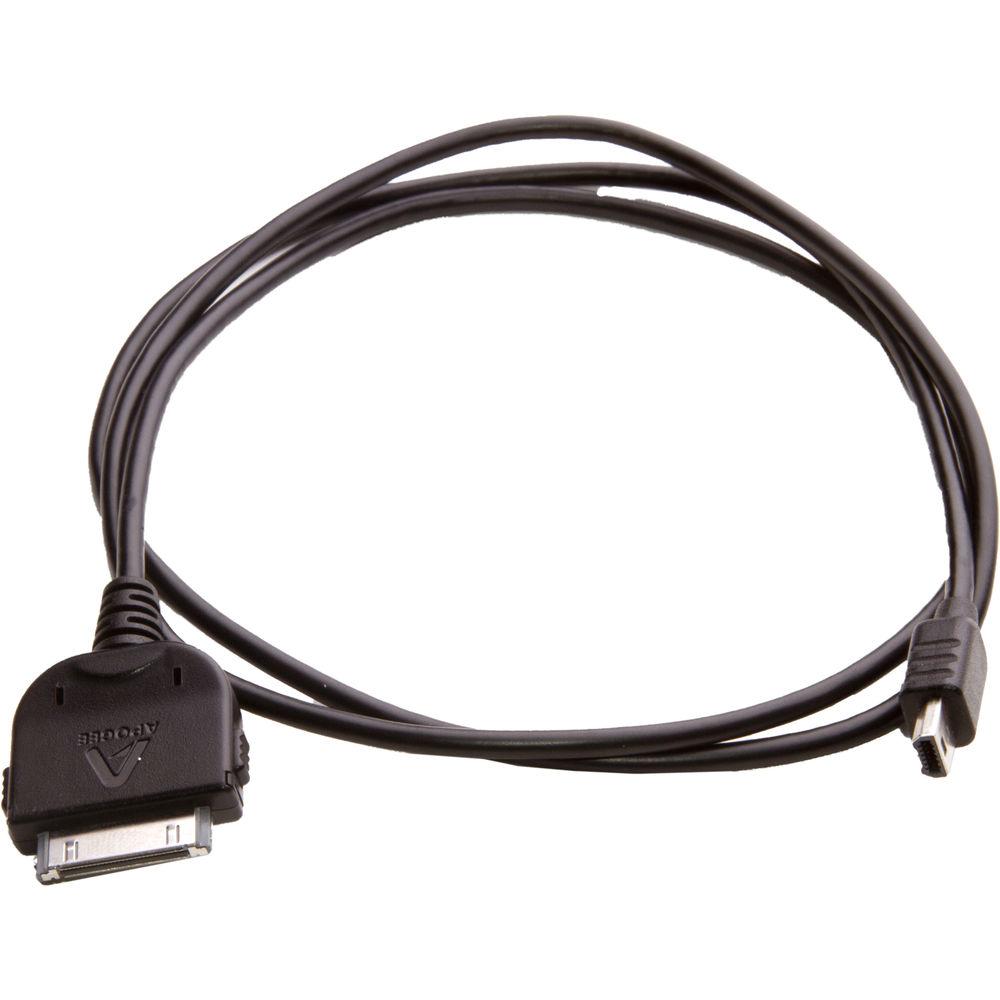

UPC: 805676301136 In the Box Apogee Electronics Quartet USB 2.0 Audio Interface for Mac, iOS & Windows 10 with Lightning Connector Cable External Power Supply 6.6' (2 m) USB Cable USB to Lightning Connector Cable Limited 1-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Quartet USB 2.0 Audio Interface for Mac, iOS & Windows 10 with Lightning Connector Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics Quartet USB Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 2 x OLED | | | | Host Connection | 1 x USB Type-A (MIDI I/O)
1 x Mini-USB (USB 2.0) USB 2.0 to Lightning Connector required for iOS devices | | Analog I/O | 4 x Combo XLR / 1/4" Input
6 x 1/4" (6.3 mm) TRS Line Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x BNC / ADAT, S/MUX Input | | MIDI I/O | None | | | | Frequency Response | A/D Converters:
20 Hz to 20 kHz
