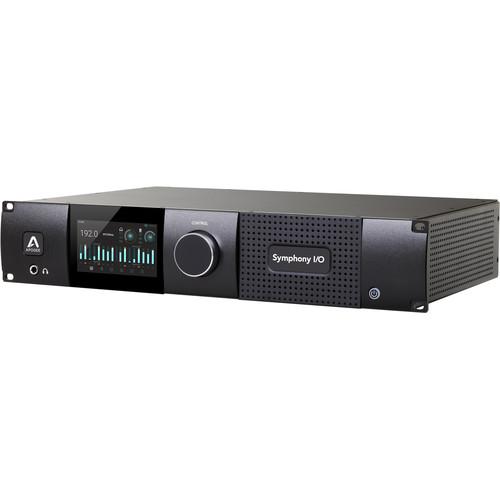

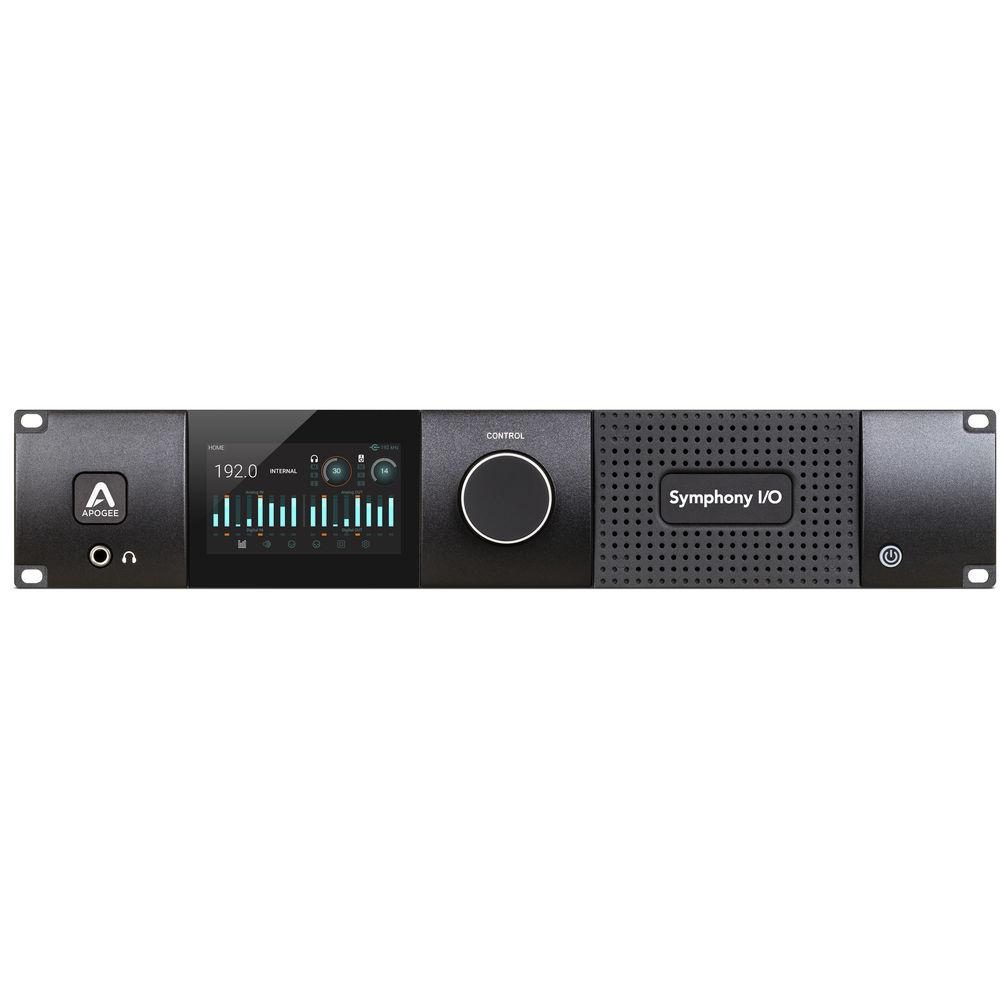

Product description The Symphony I/O Mk II from Apogee Electronics is an advanced, flexible multi-channel audio interface featuring the newest flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), and an intuitive touchscreen display. The chassis provides two I/O Module slots for a variety of digital audio conversion options that form the interface side of the Symphony I/O Mk II. The front-panel touch screen offers convenient access to nearly every setting including sample rate, clock source, headphone & speaker output levels, meters for all I/O and section navigation, as well as input levels, digital I/O, and configuration settings.

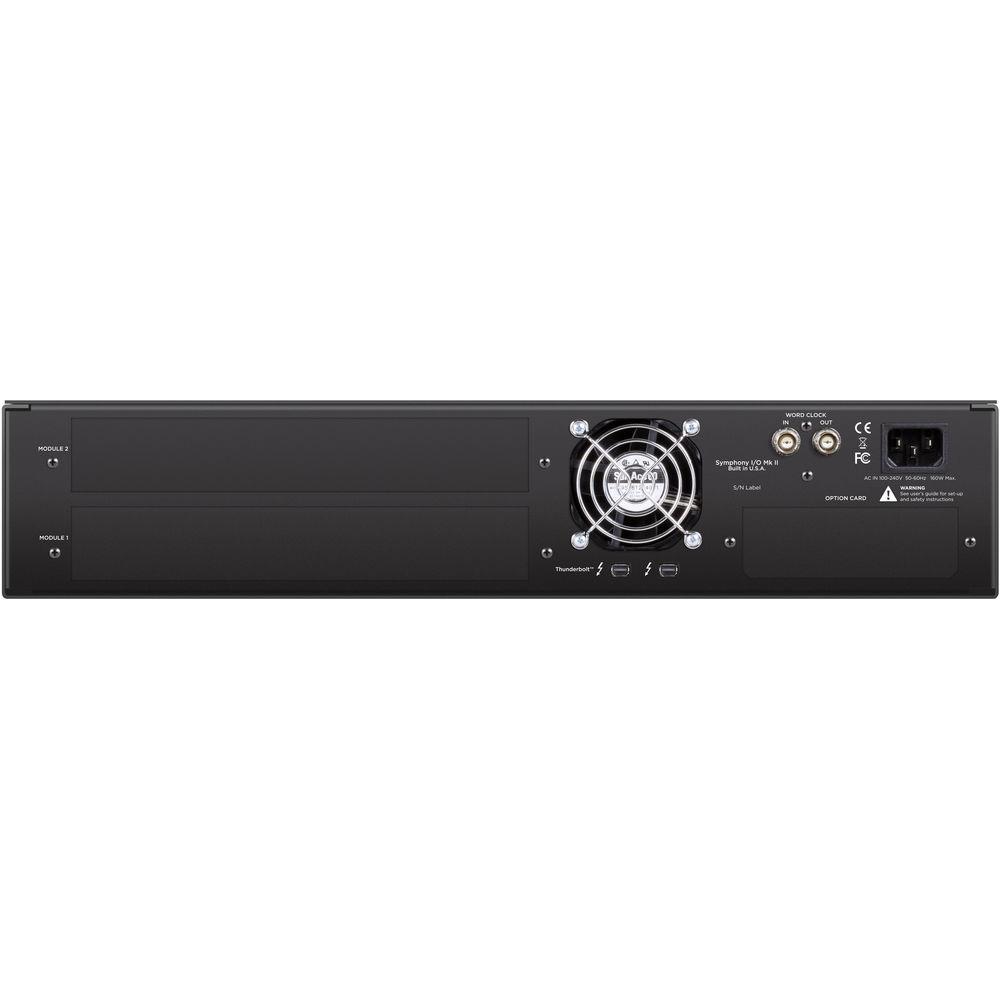

The rear panel provides access to the two I/O Module slots that are capable of a combined thirty-two channels of input and output, while the two Thunderbolt connectors ensure compatibility with newer Mac computers. Also included are Wordclock I/O connectors & termination, an option card slot, and a quiet digitally-controlled fan to keep everything running cool.
The Symphony I/O Mk II features a single ultra-high-fidelity DAC and headphone amplifier with Apogee's Constant Current Drive technology, which was first introduced in the Apogee Groove. The headphone amplifier dynamically compensates for non-linearities of any connected headphones, providing massive power while maintaining extremely low distortion and linear frequency response.The optional five I/O Modules allow the user to choose from standard configurations, or customize the following – channel count, analog to digital input, digital to analog output, microphone preamps (requires an analog card), and digital I/O. Note: Note! This is the Symphony I/O chassis only. -
- Legendary AD/DA conversion
- Up to 32 channels of modular analog I/O with optional 8 mic preamps
- Ultra-low latency performance
- Intuitive touchscreen display and front panel control
- Option card slot for future platform flexibility
- Dynamic Temperature Control
- Designed in California, built in the U.S.A.
UPC: 805676301525 In the Box Apogee Electronics Symphony I/O Mk II Chassis (Thunderbolt) AC Power Cable Rack Ears and Bolts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Symphony I O Mk II Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics SYM2 Specs | | | ADC | THD+N: -114 dB @ 22 dBu (0.00020%)
Dynamic Range: 122 dB (A weighted)
Maximum Input Levels:
+4 dB Setting: +24 dBu
-10dB Setting: +6 dBV
Frequency Response at 44.1 kHz: 1 Hz to 20 kHz (±0.05 dB)
Input impedance: 10 kOhms | | | | DAC | THD+N: -117 dB @ 21 dBu (0.00014%)
Dynamic Range: 129 dB (A weighted)
Max Output Levels: -∞ to +24 dBu
Frequency Response at 44.1 kHz: DC to 20 kHz (±0.05 dB)
Output Impedance: 25 Ohms
Outputs are balanced through Apogee's proprietary Perfect Symmetry Circuitry (PSC) | | | | Headphone | Stereo Headphone Output (Front Panel): 1/4" / 6.35 mm
THD+N:
-110 dB @ 19 dBu into 600 Ohm (=80 mW)
-101 dB @ 14 dBu into 32 Ohm (=470 mW)
Dynamic Range: 121 dB (A weighted)
Output: Apogee's proprietary Constant Current Drive provides smooth frequency response with any headphones | | | | System Requirements | Computer: Thunderbolt-equipped Mac
Memory: 4 GB RAM minimum, 8 GB RAM recommended
OS X 10.9.5 or greater
Thunderbolt cable (sold separately) | | | | Power | 90 to 240 VAC, 50/60 Hz, 150 W | | Dimensions (W x D x H) | Without Rack Ears: 17.8 x 11.5 x 3.5" / 450.9 x 292.1 x 88.9 mm
With Rack Ears: 19.0 x 11.5 x 3.5" / 482.6 x 292.1 x 88.9 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 18.4 lb | | Box Dimensions (LxWxH) | 22.8 x 17.9 x 9.9" |
