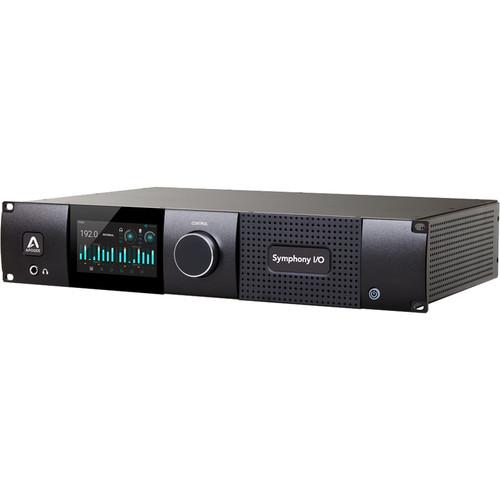

User Manual for Apogee Electronics Symphony I O Mk II SoundGrid Chassis Click to enlarge the picture
Contents of the user manual for the Apogee Electronics Symphony I O Mk
- Product category: Audio Interfaces & Systems Apogee Electronics
- Brand: Apogee Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apogee Electronics Audio Interfaces & Systems
 |
User manual for the Apogee Electronics Symphony I O Mk contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apogee Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apogee Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apogee Electronics product will considerably shorten its lifespan!
|

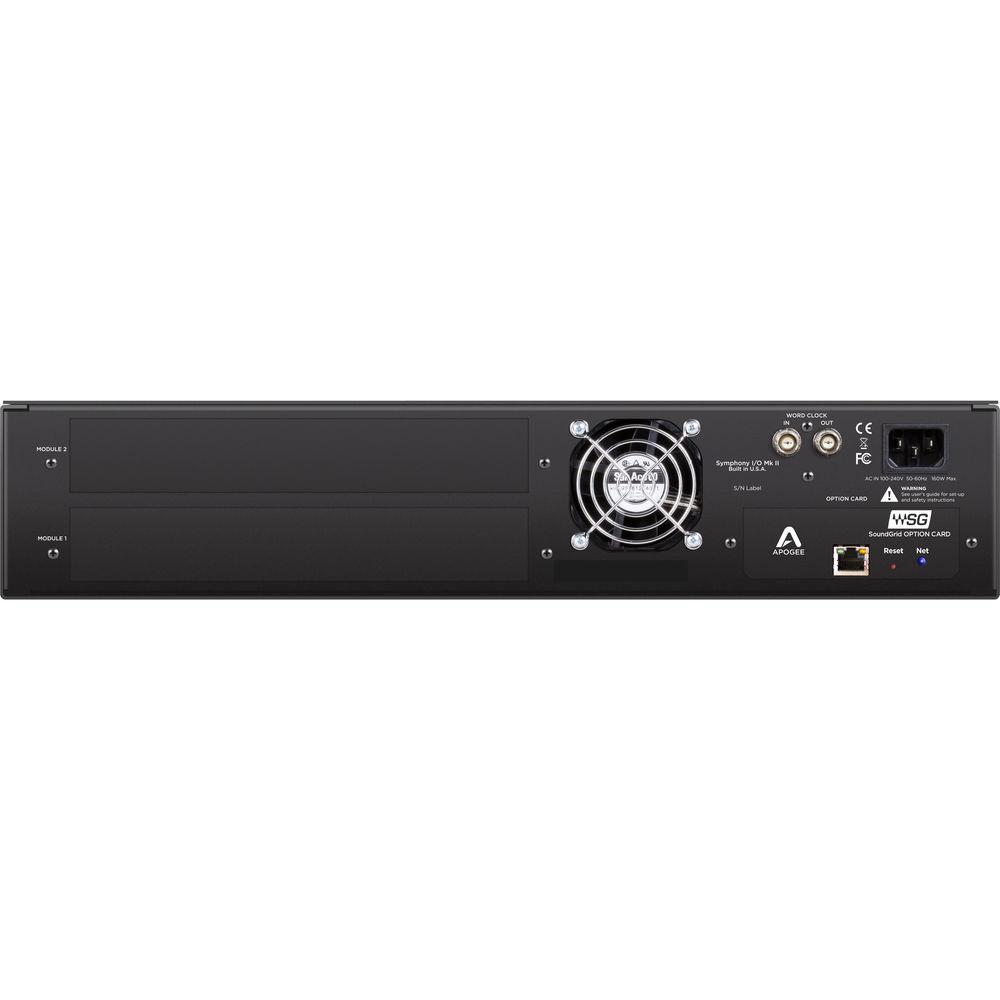

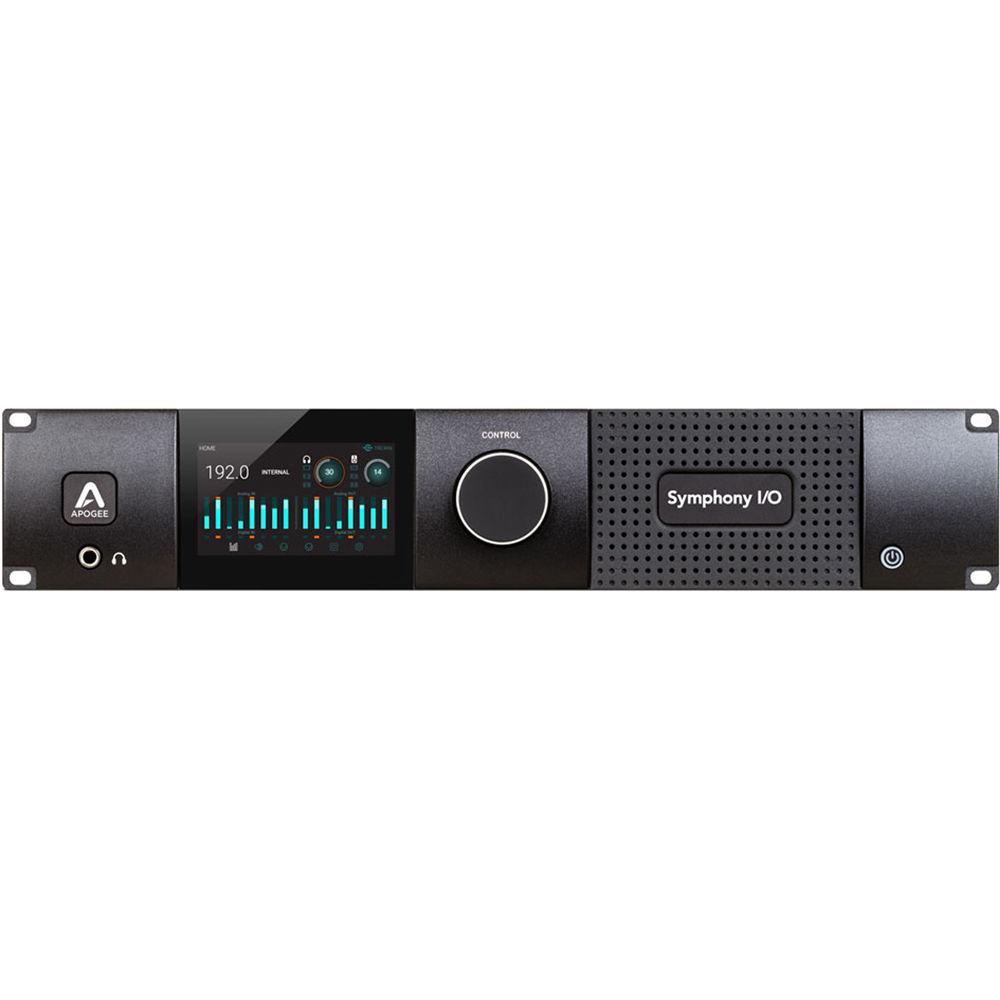

Product description The Apogee Electronics Symphony I/O Mk II SoundGrid Chassis is a SoundGrid-compatible audio interface chassis designed to provide Ethernet connectivity to computers and SoundGrid devices for recording and mixing engineers in broadcast, post-production, studio, and live stage applications. It features an RJ45 port in the pre-installed SoundGrid option card and BNC word clock I/O. A stereo 1/4" headphone jack enables quick and effective monitoring with a variety of headphone impedances. Ultra-low latency ensures proper timing in signal conversion and routing, even when connected to your Waves SoundGrid server and recording with your SoundGrid-compatible plug-ins. Configure and control the chassis via the free SoundGrid Studio app or utilize the color touchscreen display and large rotary control on the front panel. Install multiple I/O cards (available separately) for up to thirty-two channels of analog inputs and outputs. The Symphony I/O Mk II is made in the USA and ships with a power cable. - Pre-installed SoundGrid option card allows Ethernet connectivity to your computer, a network switch, and/or SoundGrid-compatible devices
- Sync audio between multiple computers, DAWs, and rooms
- Ultra-low-latency performance
- Near-zero-latency recording with any SoundGrid-compatible plug-ins (requires SoundGrid server)
- Compatible with Waves SoundGrid servers
- Setup and advanced control via Waves SoundGrid Studio application
- Stereo 1/4" headphone jack features Apogee's proprietary Constant Current Drive for smooth frequency response with any headphones
- Easy-to-use color touchscreen display
- Large front-panel control for quick adjustment of selected parameter
- Supports multiple I/O cards for up to 32 channels of analog inputs and outputs
- BNC word clock I/O for synchronizing external equipment
- Designed in California, made in the USA
UPC: 805676302140 In the Box Apogee Electronics Symphony I/O Mk II SoundGrid Chassis (No I/O Modules) Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Symphony I O Mk II SoundGrid Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApogee Electronics Symphony I/O Mk II Specs | Interface Connector | 1 x RJ45 port (SoundGrid interface) | | Word Clock I/O | 1 x BNC word clock input
1 x BNC word clock output | | Outputs | 1 x 1/4" TRS headphone jack | | Dynamic Range | 121 dBA | | THD+N | -110 dB @ 19 dBu into 600 Ohms (= 80 mW)
-101 dB @ 14 dBu into 32 Ohms (= 470 mW) | | Power Requirement | 90 to 240 VAC, 50/60 Hz, 150 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 11.5" / 48.3 x 8.9 x 29.2 cm (with rack ears) | | Weight | 14 lb / 6.4 kg | | Country of Manufacture | United States of America | | | | Package Weight | 18.15 lb | | Box Dimensions (LxWxH) | 23.0 x 18.1 x 9.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
