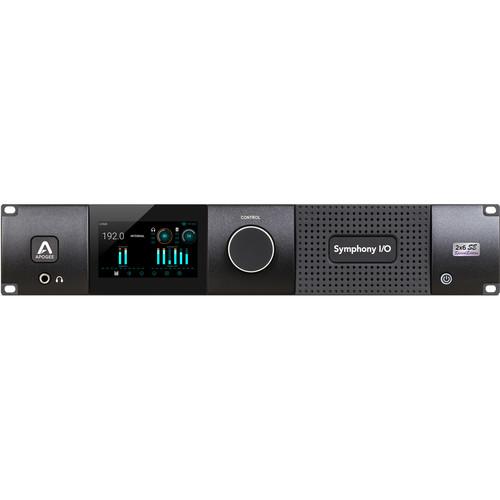

Product description NAMM 2018: Apogee Unveils Latest Audio Technologies and Plug-Ins Read More The Apogee Electronics Symphony I/O Mk II Thunderbolt Audio Interface with Special Edition 2x6 Analog I/O and 8x8 Digital I/O is an audio interface designed to deliver high-performance A/D and D/A conversion at up to 192 kHz for mixing and mastering engineers in personal, project, and commercial studios. The included 2x6 SE I/O card features stunning dynamic range with low distortion and noise for mastering-grade sonic quality. Its analog I/O includes two inputs on XLR 3-pin jacks and six outputs on a DB25 connector. Additional XLR, TOSLINK optical, and RCA coaxial jacks provide connectivity for AES/EBU, ADAT, and S/PDIF digital inputs and outputs. The chassis utilizes Thunderbolt connectivity for high-speed data transfer rates and compatibility with Core Audio software. Its front panel presents a TFT touchscreen display, multi-function control knob, and convenient 1/4" stereo headphone output. - Symphony I/O Mk II Chassis (Thunderbolt) The Symphony I/O Mk II from Apogee Electronics is an advanced, flexible multi-channel audio interface featuring the newest flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), and an intuitive touchscreen display. The chassis provides two I/O Module slots for a variety of digital audio conversion options that form the interface side of the Symphony I/O Mk II. The front-panel touch screen offers convenient access to nearly every setting including sample rate, clock source, headphone & speaker output levels, meters for all I/O and section navigation, as well as input levels, digital I/O, and configuration settings.
The rear panel provides access to the two I/O Module slots that are capable of a combined thirty-two channels of input and output, while the two Thunderbolt connectors ensure compatibility with newer Mac computers. Also included are Wordclock I/O connectors & termination, an option card slot, and a quiet digitally-controlled fan to keep everything running cool.
The Symphony I/O Mk II features a single ultra-high-fidelity DAC and headphone amplifier with Apogee's Constant Current Drive technology, which was first introduced in the Apogee Groove. The headphone amplifier dynamically compensates for non-linearities of any connected headphones, providing massive power while maintaining extremely low distortion and linear frequency response.The optional five I/O Modules allow the user to choose from standard configurations, or customize the following – channel count, analog to digital input, digital to analog output, microphone preamps (requires an analog card), and digital I/O. Note: Note! This is the Symphony I/O chassis only. -
- Legendary AD/DA conversion
- Up to 32 channels of modular analog I/O with optional 8 mic preamps
- Ultra-low latency performance
- Intuitive touchscreen display and front panel control
- Option card slot for future platform flexibility
- Dynamic Temperature Control
- Designed in California, built in the U.S.A.
UPC: 805676301525 - 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II The Apogee Electronics 2x6 SE is a special-edition mastering I/O card designed to deliver high-performance A/D and D/A conversion at up to 192 kHz for mixing and mastering engineers in personal, project, and commercial studios. It features low THD+N (-116 dB for analog inputs, -118 dB for analog outputs) and high dynamic range (124 dBA for analog inputs and 131 dBA for analog outputs) for uncompromising accuracy and detail.Its analog I/O includes two inputs on XLR 3-pin jacks and six outputs on a DB25 connector. Additional XLR, TOSLINK optical, and RCA coaxial jacks provide connectivity for AES/EBU, ADAT, and S/PDIF digital inputs and outputs. The 2x6 SE is easily installed in a Symphony I/O Mk II Thunderbolt or Pro Tools HD chassis. Note: Requires Symphony I/O Mk II Thunderbolt or Pro Tools HD chassis with available card slot.
- High-performance A/D-D/A conversion designed specifically for mastering engineers
- High dynamic range of 124 dBA for analog inputs and 131 dBA for analog outputs
- Low THD+N of -116 dB for analog inputs and -118 dB for analog outputs
- Two balanced analog line-level inputs via XLR 3-pin connectors
- Six channels of balanced analog line-level outputs via DB25 connector
- AES/EBU stereo digital I/O via XLR 3-pin jacks
- S/PDIF stereo digital I/O via RCA coaxial jacks
- ADAT, SMUX, or S/PDIF digital I/O via TOSLINK optical ports
- Supports 44.1 to 192 kHz sample rates
- Compatible with Apogee Symphony I/O Mk II Thunderbolt and Pro Tools HD chassis
UPC: 805676302102 In the Box Bundle Items Symphony I/O Mk II Chassis (Thunderbolt) xuvcbzawzu 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Symphony I O Mk II Thunderbolt Audio Interface with Special Edition 2x6 Analog I O and 8x8 Digital I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Symphony I/O Mk II Chassis (Thunderbolt)
| | | ADC | THD+N: -114 dB @ 22 dBu (0.00020%)
Dynamic Range: 122 dB (A weighted)
Maximum Input Levels:
+4 dB Setting: +24 dBu
-10dB Setting: +6 dBV
Frequency Response at 44.1 kHz: 1 Hz to 20 kHz (±0.05 dB)
Input impedance: 10 kOhms | | | | DAC | THD+N: -117 dB @ 21 dBu (0.00014%)
Dynamic Range: 129 dB (A weighted)
Max Output Levels: -∞ to +24 dBu
Frequency Response at 44.1 kHz: DC to 20 kHz (±0.05 dB)
Output Impedance: 25 Ohms
Outputs are balanced through Apogee's proprietary Perfect Symmetry Circuitry (PSC) | | | | Headphone | Stereo Headphone Output (Front Panel): 1/4" / 6.35 mm
THD+N:
-110 dB @ 19 dBu into 600 Ohm (=80 mW)
-101 dB @ 14 dBu into 32 Ohm (=470 mW)
Dynamic Range: 121 dB (A weighted)
Output: Apogee's proprietary Constant Current Drive provides smooth frequency response with any headphones | | | | System Requirements | Computer: Thunderbolt-equipped Mac
Memory: 4 GB RAM minimum, 8 GB RAM recommended
OS X 10.9.5 or greater
Thunderbolt cable (sold separately) | | | | Power | 90 to 240 VAC, 50/60 Hz, 150 W | | Dimensions (W x D x H) | Without Rack Ears: 17.8 x 11.5 x 3.5" / 450.9 x 292.1 x 88.9 mm
With Rack Ears: 19.0 x 11.5 x 3.5" / 482.6 x 292.1 x 88.9 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.8 x 17.9 x 9.9" | - 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II
| Inputs | 2 x XLR 3-pin female (balanced)
1 x AES/EBU XLR
1 x ADAT optical
1 x S/PDIF coaxial | | Outputs | 1 x DB25 female (balanced, six channels)
1 x AES/EBU XLR
1 x ADAT TOSLINK optical
1 x S/PDIF RCA coaxial | | Sample Rates | 44.1 to 192 kHz | | Latency | 1.35 ms (measured with Logic Pro X at 96 kHz with a 32 sample buffer) | | Dynamic Range | Inputs: 124 dBA
Outputs: 131 dBA | | THD+N | Inputs: -116 dB
Outputs: -118 dB | | Compatibility | Apogee Symphony I/O Mk II chassis (non-SoundGrid) | | Power Requirement | Powered via Symphony I/O Mk II chassis | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.9 x 12.2 x 3.4" |
