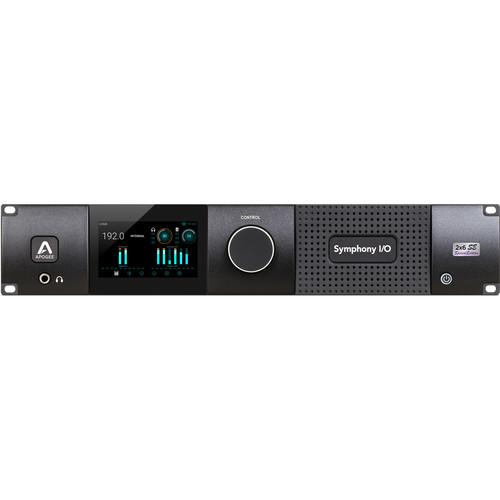

Product description NAMM 2018: Apogee Unveils Latest Audio Technologies and Plug-Ins Read More The Apogee Electronics Symphony I/O Mk II Pro Tools Audio Interface with Special Edition 2x6 Analog I/O and 8x8 Digital I/O is an audio interface designed to deliver high-performance A/D and D/A conversion at up to 192 kHz for mixing and mastering engineers using Pro Tools HD systems in personal, project, and commercial studios. The included 2x6 SE I/O card features stunning dynamic range with low distortion and noise for mastering-grade sonic quality.Its analog I/O includes two inputs on XLR 3-pin jacks and six outputs on a DB25 connector. Additional XLR, TOSLINK optical, and RCA coaxial jacks provide connectivity for AES/EBU, ADAT, and S/PDIF digital inputs and outputs. The chassis utilizes Mini-DigiLink connectivity for high-speed data transfer rates and compatibility with your Pro Tools HD hardware. Its front panel presents a TFT touchscreen display, multi-function control knob, and convenient 1/4" stereo headphone output. - Symphony I/O MkII Pro Tools HD Chassis (No I/O Modules) The Apogee Electronics Symphony I/O Mk II Pro Tools Chassis is an audio interface chassis designed to provide direct connectivity to Pro Tools HD systems for recording and mixing engineers in broadcast, post-production, studio, and live stage applications. It features a Mini-DigiLink port in the pre-installed HD option card, BNC loop sync I/O, and BNC word clock I/O. A stereo 1/4" headphone jack enables quick and effective monitoring with a variety of headphone impedances.Emulating an Avid HD I/O interface, it ensures seamless integration and sample-accurate delay compensation while delivering ultra-low latency for proper timing in signal conversion. Configure and control the chassis via the color touchscreen display and large rotary control on the front panel. Install multiple I/O cards (available separately) for up to thirty-two channels of analog inputs and outputs.The Symphony I/O MkII is made in the USA and ships with a power cable.
- Pre-installed HD option card allows Mini-DigiLink connectivity to your Pro Tools HDX, HD Native, or Core/Accel system
- Ultra-low latency performance
- Sample-accurate delay compensation
- Stereo 1/4" headphone jack features Apogee's proprietary Constant Current Drive for smooth frequency response with any headphones
- Color touchscreen display
- Large front panel control for quick adjustment of selected parameter
- Supports multiple I/O cards for up to 32 channels of analog inputs and outputs
- BNC loop sync I/O for synchronizing multiple Pro Tools HD audio interfaces
- BNC word clock I/O for synchronizing external equipment
- Designed in California, made in the USA
UPC: 805676301785 - 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II The Apogee Electronics 2x6 SE is a special-edition mastering I/O card designed to deliver high-performance A/D and D/A conversion at up to 192 kHz for mixing and mastering engineers in personal, project, and commercial studios. It features low THD+N (-116 dB for analog inputs, -118 dB for analog outputs) and high dynamic range (124 dBA for analog inputs and 131 dBA for analog outputs) for uncompromising accuracy and detail.Its analog I/O includes two inputs on XLR 3-pin jacks and six outputs on a DB25 connector. Additional XLR, TOSLINK optical, and RCA coaxial jacks provide connectivity for AES/EBU, ADAT, and S/PDIF digital inputs and outputs. The 2x6 SE is easily installed in a Symphony I/O Mk II Thunderbolt or Pro Tools HD chassis. Note: Requires Symphony I/O Mk II Thunderbolt or Pro Tools HD chassis with available card slot.
- High-performance A/D-D/A conversion designed specifically for mastering engineers
- High dynamic range of 124 dBA for analog inputs and 131 dBA for analog outputs
- Low THD+N of -116 dB for analog inputs and -118 dB for analog outputs
- Two balanced analog line-level inputs via XLR 3-pin connectors
- Six channels of balanced analog line-level outputs via DB25 connector
- AES/EBU stereo digital I/O via XLR 3-pin jacks
- S/PDIF stereo digital I/O via RCA coaxial jacks
- ADAT, SMUX, or S/PDIF digital I/O via TOSLINK optical ports
- Supports 44.1 to 192 kHz sample rates
- Compatible with Apogee Symphony I/O Mk II Thunderbolt and Pro Tools HD chassis
UPC: 805676302102 In the Box Bundle Items Symphony I/O MkII Pro Tools HD Chassis (No I/O Modules) txcvebetucfdwratrwvdyaeexyfst 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Symphony I O MkII Pro Tools Audio Interface with Special Edition 2x6 Analog I O and 8x8 Digital I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Symphony I/O MkII Pro Tools HD Chassis (No I/O Modules)
| Interface Connector | 1 x Mini-DigiLink port | | Word Clock I/O | 1 x BNC word clock input
1 x BNC word clock output | | Loop Sync I/O | 1 x BNC input
1 x BNC output | | Outputs | 1 x 1/4" TRS headphone jack | | USB | 1 x USB Type-B | | Dynamic Range | 121 dBA | | THD+N | -110 dB @ 19 dBu into 600 Ohms (= 80 mW)
-101 dB @ 14 dBu into 32 Ohms (= 470 mW) | | Power Requirement | 90 to 240 VAC, 50/60 Hz, 150 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 11.5" / 48.3 x 8.9 x 29.2 cm (with rack ears) | | Weight | 14 lb / 6.4 kg | | Country of Manufacture | United States of America | - 2x6 SE Special Edition Mastering I/O Card for Symphony I/O Mk II
| Inputs | 2 x XLR 3-pin female (balanced)
1 x AES/EBU XLR
1 x ADAT optical
1 x S/PDIF coaxial | | Outputs | 1 x DB25 female (balanced, six channels)
1 x AES/EBU XLR
1 x ADAT TOSLINK optical
1 x S/PDIF RCA coaxial | | Sample Rates | 44.1 to 192 kHz | | Latency | 1.35 ms (measured with Logic Pro X at 96 kHz with a 32 sample buffer) | | Dynamic Range | Inputs: 124 dBA
Outputs: 131 dBA | | THD+N | Inputs: -116 dB
Outputs: -118 dB | | Compatibility | Apogee Symphony I/O Mk II chassis (non-SoundGrid) | | Power Requirement | Powered via Symphony I/O Mk II chassis | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.9 x 12.2 x 3.4" |
