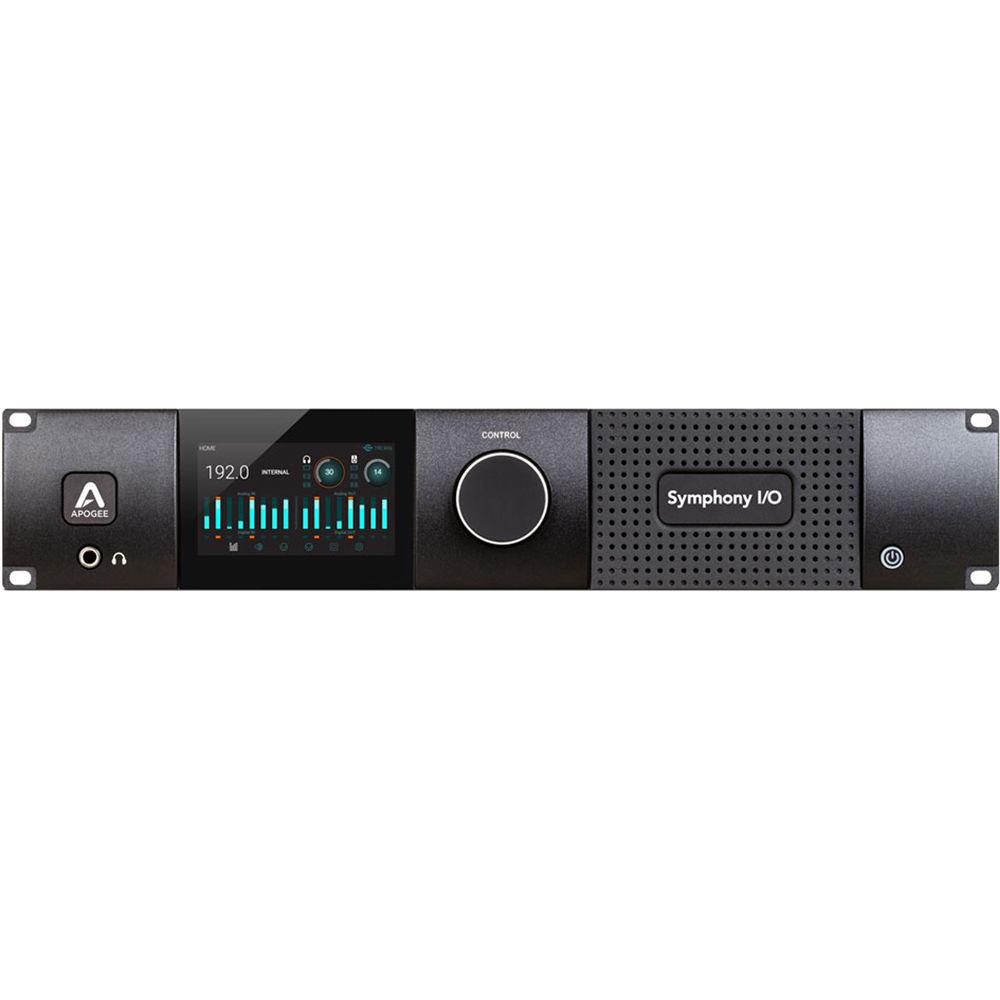

Product description The Apogee Electronics Symphony I/O Mk II Pro Tools Chassis is an audio interface chassis designed to provide direct connectivity to Pro Tools HD systems for recording and mixing engineers in broadcast, post-production, studio, and live stage applications. It features a Mini-DigiLink port in the pre-installed HD option card, BNC loop sync I/O, and BNC word clock I/O. A stereo 1/4" headphone jack enables quick and effective monitoring with a variety of headphone impedances.Emulating an Avid HD I/O interface, it ensures seamless integration and sample-accurate delay compensation while delivering ultra-low latency for proper timing in signal conversion. Configure and control the chassis via the color touchscreen display and large rotary control on the front panel. Install multiple I/O cards (available separately) for up to thirty-two channels of analog inputs and outputs.The Symphony I/O MkII is made in the USA and ships with a power cable. - Pre-installed HD option card allows Mini-DigiLink connectivity to your Pro Tools HDX, HD Native, or Core/Accel system
- Ultra-low latency performance
- Sample-accurate delay compensation
- Stereo 1/4" headphone jack features Apogee's proprietary Constant Current Drive for smooth frequency response with any headphones
- Color touchscreen display
- Large front panel control for quick adjustment of selected parameter
- Supports multiple I/O cards for up to 32 channels of analog inputs and outputs
- BNC loop sync I/O for synchronizing multiple Pro Tools HD audio interfaces
- BNC word clock I/O for synchronizing external equipment
- Designed in California, made in the USA
UPC: 805676301785 In the Box Apogee Electronics Symphony I/O MkII Pro Tools HD Chassis (No I/O Modules) Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apogee Electronics Symphony I O MkII Pro Tools HD Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

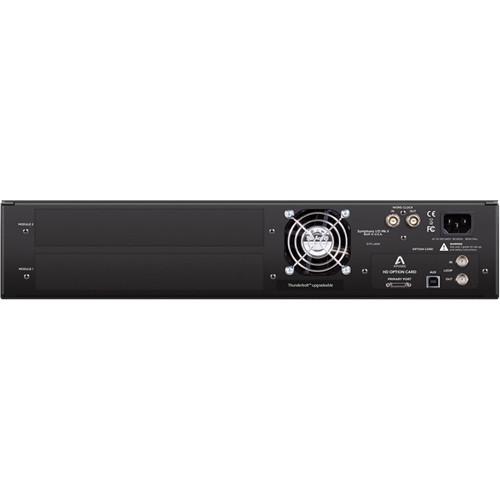

Technical parametersApogee Electronics Symphony I/O Mk II Specs | Interface Connector | 1 x Mini-DigiLink port | | Word Clock I/O | 1 x BNC word clock input
1 x BNC word clock output | | Loop Sync I/O | 1 x BNC input
1 x BNC output | | Outputs | 1 x 1/4" TRS headphone jack | | USB | 1 x USB Type-B | | Dynamic Range | 121 dBA | | THD+N | -110 dB @ 19 dBu into 600 Ohms (= 80 mW)
-101 dB @ 14 dBu into 32 Ohms (= 470 mW) | | Power Requirement | 90 to 240 VAC, 50/60 Hz, 150 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 11.5" / 48.3 x 8.9 x 29.2 cm (with rack ears) | | Weight | 14 lb / 6.4 kg | | Country of Manufacture | United States of America |
