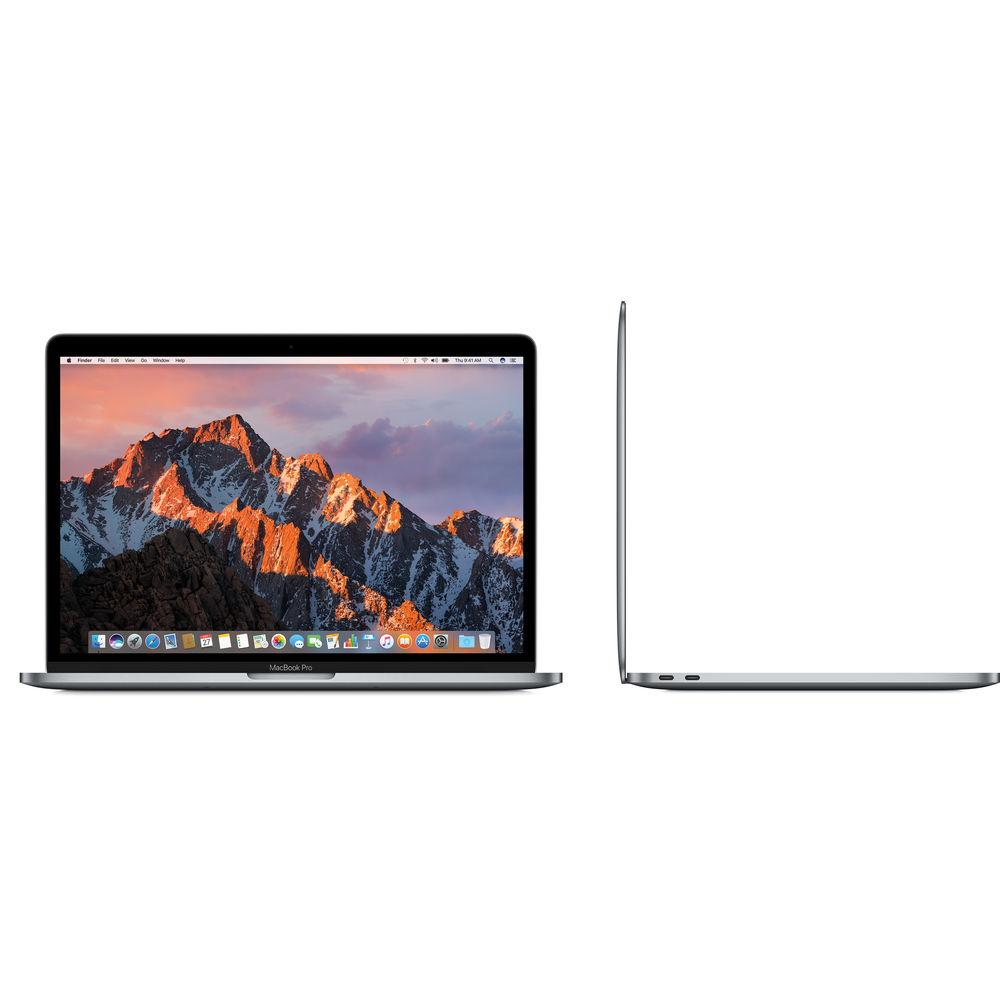

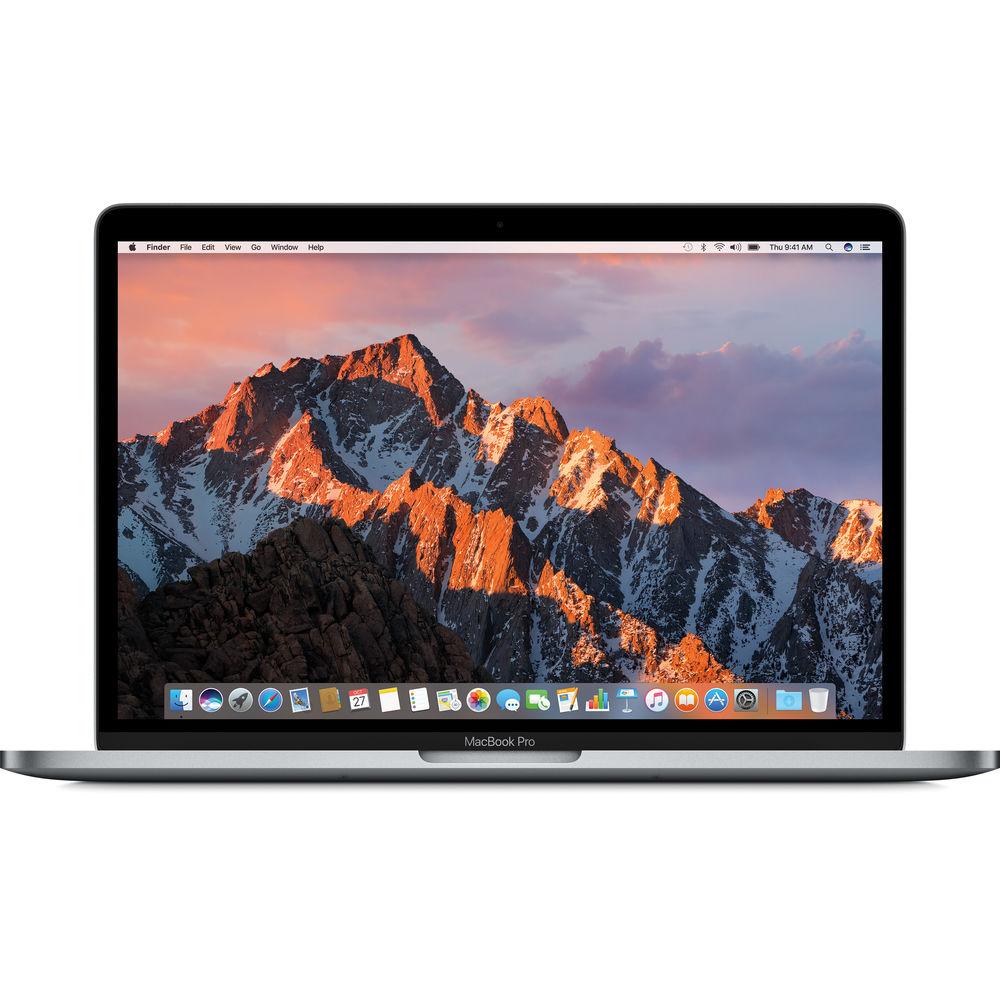

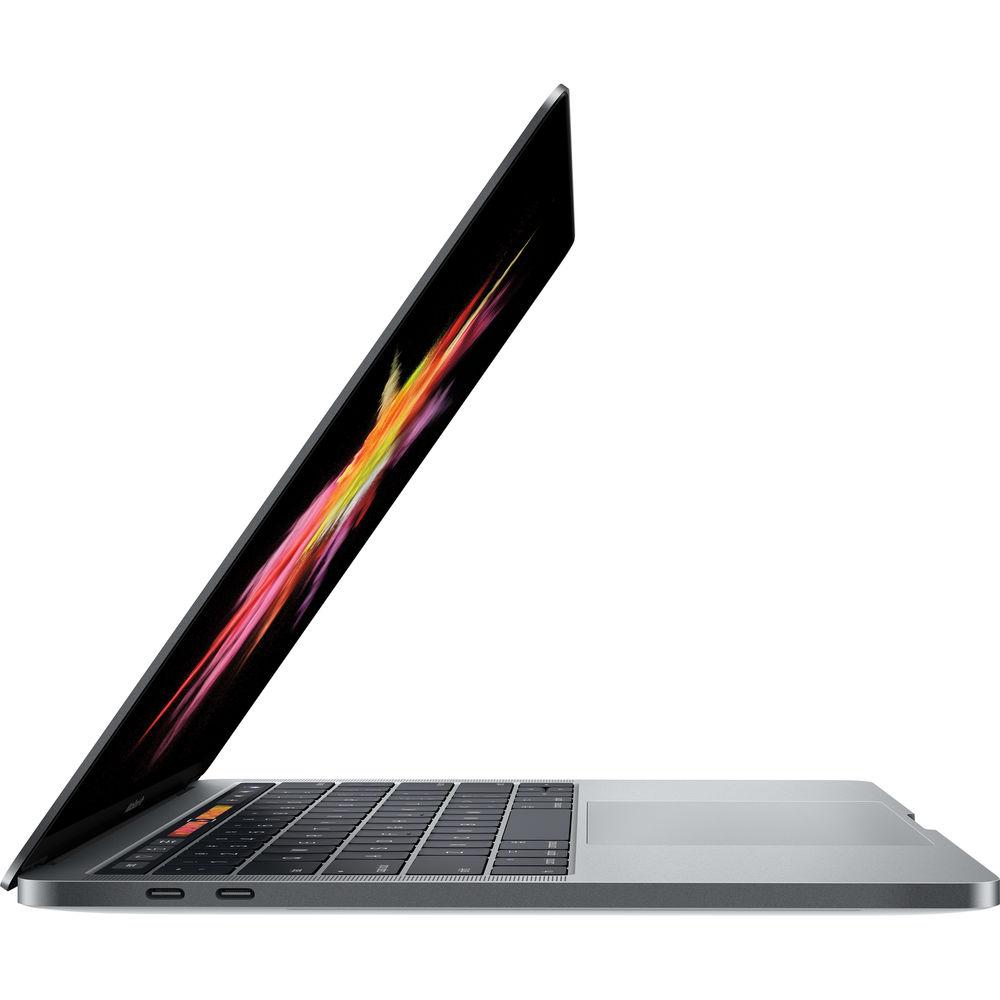

Product description Experience the innovative interface of the Touch Bar in the mid 2017 space gray Apple 13.3" MacBook Pro with Touch Bar. The Touch Bar places controls right at your fingertips and adapts to different apps to provide useful functions without having to navigate complex menus or memorize keyboard shortcuts. Replacing the function keys in the top row of the keyboard, the Touch Bar features a Retina-quality display and supports multi-touch input. The power button has been upgraded with a Touch ID sensor, so you can quickly log into your MacBook Pro using your fingerprint. You can also use Touch ID to make purchases over the web, thanks to Apple Pay. Touch ID enables a quick, accurate reading of your fingerprint and uses sophisticated algorithms to recognize and match it with the Secure Enclave in the Apple T1 chip. The system features a 7th Gen Kaby Lake 3.1 GHz Intel Core i5 dual-core processor, 16GB of 2133 MHz LPDDR3 onboard memory, a 512GB PCIe-based SSD, four Thunderbolt 3 (USB Type-C) ports, a Force Touch trackpad, a keyboard with a 2nd-gen butterfly mechanism, stereo speakers with double the dynamic range of its predecessor as well as improved bass, 802.11ac Wi-Fi, Bluetooth 4.2 wireless technology, and even a 3.5mm headphone jack. macOS High Sierra is the installed operating system.
Please note that this Mac may come with an earlier version of macOS. You can upgrade to the latest version through the Mac App Store app. - Touch Bar
- The Touch Bar replaces the function keys that have long occupied the top of your keyboard with something much more versatile and capable. The multi-touch, Retina-quality display changes automatically based on what you're doing, from showing traditional system controls, such as volume and brightness, to more directly interacting with or browsing through content. Intelligent typing features like emoji and predictive text improve the typing experience, and you'll be able to customize the Touch Bar to fit your needs. The Touch Bar can also adapt to apps, such as Mail, Safari, Messages, and even third-party apps like Adobe Photoshop, so you'll have access to useful functions previously hidden in menus.
- Touch ID
- A Touch ID sensor has been integrated into the power button, so you can quickly log into your account, even when another user is logged in. You can also use it with Apple Pay to securely purchase things over the web, thanks to macOS Sierra.
- Retina Display
- The 13.3" Retina Display has a 2560 x 1600 resolution and features brighter LED backlighting than its predecessor as well as an increased contrast ratio, delivering deeper blacks and brighter whites. Its larger pixel aperture and variable refresh rate make it more power efficient than previous generations. It also supports the P3 color gamut, which allows for more vibrant colors. This ensures true-to-life pictures with realistically vivid details, which are essential for graphic design, color grading, and editing.
- Force Touch Trackpad
- The Force Touch trackpad on the MacBook Pro takes all the capabilities of multi-touch and adds force sensors that detect subtle differences in the amount of downward pressure you apply. This lets you have a deeper connection to your content, bringing more functionality right to your fingertip. It also introduces haptic feedback to MacBook Pro — allowing you not just to see what's happening on the screen, but to feel it. With multi-touch, you can use realistic gestures like swiping or pinching to switch between apps, navigate your content, and get the most out of your desktop space.
- Thinner & Lighter
- The MacBook Pro features a redesigned enclosure design and all-metal unibody construction that creates a rigid and dense notebook that is also thin and light. At just 14.9 mm thin, the MacBook Pro weighs just three pounds.
- Audio
- The speakers have been totally redesigned to provide as much as twice the dynamic range and up to 58 percent more volume, with two-and-a-half-times louder bass for maximum boom. Plus, they're connected directly to system power, enabling up to three times more peak power.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously or one multi-panel 5K display. The Macbook Pro has four ports, with each pair using a dedicated bus.
In the Box Apple 13.3" MacBook Pro with Touch Bar (Mid 2017, Space Gray) 61W USB Type-C Power Adapter 6.56' (2 m) USB Type-C Charge Cable Limited 1-Year Warranty with 90 Days of Free Telephone Support Quick start Guide PDF 10.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Apple 13.3" MacBook Pro with Touch Bar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApple Z0UN1LL/A Specs | | | Processor | Intel Core i5 Dual-Core | | Base Clock Speed | 3.1 GHz | | Maximum Boost Speed | 3.5 GHz | | Total Installed Memory | 16 GB | | Memory Type | LPDDR3 SDRAM | | Memory Speed | 2133 MHz | | Available Memory Slots | None | | Graphics Type | Integrated | | GPU | Intel Iris Plus Graphics 650 | | | | Panel Type | IPS | | Size | 13.3" | | Aspect Ratio | 16:10 | | Resolution | 2560 x 1600 | | Touchscreen | None | | Finish | Glossy | | Maximum Brightness | 500 cd/m2 | | Refresh Rate | 60 Hz | | | | Available Slots | None | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB Integrated PCIe | | Optical Drive | None | | | | Ports | 4 x Thunderbolt 3 via USB Type-C | | Display | 4 x DisplayPort via Thunderbolt Port | | Audio | 1 x 1/8" (3.5 mm) Headphone Output
2 x Integrated Speaker
3 x Integrated Microphone | | Expansion Slots | None | | Media Card Slots | None | | | | Network | None | | Modem | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Mobile Broadband | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 49.2 Wh Non-Removable | | Maximum Runtime | 10 Hours | | Power Requirements | 100-240 VAC, 50-60 Hz | | Power Supply | x 61 W | | | | Operating System | macOS | | Keyboard | 64-Key Standard Notebook Keyboard (Backlight) | | Pointing Device | Force Touch Trackpad | | Dimensions (W x H x D) | 12.0 x 0.6 x 8.4" / 30.5 x 1.5 x 21.3 cm | | Weight | 3.02 lb / 1.37 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 14.4 x 10.4 x 3.7" |
