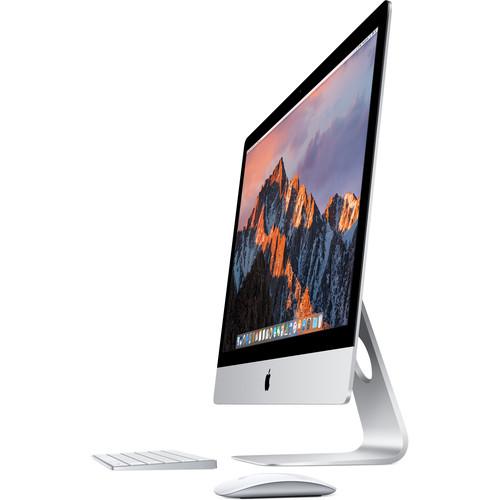

User Manual for Apple 27" iMac with Retina 5K Display Click to enlarge the picture
Contents of the user manual for the Apple 27" iMac with Retina 5K
- Product category: iMac Apple
- Brand: Apple
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apple iMac
|
User manual for the Apple 27" iMac with Retina 5K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apple product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apple user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apple product will considerably shorten its lifespan!
|
Product description Apple weds high-res 5K visuals into its sleek, 5mm thin, mid 2017 27" iMac with Retina 5K Display. With a 5120 x 2880 screen resolution, this iMac provides 1 billion colors and 500 nits of brightness, which is 43% brighter than the previous model. The Retina 5K display also features a wider color gamut. Using a P3-based color gamut, the Retina 5K display provides a larger color space that more equally represents red, green, and blue, as compared to standard sRGB displays. And with more available colors, the images will appear more vivid and reveal greater detail, with more balance and precision.
The iMac's processor has been upgraded and now houses a 7th-gen Kaby Lake 3.4 GHz Intel Core i5 Quad-Core processor that can be overclocked up to 3.8 GHz, as well as 16GB of 2400 MHz DDR4 RAM. Visuals are powered by a dedicated AMD Radeon Pro 570 graphics card with 4GB of vRAM, and for storage, there is a 256GB SSD.
Outfitted with 802.11ac Wi-Fi and backwards compatible with 802.11a/b/g/n for speedy hook-ups to your home network, this iMac is also configured with Bluetooth 4.2, as well as a UHS-II SDXC card slot, two 40 Gb/s Thunderbolt 3 ports, four 5 Gb/s USB 3.0 Type-A ports, a Gigabit Ethernet jack, and a FaceTime HD camera. It also has a Kensington lock slot for added security.
Apple's 27" iMac with Retina 5K Display (Mid 2017) operates using 100-240 VAC at 50-60 Hz and includes an Apple Magic Wireless Keyboard with Numeric Keypad, an Apple Magic Mouse 2, a Lightning to USB cable, and a power cord. Protection is provided by a limited 1-year warranty, which can be extended using AppleCare.
This Mac comes preloaded with macOS. Updates can be downloaded for free via the Mac App Store. Please check Apple's website for upgrade eligibility. General Features - 27" Retina 5K IPS Display
- Whether your iMac is in your studio, living room, or kitchen, the display is the focal point. With a 5120 x 2880 screen resolution and a 16:9 aspect ratio, you'll be able to playback 5K content natively. The IPS panel allows for wider viewing angles so more people can enjoy the display without having to crowd around it. With a dedicated AMD Radeon Pro 570 graphics card and 4GB of vRAM, the iMac delivers visual effects and 3D graphics, as well as video editing capabilities that can tackle multicam projects in Final Cut Pro X with up to five streams of full-res 4K video, as well as the ability to edit 360° video and create 3D VR content.
- 7th-Gen Kaby Lake Quad-Core Intel Core Performance
- The iMac houses a 7th-Gen Kaby Lake Intel Core i5 Quad-Core processor that can reach a stock speed of 3.4 GHz. It can also be overclocked up to 3.8 GHz, thanks to Intel Turbo Boost 2.0 technology. The 7th-gen Kaby Lake Intel processor uses low voltage for better energy efficiency while still providing fast performance needed to run processor-intensive applications such as Logic Pro or Final Cut Pro. Combined with 16GB of 2400 MHz DDR4 RAM, the iMac allows you to multitask quickly and efficiently.
- External Displays
- The iMac simultaneously supports full native resolution on the built-in display and either one 5120 x 2880 (5K) external display at 60 Hz with support for 1 billion colors, two 3840 x 2160 (4K UHD) external displays at 60 Hz with support for 1 billion colors, or two 4096 x 2304 (4K) external displays at 60 Hz with support for millions of colors.
- Thin Design
- The iMac maintains its 5mm profile, which is up to 40% less volume than the 2011 iMac. Its display panel is 1.4mm thin.
- 802.11ac Wi-Fi & Bluetooth 4.2
- With three-stream 802.11ac technology, you're instantly connected to all your favorite content. Bluetooth 4.2 wireless technology is also built in, so you can connect accessories such as a wireless keyboard and mouse.
- Gigabit Ethernet
- For a more reliable network connection, take advantage of wired Gigabit Ethernet technology.
- Thunderbolt 3
- Two Thunderbolt 3 (USB Type-C) ports come standard on all iMac models, each delivering up data transfer speeds of up to 40 Gb/s for external drives and cameras, plus twice the bandwidth for video and display connectivity. Thunderbolt 3 also supports 10 Gb/s USB 3.1 and DisplayPort 1.2. Thunderbolt 2, HDMI, DVI, and VGA output is also supported using adapters (sold separately).
- USB 3.0
- With USB 3.0, you can transfer large files in seconds instead of minutes. Every iMac comes with four 5 Gb/s USB 3.0 Type-A ports - with speeds up to 10 times faster than USB 2.0 - and you can connect all your USB-compatible devices, including your iPhone, iPad, iPod or digital camera.
- Up to 32GB RAM
- The current 16GB memory configuration may be upgraded to a maximum of 32GB by using an 8GB chip in each of the four 260-pin SO-DIMM sockets.
- FaceTime HD Camera
- A built-in FaceTime HD camera allows users to use apps such as FaceTime and Skype for video calls.
In the Box Apple 27" iMac with Retina 5K Display (Mid 2017) Magic Wireless Keyboard with Numeric Keypad (Silver) ywdxbczvcffatevfauez Magic Mouse 2 (Silver) Lightning to USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apple 27" iMac with Retina 5K Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApple iMac 27" 5K Display Mid 2017 Specs | | | CPU | 3.4 GHz Intel Core i5 Quad-Core | | Maximum Boost Speed | 3.8 GHz | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 32 GB | | Graphics Type | Dedicated | | GPU | AMD Radeon Pro 570 with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 27" | | Aspect Ratio | 16:9 | | Resolution | 5120 x 2880 | | Touchscreen | None | | Finish | Glossy | | Maximum Brightness | 500 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB Integrated PCIe | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) | | Audio | 1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | 2 | | Built-In Microphones | 1 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | NFC | None | | Webcam | User-Facing: 720p | | | | Security | Kensington Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 25.6 x 20.3 x 8" / 65 x 51.6 x 20.3 cm | | Weight | 20.8 lb / 9.4 kg |
