User Manual for Apple Mac mini 1.4 GHz Desktop Computer Click to enlarge the picture
Contents of the user manual for the Apple Mac mini 1.4 GHz Desktop
- Product category: Mac mini Apple
- Brand: Apple
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apple Mac mini
 |
User manual for the Apple Mac mini 1.4 GHz Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apple product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apple user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apple product will considerably shorten its lifespan!
|

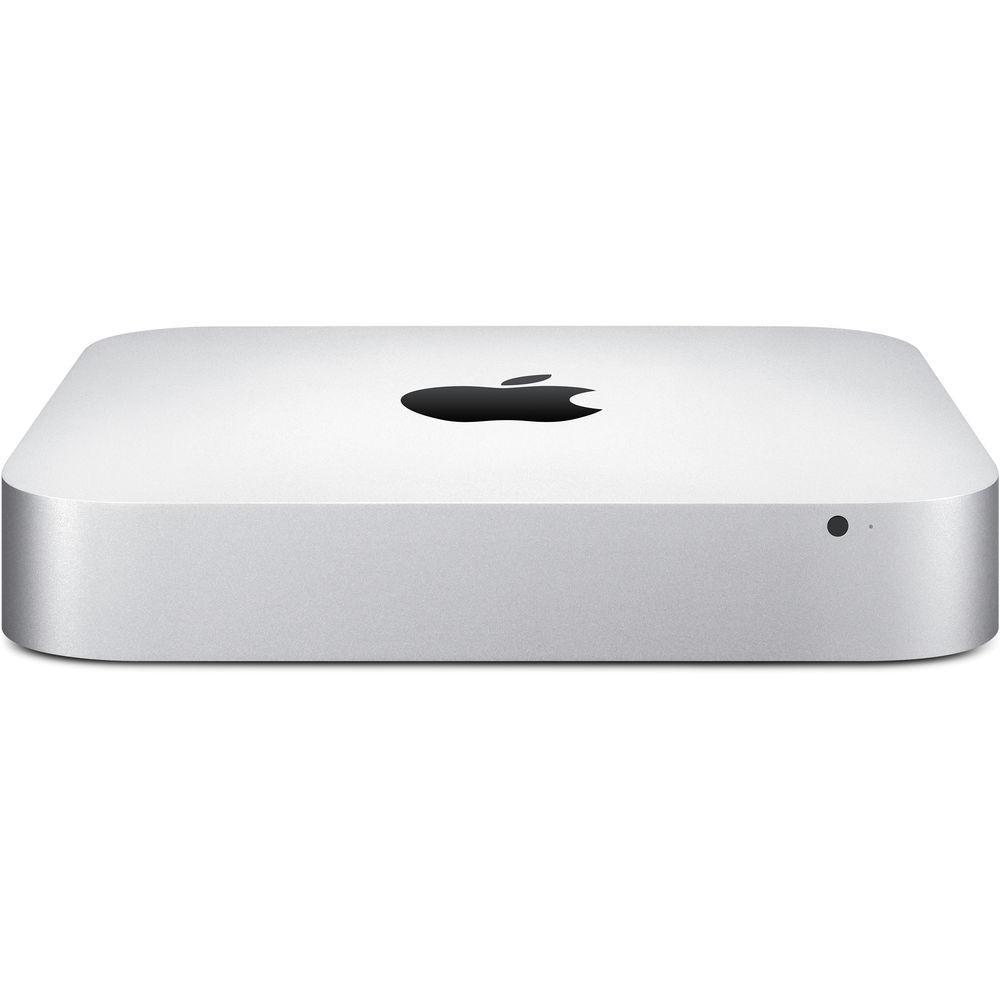

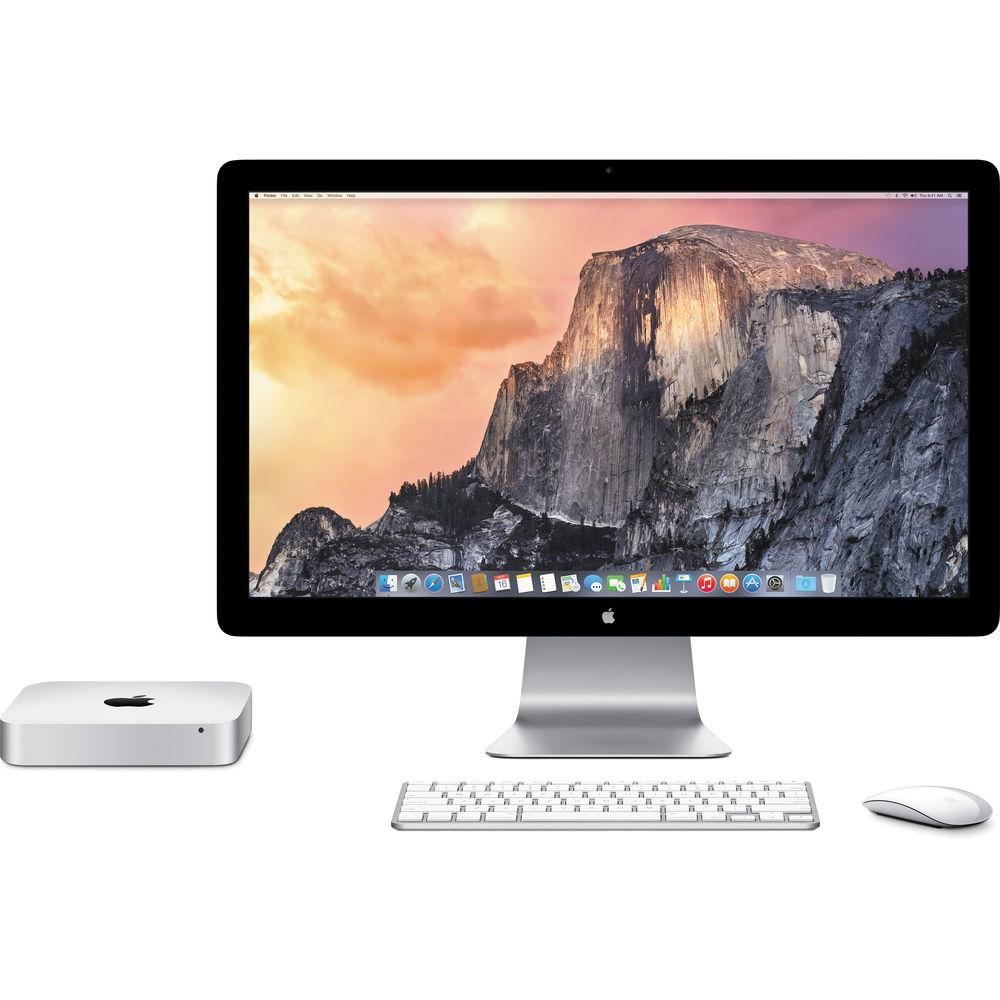

Product description The late 2014 model Mac mini 1.4 GHz Desktop Computer from Apple is a compact form factor desktop solution for consumers who are dedicated to the look and feel of Apple brand mini computers. The small square desktops contain a 1.4 GHz Intel Core i5 dual core Haswell processor, 4GB of 1600 MHz LPDDR3 RAM and a 500GB 5400 rpm hard drive. Although these units require an optional monitor, they are powered by integrated Intel HD Graphics 5000. These mini computers also support dual monitor displays at 2560 x 1600 pixels.

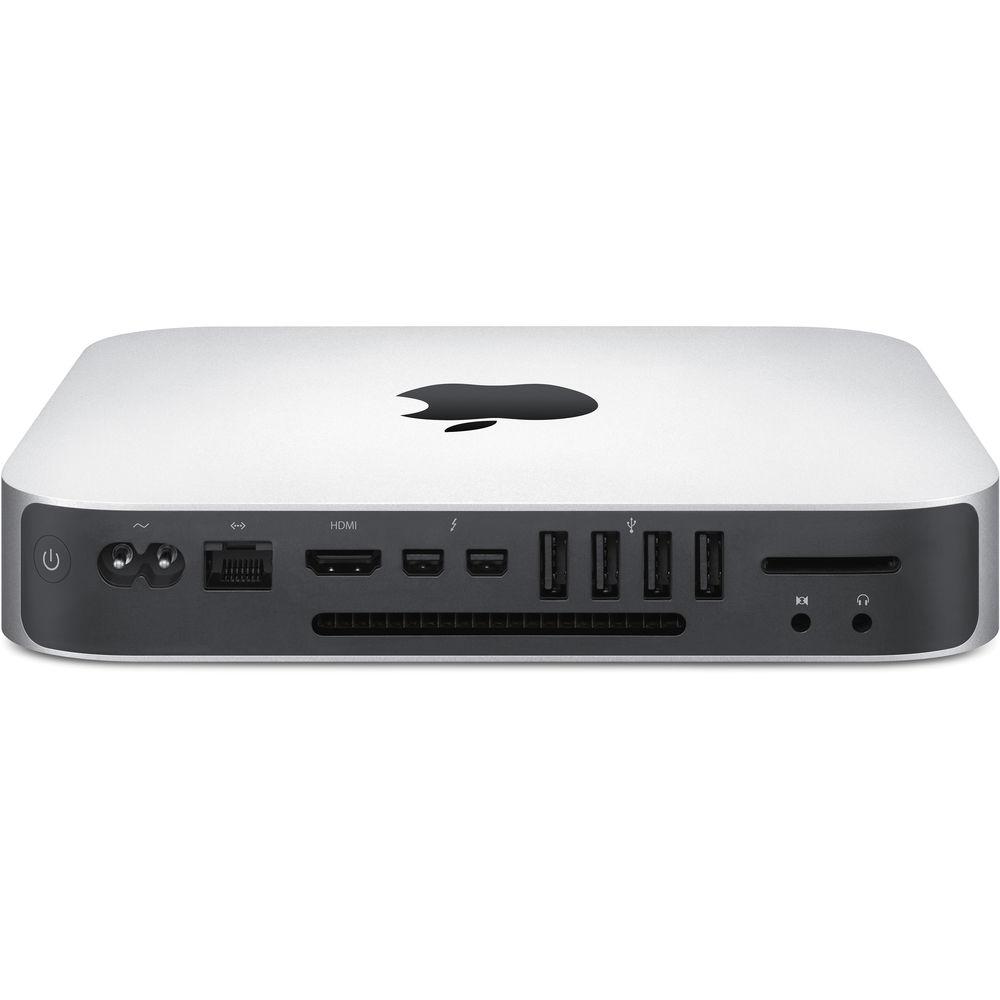

Regardless of their small size, they contain a number of connectivity options, including two Thunderbolt 2 and four USB ports, a Gigabit Ethernet RJ-45 jack and an HDMI terminal, along with an SDXC card slot for additional storage options. For networking, there is 802.11 ac Wi-Fi, backwards compatible with 802.11 a/b/g/n, and Bluetooth 4.0 support.
It also includes an integrated speaker, audio line in digital/analog minijack, audio line out/headphone minijack, and support for Apple iPhone headset with microphone.
Please note that this Mac may come with an earlier version of macOS. You can upgrade to the latest version through the Mac App Store app. - Fourth-Generation Intel Core Processors
- The Mac mini comes with a dual-core 4th-gen Haswell 1.4 GHz Intel Core i5 processor. The processor can also be overclocked up to 2.7 GHz, thanks to Intel Turbo Boost technology.
- Powerful Apps
- You can edit photos and video, compose music, create presentations, and more, right out of the box. Built-in apps also let you do everyday things like check your email, make FaceTime video calls and browse the web.
- Thunderbolt 2 and USB 3.0
- Connect the next generation of high-speed peripherals and high-resolution displays, including the Apple Thunderbolt Display.
UPC: 885909954766 In the Box Apple Mac mini 1.4 GHz Desktop Computer (Late 2014) Power Cord 1-Year Limited Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Apple Mac mini 1.4 GHz Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Apple Mac mini 1.4 GHz Desktop Computer can be downloaded in PDF format at the link stated below.
Technical parametersApple Mac mini Late 2014 Specs | | | CPU | 1.4 GHz Intel Core i5 Dual-Core | | L3 Cache | 3 MB | | Memory Type | 1600 MHz LPDDR3 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (Onboard) | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel HD Graphics 5000 | | | | Total Installed Capacity | 500 GB | | Hard Disk Storage | 1 x 500 GB 3.5" SATA (5400 rpm) | | Optical Drive | None | | | | Ports | 2 x Mini Displayport (Thunderbolt 2)
4 x USB Type-A (USB 3.1 Gen 1) | | Display | 1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | Yes | | Built-In Microphones | None | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.0 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 5 to 95% | | Dimensions | 7.7 x 7.7 x 1.4" / 19.56 x 19.56 x 3.56 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 10.4 x 10.3 x 4.5" |
