Apple Mac mini 2.6 GHz Desktop

Search your instruction manual in PDF to download

User Manual for Apple Mac mini 2.6 GHz Desktop Computer

Click to enlarge the picture
Apple Mac mini 2.6 GHz Desktop Computer Contents of the user manual for the Apple Mac mini 2.6 GHz Desktop
  • Product category: Mac mini Apple
  • Brand: Apple
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Apple Mac mini

Apple Mac mini 2.6 GHz Desktop Computer Apple Mac mini 2.6 GHz Desktop Computer Apple Mac mini 2.6 GHz Desktop Computer
User manual for the Apple Mac mini 2.6 GHz Desktop contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Apple product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Apple user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Apple product will considerably shorten its lifespan!



Product description

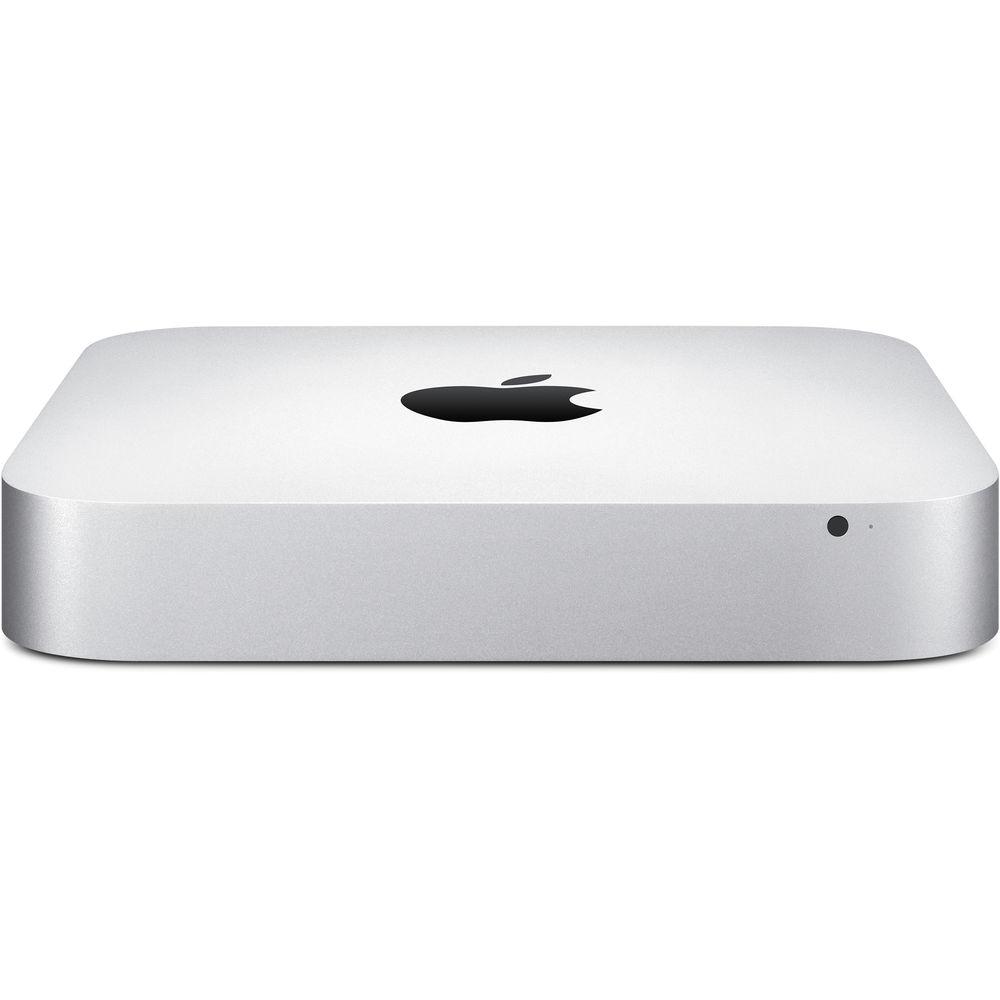

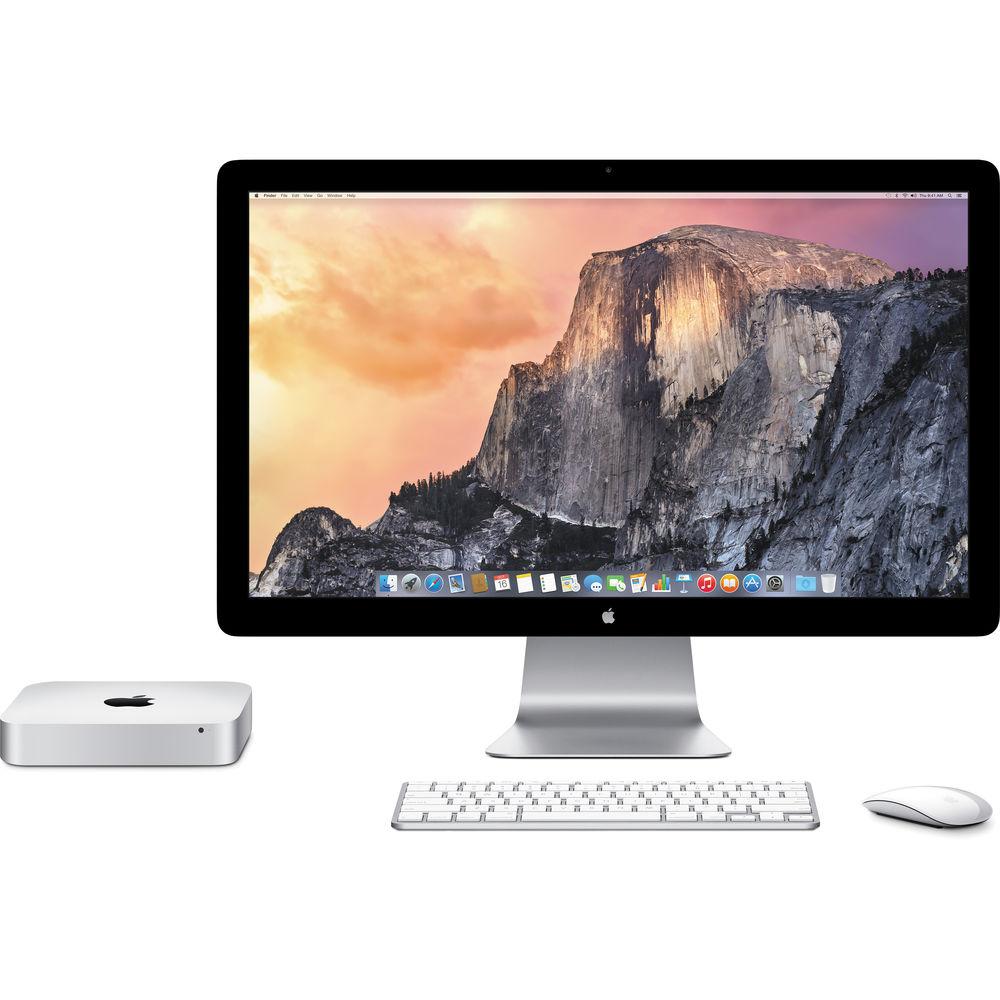

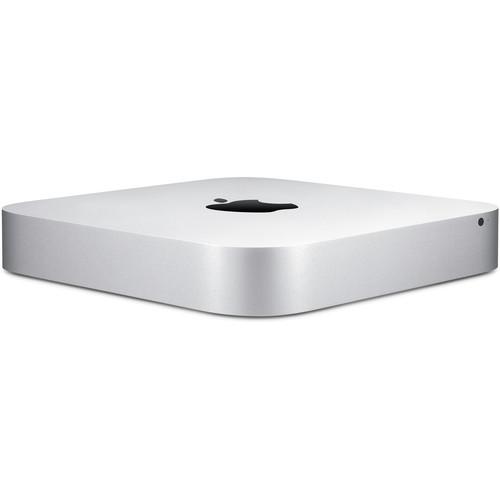

The late 2014 model Mac mini 2.6 GHz Desktop Computer from Apple is a compact form factor desktop solution for consumers who are dedicated to the look and feel of Apple brand mini computers. The small square desktops contain a 2.6 GHz Intel Core i5 dual core Haswell processor, 8GB of 1600 MHz LPDDR3 RAM and a 256GB PCIe-based flash storage. Although these units require an optional monitor, they are powered by integrated Intel Iris Graphics. These mini computers also support dual monitor displays at 2560 x 1600 pixels.

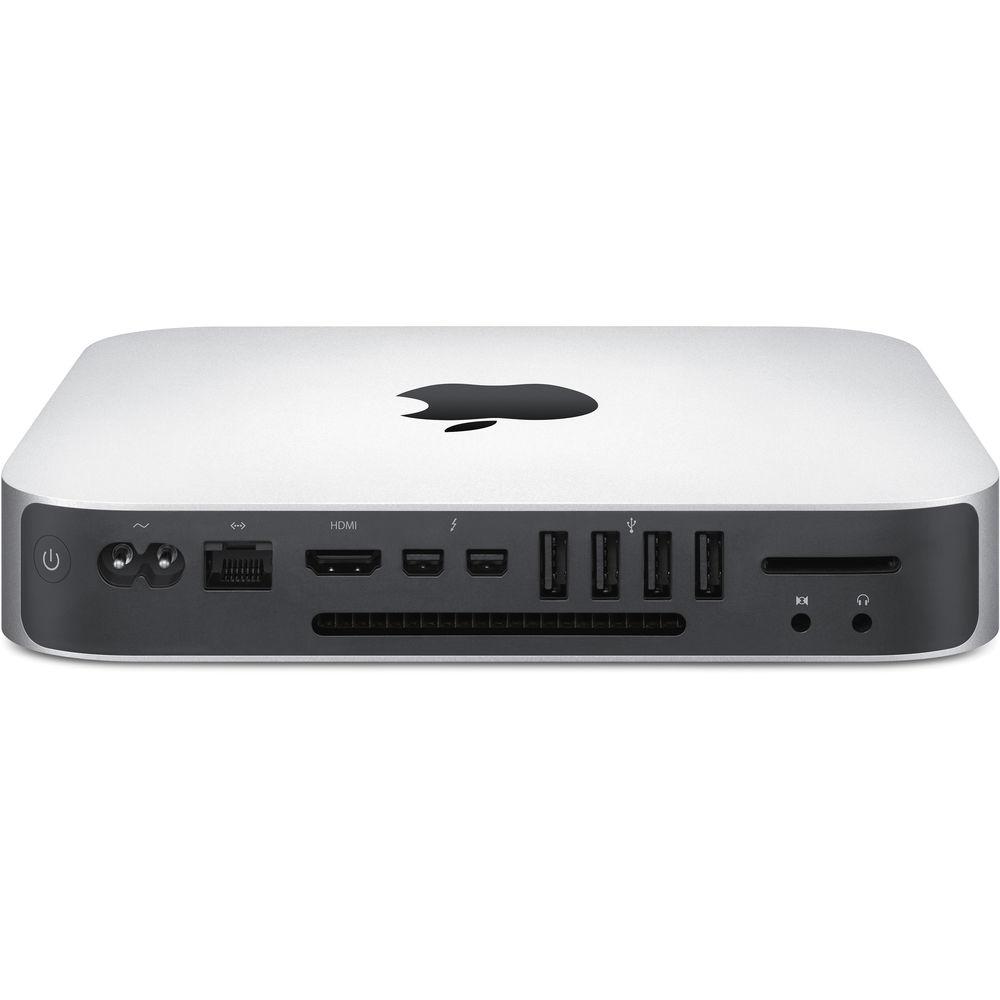

Regardless of their small size, they contain a number of connectivity options, including two Thunderbolt 2 and four USB ports, a Gigabit Ethernet RJ-45 jack and an HDMI terminal, along with an SDXC card slot for additional storage options. For networking, there is 802.11 ac Wi-Fi, backwards compatible with 802.11 a/b/g/n, and Bluetooth 4.0 support.

It also includes an integrated speaker, audio line in digital/analog minijack, audio line out/headphone minijack, and support for Apple iPhone headset with microphone.

Please note that this Mac may come with an earlier version of macOS. You can upgrade to the latest version through the Mac App Store app.
    Fourth-Generation Intel Core Processors
  • The Mac mini comes with a dual-core 4th-gen Haswell 2.6 GHz Intel Core i5 processor. The processor can also be overclocked up to 3.1 GHz, thanks to Intel Turbo Boost technology.
    Powerful Apps
  • You can edit photos and video, compose music, create presentations, and more, right out of the box. Built-in apps also let you do everyday things like check your email, make FaceTime video calls and browse the web.
    Thunderbolt 2 and USB 3.0
  • Connect the next generation of high-speed peripherals and high-resolution displays, including the Apple Thunderbolt Display.
In the Box Apple Mac mini 2.6 GHz Desktop Computer (Late 2014)
  • Power Cord
  • 1-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Apple Mac mini 2.6 GHz Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Apple Mac Mini Specs

    Operating System macOS
    CPU 2.6 GHz Intel Core i5 Dual-Core
    L3 Cache 3 MB
    Total Installed Memory 64 GB
    GPU Intel Iris
    Solid State Storage 1 x 256 GB M.2 PCIe
    Optical Drive None
    Ports 2 x Mini Displayport (Thunderbolt 2)
    4 x USB Type-A (USB 3.1 Gen 1)
    Display 1 x HDMI Output
    Audio 1 x 1/8" / 3.5 mm Line Input
    1 x 1/8" / 3.5 mm Headphone Output
    Media Card Slots 1 x SDXC
    Ethernet 1 x RJ45 (Gigabit)
    Wi-Fi Wi-Fi 5 (802.11ac)
    Bluetooth 4.0
    Power Supply 85 W
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Operating Temperature 50 to 95°F / 10 to 35°C
    Operating Humidity 5 to 95%
    Dimensions 7.7 x 1.4 x 7.7" / 19.7 x 3.6 x 19.7 cm
    Weight 2.6 lb / 1.2 kg
    Package Weight 4.4 lb
    Box Dimensions (LxWxH) 10.5 x 10.3 x 4.5"
