User Manual for Apple Mac mini 3.0 GHz Desktop Computer Click to enlarge the picture
Contents of the user manual for the Apple Mac mini 3.0 GHz Desktop
- Product category: Mac mini Apple
- Brand: Apple
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apple Mac mini
 |
User manual for the Apple Mac mini 3.0 GHz Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apple product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apple user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apple product will considerably shorten its lifespan!
|

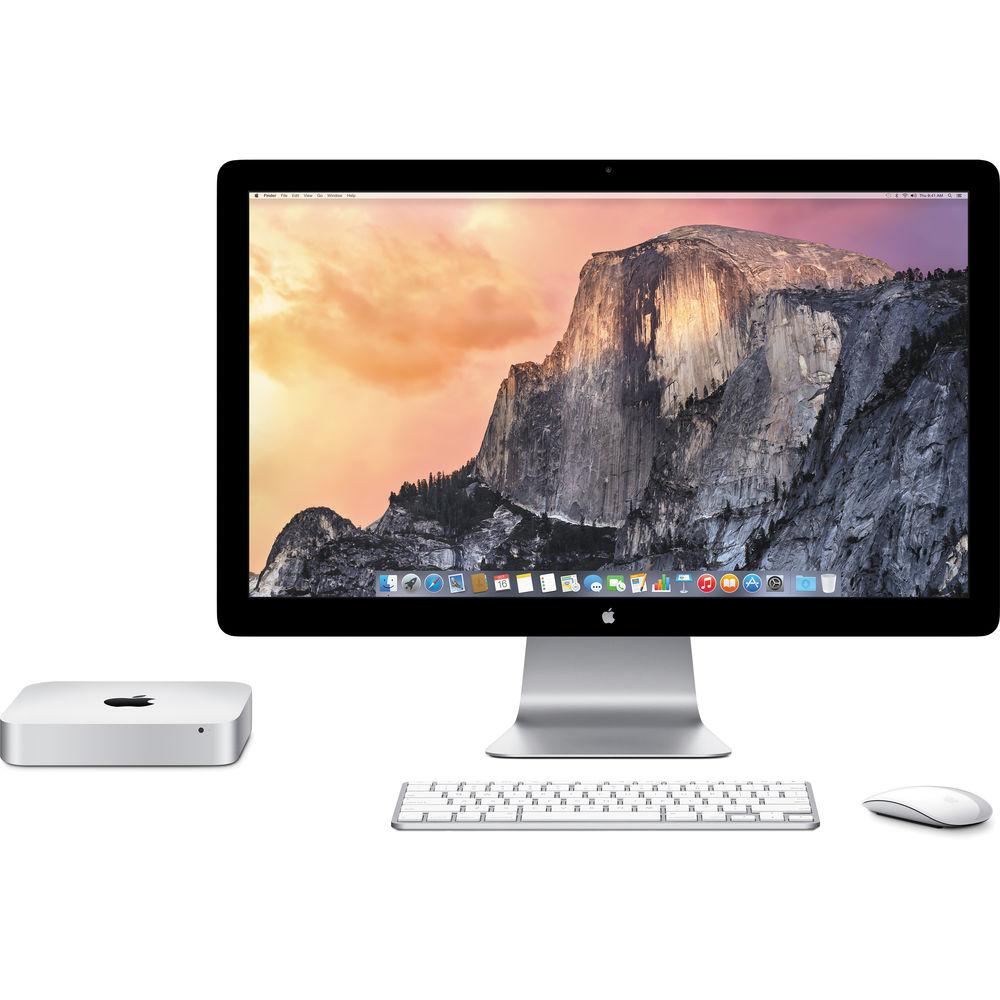

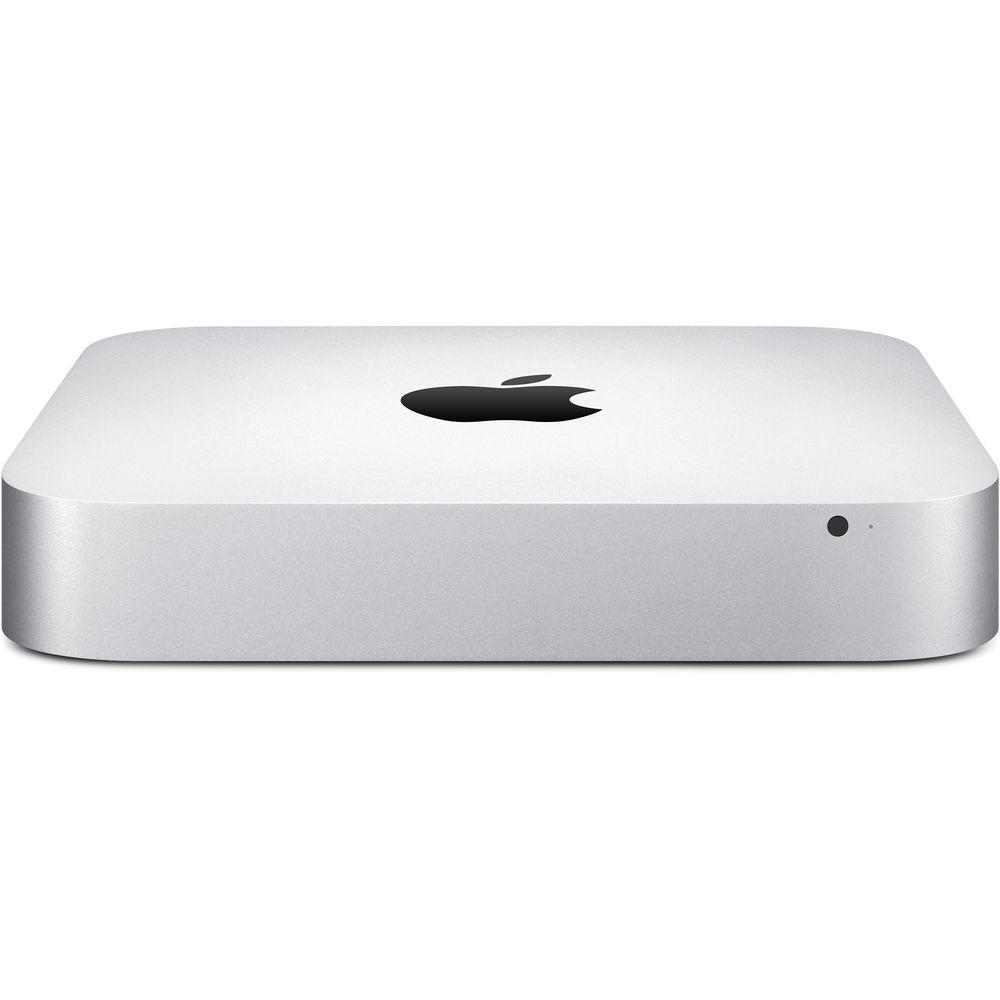

Product description The late 2014 model Mac mini 3.0 GHz Desktop Computer from Apple is a compact form factor desktop solution for consumers who are dedicated to the look and feel of Apple brand mini computers. The small square desktops contain a 3.0 GHz Intel Core i7 dual core Haswell processor, 16GB of 1600 MHz LPDDR3 RAM and a 1TB PCIe-based flash storage. Although these units require an optional monitor, they are powered by integrated Intel Iris Graphics. These mini computers also support dual monitor displays at 2560 x 1600 pixels.

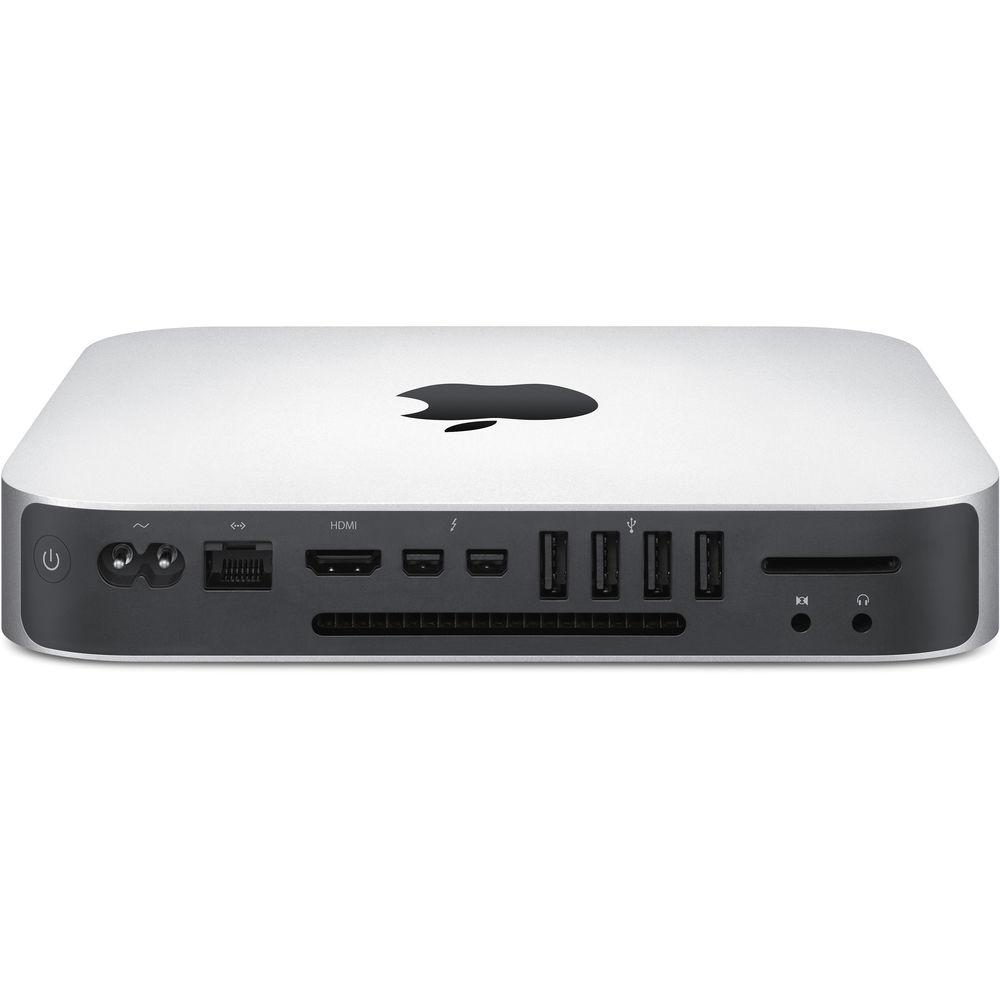

Regardless of their small size, they contain a number of connectivity options, including two Thunderbolt 2 and four USB ports, a Gigabit Ethernet RJ-45 jack and an HDMI terminal, along with an SDXC card slot for additional storage options. For networking, there is 802.11 ac Wi-Fi, backwards compatible with 802.11 a/b/g/n, and Bluetooth 4.0 support.
It also includes an integrated speaker, audio line in digital/analog minijack, audio line out/headphone minijack, and support for Apple iPhone headset with microphone.
Please note that this Mac may come with an earlier version of macOS. You can upgrade to the latest version through the Mac App Store app. - Fourth-Generation Intel Core Processors
- The Mac mini comes with a dual-core 4th-gen Haswell 3.0 GHz Intel Core i7 processor. The processor can also be overclocked up to 3.5 GHz, thanks to Intel Turbo Boost technology.
- Powerful Apps
- You can edit photos and video, compose music, create presentations, and more, right out of the box. Built-in apps also let you do everyday things like check your email, make FaceTime video calls and browse the web.
- Thunderbolt 2 and USB 3.0
- Connect the next generation of high-speed peripherals and high-resolution displays, including the Apple Thunderbolt Display.
In the Box Apple Mac mini 3.0 GHz Desktop Computer (Late 2014) Power Cord 1-Year Limited Warranty Quick start Guide PDF 15.7mbybzyzeqbceba Table of Contents
|
Upload User Manual
Have you got an user manual for the Apple Mac mini 3.0 GHz Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApple Mac mini Specs | | | Processor | 3.0 GHz Intel Core i7 Dual-Core 4th-Gen Haswell | | Cache | L3: 4MB | | Memory | 16GB of 1600 MHz LPDDR3 RAM
The RAM is soldered on and is not user replaceable. | | Graphics | Intel Iris Graphics | | | | Hard Drive | 1TB PCIe-Based Flash Storage | | Optical Drive | None | | | | Ports | 2 x Thunderbolt 2 (up to 20 Gbps)
4 x USB 3.0 (up to 5 Gbps) | | Display | 1 x HDMI
2 x Mini DisplayPort (via the Thunderbolt 2 ports) | | Audio | 1 x Audio-in
1 x Headphone | | Memory Card Slot | 1 x SDXC | | | | Ethernet | 1 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 LAN jack | | Wi-Fi | 802.11ac Wi-Fi (802.11a/b/g/n compatible) | | Bluetooth | 4.0 | | | | Operating System | macOS | | Video Support | Support for up to two displays at 2560 x 1600 pixels
Thunderbolt digital video output
Native Mini DisplayPort output
DVI output using Mini DisplayPort to DVI Adapter (sold separately)
VGA output using Mini DisplayPort to VGA Adapter (sold separately)
Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
HDMI video output
Support for 1080p resolution at up to 60 Hz
Support for 3840-by-2160 resolution at 30 Hz
Support for 4096-by-2160 resolution at 24 Hz
DVI output using HDMI to DVI Adapter (sold separately) | | Electrical Requirements | Line Voltage
100-240 V AC
Frequency
50 Hz to 60 Hz, single phase
Maximum Continuous Power
85W
Operating Temperature
50 to 95° F / 10 to 35° C
Storage Temperature
-40 to 116° F / -40 to 47° C
Relative Humidity
5 to 95%, non-condensing
Operating Altitude
Tested up to 10,000 feet
Typical Acoustical Performance
Sound pressure level (operator position) is 12 dBA at idle | | Environmental | BFR-free
PVC-free
Highly recyclable aluminum enclosure
Meets ENERGY STAR 6.1 requirements
Rated EPEAT Gold | | Dimensions | 7.7 x 1.4 x 7.7" / 19.7 x 3.6 x 19.7 cm | | Weight | 2.7 lbs / 1.22 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 10.5 x 10.2 x 4.5" |
