User Manual for Apple Mac Pro Desktop Computer Click to enlarge the picture
Contents of the user manual for the Apple Mac Pro Desktop Computer
- Product category: Mac Pro Apple
- Brand: Apple
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apple Mac Pro
 |
User manual for the Apple Mac Pro Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apple product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apple user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apple product will considerably shorten its lifespan!
|

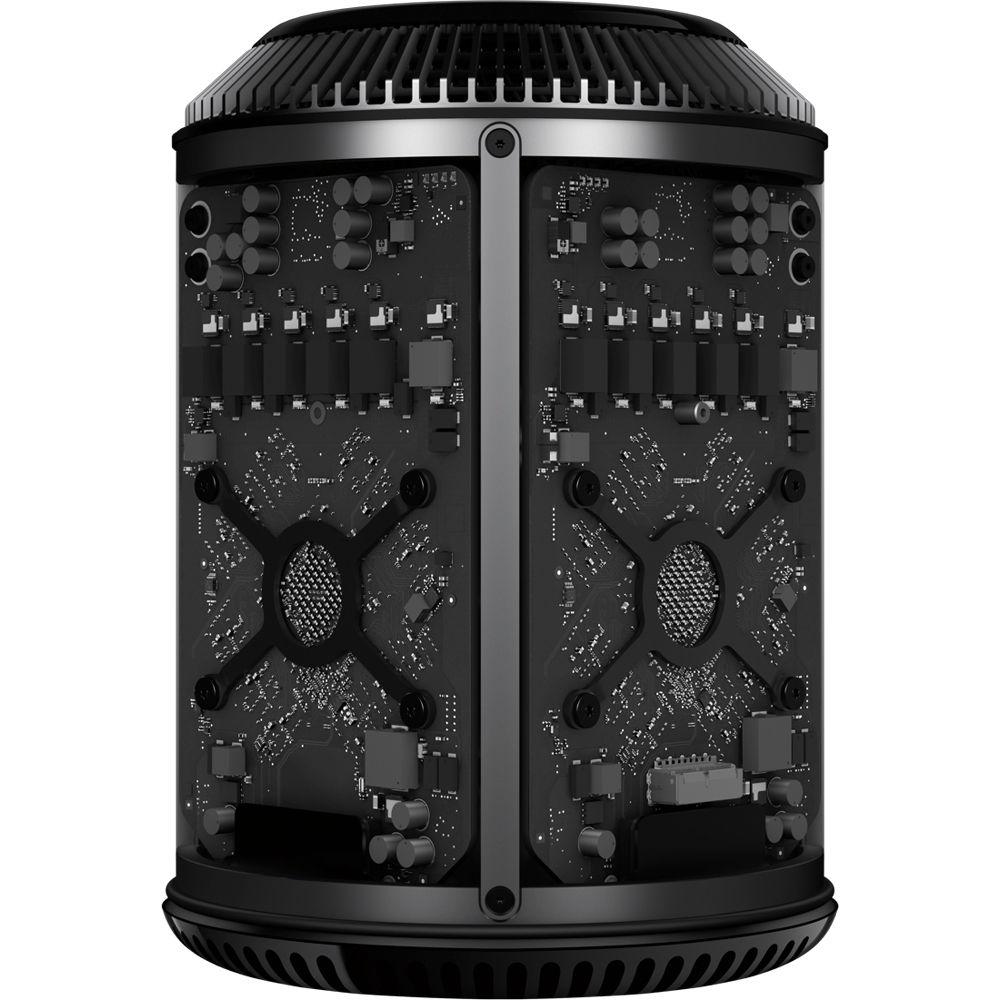

Product description From 2006 to 2012, the Mac Pro from Apple stuck with the same aluminum case, first made popular by the Power Mac G5. Now, the Mac Pro returns with a completely redesigned look. Apple revisited the architecture of the Mac Pro's internal components in order to maximize performance and minimize heat. With a unified thermal core, Apple opted for a leaner, lighter, and quieter structure that was more streamlined. The unique cylinder design stands just 9.9 inches tall with a diameter of just 6.6 inches, which allows it to be a professional workstation that can actually sit on your desk.The system is powered by a 6-core 3.5 GHz Intel Xeon E5 processor. The Mac Pro also has 32GB of 1866 MHz DDR3 ECC RAM and 256GB of PCIe-based flash storage. There are also dual AMD FirePro D500 graphics cards with 3GB of GDDR5 discrete VRAM each. You'll be able to connect to the Internet with fast-speed 802.11ac Wi-Fi. The Mac Pro also supports a/b/g/n Wi-Fi networks as well. The Mac Pro also features built-in Bluetooth 4.0, which allows you to connect wireless headphones, keyboard, mice and other compatible peripherals without a hassle.The Mac Pro has six Thunderbolt 2 ports and a high-speed interface that can move data at up to 20 Gb/s. That's four times the speed of the USB 3.0 standard. Speaking of USB 3.0, Apple added four USB 3.0 ports to ensure you have full native connectivity options with your USB-compatible peripherals such as external hard drives.iLife has a complete suite of digital creativity applications. Easy enough for anyone to use, iLife will help you edit your home movies, organize digital photos, and compose original music. iLife includes iPhoto, iMovie, and GarageBand.iWork provides three apps to keep you productive. Pages allow you to make creative word documents. Numbers helps you make spreadsheets more visually insightful. Keynote allows you to create a powerful presentation, complete with animated charts and interactive tables with cinematic effects and transitions.
Please note that this Mac may come with an earlier version of macOS. You can upgrade to the latest version through the Mac App Store app. - Six-Core, Late 2013 Intel Xeon E5 Performance
- This Mac Pro features a 3.5 GHz Intel Xeon E5 processor with 6 cores of processing power on a single die. And with 12MB of L3 cache, 40 GB/s of PCI Express Gen 3 bandwidth, and 256-bit-wide floating-point instructions, you'll never be at a loss for speed
- Dual AMD FirePro D500 Graphics Cards
- Traditionally, professional computers have relied primarily on the CPU for their computing power. But as GPU performance has dramatically increased, software developers have begun to leverage that power in their apps. With the Mac Pro, Apple engineered an even more powerful GPU architecture. Not only does it feature a state-of-the-art AMD FirePro workstation-class GPU - it features two of them. And each is available with 3GB of dedicated VRAM and 1526 stream processors. With 4.4 teraflops of computing power between the two, you'll be able to do things like seamlessly edit full-resolution 4K video while simultaneously rendering effects in the background - and still have enough power to connect up to three high-resolution 4K displays
- Memory
- Every component in the Mac Pro is optimized for performance. That includes a four-channel DDR3 memory controller running at 1866 MHz. It supports 32GB of memory and delivers up to 60 GB/s of memory bandwidth, which means you can fly through even the most compute-intensive tasks in no time. And since it's ECC memory, your render job, video export, or simulation won't be stopped by transient memory errors
- Design
- Apple reorganized the architecture of the internal components as well as the entire enclosure of the Mac Pro. Its unique cylinder design is made with refined impact extrusion technologies for effective material use and a polished aluminum enclosure. It stands at just 9.9 inches tall with a diameter of just 6.6 inches, allowing you to place it on your desk
- Storage
- The Mac Pro has next-generation PCIe-based flash storage, which is up to 2.4 times faster than the fastest SATA-based solid state drive and up to 10 times faster than a 7200 rpm SATA hard drive. Most flash storage systems that connect via SATA buses are designed for slower spinning hard drives. But Apple designed the Mac Pro around new PCIe-based flash controller technology, which delivers the fastest solid state drives available standard in a desktop computer. So you'll have 256GB of storage that will let you boot up, launch apps, and even open massive files almost instantly
- Thermal Core
- Rather than using multiple heat sinks and fans to cool the processor and graphics cards, Apple built everything around a single piece of extruded aluminum designed to maximize airflow as well as thermal capacity. It works by conducting heat away from the CPU and GPUs and distributing that heat uniformly across the core. That way, if one processor isn't working as hard as the others, the extra thermal capacity can be shared efficiently among them
- Fan
- Instead of adding extra fans, Apple engineered a single, larger fan that pulls air upward through a bottom intake. As air passes vertically through the center of the device, it absorbs heat and carries it out the top. By minimizing air resistance throughout the system, Apple was able to design a fan with backward-curved impeller blades that runs at fewer revolutions per minute, draws air more efficiently as it spins, and creates considerably less noise
- Expansion
- Designed with built-in Thunderbolt 2, USB 3.0, Gigabit Ethernet, and HDMI 1.4 ports, the Mac Pro provides flexible, high-performance expansion. And it has everything you need to build a workstation completely customized to what you need and how you work
- Thunderbolt 2
- Thunderbolt 2 combines PCI Express and DisplayPort into one high-speed, versatile I/O technology. Thunderbolt 2 delivers twice the throughput, providing up to 20 Gb/s of bandwidth to each external device. So you're more than ready for the next generation of high-performance peripherals, without being limited by the number of expansion slots inside your computer. You can connect massive amounts of storage, add a PCI expansion chassis, and work with the latest external displays - including 4K desktop displays and peripheral devices capable of broadcasting in 4K. And since each Thunderbolt 2 port allows you to daisy-chain up to six peripherals, you can go all out by plugging in up to 36 external devices via Thunderbolt 2 alone. Mac Pro supports a total of two DVI or HDMI displays when connected via the built-in HDMI port or using the Apple Mini DisplayPort to DVI adapter. To connect additional DVI displays, use an active DVI adapter such as the Apple Mini DisplayPort to Dual-Link DVI adapter. You can connect up to six active adapter DVI displays. This requires a powered USB hub since Mac Pro offers four USB ports and you will need six to connect them all.
- I/O Connections

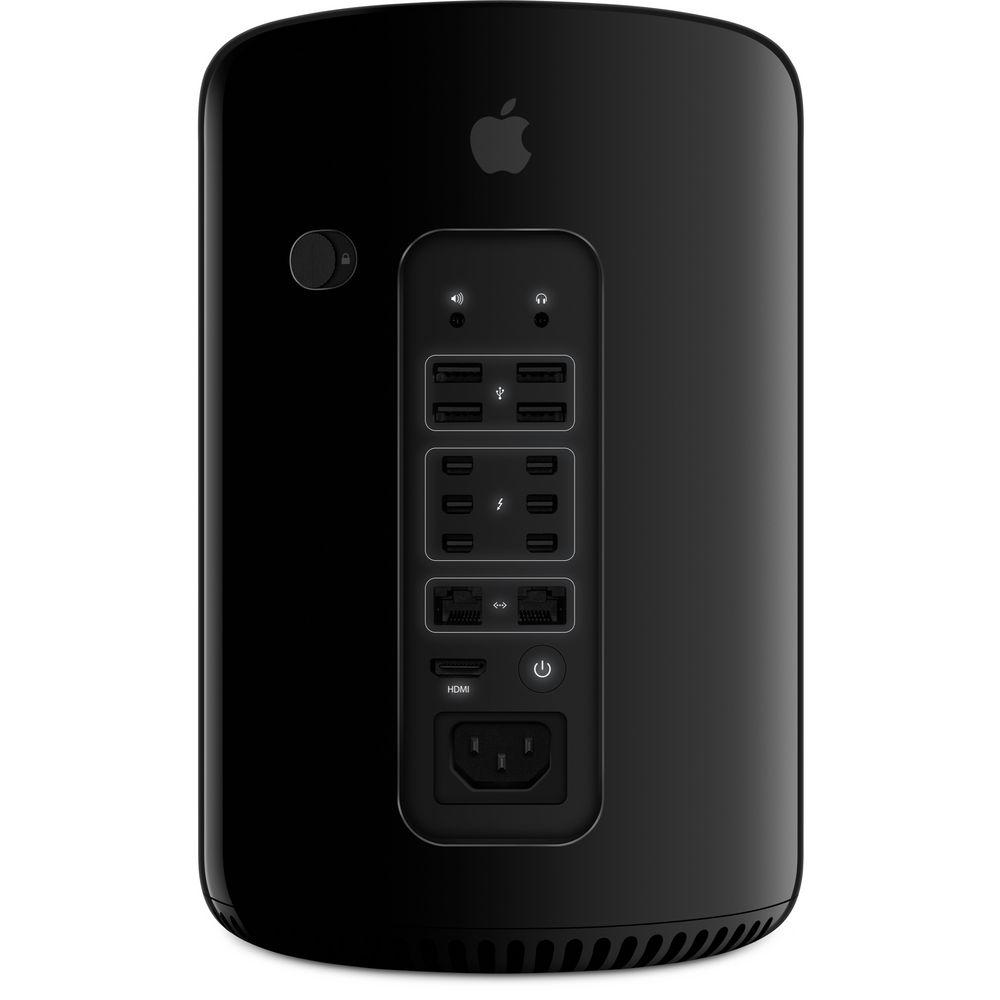

- The Mac Pro equips you with all kinds of connections for all kinds of peripherals. USB 3.0 gives you the versatility to hook up dozens of different types of external devices. Two Gigabit Ethernet ports let you connect to multiple networks. And an HDMI 1.4 port provides support for the high-definition televisions, projectors, and displays, including Ultra HD TVs. As you rotate Mac Pro to plug in a device, it senses the movement and automatically illuminates the I/O panel. So you can easily see the ports you need when you need them
- Wireless
- Access your network over three-stream 802.11ac Wi-Fi for high-speed wireless connectivity. For all your other wireless connections, the Mac Pro includes Bluetooth 4.0. It's the easiest way to connect your keyboard, mouse, and other wireless devices without having to physically attach anything
In the Box Apple Mac Pro Desktop Computer (Six-Core, Late 2013) Power Cord 1-Year Limited Warranty with 90 Days of Telephone Support Table of Contents
|
Upload User Manual
Have you got an user manual for the Apple Mac Pro Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApple Mac Pro Specs | | | CPU | 3.5 GHz Intel Xeon E5 6-Core | | L3 Cache | 12 MB | | Memory Type | 1866 MHz DDR3 | | Total Installed Memory | 32 GB | | ECC Memory | Yes | | GPU | 2 x AMD FirePro D500 with 3 GB GDDR5 VRAM | | | | Solid State Storage | 1 x 256 GB M.2 PCIe | | Optical Drive | None | | | | Ports | 6 x Mini Displayport (Thunderbolt 2)
4 x USB Type-A (USB 3.1 Gen 1) | | Display | 1 x HDMI 1.4 | | Audio | 1 x TOSLINK S/PDIF Input/Output
1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.0 | | | | Power Supply | 450 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 5 to 95% | | Dimensions | 9.9 x 6.6" / 25.1 x 16.7 cm | | Weight | 11 lb / 5 kg | | | | Package Weight | 14.55 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 10.0" |
