User Manual for Apresys Optics 12x50 M5012 Binocular Click to enlarge the picture
Contents of the user manual for the Apresys Optics 12x50 M5012 Binocular
- Product category: Binoculars Apresys Optics
- Brand: Apresys Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apresys Optics Binoculars
 |
User manual for the Apresys Optics 12x50 M5012 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apresys Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apresys Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apresys Optics product will considerably shorten its lifespan!
|

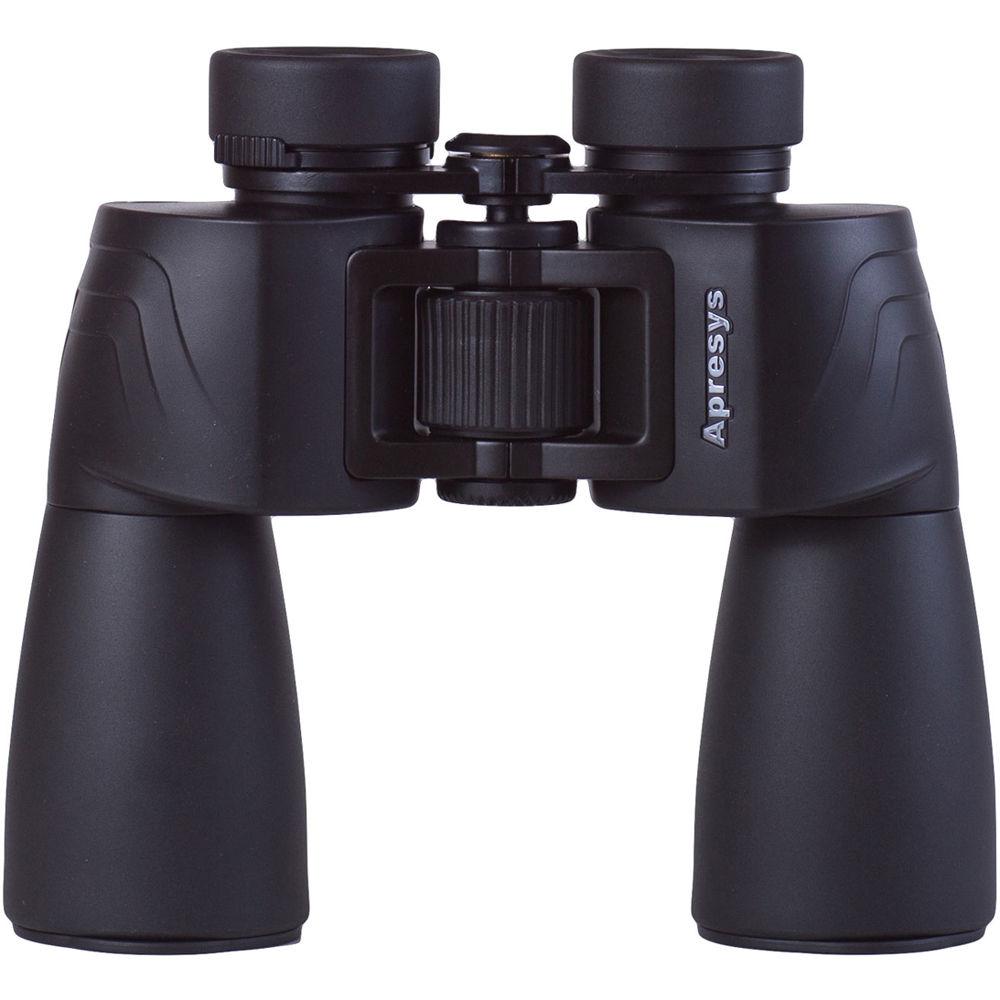

Product description The B&H Binocular Buying Guide Read More Opting for a traditional Porro prism configuration, the Apresys Optics 12x50 M5012 Binocular delivers performance while maintaining a classic look and comfortable feel. Its wide field of view helps to minimize the distraction of visible hand-shake common with higher-power optics, while the large objective lens diameter draws in copious amounts of light to boost its low-light performance, such as at dawn or dusk, or under heavy canopies. Helping to boost its light-gathering ability are phase-correcting prism coatings and broadband anti-reflection multi-coatings, which ensure bright and clear high-contrast images with accurate color rendition and sharp resolution.The ergonomic design is comfortable to hold and weighted to fit solidly in the hand to reduce hand-shake and fatigue. It is made of a lightweight and impact-resistant composite chassis that is wrapped in a protective slip-resistant rubber armor. The optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to fogging when moving through extreme temperature changes. A large center focusing wheel, ±4 dioptric correction, and twist-up eyecups enable precise focusing and eye relief for just about any user. For long glassing session or to eliminate arm fatigue, the M5012's can be tripod mounted with an optional adapter. - Optical Performance
-
- 12x magnification
- 50mm objective lenses
- Porro prism optical path improves the depth of field versus similar roof prisms to produce a rich viewing experience
- Phase-corrected high-density BAK4 prisms limit internal light diffraction to improve contrast and clarity
- Broadband anti-reflection fully multi-coated optics produce neutral and accurate color fidelity across the entire visible spectrum, and improves contrast and image brightness
- Wide 67° apparent angle of view
- 294' field of view at 1000 yards
- Use and Handling
-
- Textured center focusing wheel is easy to manipulate with or without gloves
- 53-74mm interpupillary distance adjustment range
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- 16mm eye relief
- Comfortable 4.2mm exit pupil
- Construction Details
-
- Lightweight and impact-resistant composite chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Shock-absorbing rubber armoring protects while providing a slip-resistant grip
- Ergonomic design is comfortable to hold and weighted to fit solidly in the hand to reduce hand-shake and fatigue
- Weight: 32 ounces

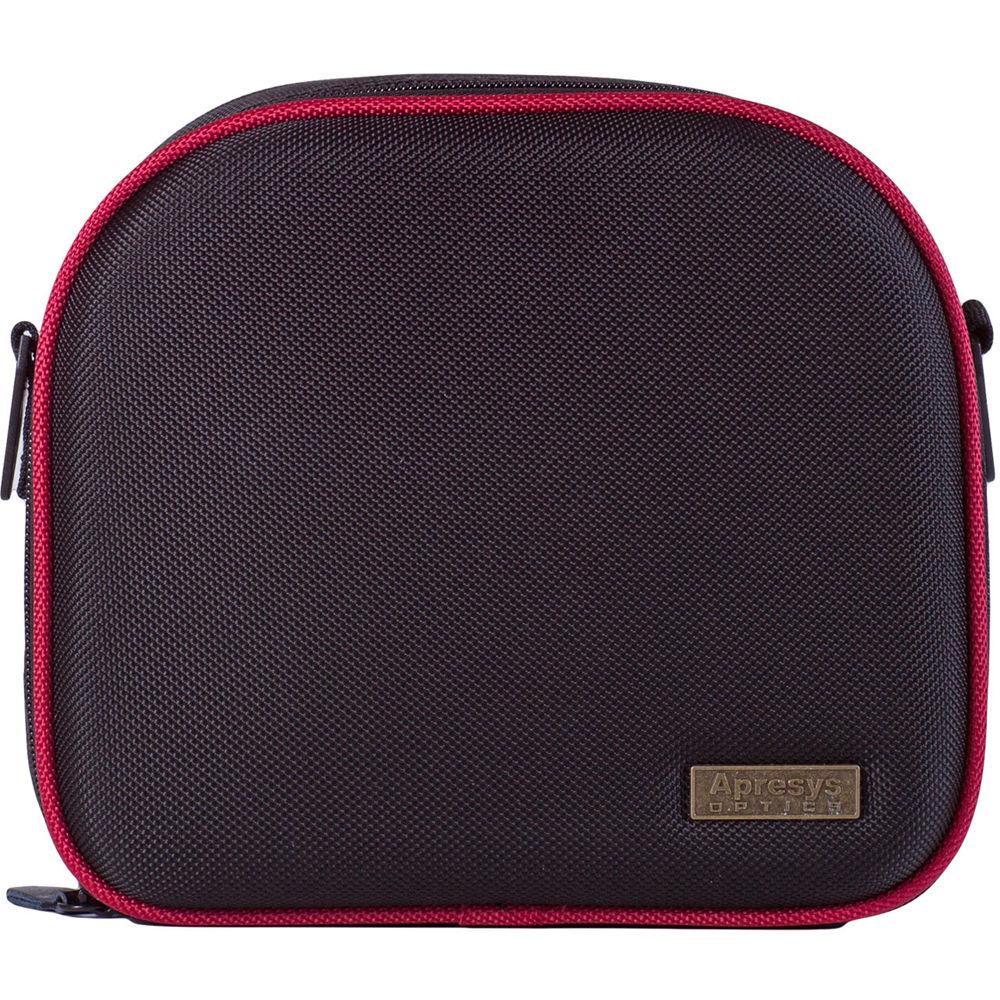

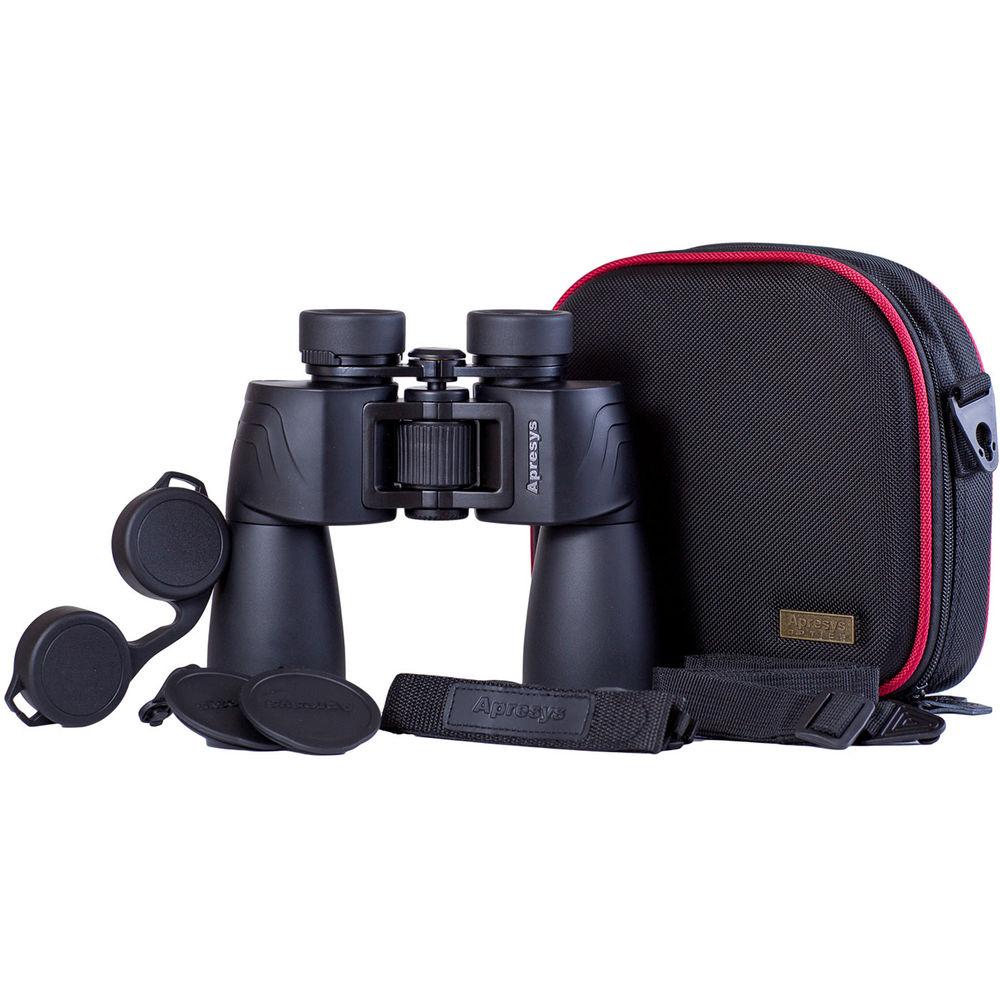

In the Box Apresys Optics 12x50 M5012 Binocular Lens Cloth Neck Strap Carrying Case Ocular Rainguard 2 x Objective Lens Covers Limited 5-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 crxfeqtcwtqxsvsuydafrxfcysydb A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 crxfeqtcwtqxsvsuydafrxfcysydb Table of Contents
|
Upload User Manual
Have you got an user manual for the Apresys Optics 12x50 M5012 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApresys Optics M5012 Specs | Prism Type | Porro | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.6° (actual) | | Field of View | 294.0' @ 1000 yd / 98.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 14.0 mm | | Interpupillary Adjustment | 53 to 74 mm / 2.1 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.8 x 6.9 x 2.5" / 19.8 x 17.5 x 6.4 cm | | Weight | 31.75 oz / 900.0 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 9.55 x 8.6 x 3.95" |
