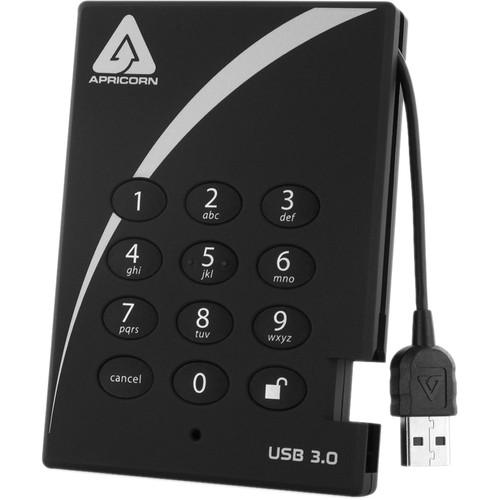

User Manual for Apricorn 2TB Aegis Padlock Encrypted USB 3.1 Gen 1 Hard Drive with PIN Access Click to enlarge the picture
Contents of the user manual for the Apricorn 2TB Aegis Padlock Encrypted USB
- Product category: External Drives Apricorn
- Brand: Apricorn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apricorn External Drives
|
User manual for the Apricorn 2TB Aegis Padlock Encrypted USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apricorn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apricorn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apricorn product will considerably shorten its lifespan!
|
Product description The 2TB Aegis Padlock Encrypted USB 3.0 Hard Drive with PIN Access from Apricorn helps to provide advanced security measures within a compact form factor. Designed with a 2TB capacity and a USB 3.0 connection, it features military-grade FIPS PUB 197 encryption and 256-bit AES-XTS encryption. Its keypad allows the drive to be accessed using a unique PIN, while the drive is further protected using drive reset and auto-lock features, as well as Brute Force Self-Destruct, Variable Timing Circuit (VTC) technology, and a wear resistant keypad. This drive is further protected from physical attacks using a tough epoxy coating, while a wear resistant keypad helps hide key usage from potential hackers.
This drive operates using USB bus power and is compatible with most operating systems, including Windows, Mac, and Linux. While it is USB 3.0 compatible, it is also compatible with USB 2.0 and 1.1. The Aegis Padlock is protected by a limited 3-year warranty and includes an integrated USB 3.0 cable, a travel pouch, and a Y-auxiliary USB 3.0 power cable. The Y-auxiliary cable helps to provide power by utilizing two USB ports when one port is not sufficient. - Utilizes Military Grade FIPS PUB 197 Validated Encryption Algorithm
- Featuring 256-bit AES-XTS hardware encryption, the Aegis Padlock encrypts all data on the drive in real-time, keeping your data safe even if the drive is removed from its enclosure
- USB 3.0 Connection
- With USB 3.0 data transfer rates up to ten times faster than traditional USB 2.0 drives, the Aegis Padlock's fast performance is comparable to that of your computer's internal drive, enabling you transfer large files in seconds or quickly backup an entire system. The Aegis Padlock is also backwards compatible with USB 2.0 and 1.1 ports
- Software Free Design - With No Admin Rights to Contend With
- With no software installation required for setup or operation and the ability to run on almost any platform, the Aegis Padlock 3.0 provides stress free deployment in corporate environments. The Aegis Padlock can be configured with independent Admin and User PINs. The Administrator Feature allows enrollment of up to five unique User ID's and one Administrator. If the User forgets their PIN, the drive can be unlocked using the Admin PIN
- Drive Reset Feature
- The Aegis Padlock also employs a useful drive reset feature, which can be implemented with a unique command. This clears all PINs and data, and creates a new randomly generated encryption key, enabling the drive to be reset and redeployed as many times as needed
- Auto-Lock Feature
- The unattended Aegis Padlock can be configured to lock after a pre-determined amount of time of your choosing. This is helpful if protecting your data when you're away from your desk
- Data at Rest Protection
- All data, PINs, and encryption keys are always encrypted while at rest
- Brute Force Self Destruct Feature
- The Aegis Padlock uses a three pronged approach to protect against a Brute Force attack. The first step is to deny access to the drive until the drive can verify the user PIN. After several incorrect attempts the drive will lock itself, requiring the drive to be plugged in again to input a PIN. This feature blocks automated attempts to enter PIN numbers. Lastly, after a pre-determined number of failed PIN entries, the Padlock assumes it is being attacked and will destroy the encryption key and lock itself, rendering the data useless and requiring a total reset to redeploy the Padlock
- Sealed from Physical Attacks by a Tough Epoxy Coating
- In addition to encrypting all of the PINs, data, and the encryption key itself, the Aegis Padlock adds another barrier between your data and a hacker. The encryption chip and circuitry of the Aegis Padlock are protected by a super tough epoxy compound, which is virtually impossible to remove without causing permanent damage to the electronics. This barrier prevents a potential hacker from accessing the encryption circuitry and launching a variety of potential attacks
- Wear Resistant Key Pad
- Designed with protection in mind, the entire Aegis Padlock family incorporates 'wear resistant' keypads to hide key usage and avoid tipping off a potential hacker to the commonly used keys
- VTC (Variable Timing Circuit) Technology
- Protection against hacker attempts doesn't stop with Brute Force. Incorporated into the Aegis Padlock electronics is Apricorn's Variable Time Circuit (VTC) technology, working to thwart "timing attacks" aimed at accessing the drive by studying the behavior and infiltrating the Padlock's electronics
- Compact, Rugged Design
- The Aegis Padlock's low powered design is good for using with notebooks and taking your data on the road. The pocket-size Aegis Padlock features a 16-point omni-directional shock mounting system, protecting the drive from drops and knocks. The integrated USB 3.0 cable eliminates the need to carry around cords with you and allows you to be connected at the flick of a fingertip
UPC: 708326914109 In the Box Apricorn 2TB Aegis Padlock Encrypted USB 3.1 Gen 1 Hard Drive with PIN Access Y-Auxiliary USB 3.0 Power Cable Travel Pouch Limited 3-Year Warranty User Manual PDF 922.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Apricorn 2TB Aegis Padlock Encrypted USB 3.1 Gen 1 Hard Drive with PIN Access in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApricorn Padlock Specs | Storage Capacity | 2 TB | | Connection Interface | 1 x USB 3.1 Gen 1 (USB Type-A) | | Pre-Format | NTFS | | | | Type | Hard Disk Drive | | Rotational Speed | 5400 rpm | | Cache Memory | 8 MB | | | | Bus Power | USB | | Environmental Resistance | Shock | | Dimensions (L x W x H) | 4.7 x 3.3 x 0.7" / 12.0 x 8.4 x 1.9 cm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.4 x 6.3 x 2.8" |
