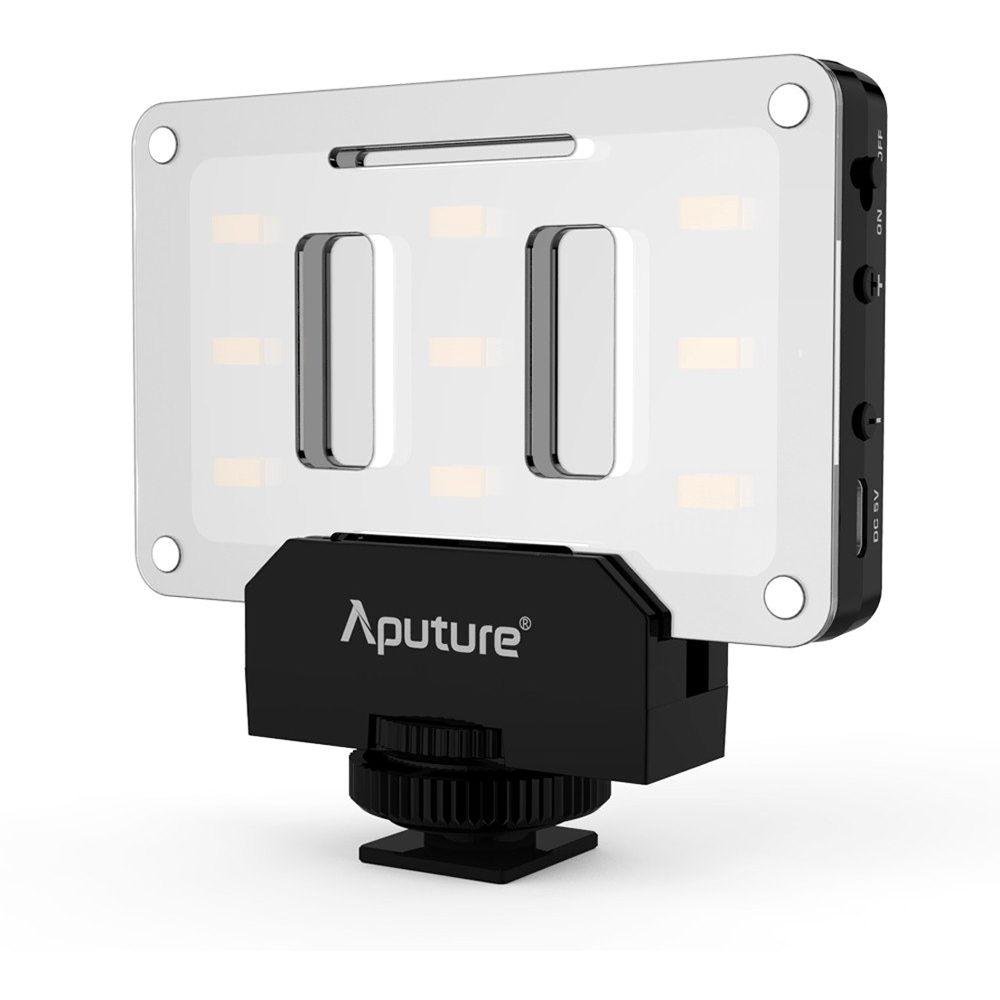

User Manual for Aputure AL-M9 Amaran Pocket-Sized Daylight-Balanced LED Light Click to enlarge the picture
Contents of the user manual for the Aputure AL-M9 Amaran Pocket-Sized Daylight-Balanced LED
- Product category: On Camera Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure On Camera Lights
 |
User manual for the Aputure AL-M9 Amaran Pocket-Sized Daylight-Balanced LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

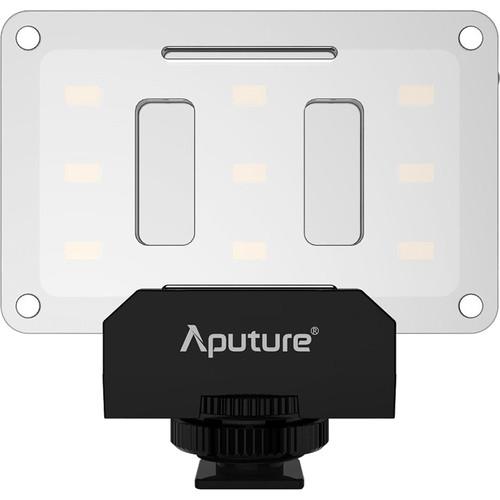

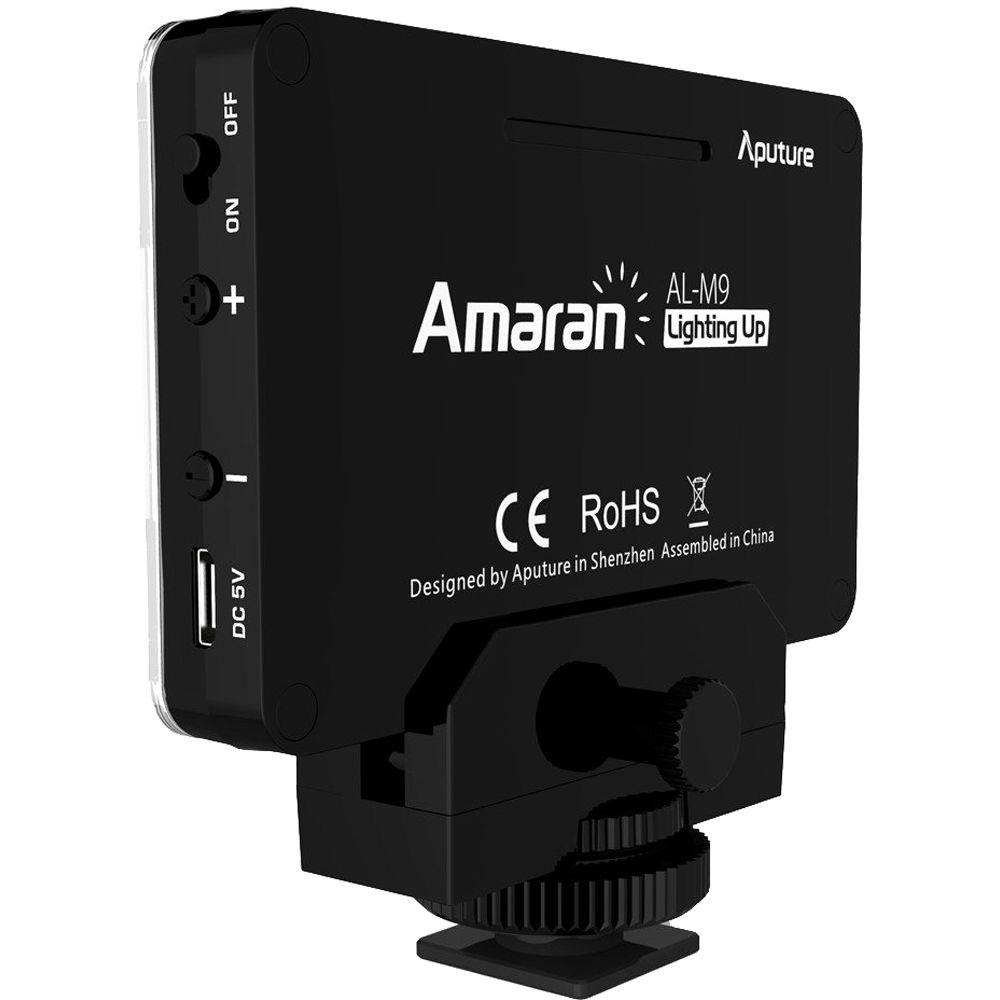

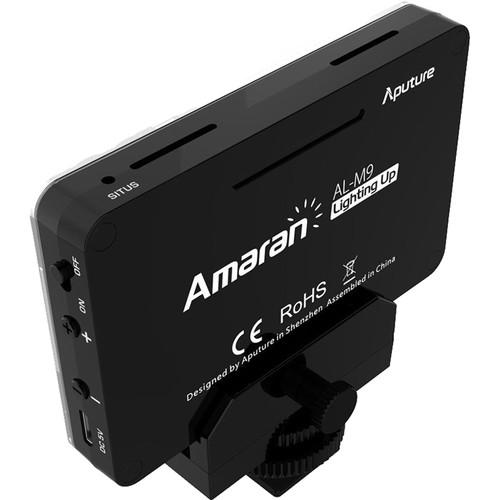

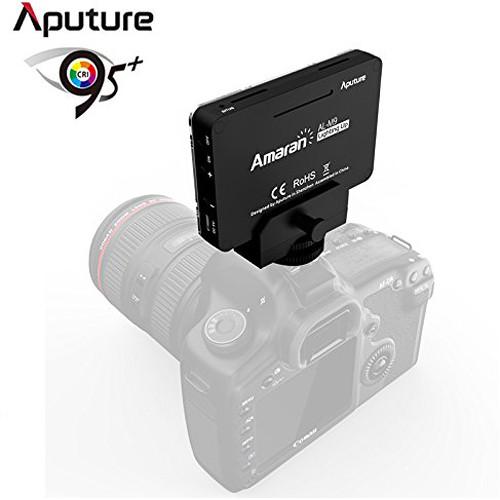

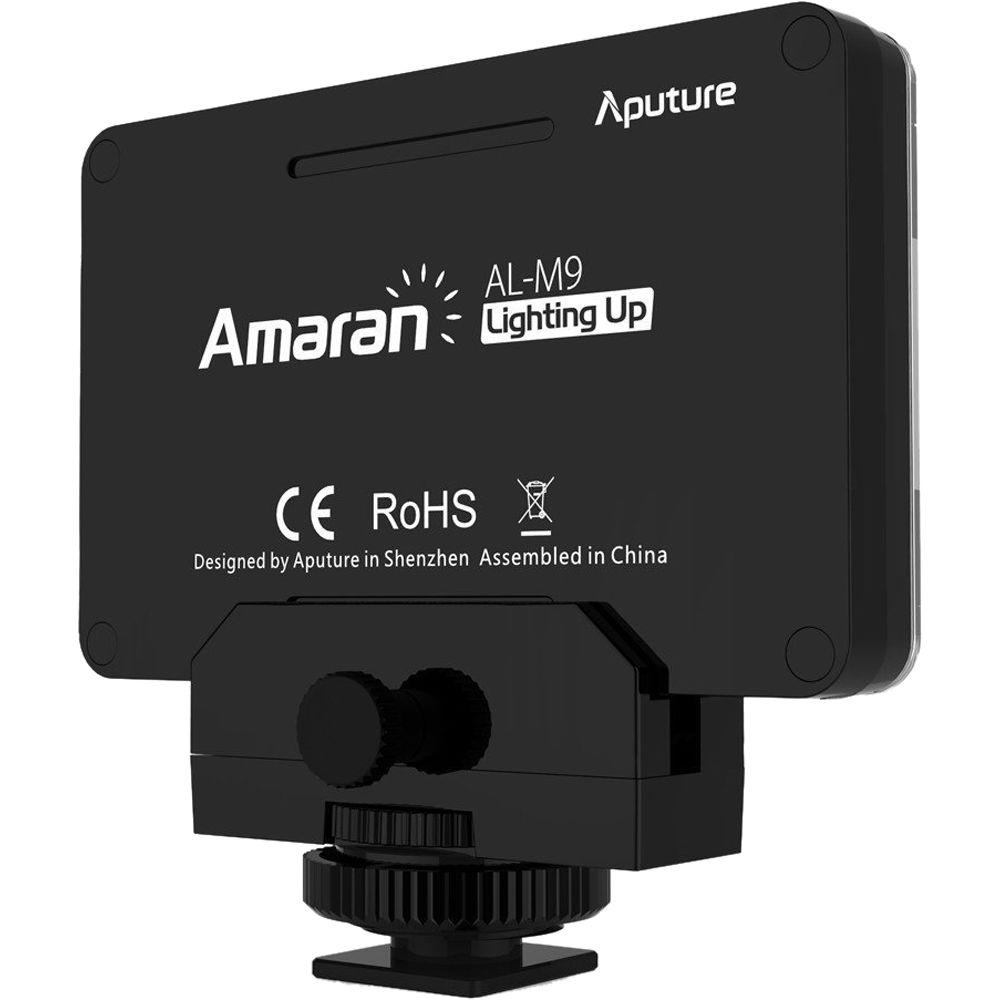

Product description The AL-M9 Amaran Pocket-Sized Daylight-Balanced LED Light from Aputure is an extremely portable yet surprisingly bright battery-powered LED fixture. Easily fitting in your pocket, the fixture is daylight balanced and sports a color temperature of 5500K with a CRI and TLCI rating of over 95. It includes a removable sheet of diffusion and 9 steps of dimming.

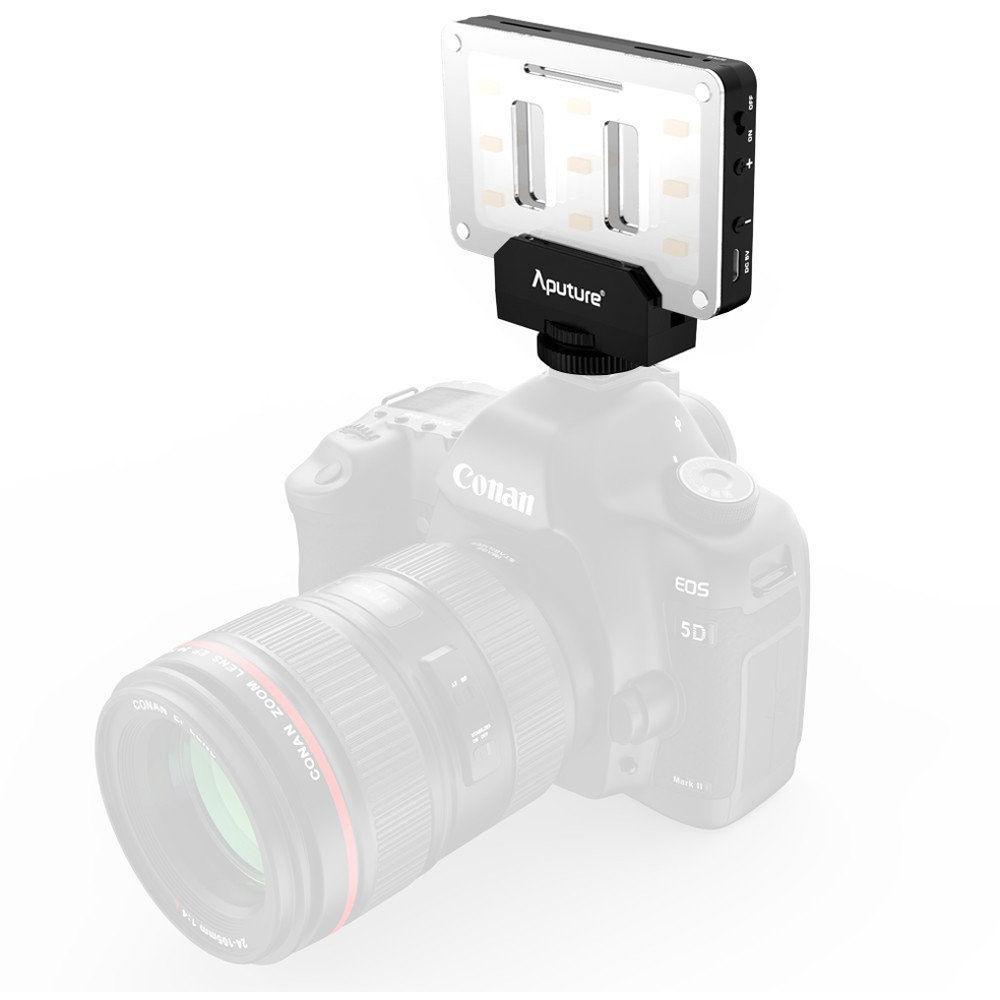

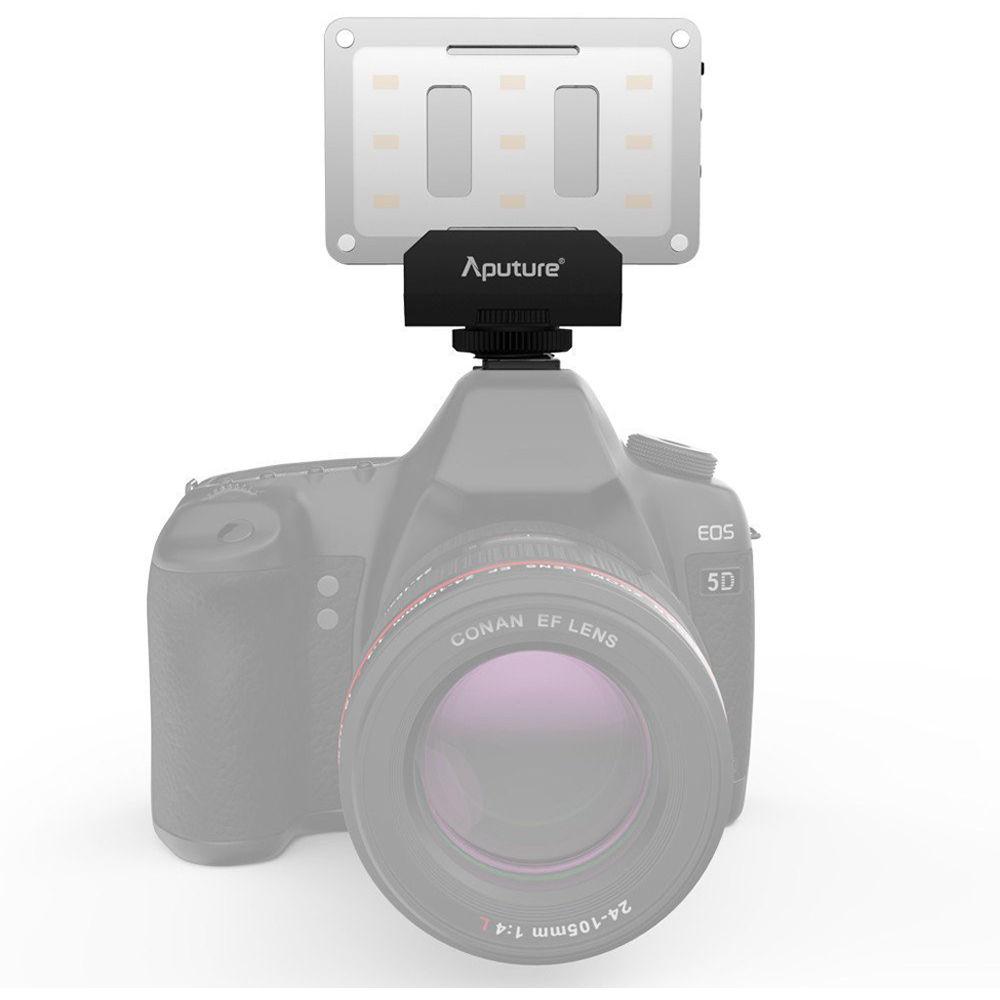

The Amaran integrates an 1800mAh lithium polymer battery with a nearly 2-hour runtime at full brightness when fully charged. You can charge the fixture using the included USB charging cable and a readily available USB charger (not included). Included with the fixture are magnetically attached diffusion, CTO, and CTB filters. The light slips into an adapter, so you can mount it to the cold shoe or threaded female 1/4"-20 accessory port of your camera. - 1.75 hours of battery life at maximum brightness when fully charged
- 13 hours of battery life at minimum brightness when fully charged
- An integrated 1800mAh lithium polymer battery that charges from virtually any 5V USB charger
- Magnetically attached diffusion filter
- CTO filter to lower the color temperature of the light output to approximately 3400K
- CTB filter to raise the color temperature of the light output to approximately 8800K
- Mount adapter for mounting the light to an accessory cold shoe, or remove cold shoe foot and mount light to a 1/4"-20 accessory mounting point

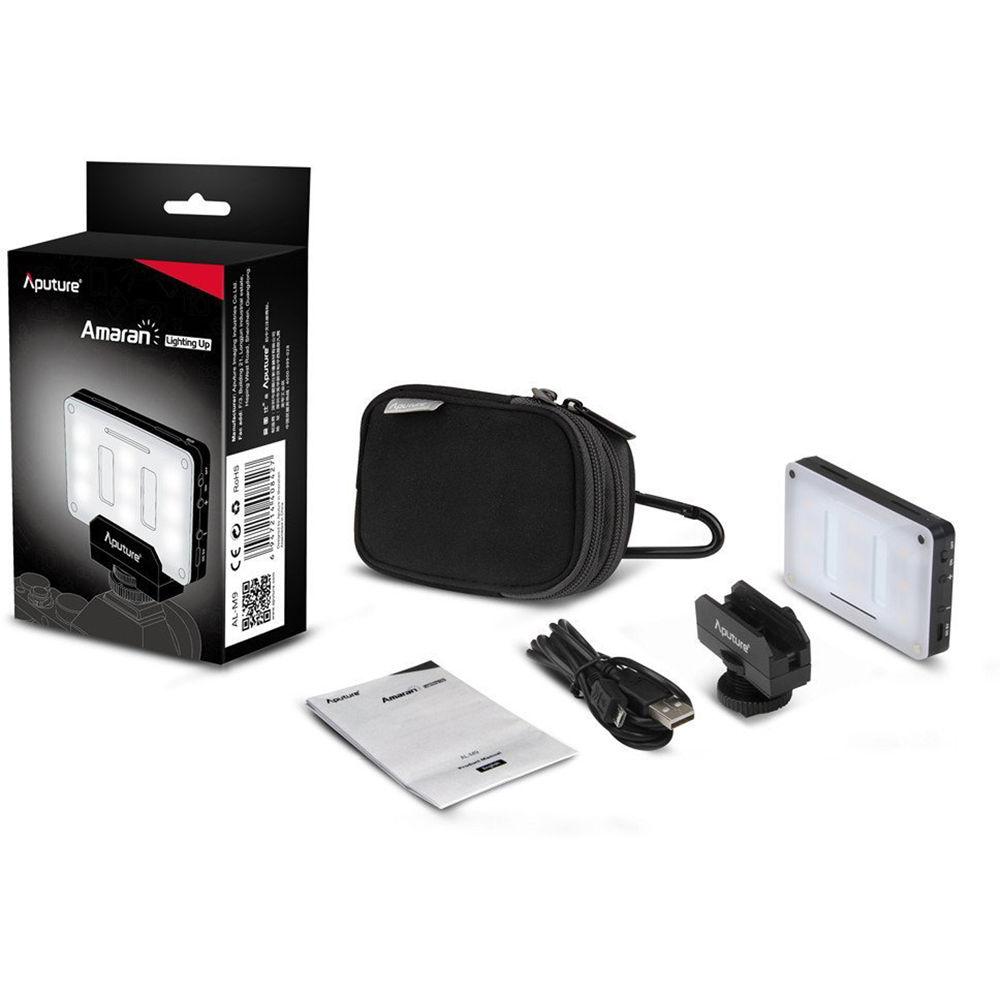

In the Box Aputure AL-M9 Amaran Pocket-Sized Daylight-Balanced LED Light Diffusion Filter CTO Filter CTB Filter Universal Cold Shoe Adapter USB Charging Cable Carrying Case Limited 1-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure AL-M9 Amaran Pocket-Sized Daylight-Balanced LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure AL-M9 Specs | | | Color Temperature | 5500K ± 200K | | Color Accuracy Standard | CRI 95
TLCI 95 | | | | Capacity (mAh) | 1800 mAh | | Battery Chemistry | Lithium-Ion | | Operating Voltage | 3.7 VDC | | | | DC Input Power | 5 VDC at 1 A | | Max Power Consumption | 5 W | | Power Source | Integrated Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 3.4 x 2.2 x 0.4" / 8.7 x 5.6 x 1.1 cm | | Weight | 4.9 oz / 140 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.2 x 3.6 x 2.0" |
