Aputure Amaran 3-Point 2-Daylight Spot, 1-Bi-Color

User Manual for Aputure Amaran 3-Point 2-Daylight Spot, 1-Bi-Color Flood HR672 3-Light Kit

• Product category: LED Lights Aputure
• Brand: Aputure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Aputure LED Lights

Product description

• Amaran HR672S Daylight LED Spot Light The most powerful light in the series, the Amaran HR672S Daylight LED Spot Light from Aputure is an LED panel that uses 672 95+ rated LEDs to render colors with optimal precision and accuracy. The light's 5500K color temperature means that you can easily match it with other daylight sources like HMIs and cool white fluorescents, as well balance the unit with ambient daylight conditions. An orange conversion (3200-5500K) filter is supplied to match tungsten lights or for creative late day lighting effects.Among the R672S's advanced features is wireless control of the light's functions and light intensity from up to 328' away thanks to 2.4 GHz FSK technology. This is an especially valuable tool for adjusting lights hung overhead or on large sets or locations. It's also great for solo shooters and multi-light setups. The included remote control has 4 discrete channels to defeat interference and 3 groups for multiple setups. The HR672S produces a spot 25-degree beam angle with an impressive brightness of 18,800 lux at a distance of 1.6, and features a stepless rear dimming dial for adjusting light output from 0 to 100%. The light panel can be powered by the included multi-voltage AC adapter or the included Sony-type batteries using the dual rear battery slots. Four LED indicator lights on the back of the unit display the remaining battery life.The 9.37 x 7.48 panel is only 1.26" thick and generates little heat, allowing it to squeeze into places where other lights, especially incandescents, just can't go. The Amaran HR672S ships with the previously mentioned multi-voltage AC adapter, 5/8" tilting mount for stand mounting, a 5/8" spigot with 1/4"-20 and 3/8"-16 threads, an orange CTO conversion filter and a diffusion filter to soften the light's output.
  CRI 95+ for Accurate, Pure Light
  • The color-rendering index (CRI) is a quantitative measure of the ability of a light source to reproduce the colors of various objects faithfully in comparison with an ideal or natural light source. With a CRI of 95+, the HR672S ensures natural and lifelike rendering that's ideal for color-critical applications such as fashion, documentary, short films or art and textile evaluation
  Impressive Output
  • The HR672S emits 4636.8 lumens of light - about equal to a traditional 400W incandescent light and it's flicker-free no matter at any shutter speed or FPS rate
  Thin but Durable Design
  • The HR672S has 628 LED lamps packed into a compact design that is slightly larger than the original iPad. It's an LED light that doesn't sacrifice power for portability
  328' Wireless Range
  • Using 2.4GHz FSK technologies, you can easily the HR672S's adjust brightness with the included wireless remote. Multiple channels and groups also ensure that several different lights can be controlled without interference from up to 328' away
  Diffusion Filter
  • The HR672S comes a white diffusing filter to soften the light's output
  Advanced Dual Power System
  • Two methods can be used to power the HR672S: an AC adapter or Lithium-ion batteries. Batteries can be recharged while the HR672S is being powered by an AC adapter
  Slim Profile
  • The HR672S is only 1.26" thick - significantly thinner than many competitive LED units
• Amaran HR672C Bi-Color LED Flood Light The most powerful light in the series, the Amaran HR672C Bi-Color LED Flood Light from Aputure is an LED panel that uses 672 CRI 95+ rated LEDs to render colors with optimal precision and accuracy. Color is variable from a warm 3,200K to daylight balanced 5,500K meaning that you can easily match other light sources, balance the unit with ambient light conditions or use the color range creatively, all without resorting to time-intensive filtering.Among the HR672C's advanced features is wireless control of color balance and light intensity from up to 328' away thanks to 2.4 GHz FSK technology. This is an especially valuable tool for adjusting lights hung overhead or on large sets or locations. It's also great for solo shooters and multi-light setups. The included remote control has 4 discrete channels to defeat interference and 3 groups for multiple setups. The HR672C produces a flood 75-degree beam angle with a brightness of 1,920 lux at a distance of 3.3', and features a stepless rear dimming dial for adjusting light output from 0 to 100% and a second dial that displays your selected color temperature. The HR672C can be powered by the included multi-voltage AC adapter or the included Sony-type batteries using the dual rear battery slots. Four LED indicator lights on the back of the unit display the remaining battery life.The 9.37 x 7.48 panel is only 1.26" thick and generates little heat, allowing it to squeeze into places where other lights, especially incandescents, just can't go. The Amaran HR672C ships with the previously mentioned multi-voltage AC adapter, 5/8" tilting mount for stand mounting, a 5/8" spigot with 1/4"-20 and 3/8"-16 threads and a diffusion filter to soften the light's output.
  CRI 95+ for Accurate, Pure Light
  • The color-rendering index (CRI) is a quantitative measure of the ability of a light source to reproduce the colors of various objects faithfully in comparison with an ideal or natural light source. With a CRI of 95+, the HR672C ensures natural and lifelike rendering that's ideal for color-critical applications such as fashion, documentary, short films or art and textile evaluation
  Variable Color
  • With color temperature variable from 3200-5500K, you can match other light sources or ambient light scenarios or vary the color creatively without filters
  Impressive Output
  • The HR672C emits 4636.8 lumens of light - about equal to a traditional 400W incandescent light and it's flicker-free no matter what the shutter speed or FPS rate is
  Thin but Durable Design
  • The HR672C has 672 LED lamps packed into a compact design that is slightly larger than the original iPad. It's an LED light that doesn't sacrifice power for portability
  328' Wireless Range
  • Using 2.4 GHz FSK technologies, you can easily the HR672C's adjust brightness and color temperature with the included wireless remote. Multiple channels and groups also ensure that several different lights can be controlled without interference from up to 328' away
  Frictionless Brightness and Color Temperature Control
  • Freely rotate the brightness wheel to adjust the light's intensity from 0-100% and a second dial for color temperature control. Both are displayed on the unit's LCD screen for repeatability and consistency
  Diffusion Filter
  • The HR672C comes a white diffusing filter to soften the light's output
  Advanced Dual Power System
  • Two methods can be used to power the HR672C: an AC adapter or Lithium-ion batteries. Batteries can be recharged while the HR672C is being powered by an AC adapter
  Slim Profile
  • The HR672C is only 1.26" thick - significantly thinner than many competitive LED units

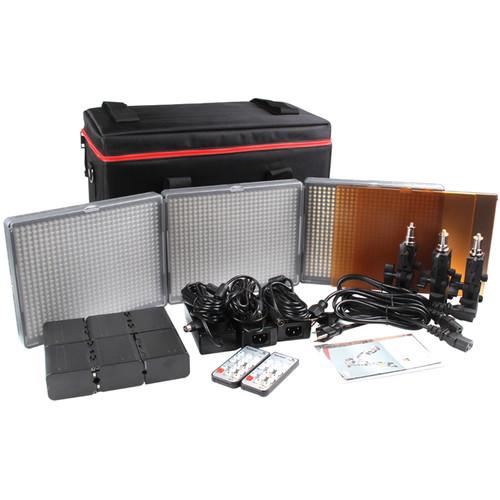

• Tilt Adjustable Light Stand Mount Adapter

• Wireless Remote Control

• Spigot (5/8")

• AC Adapter

• 2 x Batteries (Sony-type)

• Diffusion Filter

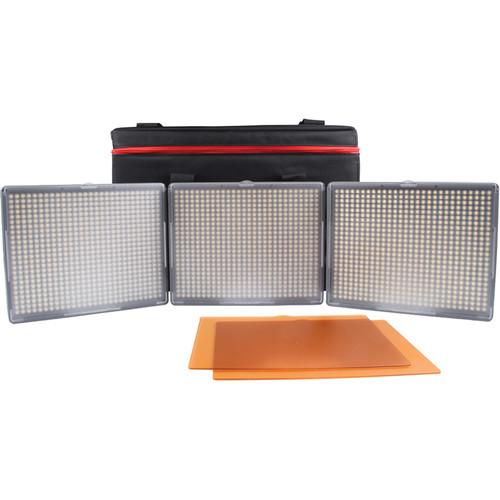

• Orange Conversion Filter

• Limited 1-Year Warranty

• Tilt Adjustable Light Stand Mount Adapter

• Wireless Remote Control

• Spigot (5/8")

• AC Adapter

• 2 x Batteries (Sony-type)

• Diffusion Filter

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Amaran HR672S Daylight LED Spot Light

  Beam Angle	25°
  Color Temperature	5500K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Display	None
  Number of LEDs	672
  Expected Lamp Life	100,000 Hours
  Fixture Dimensions	9.4 x 7.5 x 1.3" / 238.0 x 190.0 x 32.0 mm
  Fixture Weight	1.28 lb / 585 g

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	1/4"-20 Female Thread
  Accessory Mount	None

  Wireless Range	328' / 100 m
  Wireless Channels / Groups	3 / 4

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 4 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	45 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	10.9 x 8.9 x 4.5"

• Amaran HR672C Bi-Color LED Flood Light

  Beam Angle	75°
  Color Temperature	3200 to 5500K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Display	None
  Number of LEDs	672
  Expected Lamp Life	100,000 Hours
  Fixture Dimensions	9.4 x 7.5 x 1.3" / 238.0 x 190.0 x 32.0 mm
  Fixture Weight	1.28 lb / 585 g

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	1/4"-20 Female Thread
  Accessory Mount	None

  Wireless Range	328' / 100 m
  Wireless Channels / Groups	3 / 4

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 4 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	45 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	10.8 x 8.8 x 4.5"
