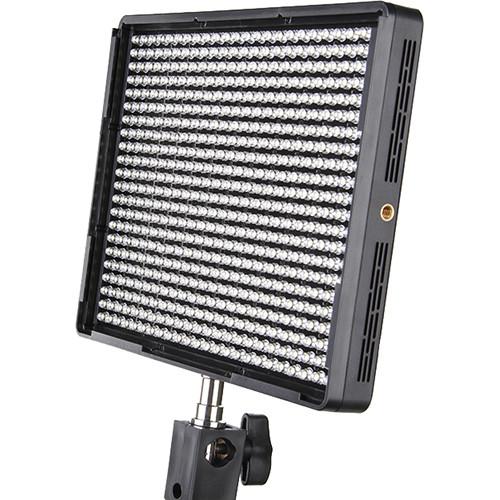

User Manual for Aputure Amaran AL-528S Daylight LED Spot Light Click to enlarge the picture
Contents of the user manual for the Aputure Amaran AL-528S Daylight LED Spot
- Product category: LED Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure LED Lights
 |
User manual for the Aputure Amaran AL-528S Daylight LED Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|
Product description The on or off-camera Amaran AL-528S Daylight LED Spot Light from Aputure is a daylight-balanced (5500K) LED light that delivers precise color accuracy thanks to its high CRI 95+ rated LEDs. The light produces a spot 25° beam angle with a brightness of 4,380 lux at a distance of 3.3' and features a stepless rear dimming dial for adjusting light output from 0 to 100%. The AL-528S can be powered by the included AC adapter or optional Sony F/FM/QM-type batteries using the dual rear battery slots. Four LED indicator lights on the back of the unit display the remaining battery life.The 9.37 x 7.48 panel is only 1.26" thick and generates little heat, allowing it to squeeze into places where other lights, especially incandescents, just can't go. The AL-528S ships with a multi-voltage AC adapter, 5/8" tilting mount for stand mounting, a 5/8" spigot with 1/4"-20 and 3/8"-16 threads, an orange 5500 - 3200K conversion filter, a diffusion filter to soften the light's output, and a carry case with shoulder strap. - Powerful and Compact

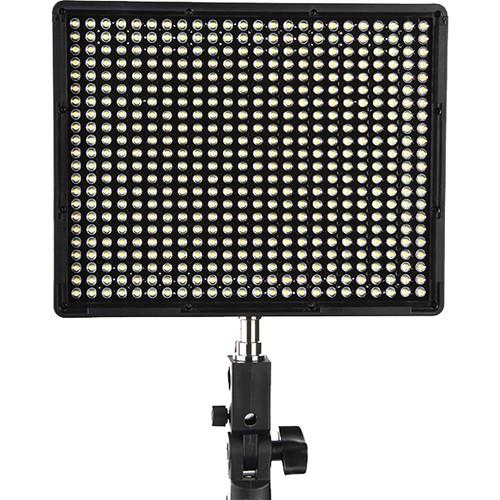

- The AL-528S has 528 LEDs packed into a compact design that is the same size as the original iPad. It's an LED light that doesn't sacrifice power for portability
- High Color-Rendering LEDs
- With Amaran's advanced LEDs featuring a color-rendering index of 95+, the AL-528S casts a more radiant, natural light
- Color Temperature and Diffusion

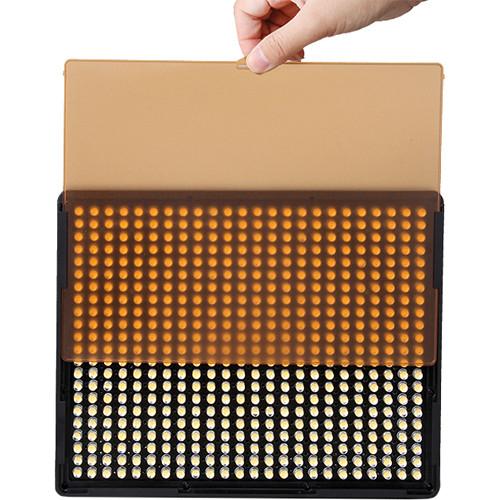

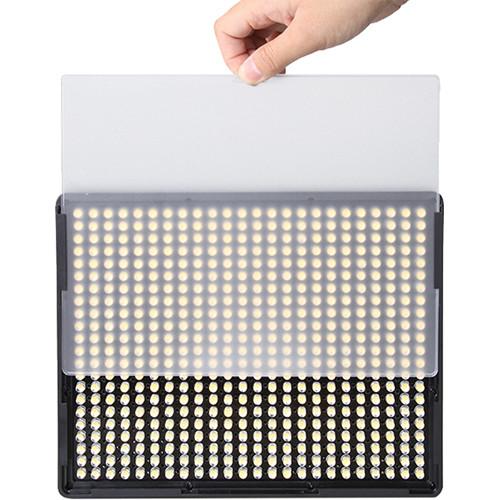

- The AL-528S comes with two filters: a tungsten filter to change the color temperature from 5500 to 3200K, and a white diffusing filter to soften the light's output
- Frictionless Brightness Control

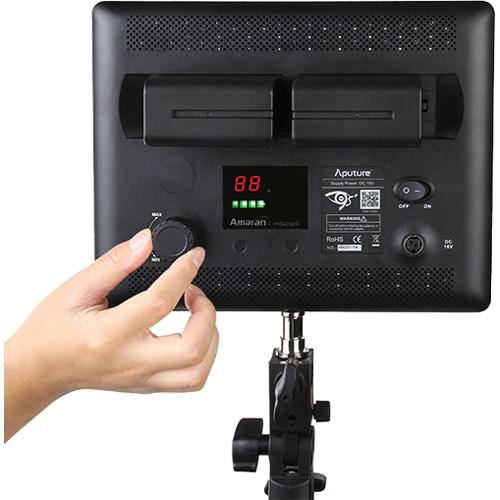

- Freely rotate the brightness wheel to adjust the AL-528S intensity. An adjacent LCD screen displays the power of your light by percentage for repeatability and consistency
- Slim Profile
- The Amaran is only 1.26" thick - significantly thinner than many competitive LED units
- Double Power Supply System

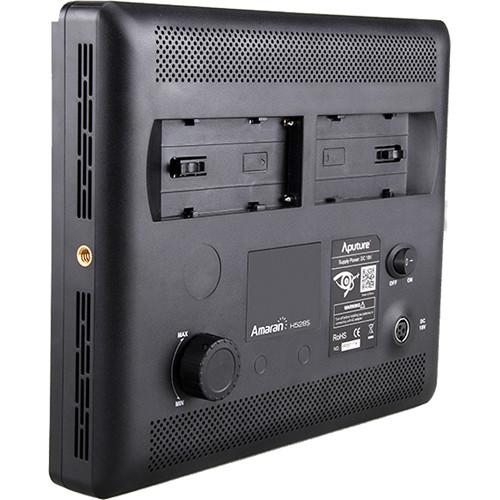

- The AL-528S can be powered by two ways: AC adapter or 2 Lithium-ion batteries. The two methods of power can also be used simultaneously so you can charge your batteries while using your light. The Lithium-ion batteries are commonly used (Sony F/FM/QM series) and easily sourced. It also features a 4 LED lights to indicate remaining battery power. When the light is almost out of power, the status LEDs blink red
- Carrying Case

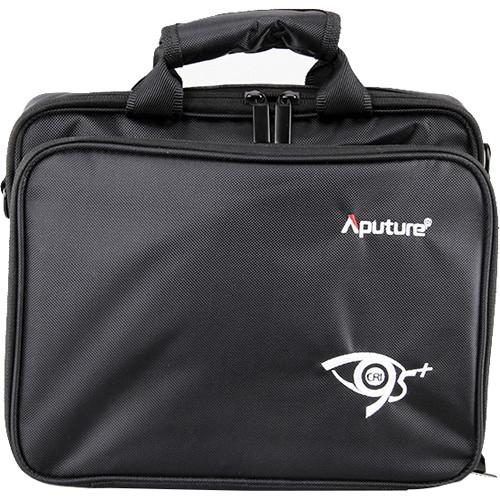

- Included with the AL-528S is a convenient case for your light and all of its accessories, such as filters, lamp bracket, and the AC adapter. The compact design makes it perfect for shooting on the run

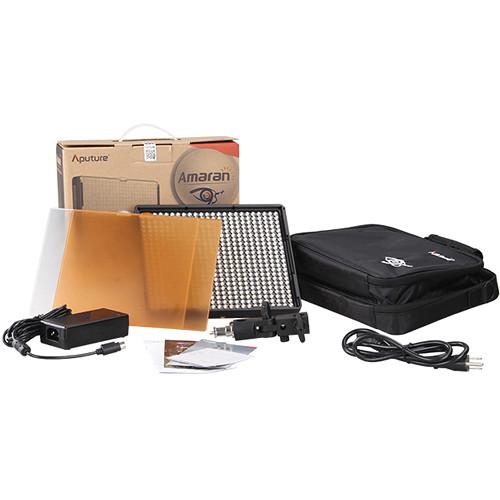

In the Box Aputure Amaran AL-528S Daylight LED Spot Light Tilt Adjustable Light Stand Mount Adapter Spigot (5/8") AC Adapter Diffusion Filter Orange Filter Carrying Case Shoulder Strap Limited 1-Year Warranty User Manual PDF 5.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Amaran AL-528S Daylight LED Spot Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure AL-528 Specs | | | Beam Angle | 25° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Display | None | | Number of LEDs | 528 | | Expected Lamp Life | 100,000 Hours | | Fixture Dimensions | 9.4 x 7.5 x 1.3" / 23.8 x 19.0 x 3.2 cm | | Fixture Weight | 1.19 lb / 540 g | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 18 VDC at 2.8 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 10.9 x 9.4 x 4.35" |
