User Manual for Aputure Amaran AL-F7 On-Camera Variable Color LED Light Click to enlarge the picture
Contents of the user manual for the Aputure Amaran AL-F7 On-Camera Variable Color
- Product category: On Camera Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure On Camera Lights
 |
User manual for the Aputure Amaran AL-F7 On-Camera Variable Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

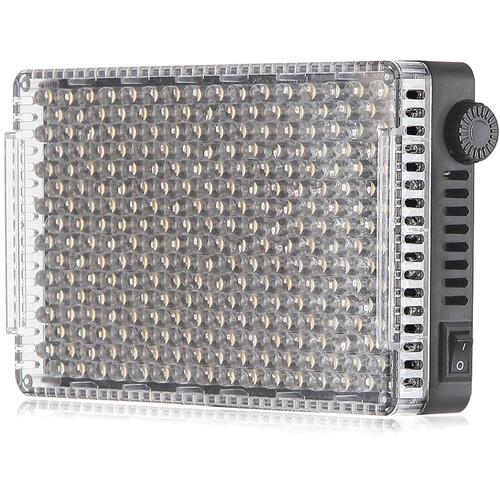

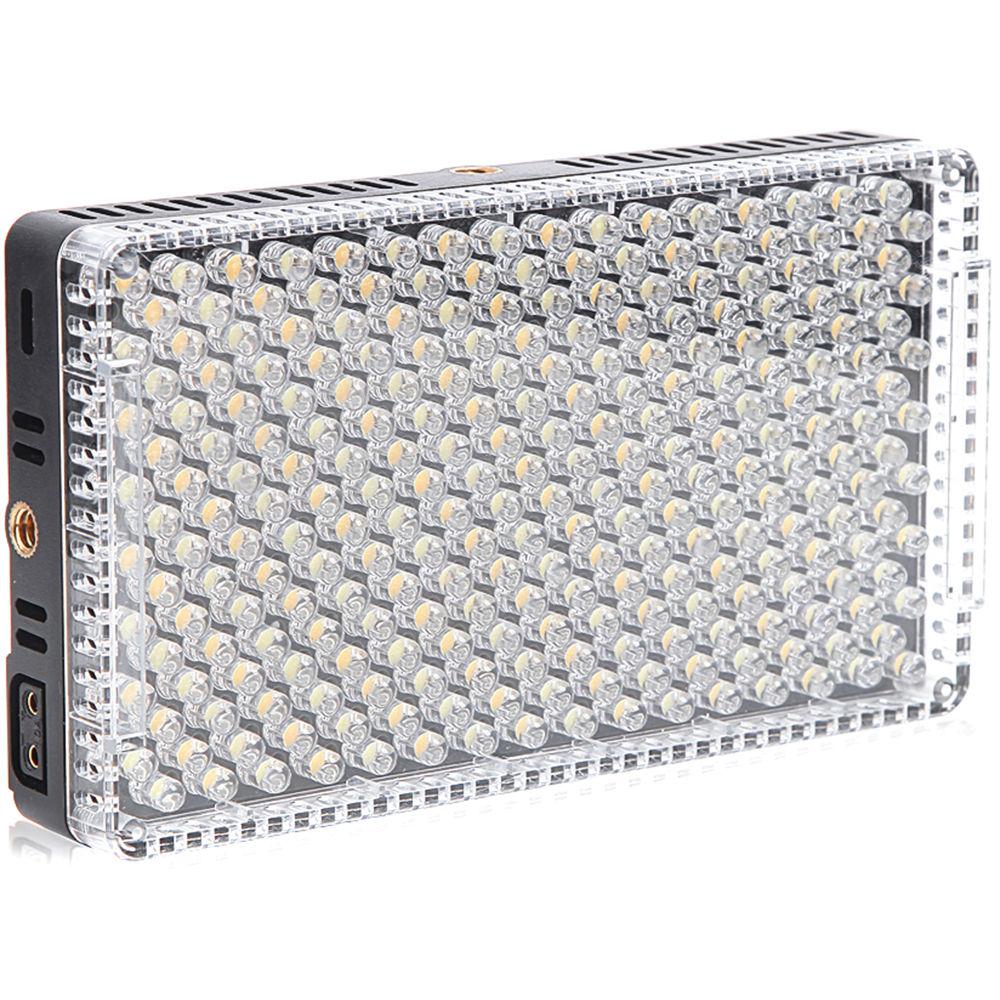

Product description The Aputure Amaran AL-F7 On-Camera Variable Color LED Light is an on-camera LED light that utilizes 256 LEDs with a CRI of 95+ to deliver variable color illumination with high color accuracy. This fixture features variable color temperature output from 3200 to 9500K. The fixture's 45° beam angle produces a brightness of 1500 lux at 3.3' when set to 5500K.

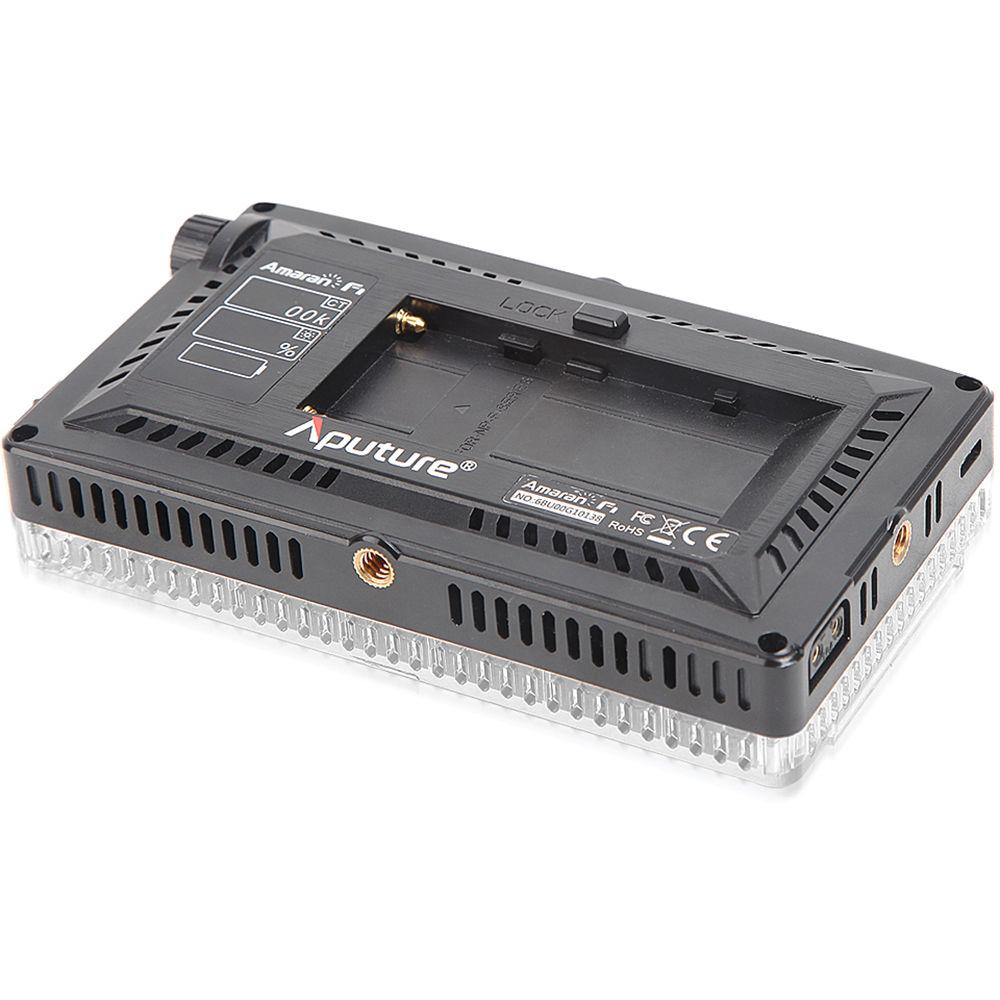

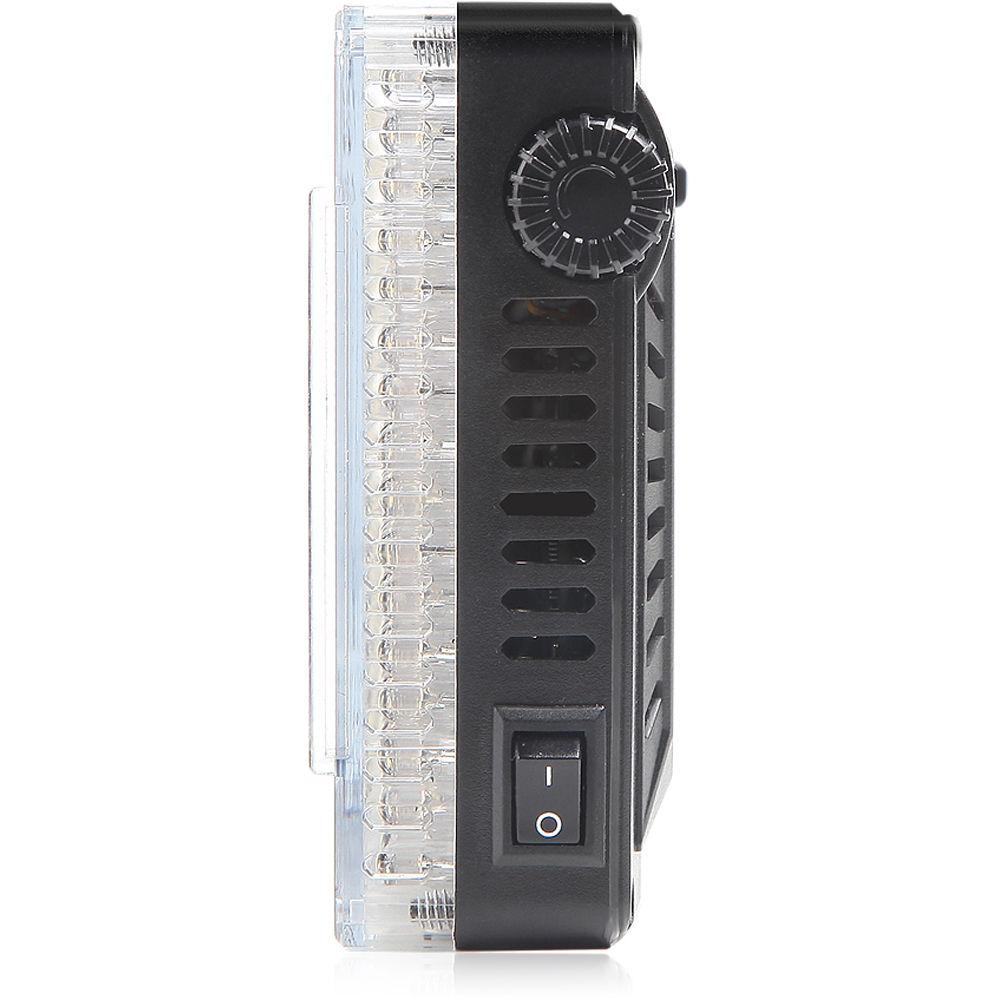

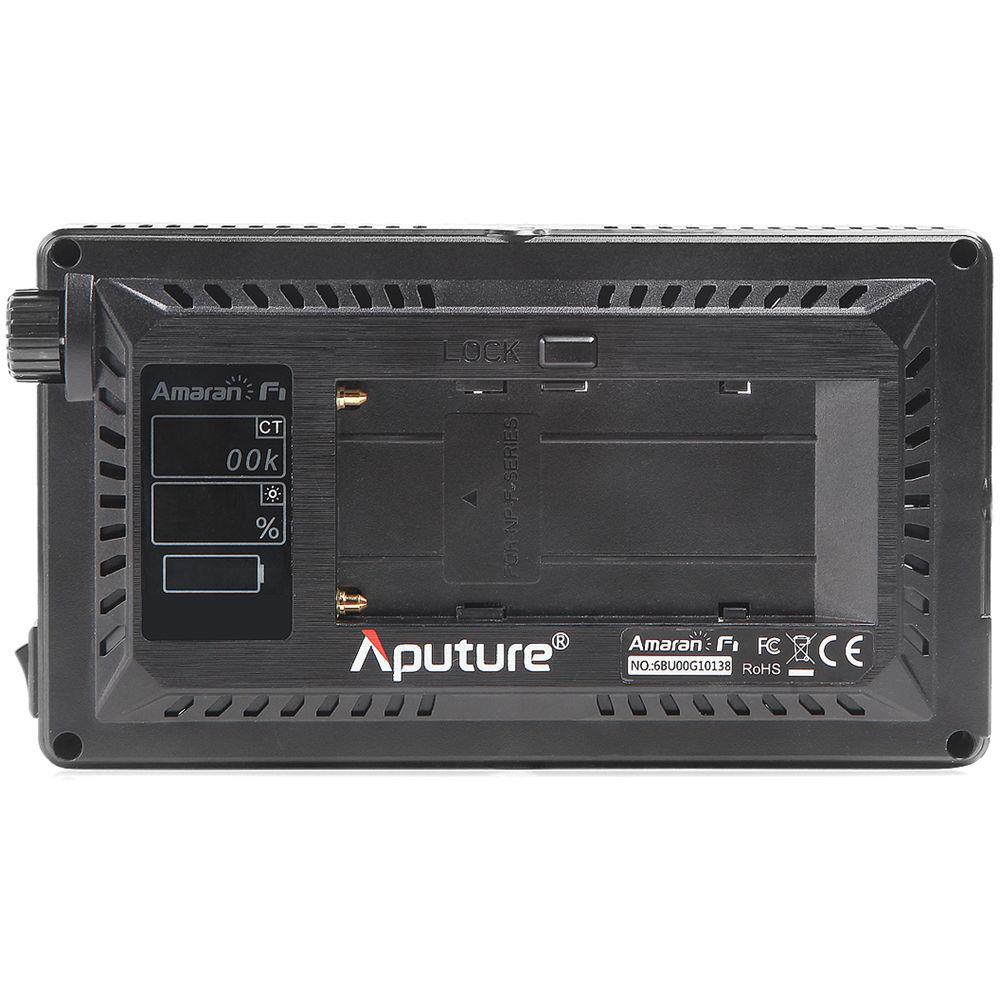

A stepless dimming dial is provided on the back of the unit for adjusting light output from 1 to 100%. Color temperature and brightness are also controlled by a single stepless rotating knob. The built-in LCD screen provides information on the remaining battery charge, color temperature, and brightness. Two 1/4"-20 threaded mounting holes, one on top and one at the bottom of the fixture, provide for a variety of mounting possibilities. - Key Features
-

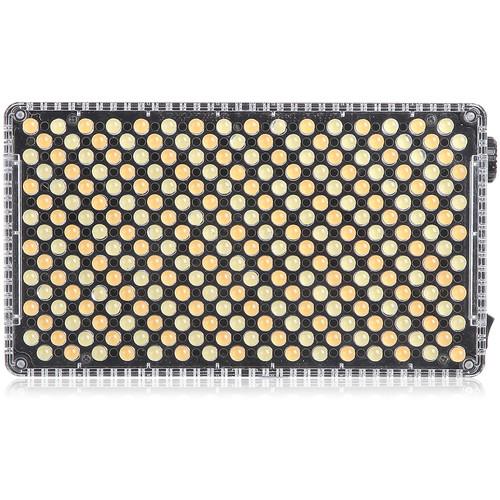

- 256 LEDs with 45° beam angle.
- 3200 to 9500K variable color temperature light fixture.
- High CRI of ≥95.
- Stepless dimming dial for adjusting light output from 1 to 100%.

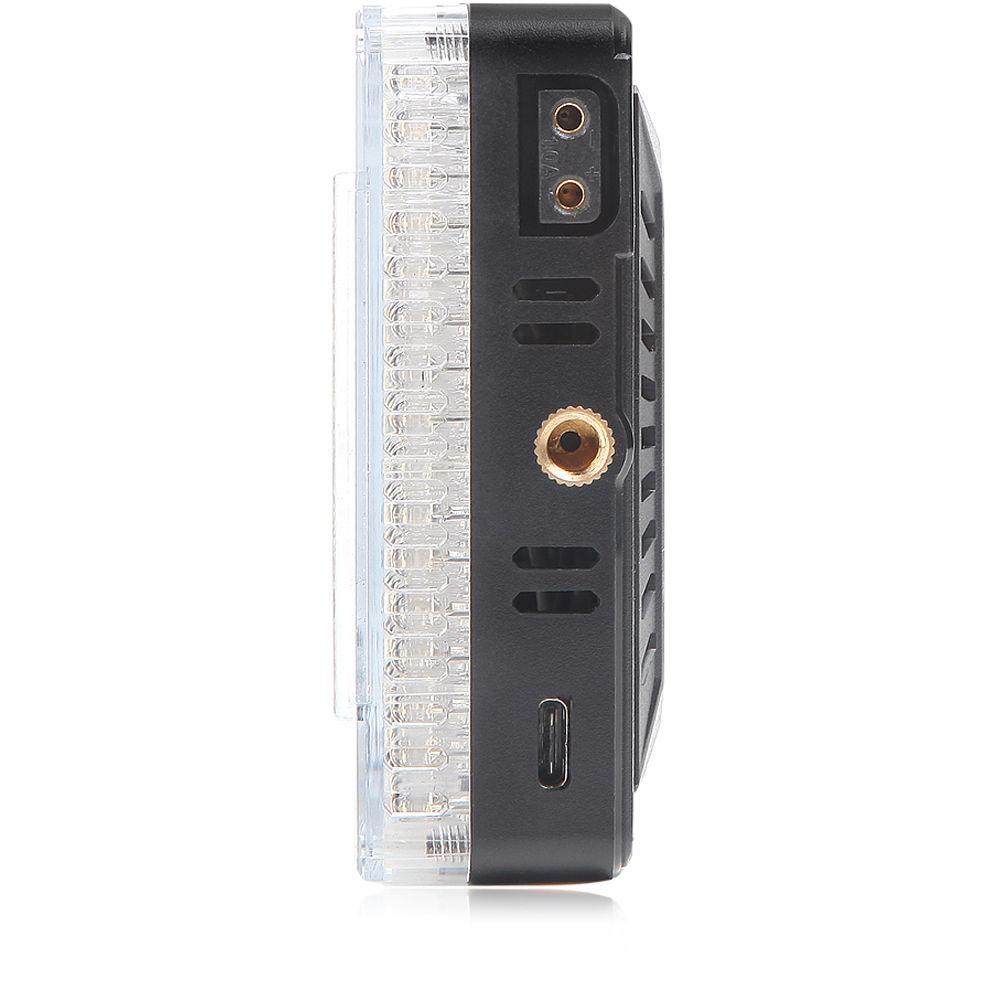

- Powered by an L-series battery, D-Tap, or USB-C.
- Because the light has a variable color range of 3200 to 9500K, when the light is set to 5500K (daylight balanced) both sets of LEDs are on at full, providing the maximum brightness from this fixture when compared to using the light at 3200 or 9500K.
- The LCD screen provides information on the fixture's output as well as the charge state of the battery. The screen also indicates whether the adjustment knob is controlling brightness or color temperature. To switch from brightness to CCT or CCT to brightness, just apply a short press to the adjustment knob.

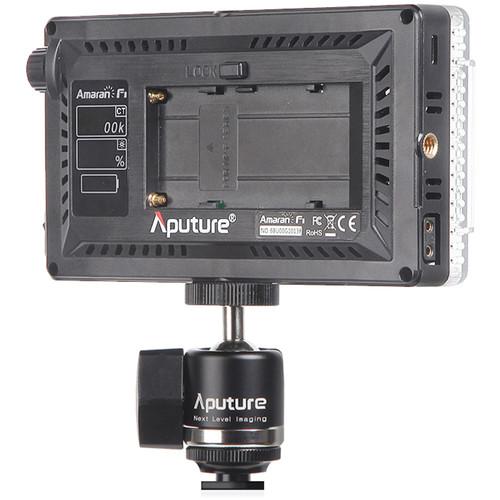

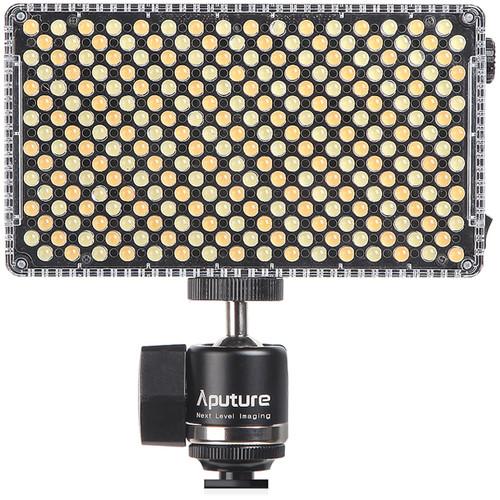

- The included cold shoe ball joint adapter enables mounting the light to your camera's accessory shoe via the 1/4"-20 threaded hole on the fixture. In addition, the bottom of the cold shoe foot features a 3/8"-16 threaded hole, and includes a 3/8"-16 to 1/4"-20 reducing bushing.
- Included with the fixture is a diffusion filter.

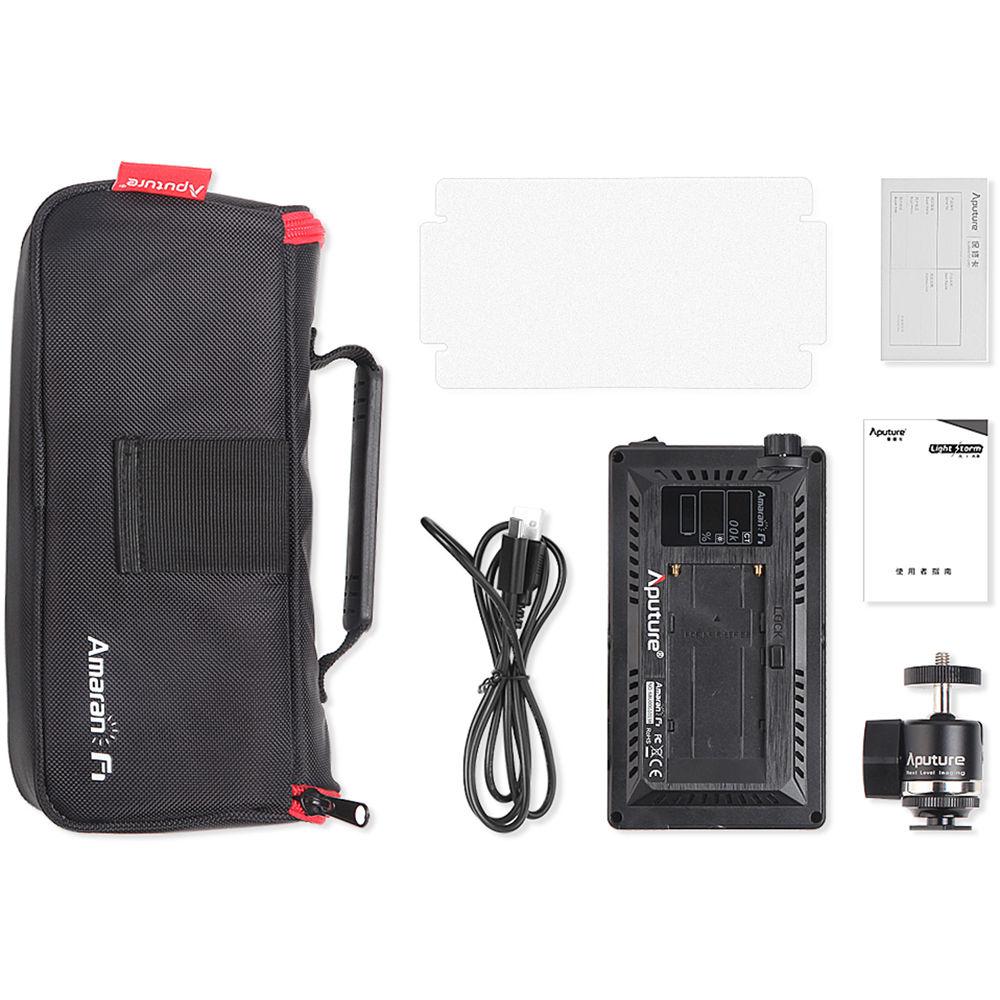

In the Box Aputure Amaran AL-F7 On-Camera Variable Color LED Light (3200 to 9500K) Ball Joint Cold Shoe Adapter USB Charging Cable Diffusion Filter Case 3/8"-16 to 1/4"-20 Reducing Bushing Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Amaran AL-F7 On-Camera Variable Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure AL-F7 Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 9500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Dimming | Yes, 1 to 100% (Continuous) | | Display | LCD | | Number of LEDs | 256 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 5 VDC at 2 A | | Max Power Consumption | 15 W | | Power Input Connector | D-Tap, USB Type-C | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 6.2 x 3.4 x 1.3" / 158 x 87 x 34 mm | | Weight | 9.17 oz / 260 g | | | | Package Weight | 1.58 lb | | Box Dimensions (LxWxH) | 10.1 x 5.25 x 2.95" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Aputure Amaran AL-F7 On-Camera Variable Color LED Light
| Subject: 3200k problem | | Date: 16.05.2023 06:00:25 | Name: Gord Kurbis | | Hi, Having a problem with my Amaran Aputure F7 light.... the yellow leds will not function at all so light can't be adjusted down to 3200k setting. The selection button switches between brightness and temperature and the digital display in the back of the light changes but there is no power at all to the yellow leds. I've been searching online to try to find users with the same difficulties. | | Post reply |
