User Manual for Aputure Amaran AL-HR672W Daylight LED Video Light with Remote Click to enlarge the picture
Contents of the user manual for the Aputure Amaran AL-HR672W Daylight LED Video
- Product category: On Camera Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure On Camera Lights
 |
User manual for the Aputure Amaran AL-HR672W Daylight LED Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

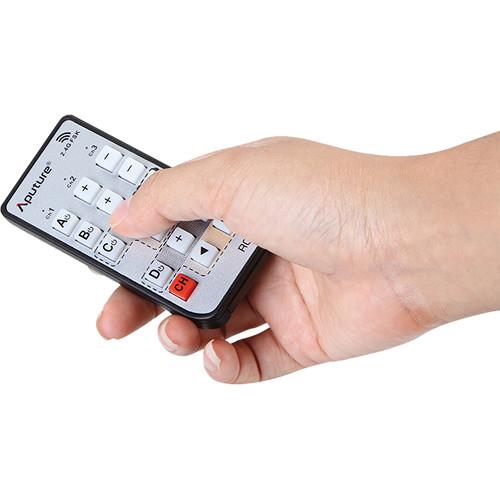

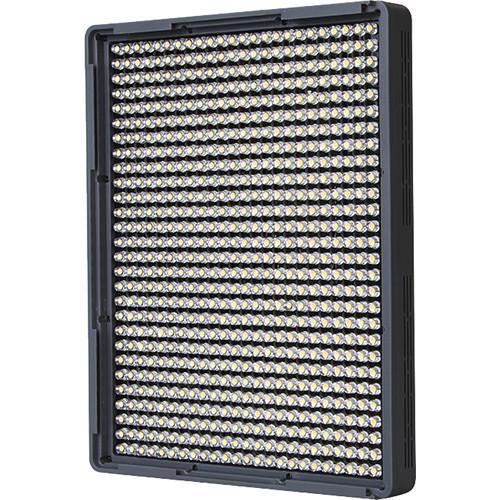

Product description The Amaran AL-HR672W is a daylight-balanced (5500K) LED light that delivers high color accuracy thanks to its 95+ CRI rated bulbs. The light produces a wide 75° beam angle with a brightness of 2,080 lux at a distance of 3.3', and features a step-less rear dimming dial for adjusting light output from 0 to 100%. Brightness can be also be adjusted remotely from up to 328' using an included wireless remote. The remote operates on the 2.4 GHz frequency band and uses FSK (frequency-shift keying) to ensure that several different lights can be controlled without interference.

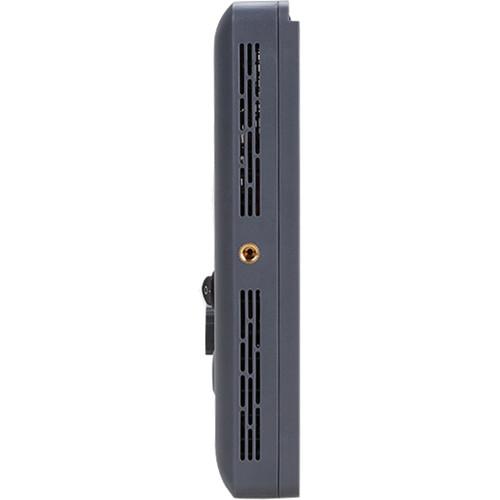

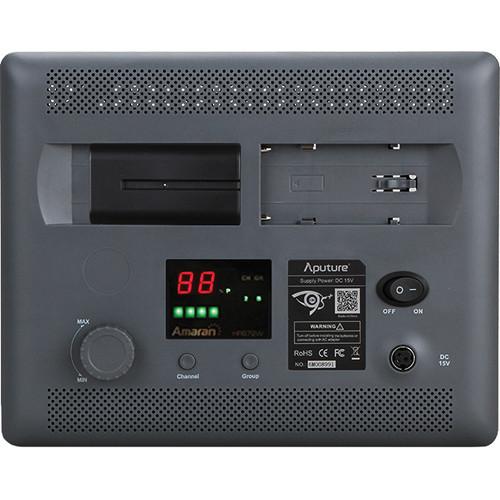

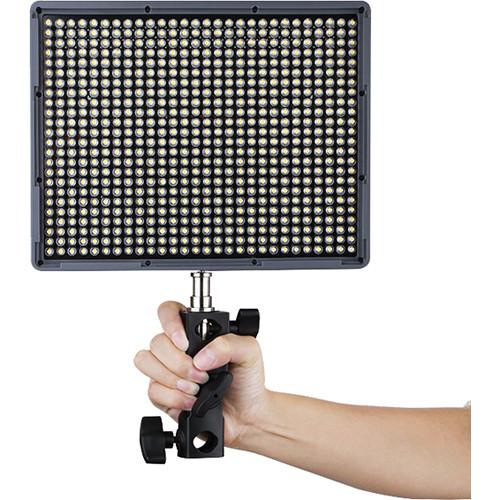

The light panel has an 11.9" diagonal and is only around 1.25" thick. It can be powered by either an included AC adapter or a Sony L-series type batteries using the dual rear battery slots. Two batteries are included. Four LED indicator lights on the back of the unit conveniently display the remaining battery life, so you can keep an eye on when it's time to swap batteries. For mounting, the light has a 1/4"-20 threaded holes on the bottom and sides. A 1/4"-20 to 3/8"-16 screw adapter is included that screws into one of the threaded holes and slots into an included adapter bracket for attaching to a light stand. Also included with the light is a diffusion filter, an orange warming filter, and a carrying bag. - Key Features
-
- 75° beam angle
- Daylight-balanced 5500K light
- High CRI of ≥95
- Rear step-less dimming dial for adjusting light output from 0 to 100%
- Flicker free
- Remote for wireless brightness control from up to 328' away
- Dual Sony L-series type battery slots
- Battery power indicator lights
- AC adapter and two Sony L-series type batteries included
- Ventilation holes for cool and silence operation
- 1/4"-20 threaded holes
- 1/4"-20 to 3/8"-16 screw adapter
- Tilt adjustable light stand mount adapter
- Diffusion and orange warming filters
- Carrying case included
In the Box Aputure Amaran AL-HR672W Daylight LED Video Light with Remote Remote Control 1/4"-20 to 3/8"-16 Screw Tilt Adjustable Light Stand Mount Adapter AC Adapter 2 x Battery Diffusion Filter Orange Filter Carrying Case Limited 1-Year Warranty User Manual PDF 7.6mbexdebbybetdvvuyuzc Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Amaran AL-HR672W Daylight LED Video Light with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure AL-HR672W Specs | | | Beam Angle | 75° | | Color Accuracy Standard | CRI 95 | | Expected Lamp Life | 100000 Hours | | Number of LEDs | 672 | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | DC Input Power | 15 VDC | | Max Power Consumption | 45 W | | | | Wireless Frequency Bands | 2.4 GHz | | Wireless Channels / Groups | 3 / 4 | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 9.2 x 7.5 x 1.3" / 23.5 x 19 x 3.2 cm | | Weight | 1.3 lb / 0.585 g | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 10.9 x 9.15 x 4.55" |
