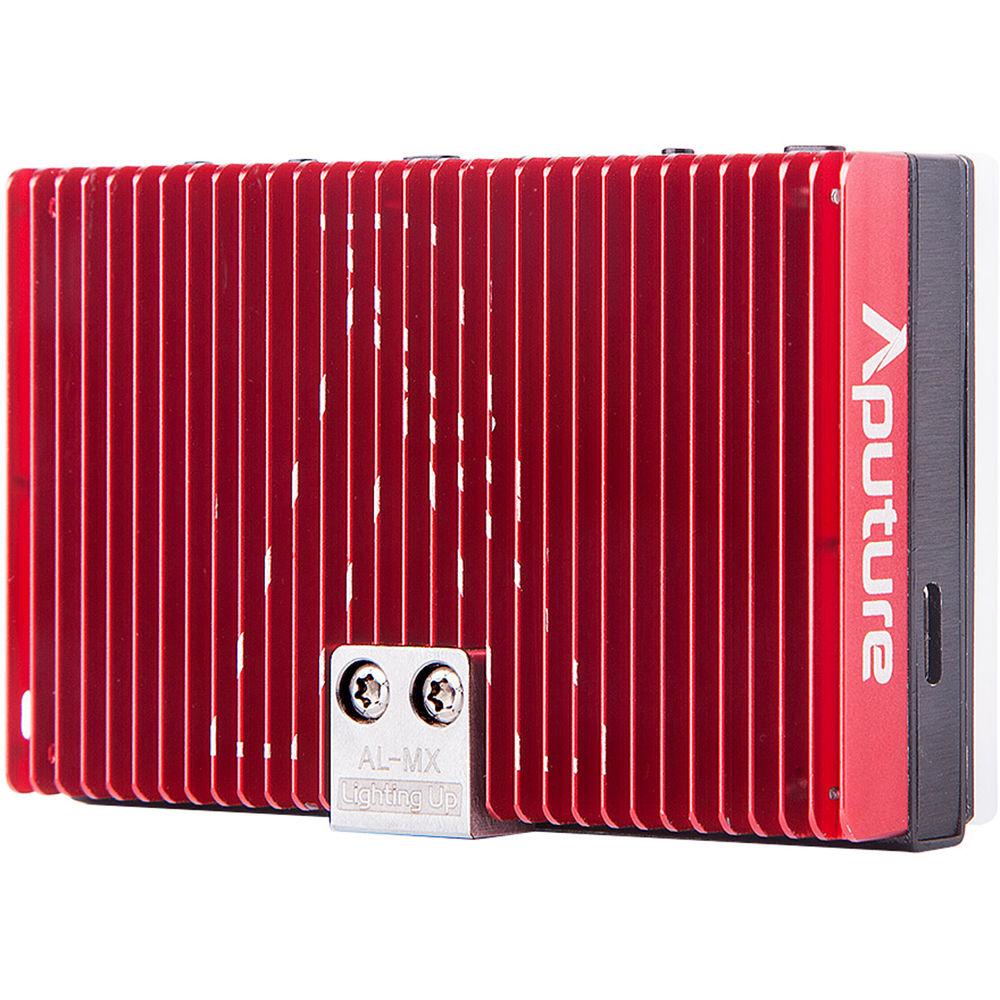

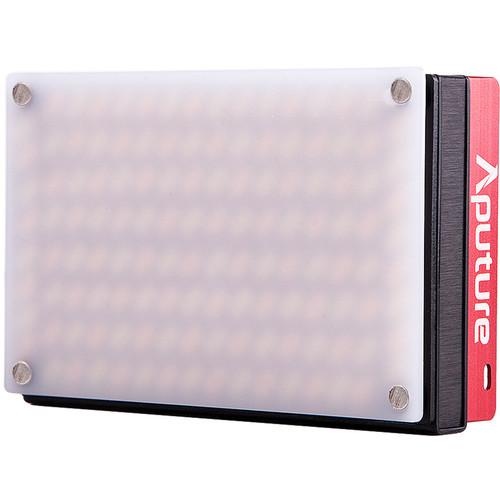

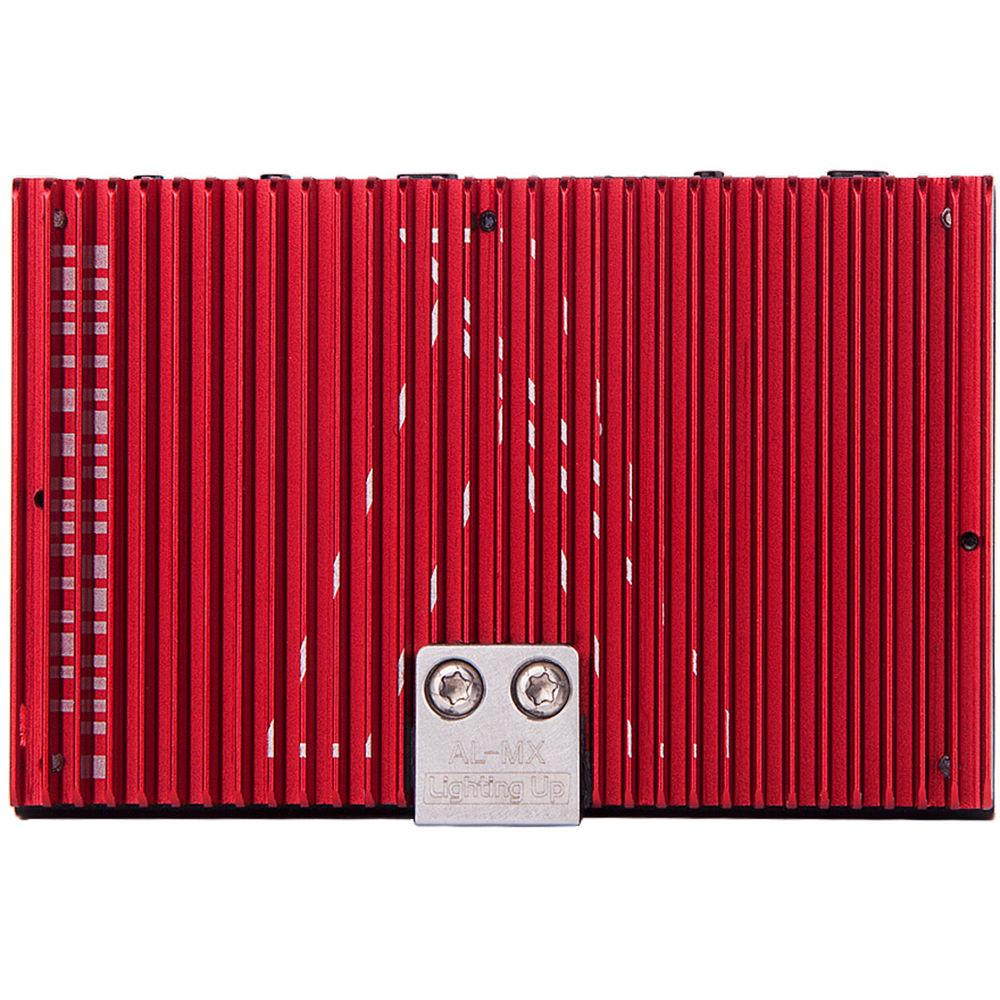

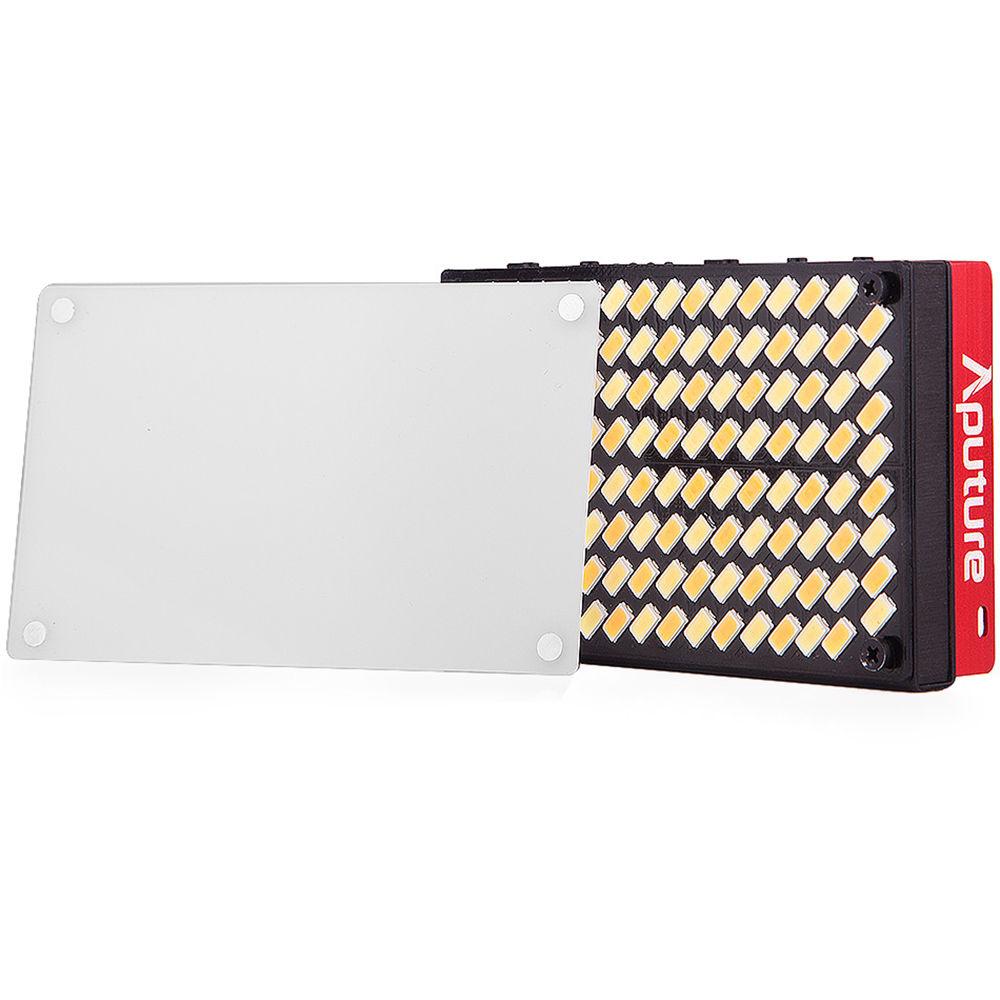

Product description The Aputure Amaran AL-MX Bicolor LED Mini Light has an adjustable color temperature output from 2800 to 6500K in five steps, features a metal chassis, an integrated lithium polymer battery, and can fit in your pocket. In addition to the stepped color temperature adjustment, the light also features stepped dimming. Included with the fixture is a magnetically attached diffusion filter.

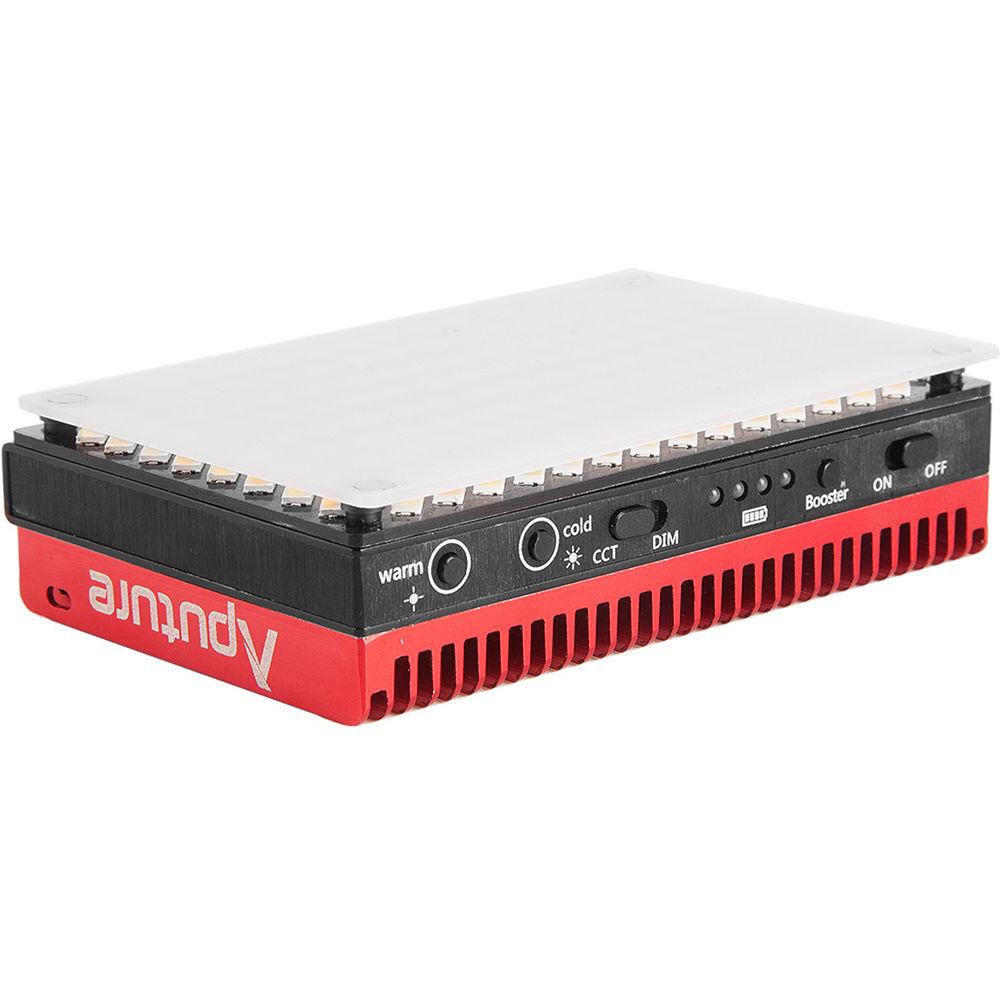

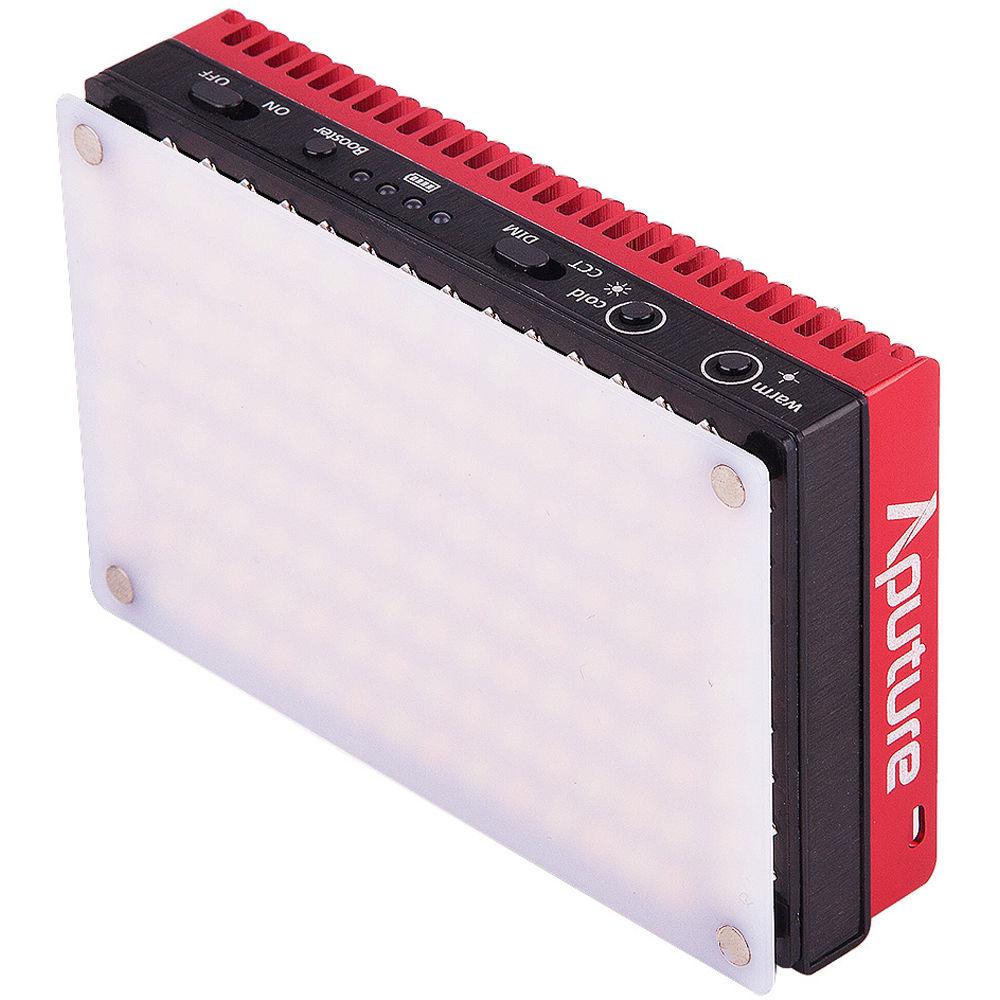

The integrated Li-Po battery charges via a USB Type-C port, and can be charged at 5 VDC drawing 0.5, 1, or 2 amps. The fixture has a built-in on/off switch and LED indicators that show you the charge status of the internal battery. The fixture also has a "boost mode" which increases the light's output by 30% for 60 seconds at a time. - Credit card-sized light, easily fits in your pocket.
- Integrated Li-Po battery lasts one hour on maximum, and up to four hours on minimum.
- Both the intensity and the color temperature are adjustable in five steps.
- A built-in "boost mode" enables you to increase the light fixture's output for 60-second bursts.

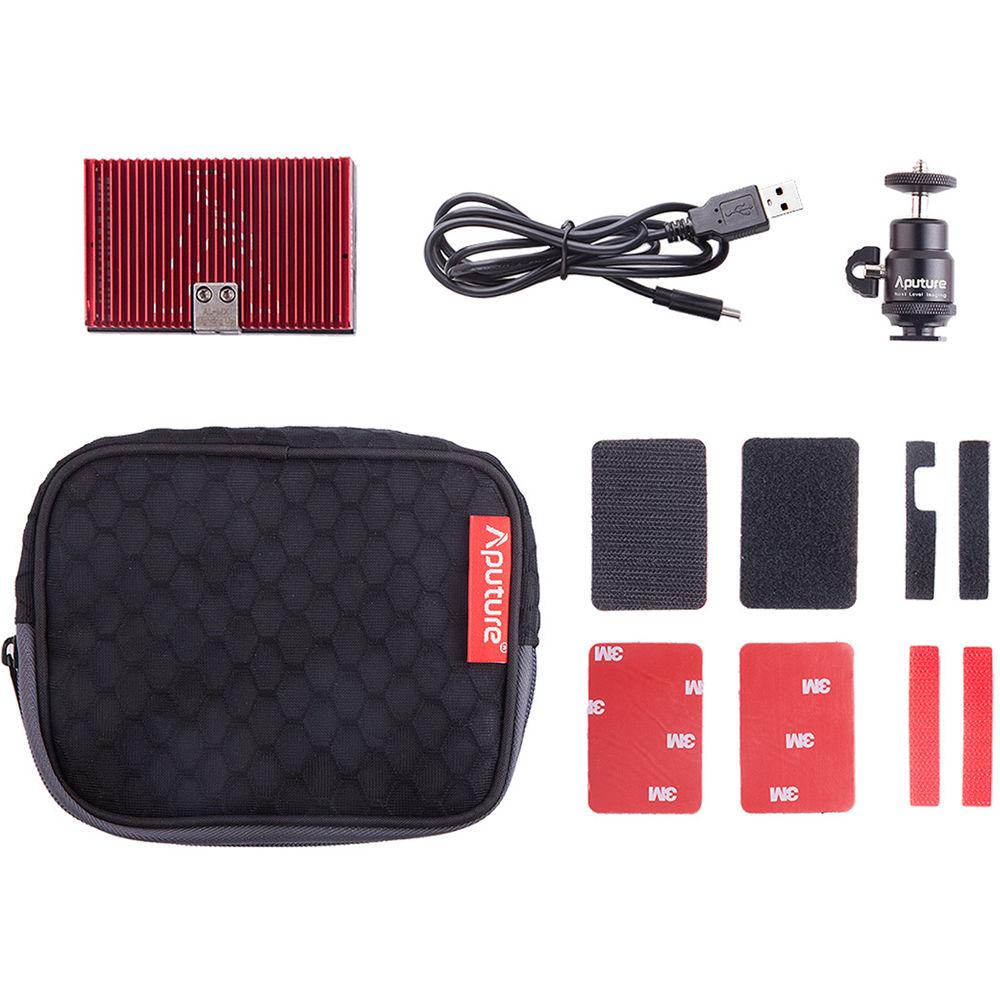

In the Box Aputure Amaran AL-MX Bicolor LED Mini Light Cold Shoe Ball Head Adapter USB to USB Type-C Charging Cable Diffusion Filters Limited 1-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Amaran AL-MX Bicolor LED Mini Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure AL-MX Specs | | | Beam Angle | 120° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 95 | | Photometrics | 223 fc / 2400 lux at 0.98' / 0.3 m
81.8 fc / 880 lux at 1.64' / 0.5 m
18.6 fc / 200 lux at 3.28' / 1 m
292.6 fc / 3148.8 lux at 0.98' / 0.3 m
105.9 fc / 1139.5 lux at 1.64' / 0.5 m

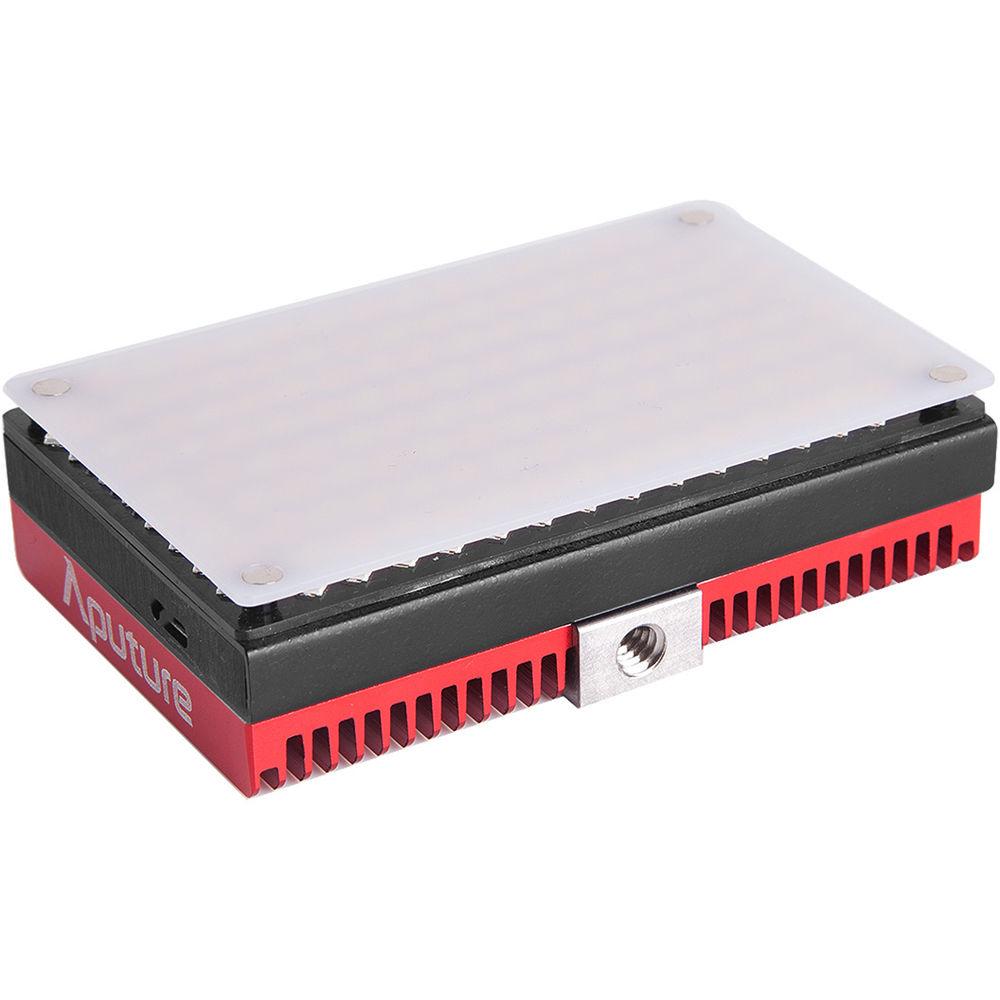

24.1 fc / 259.9 lux at 3.28' / 1 m | | Dimming | Yes, 20 to 100% (Stepped) | | Number of LEDs | 128 | | | | Capacity (mAh) | 800 mAh | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Battery Runtime | 0.5 to 4 Hours | | Operating Voltage | 3.7 VDC | | | | DC Input Power | 5 VDC at 2 A | | Power Input Connector | USB Type-C | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 3.7 x 2.4 x 0.9" / 93 x 59.8 x 23.5 mm | | Weight | 9.88 oz / 280 g | | | | Package Weight | 1.58 lb | | Box Dimensions (LxWxH) | 7.4 x 6.2 x 2.7" |
