Product description

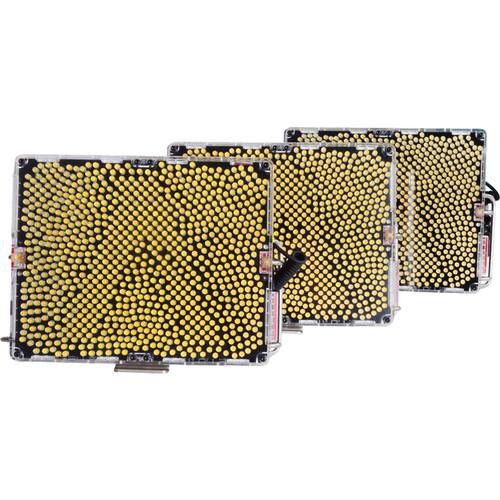

• Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate The Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate from Aputure is a powerful, full-featured 10.3 x 7.8 x 3.6" LED light source with a rugged aircraft-grade aluminum body and an impact-proof casing that protects its 888 LEDs. The Tri-8s has a 5500K color temperature that integrates well with similar fixtures or daylight-dominated ambient light situations. The light has a 25-degree beam angle for tight directional control, an output equivalent to a 600W tungsten source, and a high CRI/TLCI rating of 95+, indicating accurate color rendering. The dimmable Tri-8s's light intensity is adjustable on the fixture or at distances up to 492' using the included 3-channel wireless remote control. Like all LED lights, this one runs barely warm to the touch thanks to a quiet fanless thermal management, making for a cooler studio and comfortable talent.The Tri-8s Spot can be stand-mounted via its 1/4"-20 tap or handheld vertically or horizontally by using the stainless steel U-handles at the back of the fixture. The Tri-8s Spot is ready for worldwide use thanks to the inclusion of a 100-240 VAC adapter but it can also run on Anton Bauer-type batteries when mains power is unavailable. An EZ Box softbox is provided to soften the Tri-8s Spot's output while adding a flattering quality of light with manageable contrast. A carry bag is also included.
  High Power, Small Package

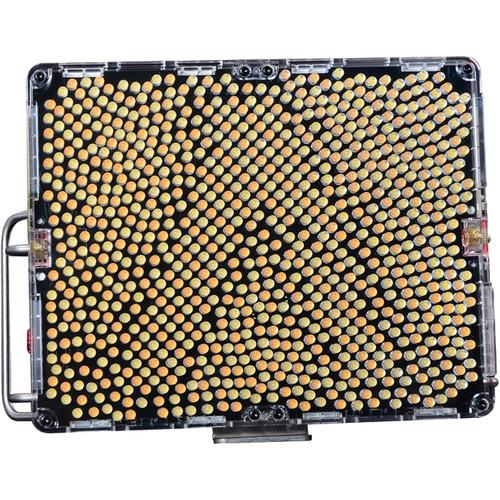

  • The Amaran Tri-8 packs impressive power in a small package. It packs 888 high-CRI (95+) LEDs into a 10.3 x 7.8" panel. The high LED count means the Tri-8 is capable of outputting 24,000 lux @ 1.6', which is equivalent to a 600W tungsten fixture.
  AC or Battery Power

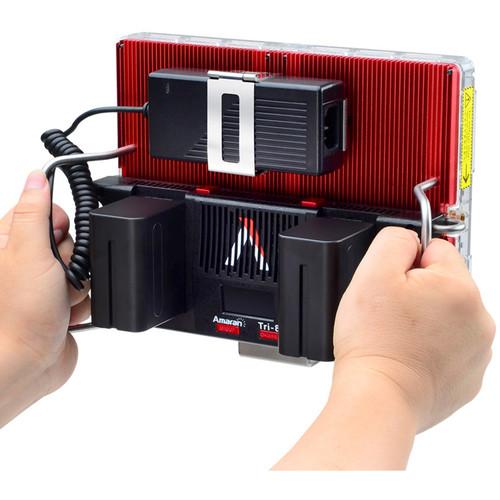

  • You can run the Tri-8 on mains current with the included adapter or on battery power thanks to the inclusion of two F970 batteries.
  Thermal Management

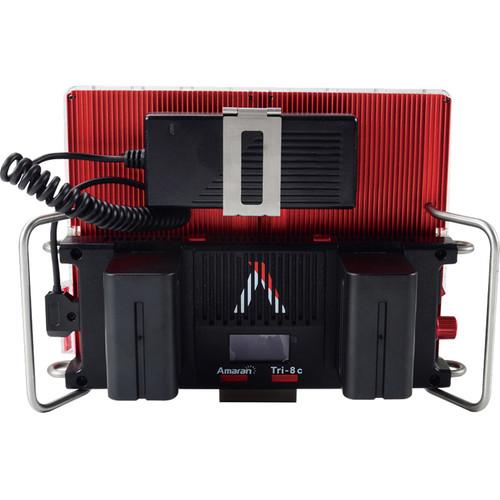

  • The Amaran Tri-8 has a fanless thermal management system. With gold lamp beads on the inside, a custom aluminum plate, and the external increase of the flow-type cooling fins, cooling is maximized across the unit.
  Solid Metal Build
  • The rugged Amaran Tri-8 has an aircraft-grade aluminum body and slim design, allowing for efficient heat airflow while maintaining a durable structure. To further enforce its durability, the LED bulbs are covered by an impact-proof polycarbonate casing.
  Functionality and Portability

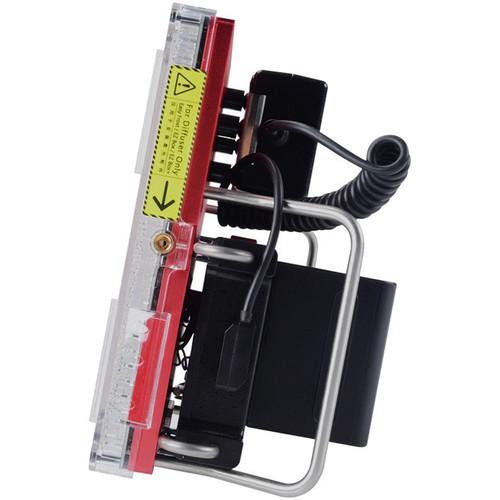

  • The stainless steel handles in the back of the light allow you to position the light either vertically or horizontally. The light can be used on a stand, or handheld for fast-paced on-the-go shoots.
  EZ Box Included

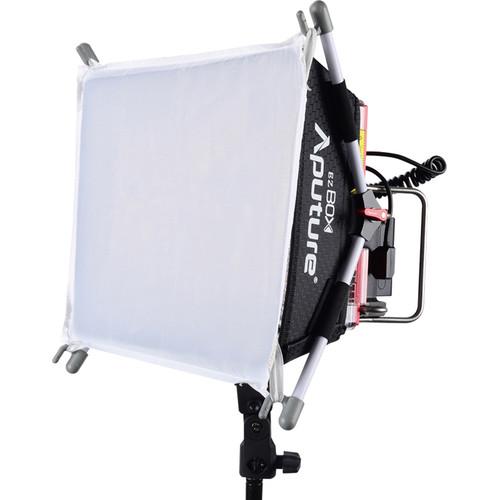

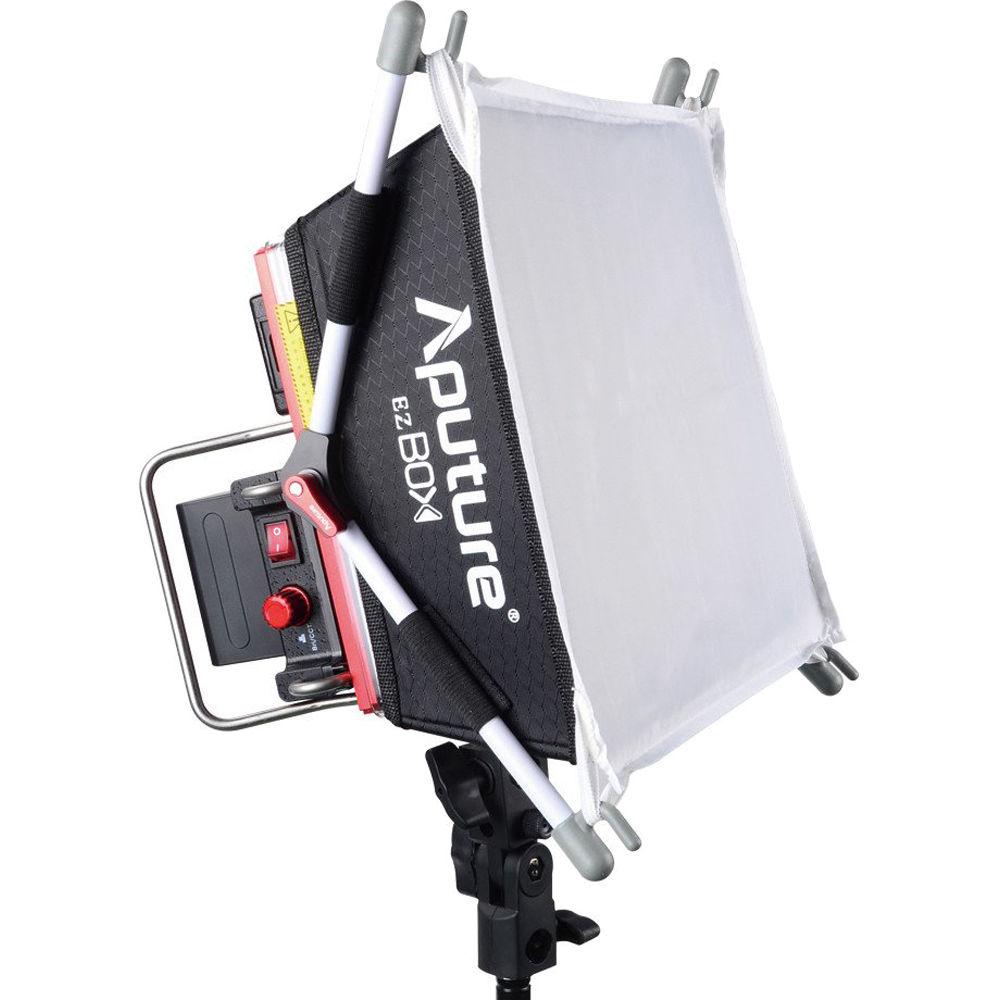

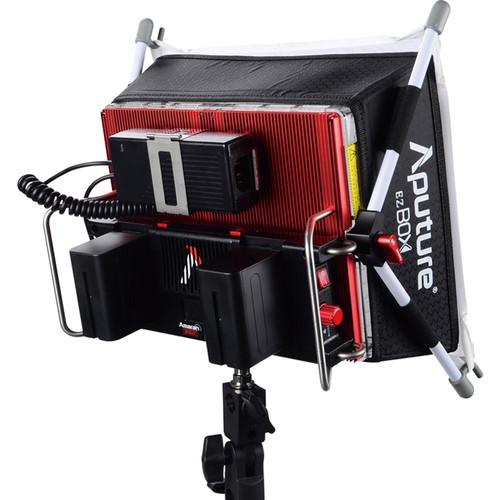

  • The Amaran Tri-8 comes with an EZ Box to maximize your light-shaping capabilities. The EZ Box softbox prevents spill light, reduces contrast, and provides high quality diffusion. Since the Tri-8 is virtually the same size as the 528/672, the EZ Box and grid are also compatible with this new light fixture. This also includes a growing list of third party softbox offerings that can work with the Amaran Tri-8.
  VA Remote Included
  • The Amaran Tri-8 comes with the same 2.4 GHz remote used on most of Aputure's lights. The VA remote has three channels, four groups, and works up to 492' away. Using the remote, you are able to control the brightness of the Tri-8.
• Amaran Tri-8c Bi-Color LED Light with Anton Bauer Battery Plate The Amaran Tri-8c Bi-Color LED Light with Anton Bauer Battery Plate from Aputure is a powerful, full-featured 10.3 x 7.8 x 3.6" LED light source with a rugged aircraft-grade aluminum body and an impact-proof casing that protects its 888 LEDs. The Tri-8c has a color temperature that's variable from a warm 2300K to a cool 6800K or anywhere in between to match other fixtures, ambient light situations, or just for creative effects. Light intensity is also variable and can be adjusted along with the color temperature on the fixture or at distances up to 492' with the included 3-channel wireless remote control. The light has a 45-degree beam angle for medium-wide coverage, an output equivalent to a 600W tungsten source, and a high CRI/TLCI rating of 95+, indicating accurate color rendering. Like all LED lights, this one runs barely warm to the touch thanks to a quiet fanless thermal management, making for a cooler studio and comfortable talent.The Tri-8c can be stand-mounted via its 1/4"-20 tap or handheld vertically or horizontally by using the stainless steel U-handles at the back of the fixture. The Tri-8c is ready for worldwide use thanks to the inclusion of a 100-240 VAC adapter but it can also run on Anton Bauer-type batteries when mains power is unavailable. An EZ Box softbox is provided to soften the Tri-8c's output while adding a flattering quality of light with manageable contrast. A carry bag is also included.
  High Power, Small Package
  • The Amaran Tri-8 packs impressive power in a small package. It packs 888 high-CRI (95+) LEDs into a 10.3 x 7.8" panel. The high LED count means the Tri-8 is capable of outputting 23,000 lux @ 1.6', which is equivalent to a 600W tungsten fixture.
  AC or Battery Power
  • You can run the Tri-8 on mains current with the included adapter or on battery power thanks to the inclusion of two F970 batteries.
  Thermal Management
  • The Amaran Tri-8 has a fanless thermal management system. With gold lamp beads on the inside, a custom aluminum plate, and the external increase of the flow-type cooling fins, cooling is maximized across the unit.
  Solid Metal Build
  • The rugged Amaran Tri-8 has an aircraft-grade aluminum body and slim design, allowing for efficient heat airflow while maintaining a durable structure. To further enforce its durability, the LED bulbs are covered by an impact-proof polycarbonate casing.
  Functionality and Portability
  • The stainless steel handles in the back of the light allow you to position the light either vertically or horizontally. The light can be used on a stand, or handheld for fast-paced on-the-go shoots.
  EZ Box Included
  • The Amaran Tri-8 comes with an EZ Box to maximize your light-shaping capabilities. The EZ Box softbox prevents spill light, reduces contrast, and provides high quality diffusion. Since the Tri-8 is virtually the same size as the 528/672, the EZ Box and grid are also compatible with this new light fixture. This also includes a growing list of third party softbox offerings that can work with the Amaran Tri-8.
  VA Remote Included
  • The Amaran Tri-8 comes with the same 2.4 GHz remote used on most of Aputure's lights. The VA remote has three channels, four groups, and works up to 492' away. Using the remote, you are able to control the brightness and color temperature of the Tri-8.

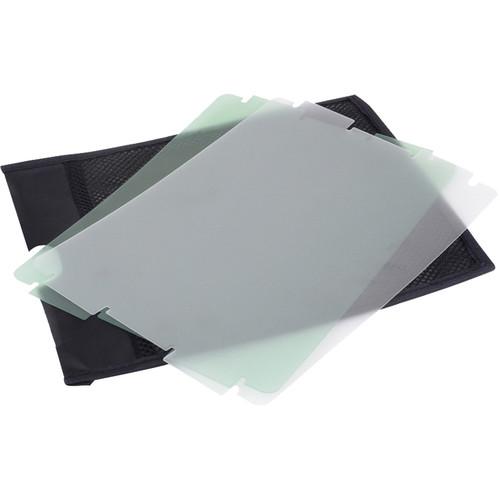

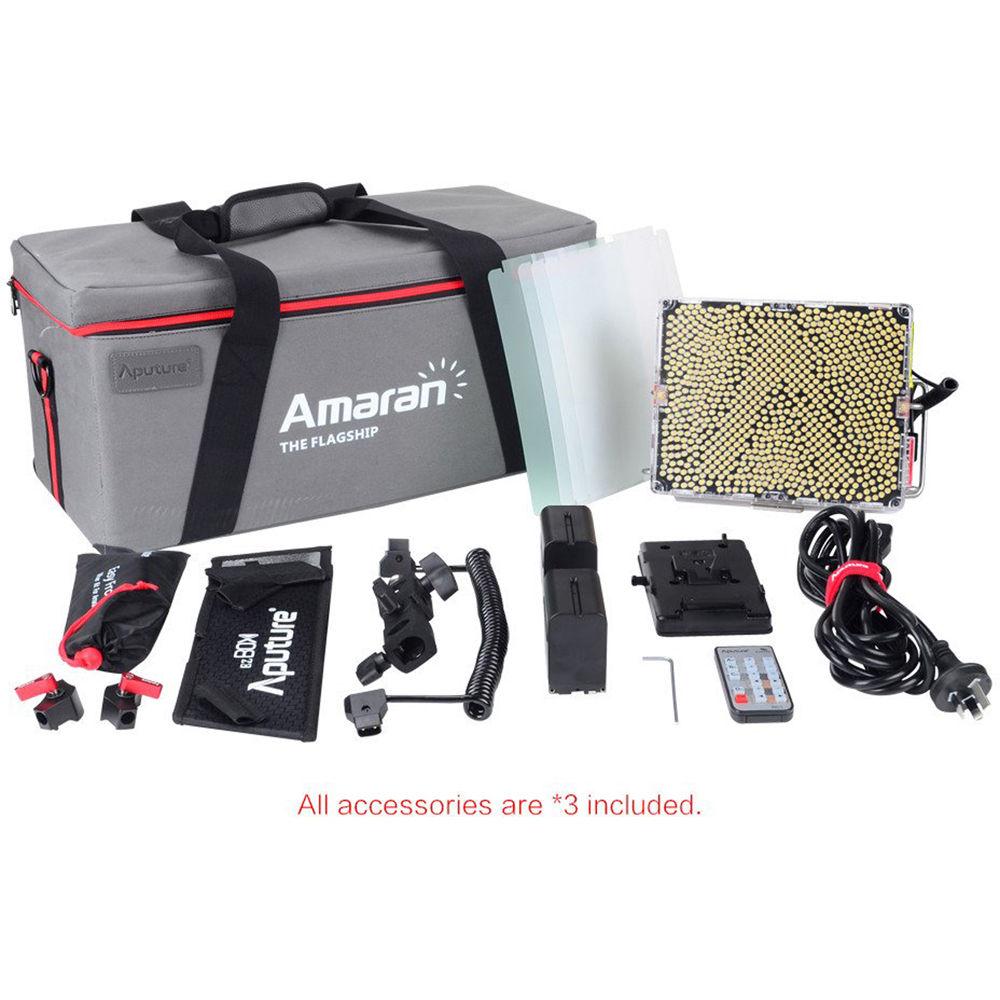

• Diffuser

• D-Tap to D-Tap Cable

• Power Cable

• AC Adapter

• Battery Baseplate

• Anton Bauer Battery Mount

• 2 x F970 Batteries

• Button Battery

• VA Remote

• Hex Wrench

• 4 x Support Column

• 4 x KM3 18 mm Screws

• 4 x KM3 12 mm Screws for Anton Bauer Plate

• EZ Box Softbox Kit for 528 and 672 LED Lights

• Adapter

• Super Fiber Shim

• Limited 1-Year Warranty

• Diffuser

• D-Tap to D-Tap Cable

• Power Cable

• AC Adapter

• Battery Baseplate

• Anton Bauer Battery Mount

• 2 x F970 Batteries

• Button Battery

• VA Remote

• Hex Wrench

• 4 x Support Column

• 4 x KM3 18 mm Screws

• 4 x KM3 12 mm Screws for Anton Bauer Plate

• EZ Box Softbox Kit for 528 and 672 LED Lights

• Adapter

• Super Fiber Shim

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Aputure Amaran Tri-8 3-Light Kit with Anton Bauer Battery Plates can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Aputure Amaran Tri-8 3-Light Kit with Anton Bauer Battery Plates can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Aputure Amaran Tri-8 3-Light Kit with Anton Bauer Battery Plates (PDF file, 2.97 MB)

Technical parameters

• Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate

  Light Source	888 LEDs, 100,000 hour lamp life
  Color Range	5500K
  CRI / TLCI	95+
  Beam Angle	25°
  Dimming	Yes
  Photometrics	2230 fc / 24,000 lux @ 1.6' (0.5 m) 650 fc / 7000 lux @ 3.3' (1.0 m)
  Tungsten Equivalent	600 W
  Operating Voltage	Input: 100-240 VAC, 50/60 Hz Power Supply: DC 15 V
  Power Consumption	60 W
  Cooling	Convection (no fan)
  Remote Control	Frequency: 2.4 GHz Channels: 3 Groups: 4 Range: 492' (150 m)
  Mount	1/4"-20 tap
  Dimensions	Light: 10.3 x 7.8 x 3.7" (26.1 x 19.9 x 9.3 cm) Softbox: 10.8 x 9.3 x 3.5" (27.5 x 23.5 x 8.9 cm) Softbox Diffuser: 11.6 x 10.4" (29.5 x 26.5 cm)
  Weight	10.87 lb / 4.93 kg

  Box Dimensions (LxWxH)	15.5 x 10.6 x 7.0"

• Amaran Tri-8c Bi-Color LED Light with Anton Bauer Battery Plate

  Light Source	888 LEDs, 100,000 hour lamp life
  Color Range	2300-6800K
  CRI / TLCI	95+
  Beam Angle	45°
  Dimming	Yes
  Photometrics	2137 fc / 23,000 lux @ 1.6' (0.5 m) 604 fc / 6500 lux @ 3.3' (1.0 m)
  Tungsten Equivalent	600 W
  Operating Voltage	Input: 100-240 VAC, 50/60 Hz Power Supply: DC 15 V
  Power Consumption	60 W
  Cooling	Convection (no fan)
  Remote Control	Frequency: 2.4 GHz Channels: 3 Groups: 4 Range: 492' (150 m)
  Mount	1/4"-20 tap
  Dimensions	Light: 10.3 x 7.8 x 3.7" (26.1 x 19.9 x 9.3 cm) Softbox: 10.8 x 9.3 x 3.5" (27.5 x 23.5 x 8.9 cm) Softbox Diffuser: 11.6 x 10.4" (29.5 x 26.5 cm)
  Weight	10.87 lb / 4.93 kg

  Box Dimensions (LxWxH)	15.9 x 10.6 x 6.8"
