User Manual for Aputure Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate Click to enlarge the picture
Contents of the user manual for the Aputure Amaran Tri-8s Spot Daylight LED
- Product category: LED Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure LED Lights
 |
User manual for the Aputure Amaran Tri-8s Spot Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|
Product description The Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate from Aputure is a powerful, full-featured 10.3 x 7.8 x 3.6" LED light source with a rugged aircraft-grade aluminum body and an impact-proof casing that protects its 888 LEDs. The Tri-8s has a 5500K color temperature that integrates well with similar fixtures or daylight-dominated ambient light situations. The light has a 25-degree beam angle for tight directional control, an output equivalent to a 600W tungsten source, and a high CRI/TLCI rating of 95+, indicating accurate color rendering. The dimmable Tri-8s's light intensity is adjustable on the fixture or at distances up to 492' using the included 3-channel wireless remote control. Like all LED lights, this one runs barely warm to the touch thanks to a quiet fanless thermal management, making for a cooler studio and comfortable talent.The Tri-8s Spot can be stand-mounted via its 1/4"-20 tap or handheld vertically or horizontally by using the stainless steel U-handles at the back of the fixture. The Tri-8s Spot is ready for worldwide use thanks to the inclusion of a 100-240 VAC adapter but it can also run on Anton Bauer-type batteries when mains power is unavailable. An EZ Box softbox is provided to soften the Tri-8s Spot's output while adding a flattering quality of light with manageable contrast. A carry bag is also included. - High Power, Small Package

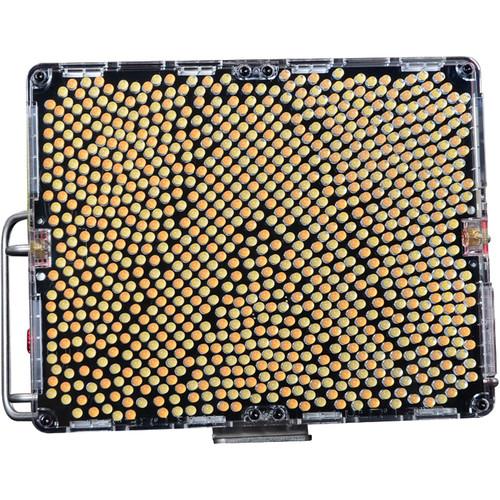

- The Amaran Tri-8 packs impressive power in a small package. It packs 888 high-CRI (95+) LEDs into a 10.3 x 7.8" panel. The high LED count means the Tri-8 is capable of outputting 24,000 lux @ 1.6', which is equivalent to a 600W tungsten fixture.

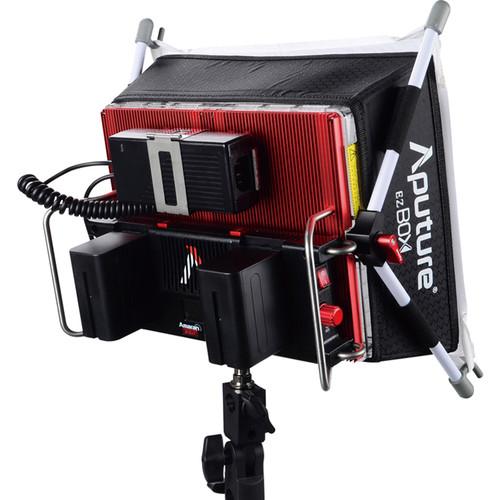

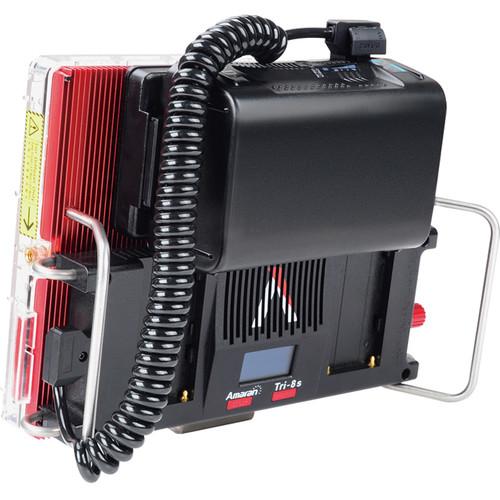

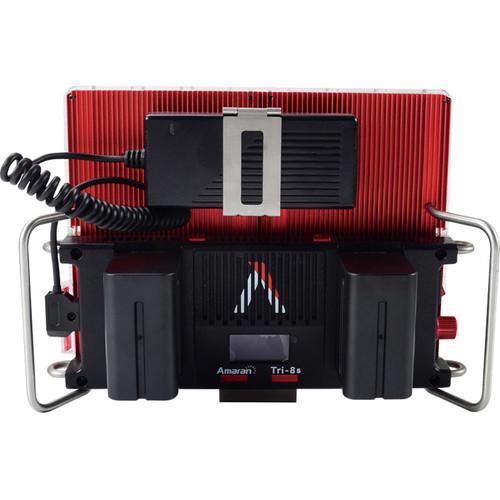

- AC or Battery Power
- You can run the Tri-8 on mains current with the included adapter or on battery power thanks to the inclusion of two F970 batteries.

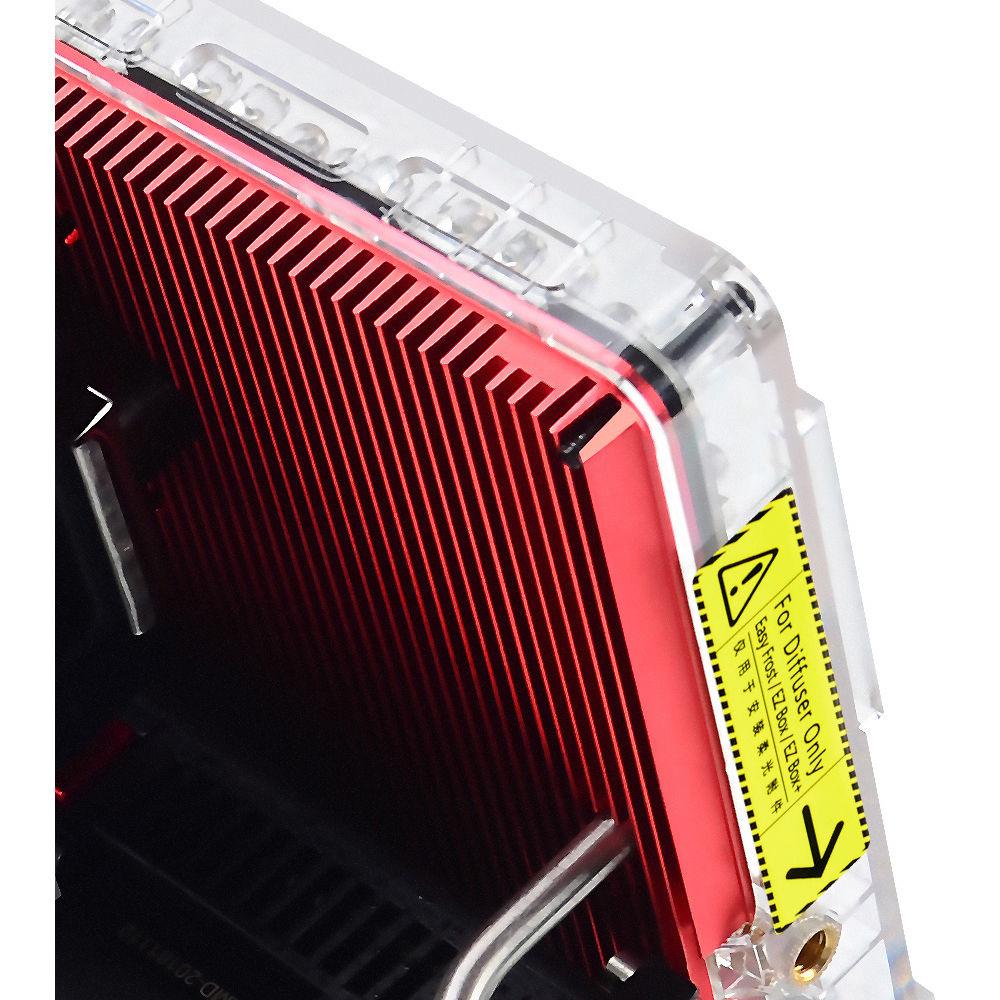

- Thermal Management
- The Amaran Tri-8 has a fanless thermal management system. With gold lamp beads on the inside, a custom aluminum plate, and the external increase of the flow-type cooling fins, cooling is maximized across the unit.
- Solid Metal Build
- The rugged Amaran Tri-8 has an aircraft-grade aluminum body and slim design, allowing for efficient heat airflow while maintaining a durable structure. To further enforce its durability, the LED bulbs are covered by an impact-proof polycarbonate casing.

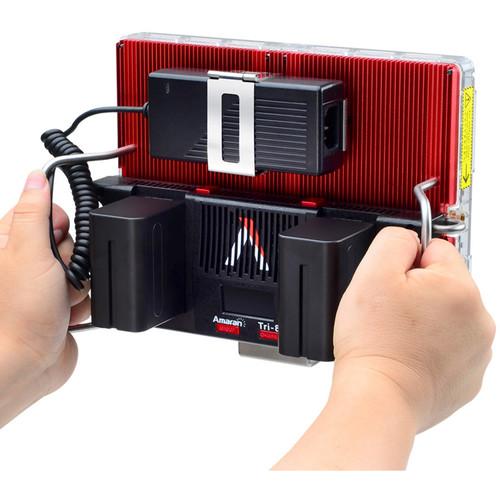

- Functionality and Portability
- The stainless steel handles in the back of the light allow you to position the light either vertically or horizontally. The light can be used on a stand, or handheld for fast-paced on-the-go shoots.

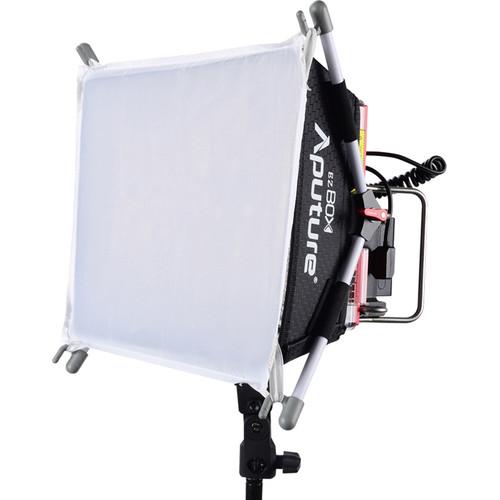

- EZ Box Included
- The Amaran Tri-8 comes with an EZ Box to maximize your light-shaping capabilities. The EZ Box softbox prevents spill light, reduces contrast, and provides high quality diffusion. Since the Tri-8 is virtually the same size as the 528/672, the EZ Box and grid are also compatible with this new light fixture. This also includes a growing list of third party softbox offerings that can work with the Amaran Tri-8.
- VA Remote Included
- The Amaran Tri-8 comes with the same 2.4 GHz remote used on most of Aputure's lights. The VA remote has three channels, four groups, and works up to 492' away. Using the remote, you are able to control the brightness of the Tri-8.

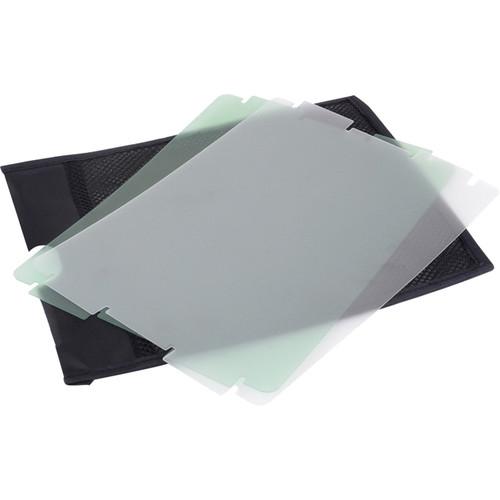

In the Box Aputure Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate Diffuser D-Tap to D-Tap Cable Power Cable AC Adapter Battery Baseplate Anton Bauer Battery Mount 2 x F970 Batteries Button Battery VA Remote Hex Wrench 4 x Support Column 4 x KM3 18 mm Screws 4 x KM3 12 mm Screws for Anton Bauer Plate EZ Box Softbox Kit for 528 and 672 LED Lights ervxfuvvtqwvrrarutwzwxqwe Adapter Super Fiber Shim Limited 1-Year Warranty User Manual PDF 2.8mbervxfuvvtqwvrrarutwzwxqwe Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Amaran Tri-8s Spot Daylight LED Light with Anton Bauer Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure Tri-8s Specs | Light Source | 888 LEDs, 100,000 hour lamp life | | Color Range | 5500K | | CRI / TLCI | 95+ | | Beam Angle | 25° | | Dimming | Yes | | Photometrics | 2230 fc / 24,000 lux @ 1.6' (0.5 m)
650 fc / 7000 lux @ 3.3' (1.0 m) | | Tungsten Equivalent | 600 W | | Operating Voltage | Input: 100-240 VAC, 50/60 Hz
Power Supply: DC 15 V | | Power Consumption | 60 W | | Cooling | Convection (no fan) | | Remote Control | Frequency: 2.4 GHz
Channels: 3
Groups: 4
Range: 492' (150 m) | | Mount | 1/4"-20 tap | | Dimensions | Light: 10.3 x 7.8 x 3.7" (26.1 x 19.9 x 9.3 cm)
Softbox: 10.8 x 9.3 x 3.5" (27.5 x 23.5 x 8.9 cm)
Softbox Diffuser: 11.6 x 10.4" (29.5 x 26.5 cm) | | Weight | 10.87 lb / 4.93 kg | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 15.5 x 10.6 x 7.0" |
