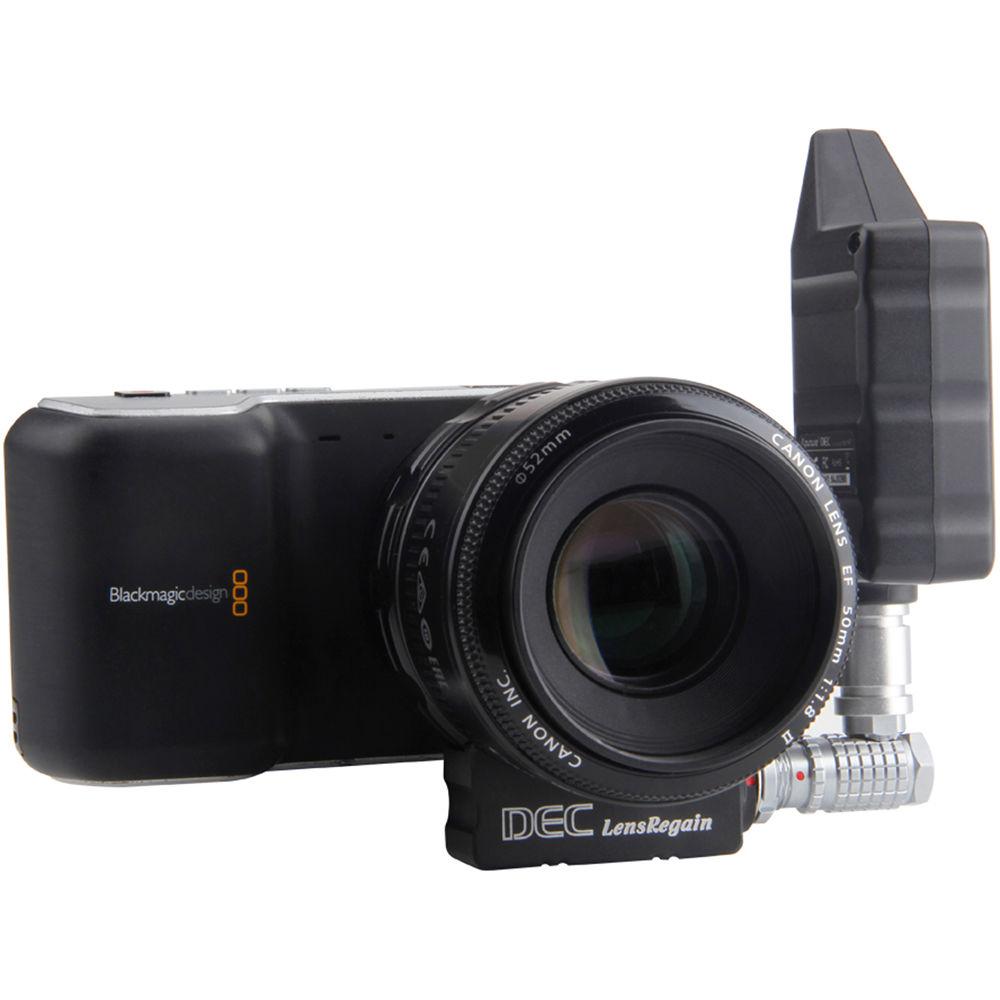

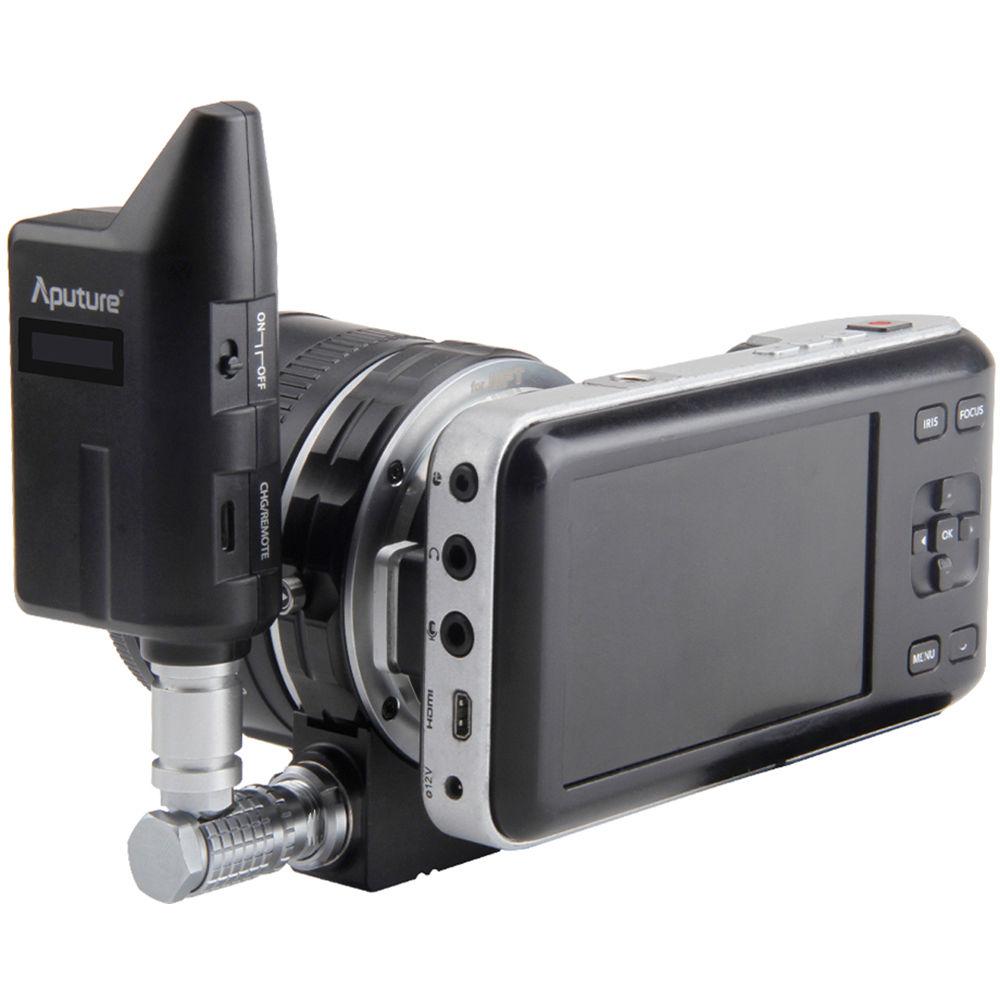

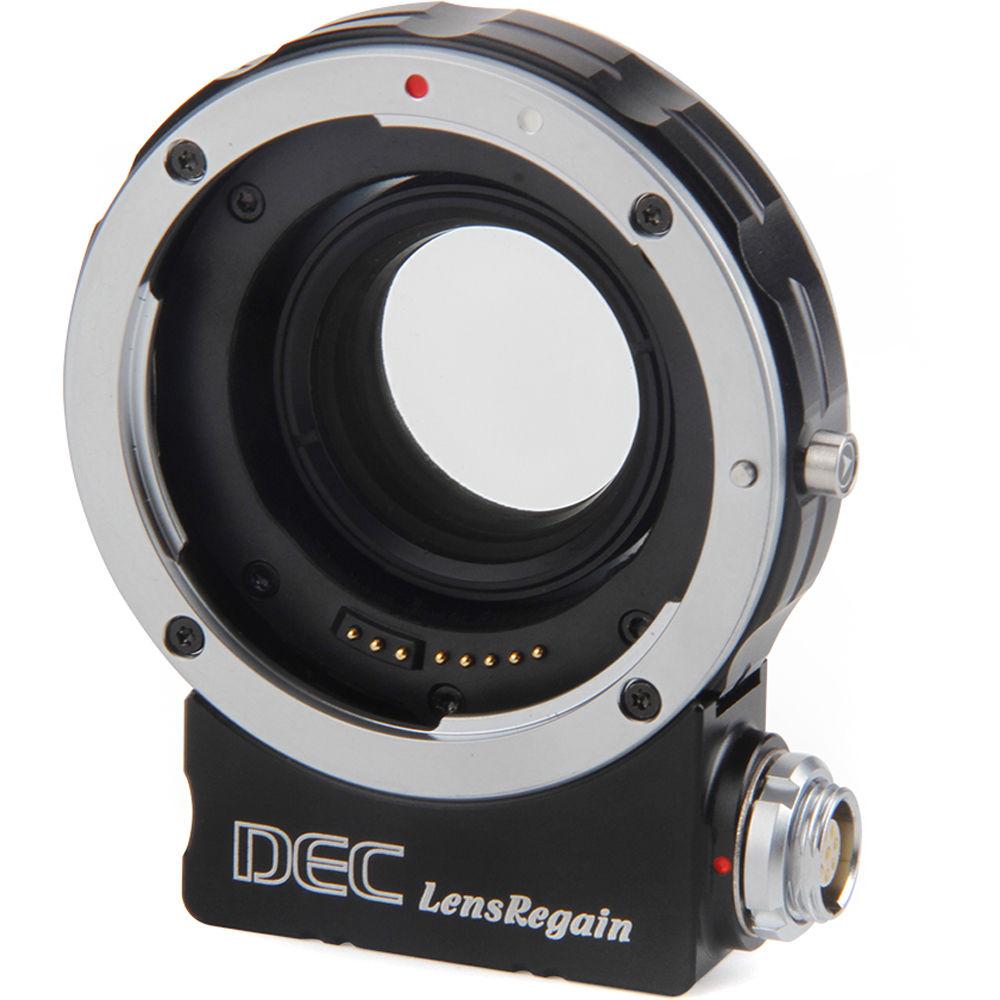

Product description The Aputure DEC LensRegain Adapter for MFT adds a focal reducing optical element, making it not only a follow focus and adapter, but also a device that gives cropped sensor cameras a full-frame-like view. It allows you to use EF lens on Micro 4/3 mount camera bodies. It enhances MTF performance and also adds an additional stop of light. - Tested Lenses
- Canon EF 70-200mm f/2.8L IS II USM Canon EF 24-105mm f/4L II USM
Canon EF 40mm f/2.8 STM
Canon EF-S18-13Smmf/35IS STM
Canon EF-S 10-18mm f/4.5-S.6 IS STM
Distagon T* 35mm f/1.4
Canon EF 24-105mm f/4L II USM
Canon EF 50mm f/1.8 II
Canon EF-S 18-55mm f/3.S-5.6 IS STM
Canon EF 24-70mm f/2.8L II USM 0.75x Magnification & Super 35mm View - The 0.75x degree of magnification is deliberately chosen to get you the equivalent of a Super 35mm camera when a Canon EF 50mm lens is attached to a MFT camera body.
Add an Additional Stop of Light, T-Stop Display - In terms of exposure, the DEC LensRegain also adds to your maximum aperture by one stop of light. That means your f/1.4 lens will work like that of an f/1.0 lens. With this advantage, a lower ISO can be set in low light shooting, and a higher shutter speed can be set while still maintaining the proper exposure. To more accurately determine exposure in relation to this additional stop, the new T-stop is also displayed on the DEC LensRegain's OLED screen.
Focal-Reducer & Performance Enhancer - In addition to getting a full-frame-like view, the DEC LensRegain has 7 layers of anti-reflective coatings on each of its 4-element, 4-group optical elements. It reduces the view of an EF lens to 0.75x and also brings more information and light to each bit of your camera's sensor.
- Follow-Focus & Focus-Reducer
- The DEC LensRegain functions both as a follow focus and a focal-reducing-adapter. The 2.4 GHz wireless frequency allows you to wirelessly follow focus, remotely start/stop recording, and adjust aperture. The internal focal-reducing element allows you to regain the equivalent field of view of a full-frame camera.
- Updated Design

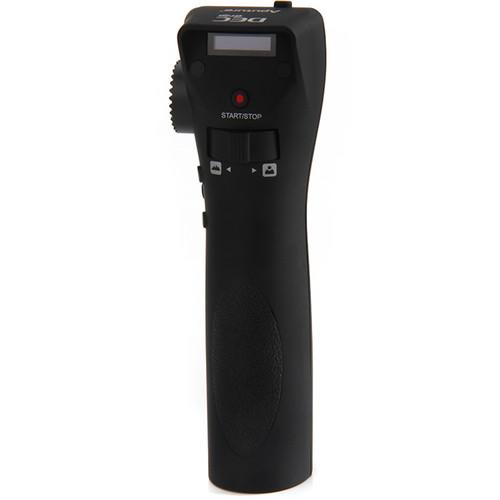

- The DEC LensRegain also features an all-metal build for durability and an extra 1/4" mount for easier mounting onto your existing equipment like electronic stabilizers, Steadicam, and rocker arm sideways. A separate extended cable and bracket allow for a wider range of possible set ups.

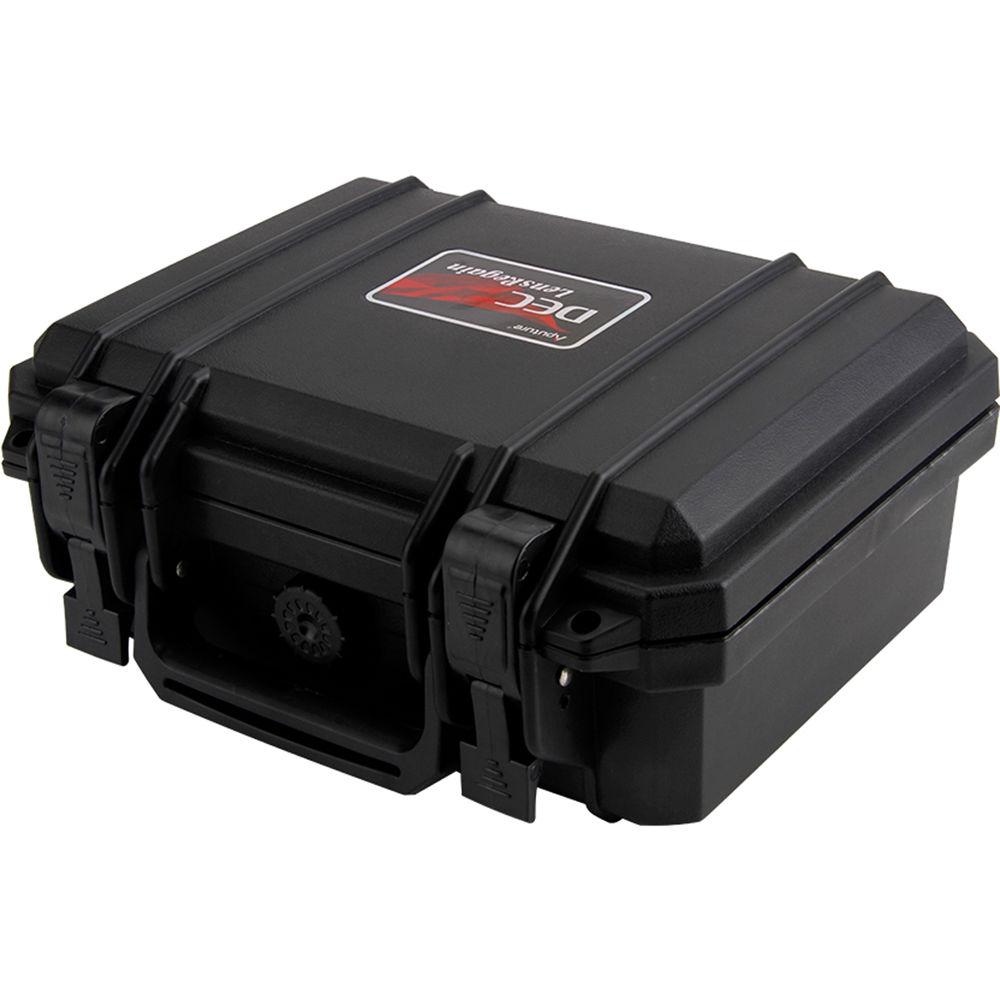

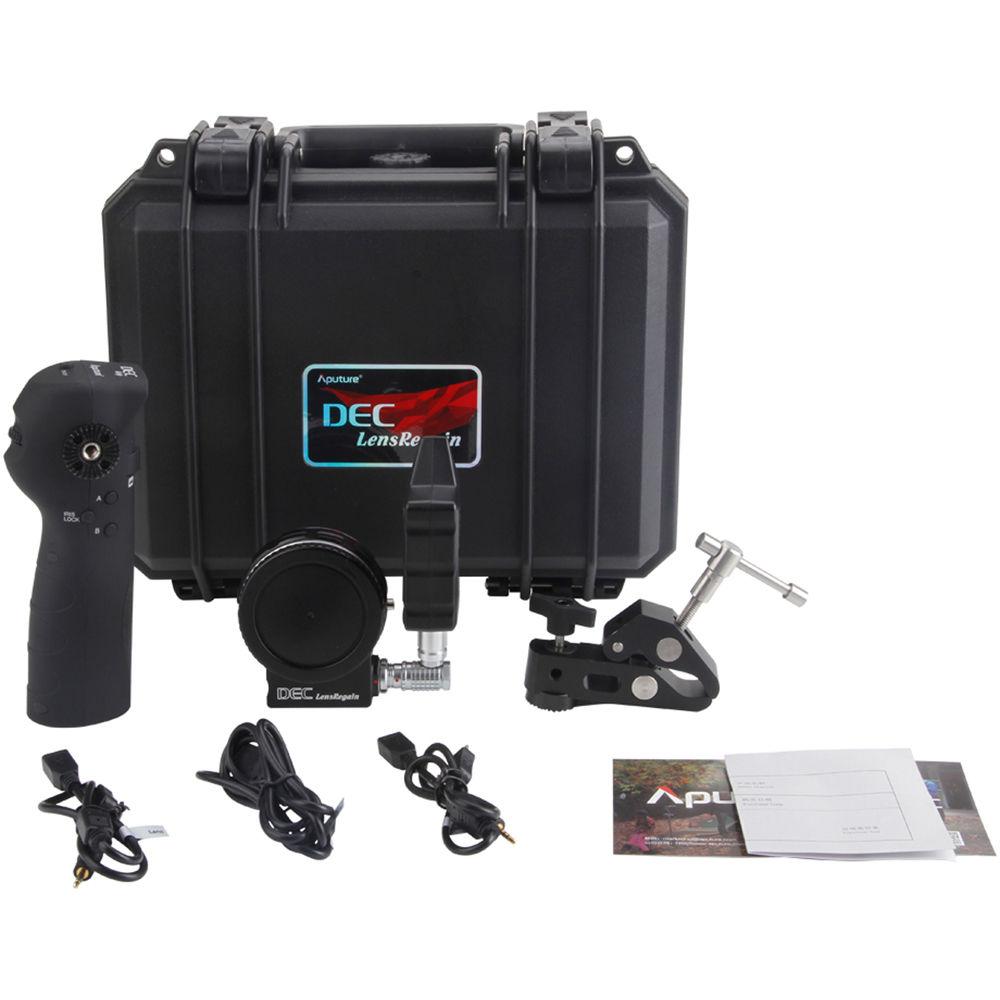

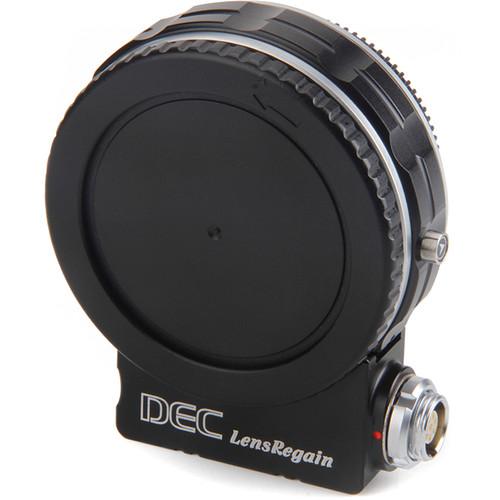

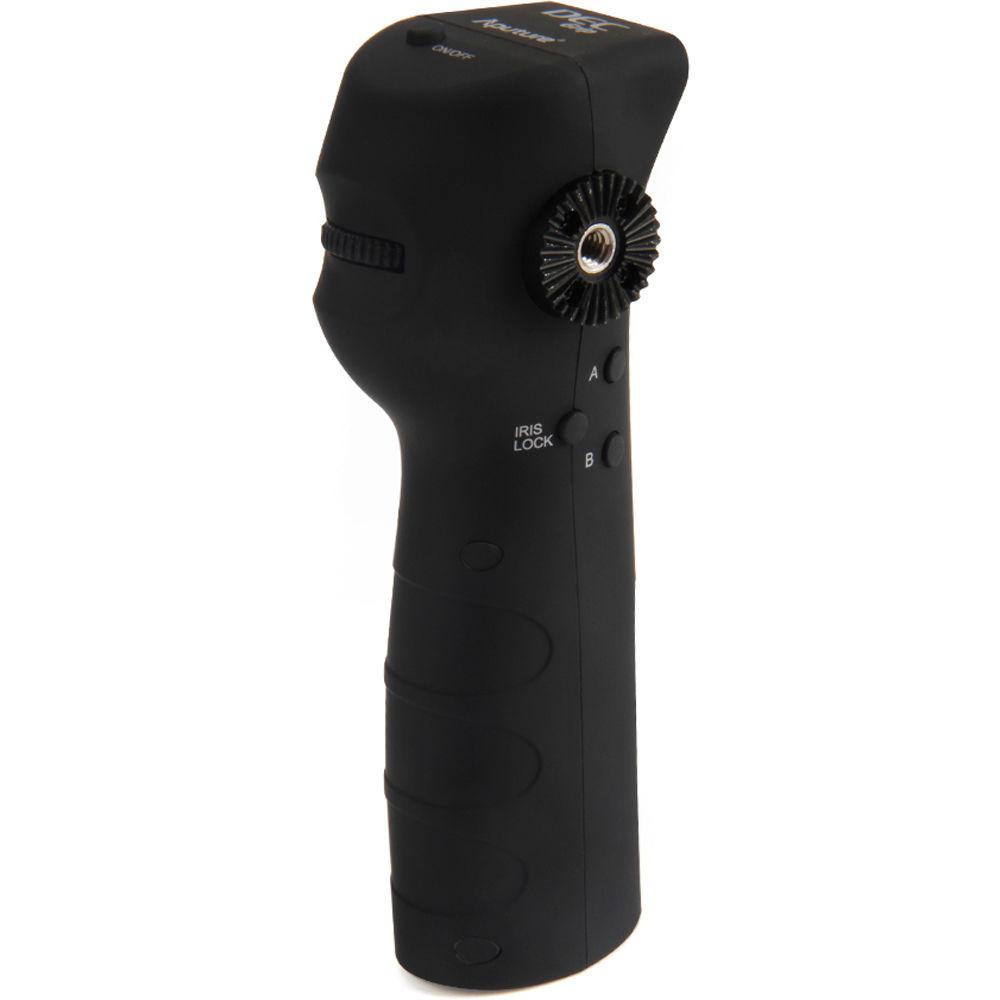

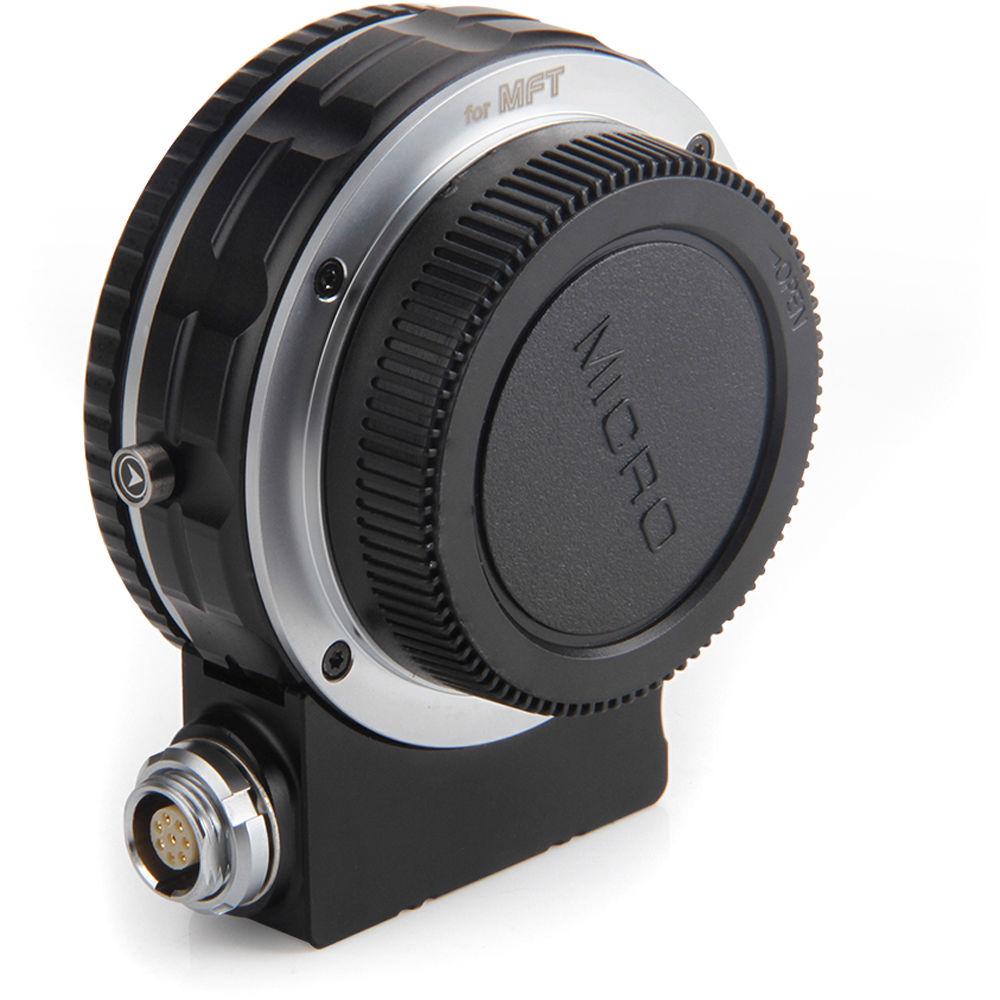

In the Box Aputure DEC LensRegain Adapter for Canon EF Mount Lenses to MFT Mount Grip Adapter Lanc Cable GH Series Cable (For Panasonic GH Series) Claw Clip Charge and Update Cable Control Box Lens Rear Caps Lens Caps Safe Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure DEC LensRegain Adapter for Canon EF Mount Lenses to MFT Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure DECLR Specs | Battery Voltage | Adapter/Grip: 3.7 V | | Battery Capacity | Adapter: 1400 mAh
Grip: 2600 mAh | | Port | Charge/Remote/Update
Adapter: Micro USB
Grip: Micro USB (charge only) | | Charge Voltage | Adapter/Grip: 5 V | | Peak Current Common Mode | Adapter: ≤500mA
Grip: ≤300mA | | Endurance | Battery
Adapter: ≤10 hours
Grip: ≤48 hours
Based on a fully charged Li-ion battery, a Canon EF 24-70mm/2.8L II USM and CIPA testing standards | | Remote | Remote Rate: 2.4 GHz
Remote Range: ≤ 328' (100 m) | | Compatibility | Lenses: Canon EF, EF-S AF
Camera: MFT (Micro 4/3 )-mount (for all frame sizes) camera | | Focal Reducer | Focal Reducer
Lens Elements/Groups: 4/4
Magnification: 0.75x
Diameter: 1.45" (37 mm) | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 65±20% (without condensation) | | Dimensions | 20.86 x 12.59 x 11.81" (53 x 32 x 30 cm | | Weight | Adapter: 7.6 oz / 215 g
Control box: 3.5 oz / 100 g
Grip: 6 oz / 170 g
Claw Clip: 6.2 oz / 175 g
Lanc Cable: 0.6 oz / 17.0 g
GH Series Cable: 0.6 oz / 17.0 g | | | | Package Weight | 4.63 lb | | Box Dimensions (LxWxH) | 11.35 x 11.3 x 5.15" |
