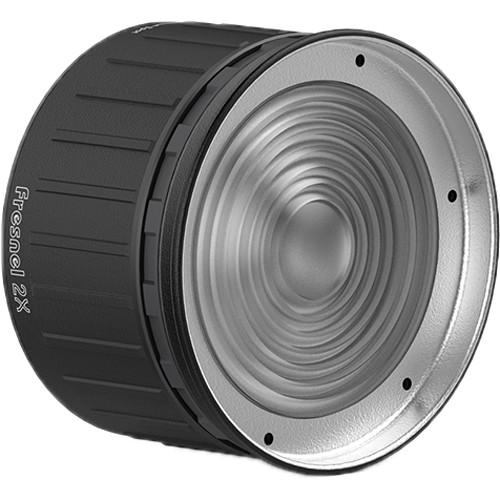

User Manual for Aputure Fresnel 2X Attachment Click to enlarge the picture
Contents of the user manual for the Aputure Fresnel 2X Attachment
- Product category: Projection Lenses Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure Projection Lenses
 |
User manual for the Aputure Fresnel 2X Attachment contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

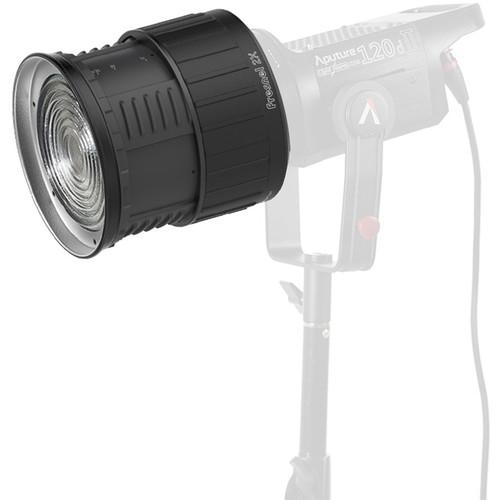

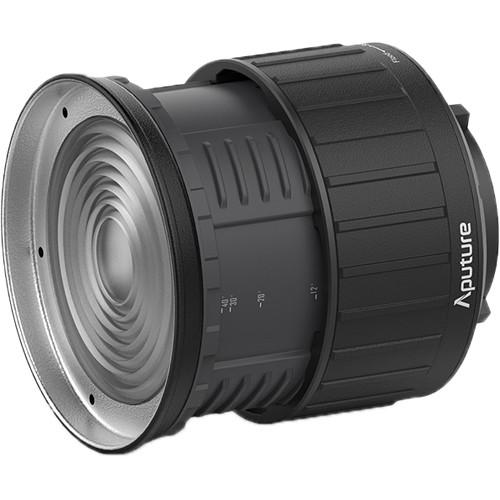

Product description Compatible with Aputure LS C120d, LS C120d II, LS C300d or any other monolight-style LED light with a Bowens accessory mount, the Fresnel 2X Attachment offers a beam spread that's variable from 12 to 40 degrees. A valuable bi-product of this enhanced design is its ability to intensify the output of the light! Aputure's LS 120d II, for example, is capable of outputting up to 14x its standard power thanks to the Fresnel's dual lens design. The Fresnel 2X comes with a padded case for storage and transport. - Increased Brightness

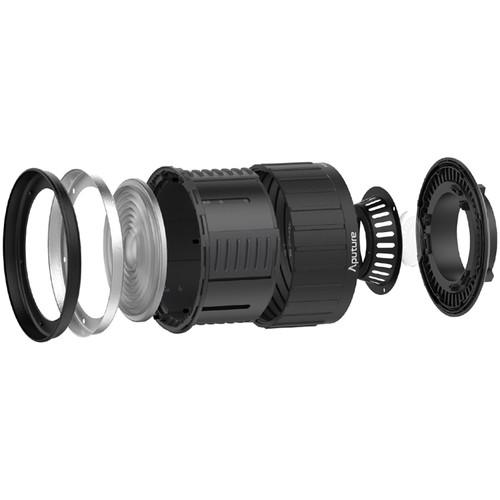

- The enhanced design features dual optical elements, a larger 6" front Fresnel lens, improved ventilation, and minimized light leaks.
- Dual Lens Design

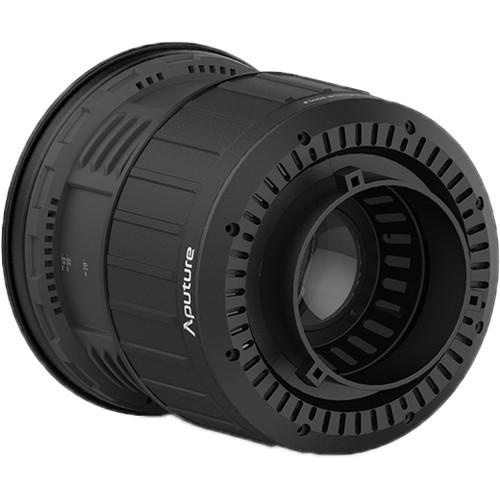

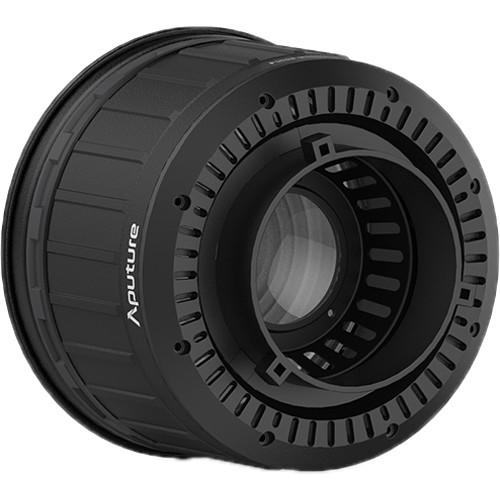

- The rear lens focuses and magnifies the beam onto the larger 6" front Fresnel lens, performing with zero wasted light. The dual lens optical design makes the Fresnel 2X twice as powerful as the original Aputure Fresnel and makes the LS C120d II up to 14-times brighter.
- Rotating Design

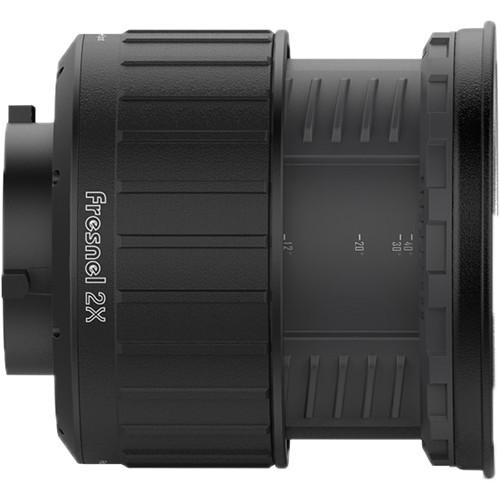

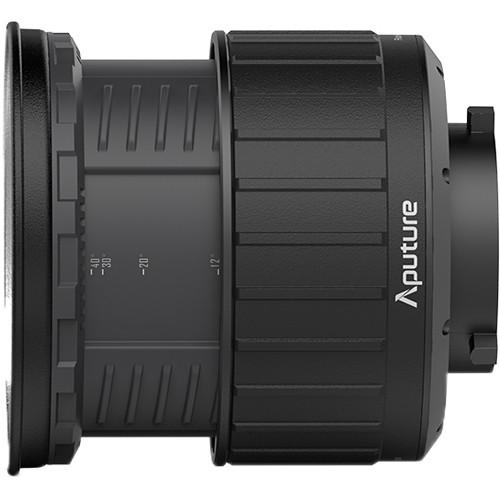

- By utilizing a rotating barrel design, the Fresnel 2X creates an intuitive user experience, similar to a camera lens. The smooth focus throw gives users an ability to accurately tweak the beam angle of their light source, allowing them to easily spot or flood-out the light with a simple twist.
- Versatility and Portability
- The Fresnel 2X is adaptable to any situation. With its Bowens-mount design, This Fresnel can be attached to a myriad of lights that use this popular mount. The 7" front ring accepts the Aputure barndoors, offering a wide variety of light-shaping options.
In the Box Aputure Fresnel 2X Attachment Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Fresnel 2X Attachment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure FRESNEL 2X Specs | Beam Angle | 12-40° | | Mount | Bowens | | Photometrics | 12° Spot at 3.28' / 1.0 m with LS C120d
Without Lens: 3400 lux
With Lens: 46,000 lux | | Dimensions | Lens Diameter: 6" / 15.2 cm
Overall: 7 x 7 x 5.5" / 180 x 180 x 141 mm | | Weight | 2.73 lb / 1.24 kg | | | | Package Weight | 3.625 lb | | Box Dimensions (LxWxH) | 8.4 x 8.2 x 6.9" |
