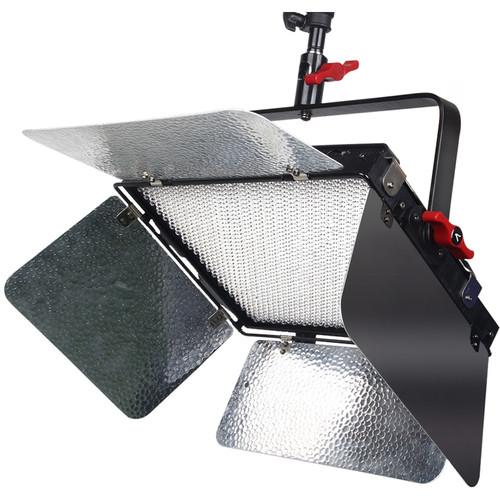

User Manual for Aputure Light Storm LS 1s AC Studio Edition LED Light with Wireless Controller Box

Click to enlarge the picture
Aputure Light Storm LS 1s AC Studio Edition LED Light with Wireless Controller Box Contents of the user manual for the Aputure Light Storm LS 1s AC
  • Product category: LED Lights Aputure
  • Brand: Aputure
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Aputure LED Lights

User manual for the Aputure Light Storm LS 1s AC contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Aputure product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!



Product description

A sleek LED panel with a CRI of 95 and beam angle of 45°, the Light Storm LS 1s Studio Edition from Aputure includes the LED fixture along with a dedicated controller box. Aside from providing AC power to the unit, the included controller box also enables wireless dimming control using the included remote. Four groups and three channels can be employed for quickly switching between different looks.

The Light Storm LS 1s features a slim and durable aluminum alloy housing along with a manual yoke for versatile positioning. A four-way barndoor set offers greater control over the light and ten sheets of included diffusion paper also helps to produce an even, diffuse quality of light. The light control separation design, afforded by the controller box, also maintains a low center of gravity for easier placement of the fixture and easier switching of batteries during use.
    Features
    • The light's design incorporates 1536 individual LEDs to produce a beam angle of 25° along with a CRI of 95.
    • Daylight-balanced 5500K color temperature.
      Included wireless controller box.
      The controller box, which features two 90° antennas, also permits wireless dimming control using the included 2.4 GHz remote. Four groups and three channels are also available.
    • DMX512 protocol is also supported for wireless control.
    • Aluminum alloy construction is both durable and sleek for use in a variety of conditions.
    • Manual yoke allows for variable positioning. Additionally, a four-way barndoor set is incorporated into the design for further control over the beam.
    • Ten sheets of acid-free, smooth surface diffusion paper is included to broaden the light quality, reduce the output to 85%, and provide an effective 180° beam angle.
    • A LEMO-style connector is used between the controller box and light fixture for convenient, one-handed installation and removal of the included connection cable.
    Photometrics
  • 2,815 fc / 30,300 lux at 1.6' / 50 cm
    975 fc / 10,500 lux at 3.3' / 1 m
    325 fc / 3,500 lux at 5.9' / 1.8 m
    177 fc / 1,900 lux at 8.2' / 2.5 m
    120 fc / 1,300 lux at 9.8' / 3 m
In the Box Aputure Light Storm LS 1s AC Studio Edition LED Light with Wireless Controller Box
  • Controller Box
  • Controller Box Buckle
  • AC/DC Adapter
  • Power Cable
  • Connection Cable with Magic Strip
  • Controller
  • Button Battery
  • Hook
  • 5 x Clamp
  • 10 x Tracing Paper
  • Limited 1-Year Warranty
  • User Manual PDF 2.4mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Aputure Light Storm LS 1s AC Studio Edition LED Light with Wireless Controller Box in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Aputure LS 1s Specs

    Beam Angle 25°
    Color Temperature 5500K
    Color Accuracy Standard CRI 95
    Cooling System Passive
    Display None
    Expected Lamp Life 100,000 Hours
    Fixture Dimensions 14.9 x 12.6 x 1.3" / 377.8 x 320.7 x 33.2 mm
    DMX Connector RJ45
    Yoke Mount TVMP/ Hex Bolt
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Wireless Range 328' / 100 m
    Wireless Channels / Groups 3 / 4
    AC Input Power 120 VAC, 60 Hz
    Power Source AC Adapter, External Battery
    IP Rating IP20
    Package Weight 12.15 lb
    Box Dimensions (LxWxH) 15.4 x 14.1 x 5.1"
