User Manual for Aputure Light Storm LS 1s LED Light with Wireless Controller Box and Anton Bauer Battery Plate Click to enlarge the picture
Contents of the user manual for the Aputure Light Storm LS 1s LED
- Product category: LED Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure LED Lights
 |
User manual for the Aputure Light Storm LS 1s LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|
Product description A sleek LED panel with a CRI of 95 and beam angle of 45°, the Light Storm LS 1s from Aputure includes the LED fixture along with a dedicated controller box that accepts Anton Bauer type batteries.. Aside from providing power to the unit, the included controller box also enables wireless dimming control using the included remote. Four groups and three channels can be employed for quickly switching between different looks.

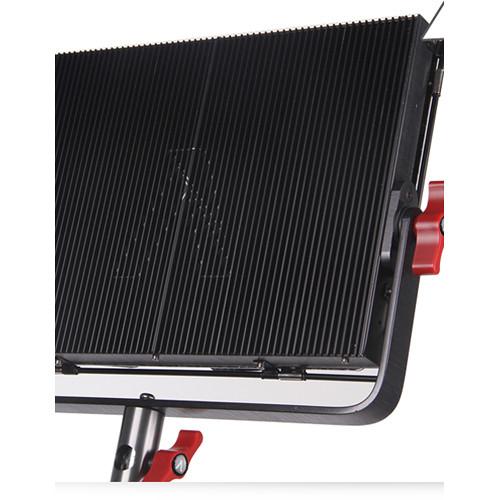

The Light Storm LS 1s features a slim and durable aluminum alloy housing along with a manual yoke for versatile positioning. A four-way barndoor set offers greater control over the light and ten sheets of included diffusion paper also helps to produce an even, diffuse quality of light. The light control separation design, afforded by the controller box, also maintains a low center of gravity for easier placement of the fixture and easier switching of batteries during use. - Features
-
- The light's design incorporates 1536 individual LEDs to produce a beam angle of 25° along with a CRI of 95.
- Daylight-balanced 5500K color temperature.
Included wireless controller box features a battery plate that accepts Anton Bauer type batteries for convenient, portable power. An AC/DC cable is also included for AC power.
The controller box, which features two 90° antennas, also permits wireless dimming control using the included 2.4 GHz remote. Four groups and three channels are also available. - DMX512 protocol is also supported for wireless control.
- Aluminum alloy construction is both durable and sleek for use in a variety of conditions.

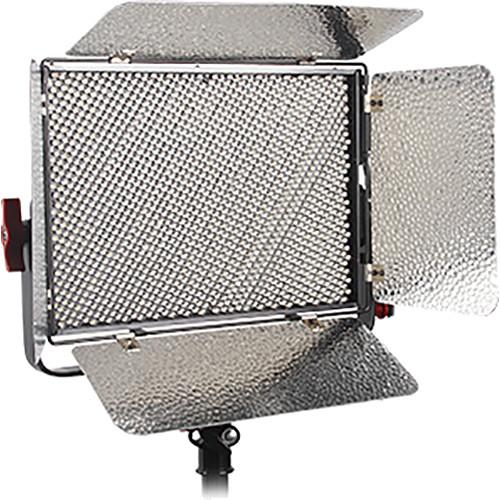

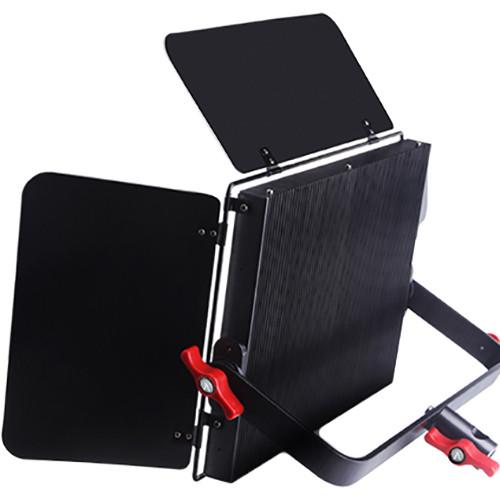

- Manual yoke allows for variable positioning. Additionally, a four-way barndoor set is incorporated into the design for further control over the beam.
- Ten sheets of acid-free, smooth surface diffusion paper is included to broaden the light quality, reduce the output to 85%, and provide an effective 180° beam angle.
- A LEMO-style connector is used between the controller box and light fixture for convenient, one-handed installation and removal of the included connection cable.
- Photometrics
- 2,815 fc / 30,300 lux at 1.6' / 50 cm
975 fc / 10,500 lux at 3.3' / 1 m
325 fc / 3,500 lux at 5.9' / 1.8 m
177 fc / 1,900 lux at 8.2' / 2.5 m
120 fc / 1,300 lux at 9.8' / 3 m In the Box Aputure Light Storm LS 1s LED Light with Wireless Controller Box and Anton Bauer Battery Plate Controller Box Controller Box Buckle AC/DC Adapter Power Cable Connection Cable with Magic Strip Controller Button Battery Hook 5 x Clamp 10 x Tracing Paper Limited 1-Year Warranty User Manual PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Light Storm LS 1s LED Light with Wireless Controller Box and Anton Bauer Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure LS 1s Specs | | | Beam Angle | 25° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Display | None | | Expected Lamp Life | 100,000 Hours | | Fixture Dimensions | 14.9 x 12.6 x 1.3" / 377.8 x 320.7 x 33.2 mm | | | | Battery Plate | 1 x Gold Mount | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Wireless Range | 328' / 100 m | | Wireless Channels / Groups | 3 / 4 | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC at 8 A | | Power Source | AC Adapter, External Battery | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 15.5 x 14.1 x 5.1" |
