Product description

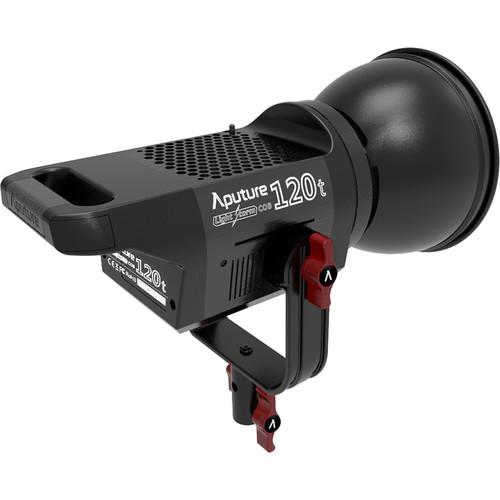

The Light Storm LS C120t Tungsten LED Light from Aputure is a Chip on Board (COB) designed fixture with a 3000K color temperature that consumes a negligible amount of power while outputting 1032 fc of light at a distance of 1.6'. In addition to power efficiency this fixture also features accurate color rendering - 97 CRI and a 97 TLCI (Television Lighting Consistency Index) rating.The LS C120t can be seen but not heard - ideal for sound sensitive environments. The intelligent cooling system employs temperature sensitive fans to regulate the heat. There's also an Auto/Force button that triggers maximum cooling. In any case, even at maximum power the fan noise doesn't exceed 18 dB - basically the sound of a person breathing.

The LS C120t's performance is backed up by its design. The all-aluminum construction goes through over a hundred fabrication steps. The reflector and accessory mount is the widely-used Bowens S-Type and the wired controller is also separated from the body of the light, making it lighter and reducing its size. There's also an included wireless remote that allows you to control on/off and dimming functions from as far away as 328'. The LS C120t is ready for worldwide use thanks to its 110-240 VAC power supply. You can also use its onboard Gold mount battery plate for external battery power when mains power is unavailable. This LS C120t is delivered as a kit with a dedicated carrying bag to protect the light during travel and storage.
    Accurate Color
  • The LS C120t features a CRI of 97 and a 3000K color temperature. Additionally, its TLCI also has been measured at up to 97. TLCI or Television Lighting Consistency Index, is the accurate measurement of color fidelity of a light source for broadcast use; a high rating shows that a light source will render colors well in a film or photography context. Therefore, the LS C120t will display natural color in both photo and video applications.
    Auto/Force Model Powerful Temperature Control
  • The LS C120t has an intelligent temperature control system. The fan's rotation will be varied based on the correspondent ambient temperature. Furthermore, the fan will go to the maximum of rotation when you press the Auto/Force model. This complex fan system is convenient for both improving the dissipation efficiency and light lifespan in complex shooting environments.
    Quiet Operation
  • Most lights utilizing a fan system are too loud and not suitable for film or video production, however, the LS C120t with its built-in electric fan produces only 18 dB noise like a person's normal breathing. That means fan noise is negligible, even if your LS C120t runs at maximum output.

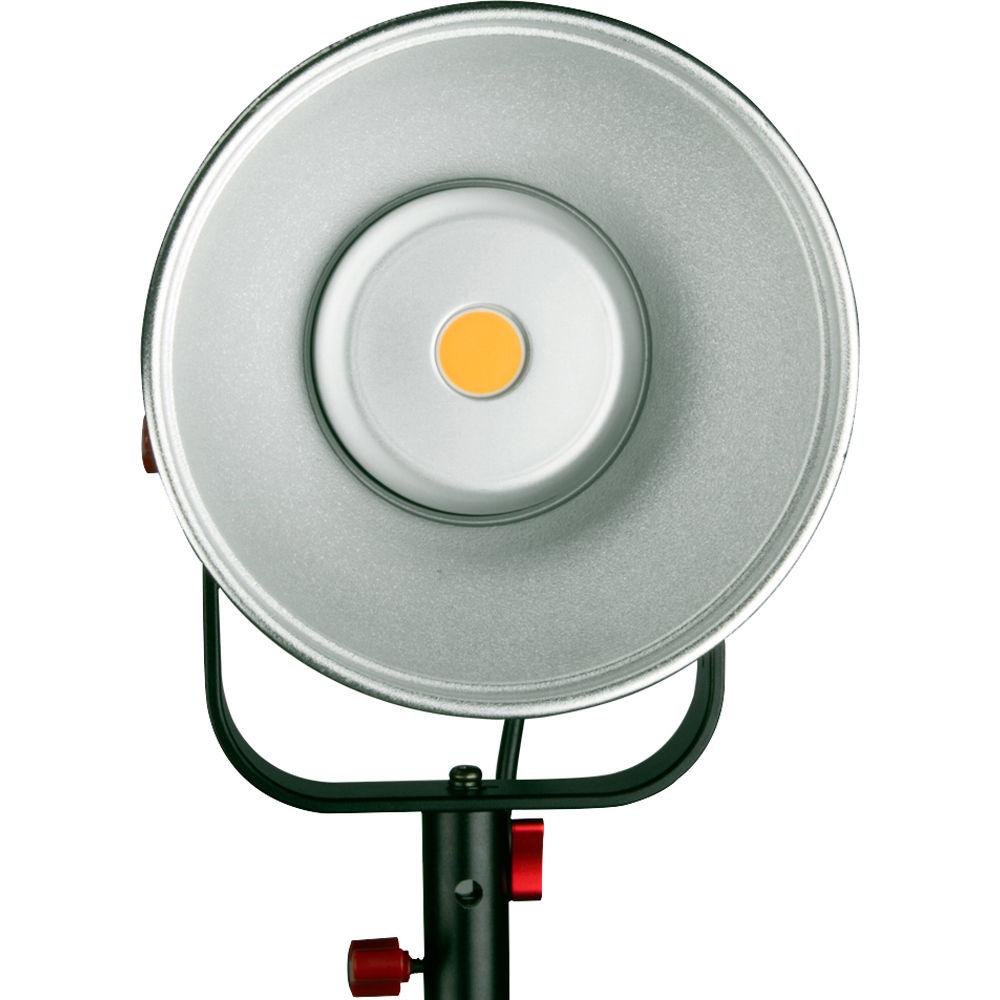

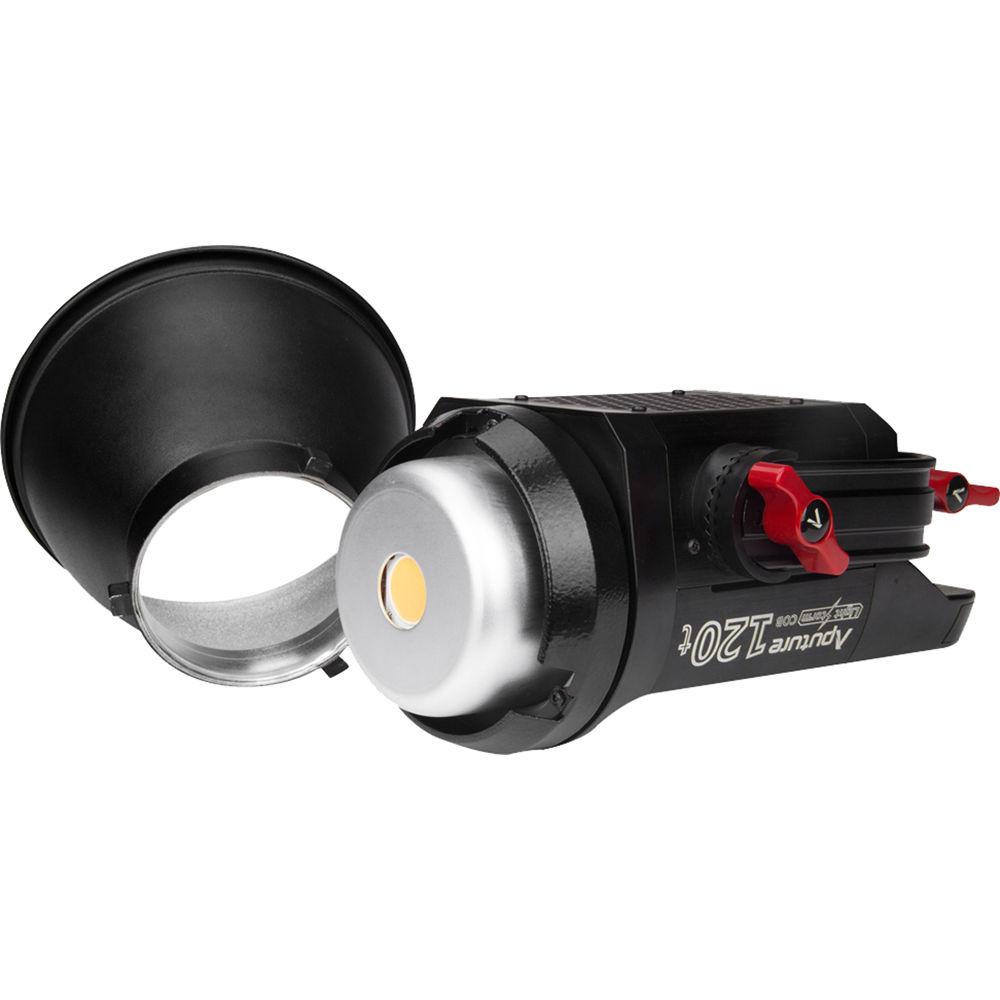

    Professional Bowens Mount
  • LS C120t uses an industry-popular Bowens S-Type front mount providing the option of using the wide range of accessories from the many manufacturers that use this mount.
    Portable and Lightweight
  • Portable and lightweight are two characteristics many photographers and filmmakers can appreciate in equipment that's often used and the LS C120t weighs in at 3.5 lb.

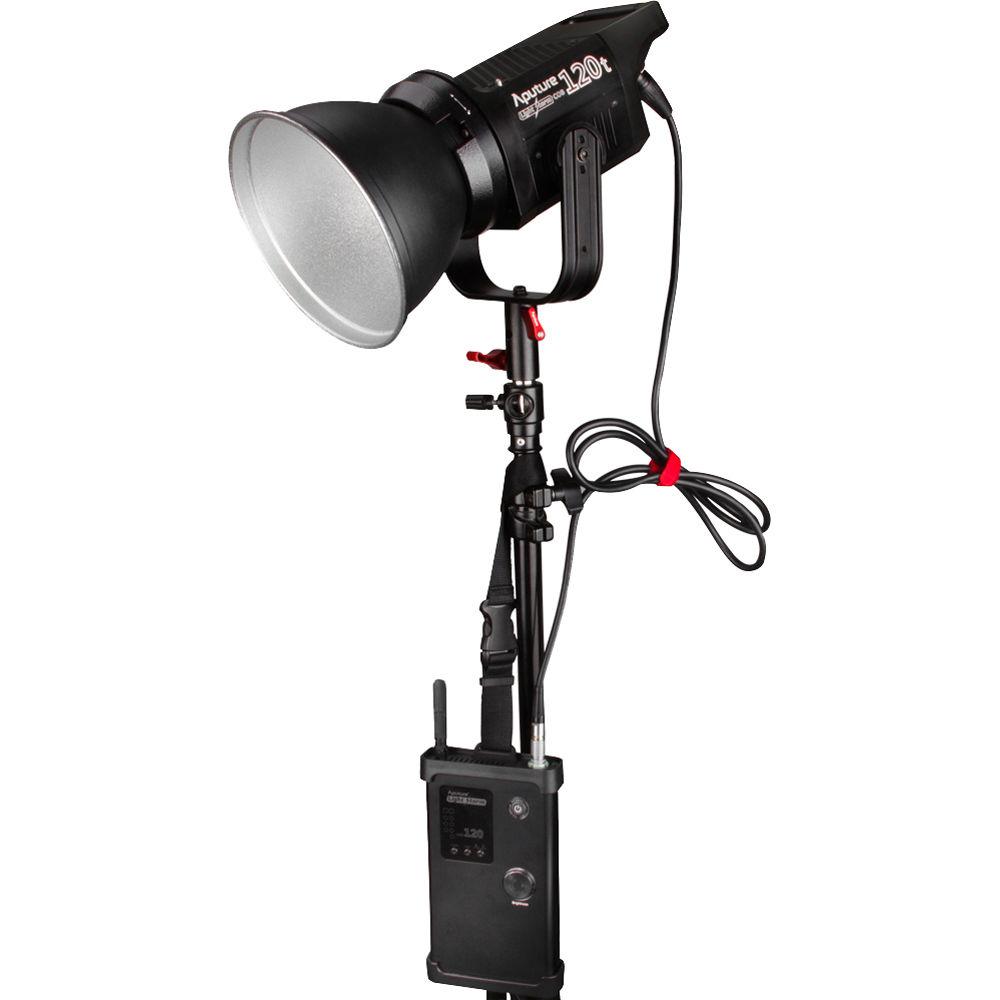

    Separated Light Control Operation
  • The LS C120t has a separated light control design. This allows users to control illumination on the controller box; you no longer have to operate from the back of the light, greatly increasing the balance and reducing the weight, as well as the time spent adjusting the fixture.
    Intelligent Design
  • Featuring an aircraft grade aluminum body, the LS C120t is tough and durable. More than 100 fabrication procedures such as extrusion, cutting, trim, sandblasting, and laser engraving are employed.
    Effective Battery Power Solution
  • The LS C120t is able to meet various shooting requirements with battery mount options; the Gold mount battery plate is ideal for situations where mains power is unavailable.

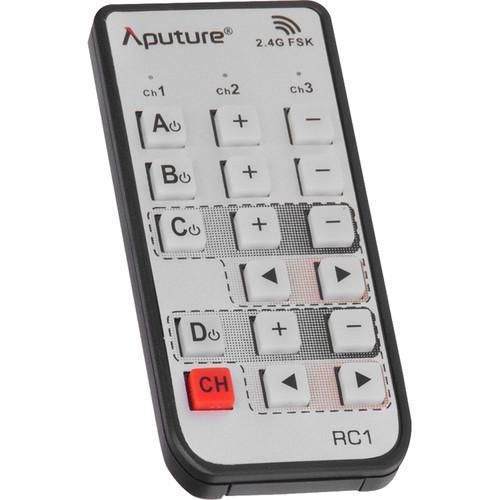

    328' Wireless Remote Control
  • Using 2.4 GHz FSK technologies, the LS C120t can power on or off or adjust brightness wirelessly, even at distances up to 328'.

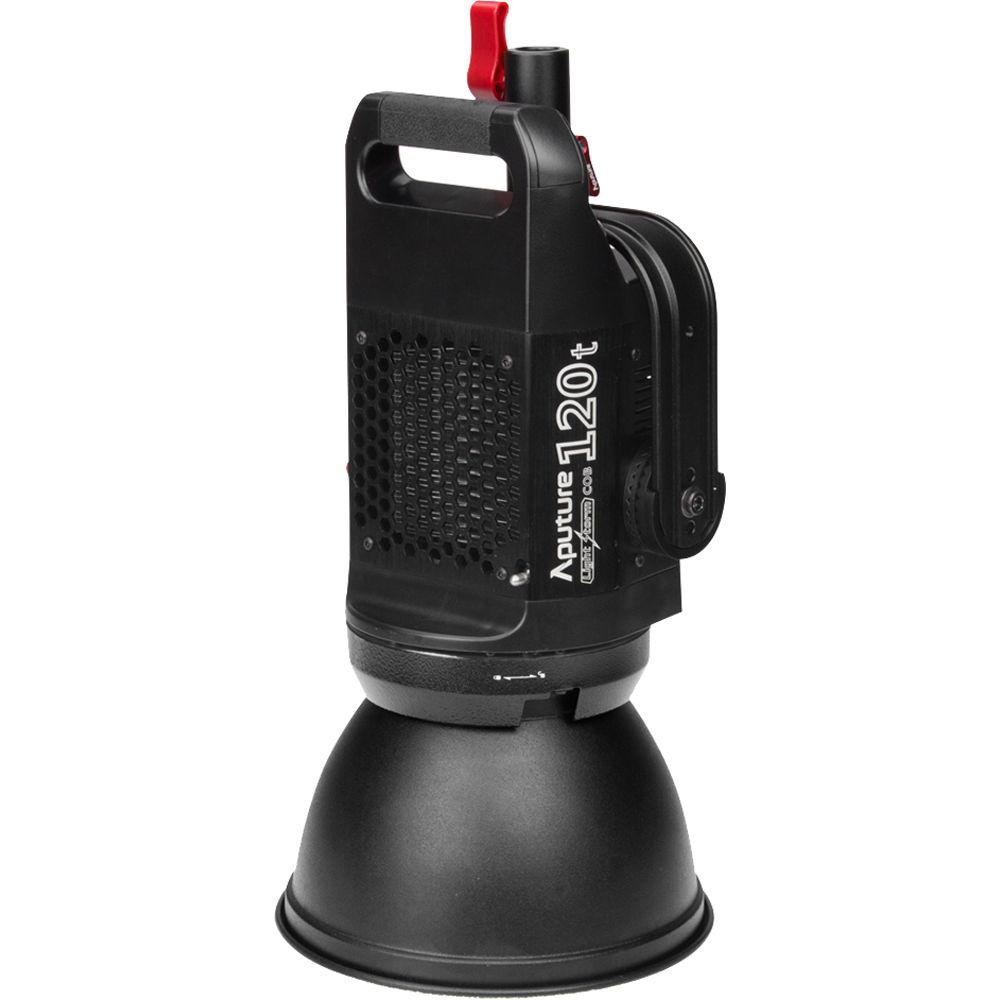

    Handgrip
  • The LS C120t has the convenience of an integrated handgrip for adjusting the light's direction and quick packing.

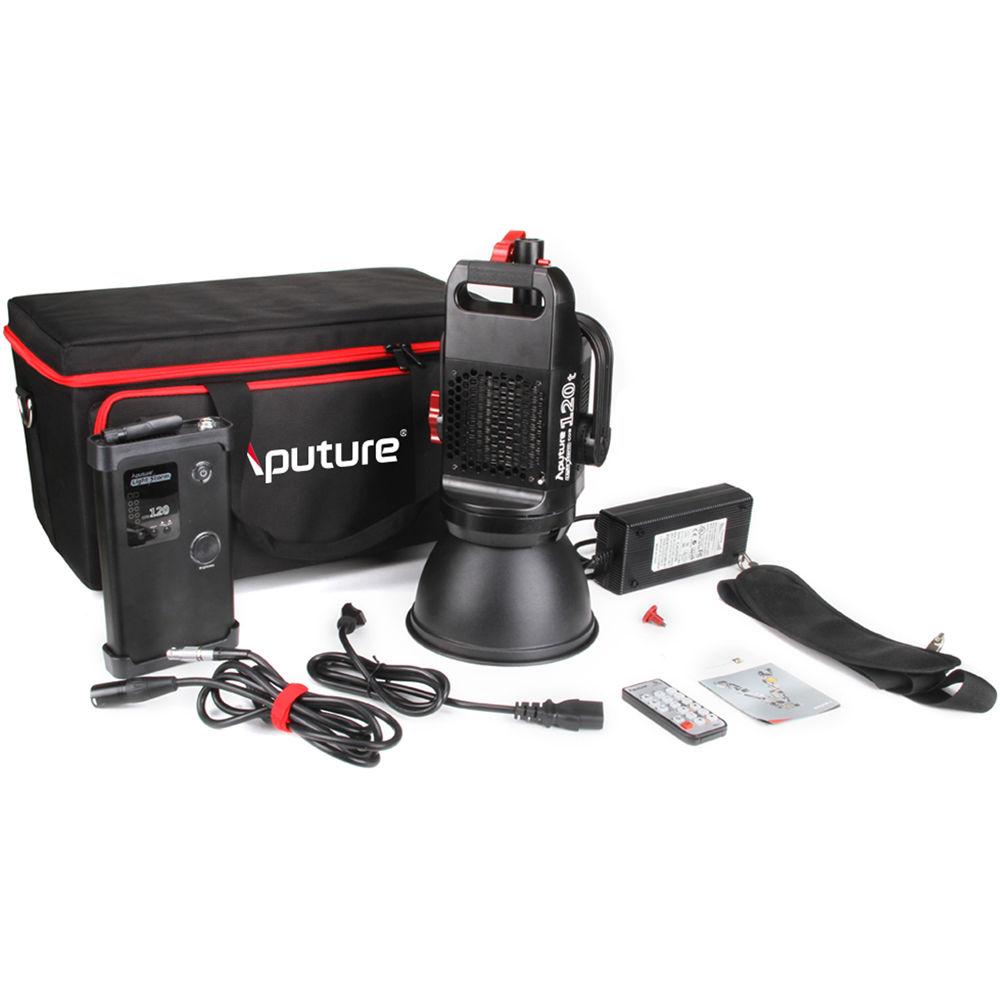

In the Box Aputure Light Storm LS C120t Tungsten LED Light Kit with Gold Mount Battery Plate

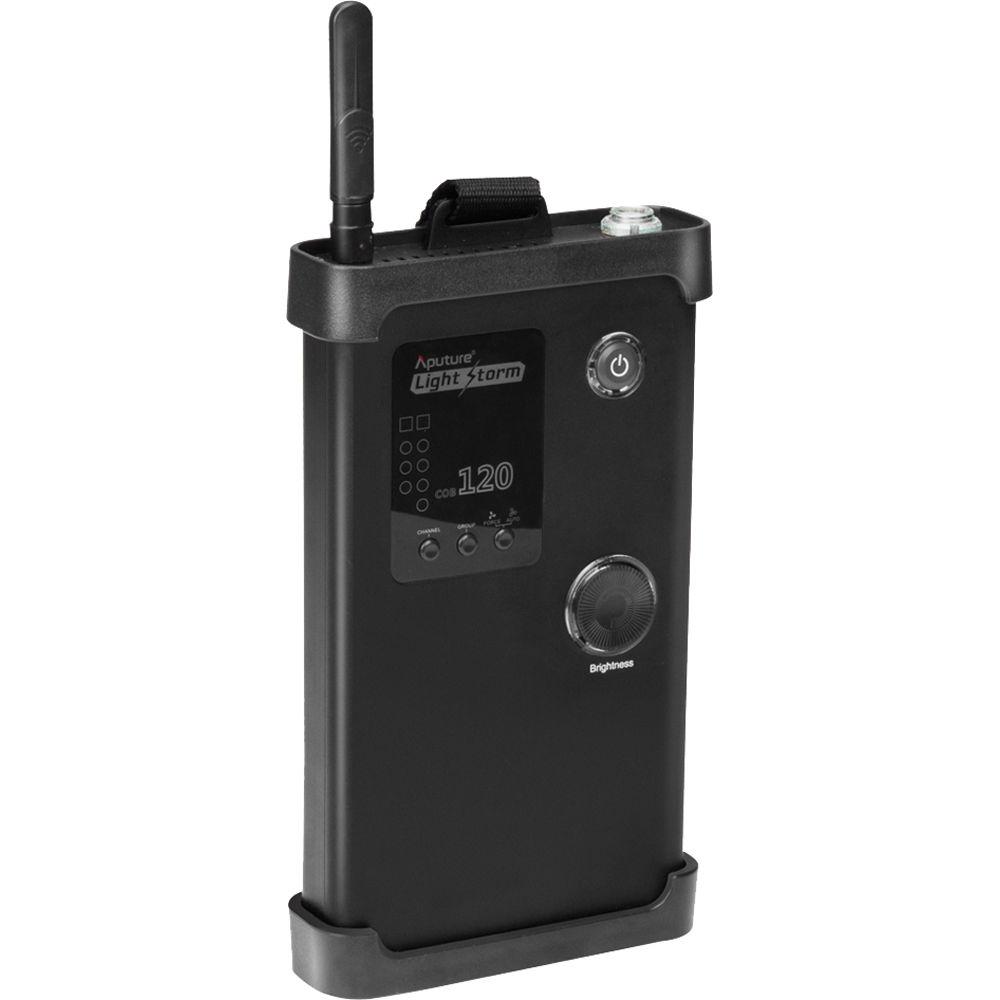

  • Controller Box
  • Connecting Cable
  • AC Adapter
  • Power Cable
  • Button Battery

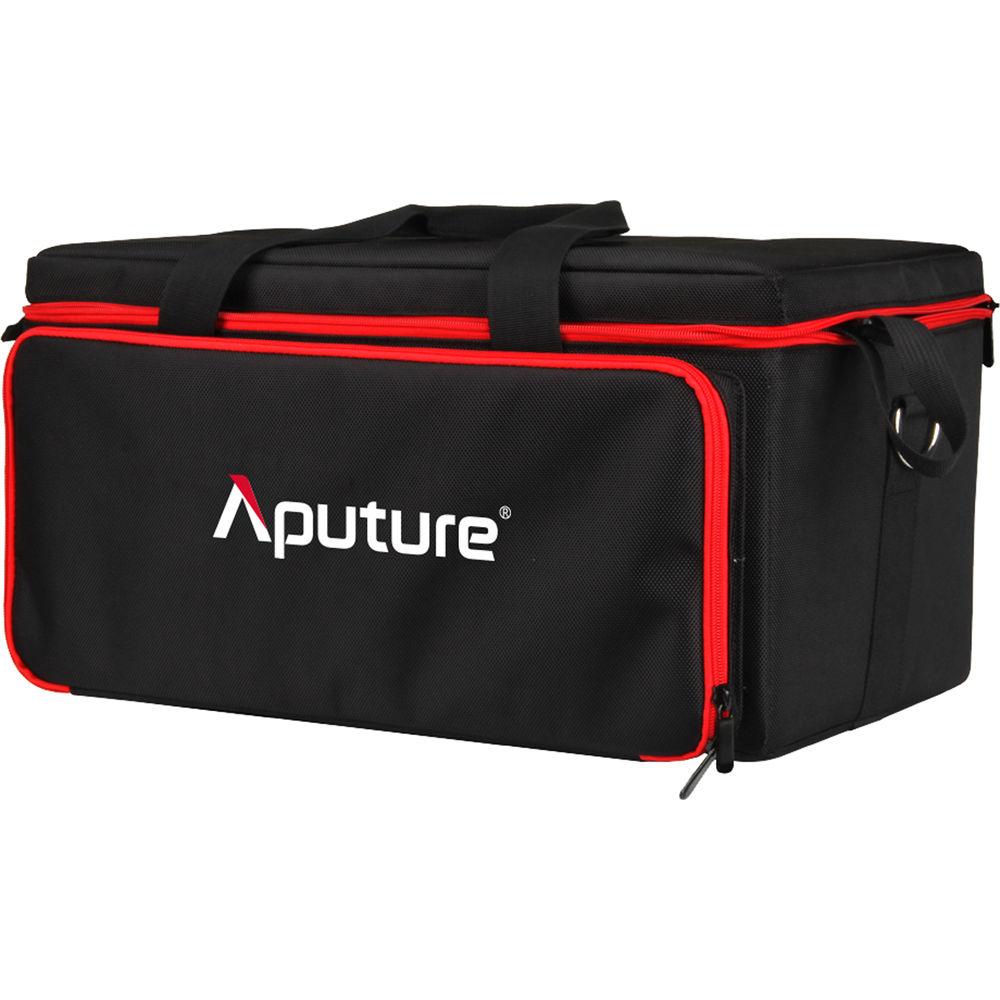

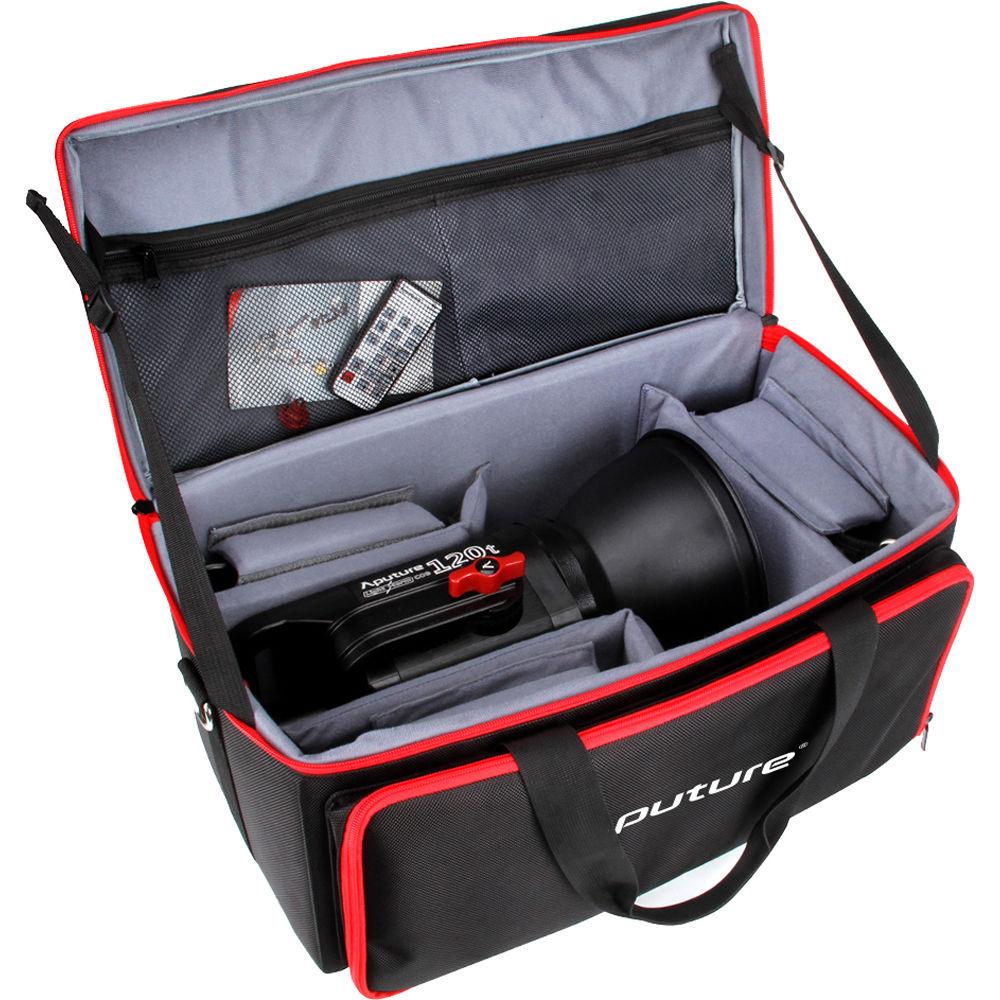

  • Carrying Bag
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Aputure Light Storm LS C120t Tungsten LED Light Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Aputure LS C120t Specs

    Color Temperature 3000K
    Color Accuracy Standard CRI 97 at 3000K
    TLCI 97 at 3000K
    CQS 95 at 3000K
    Cooling System Fan
    Display None
    Fixture Dimensions 13.2 x 7.3 x 9.4" / 336.4 x 186.3 x 283.9 mm
    Fixture Weight 3.5 lb / 1.6 kg
    Battery Plate 1 x V-Mount
    Fixture Mount 5/8" Receiver
    Accessory Mount None
    Wireless Range 328' / 100 m
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 15 VDC at 9 A
    Power Source AC Adapter, External Battery
    IP Rating IP20
    Package Weight 14.7 lb
    Box Dimensions (LxWxH) 19.6 x 12.0 x 11.3"
