User Manual for Aputure Light Storm LS-mini20d Daylight LED Light Click to enlarge the picture
Contents of the user manual for the Aputure Light Storm LS-mini20d Daylight LED
- Product category: LED Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure LED Lights
 |
User manual for the Aputure Light Storm LS-mini20d Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

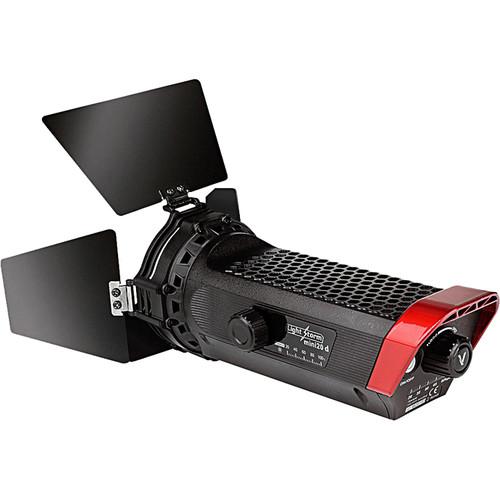

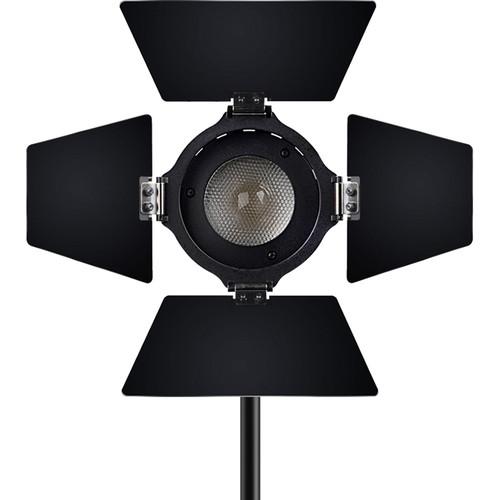

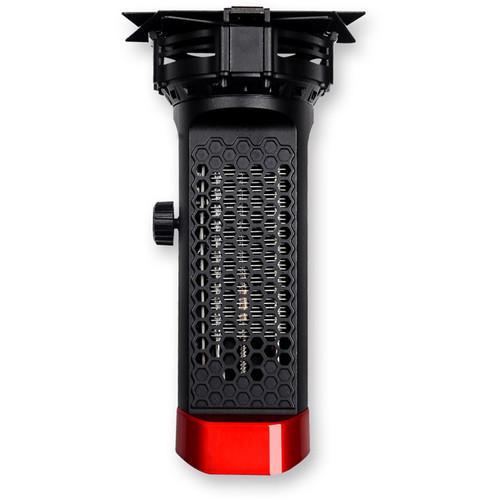

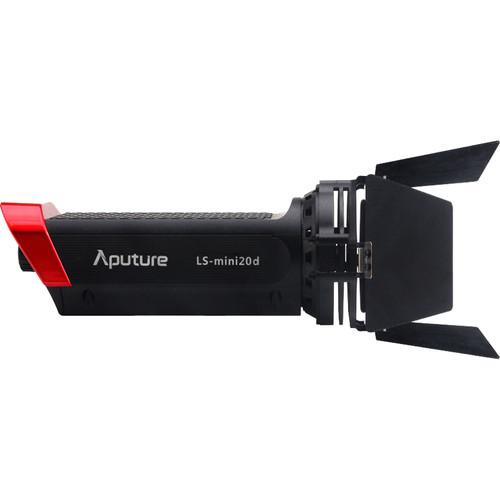

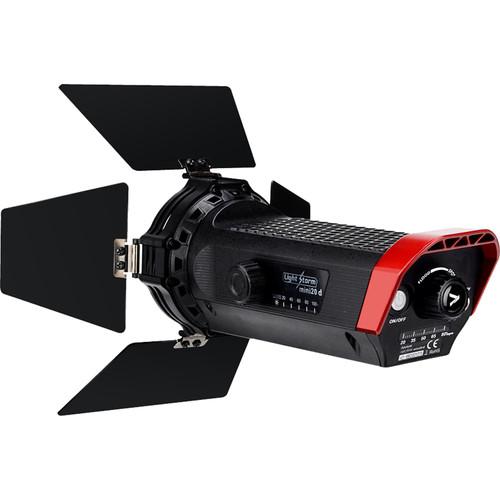

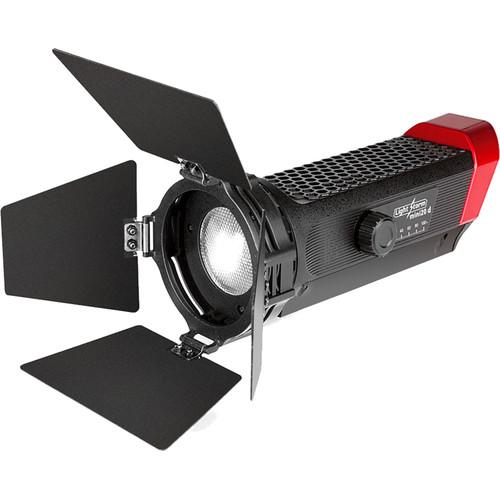

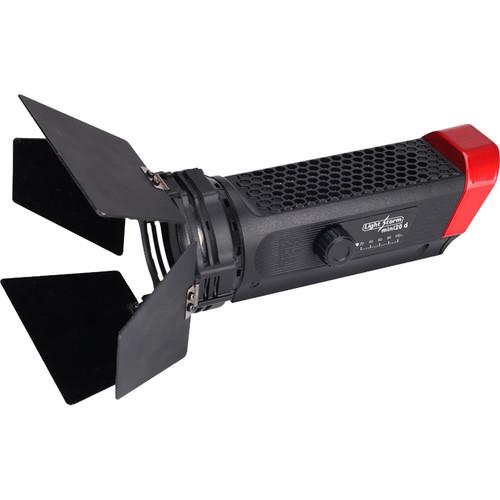

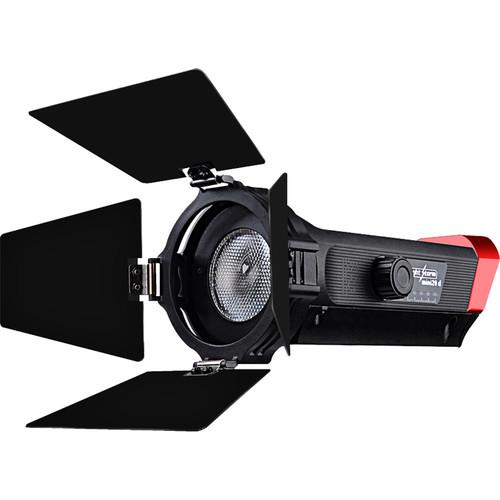

Product description The Light Storm LS-mini20d Daylight LED Light from Aputure is a chip-on-board (COB) fixture with a 7500K color temperature, and it consumes 30W of power while outputting 929 fc in spot mode and 167 fc in wide mode at a distance of 3.28'. In addition to its power efficiency, this fixture also features accurate color rendering, with a CRI and a TLCI rating of 97.The LS-mini20d has an intelligent cooling system that employs a temperature sensitive fan to regulate the heat. There is also a auto/force button that triggers maximum cooling.
The LS-mini20d's performance is backed up by its design; the light goes through a hundred fabrication steps. The LS-mini20d is ready for worldwide use thanks to its 110-240 VAC power supply. You can also use an optional battery through D-tap for external DC power when mains power is unavailable. - Powerful Illumination
- The LS-mini20d uses the chip-on-board design of the Aputure Light Storm series. It features a TLCI and CRI of 96+, which offers natural, pristine color in any application. With a Fresnel built into the front of the light for focusing, the light beam from the LS-mini20 is capable of outputting 2000 lumens using only 30W of power and can reach up to 40,000 lux at 1.6' away.
- Versatility
- The Aputure LS-mini20d offers you complete controllable and shapeable light for any situation. It includes an ultra-smooth dimmer wheel to change intensity from 20% to 100%, and it also has an adjustable beam angle wheel to spot and flood your light anywhere from a 20-80-degree beam angle. Whether you are dealing with shape-based lighting or portrait lighting, the LS-mini20d is a tool to help turn your vision into reality.
- Numerous Power Options
- With its 5 to 18V port, the LS-mini20d supports a wide-range of powering solutions. The light can be powered using an AC/DC adapter or a Sony NP-F970 battery. It can also be powered by any standard 5V power bank or through D-tap.
- Color Temperature
- The LS-mini20 features two models with two different color temperatures: the LS-mini20d (7500K) and the LS-mini 20c (3200-6500K).

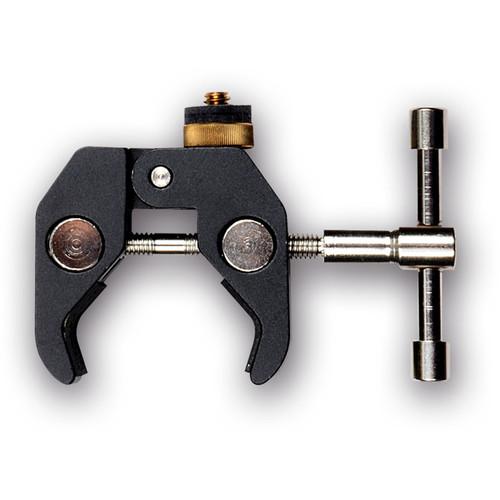

In the Box Aputure Light Storm LS-mini20d Daylight LED Light NP-F970 Battery Battery Adapter 5500K Filter 2 x Filter Clamp Universal Shoe Mount Ball Head 5 x 3200K Filter AC/DC Adapter Charger Crab Clamp Power Cable USB Type-A to XLR Cable D-Tap to XLR Cable 4-Way Barndoors Limited 1-Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure Light Storm LS-mini20d Daylight LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure LS-mini20d Specs | | | Beam Angle | 20 to 80° | | Color Temperature | 7500K ± 300K | | Color Accuracy Standard | CRI 97 at 7500K
TLCI 97 at 7500K
CQS 95 at 7500K | | Cooling System | Fan | | Dimming | Yes, 20 to 100% (Continuous) | | Display | None | | Photometrics | 80° at 7500K:
167 fc / 1800 lux at 3.28' / 1 m
20° at 7500K:
929 fc / 10,000 lux at 3.28' / 1 m | | Fixture Dimensions | 9.1 x 4.8 x 3.8" / 231.0 x 122.0 x 97.0 mm | | Fixture Weight | 3.5 lb / 1.6 kg | | | | Fixture Mount | 1/4"-20 Female | | Accessory Mount | None | | | | Wireless Range | 328' / 100 m With optional wireless remote | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 5 to 18 VDC at 4 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 11.9 x 7.0 x 5.9" |
