User Manual for Aputure LS-mini20 Daylight Bi-Color 3-Light Flight Kit Click to enlarge the picture
Contents of the user manual for the Aputure LS-mini20 Daylight Bi-Color 3-Light Flight
- Product category: LED Lights Aputure
- Brand: Aputure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aputure LED Lights
 |
User manual for the Aputure LS-mini20 Daylight Bi-Color 3-Light Flight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aputure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aputure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aputure product will considerably shorten its lifespan!
|

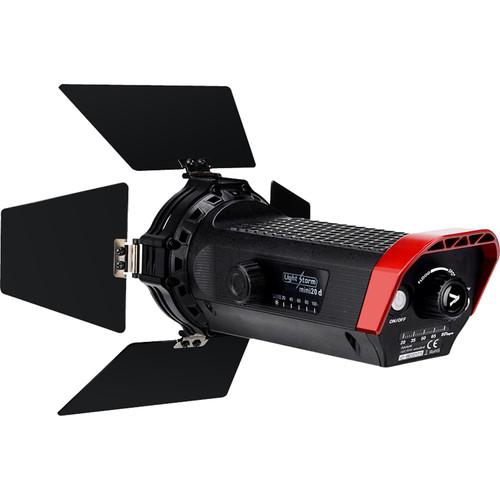

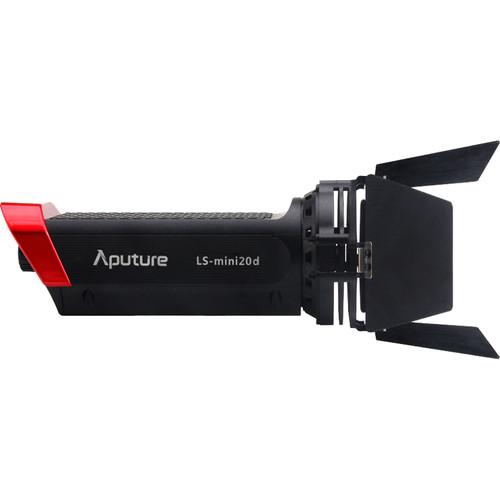

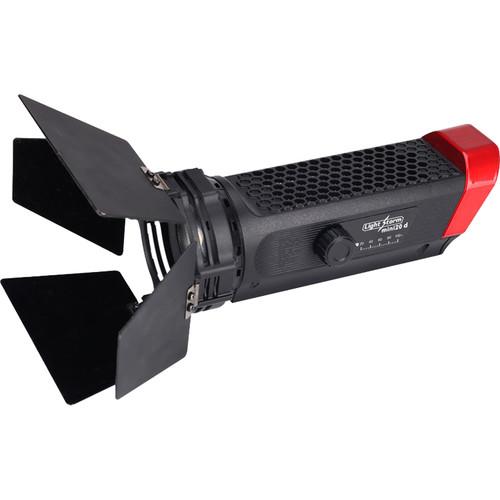

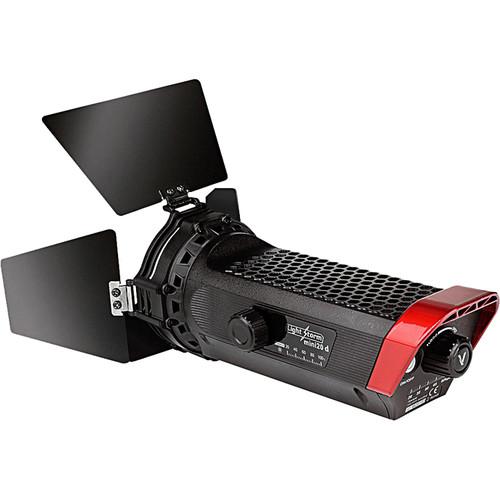

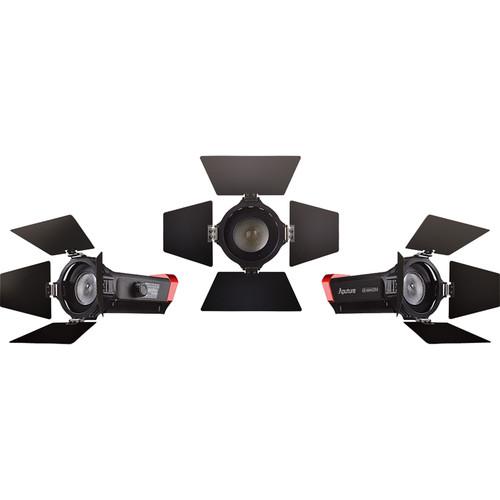

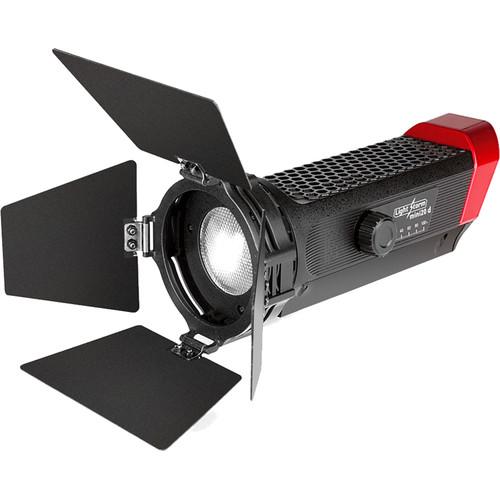

Product description The LS-mini20 Daylight / Bi-Color 3-Light Flight Kit from Aputure is a lightweight 3-point lighting setup that's great in the studio but also great on the road. Each light comes with a 4-way barndoors, an AC adapter, a NP-F970 battery with adapter and charger, a USB cable, a crab clamp, a D-Tap cable, a filter set, and a universal cold shoe mount. It all fits in the padded kit case. Part of the Light Storm series, the LS-mini20c Bi-Color LED Head is a 9.0 x 4.8 x 3.8" light source that weighs just 1.25 lb and has color that's variable from 3200 to 6500K or anywhere in between to match other lights or ambient light conditions. Light intensity is also variable offering dimming from 20 to 100%. CRI/TLCI ratings are 96/97, indicating a faithful and accurate rendition of color. The LS-mini20c has a wide 20-60-degree beam spread that can be shaped and controlled via the included 4-way barndoors. Versatile is an apt word to describe the light. Power options include the provided AC adapter or the kit's Sony NP-F970 battery. In fact, the LS-mini20c Bi-Color LED Head can run on any standard 5V power bank or V-mount battery via a D-Tap cable.The LS-mini20d Daylight LED Head is a 9.0 x 4.8 x 3.8" light source that weighs just 1.25 lb and has daylight color temperature of 7500K for shooting outdoors or in locations with large windows. Light intensity is variable, offering dimming from 20 to 100%. CRI/TLCI ratings are 97, indicating an accurate rendition of color. The LS-mini20d has a wide 20-80-degree beam spread that can be shaped and controlled via the included 4-way barndoors. - Photometrics
- LS-mini20d
Spot/Wide: 3717/632 fc, 40,000/6800 lux at 1.6' (0.5 m)
Spot/Wide: 929/167 fc, 10,000/1800 lux at 3.28' / 1.0 m
LS-mini20c
Spot/Wide: 1487/250 fc, 16,000/2700 lux at 1.6' / 0.5 m
Spot/Wide: 390/67 fc, 4200/720 lux at 3.28' / 1.0 m In the Box Aputure LS-mini20 Daylight/Bi-Color 3-Light Flight Kit 2 x Light Storm LS-mini20d Daylight LED Light Light Storm LS-mini20c Bi-Color LED Light 3 x NP-F970 Batteries 3 x Battery Adapters 3 x Battery Chargers 3 x Universal Cold Shoe Mounts 3 x Crab Clamps 3 x D-Tap to XLR Cables 3 x USB Type-A to XLR Cables 3 x Filters (5500K) 3 x Filters (3200K) Padded Case Limited 1-Year Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Aputure LS-mini20 Daylight Bi-Color 3-Light Flight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAputure LS-mini20 Specs | | | Beam Angle | 20 to 60°
20 to 80° Bi-Color: 20-60 Degrees
Daylight: 20-80 Degrees | | Color Temperature | 3200 to 6500K
7500K | | Color Accuracy Standard | CRI 96
TLCI 97 | | Dimming | Yes, 20 to 100% (Continuous) | | Lumens | 2000 | | Fixture Dimensions | 9.1 x 4.8 x 3.8" / 231.0 x 122.0 x 97.0 mm | | Fixture Weight | 1.27 lb / 0.58 kg | | | | Fixture Mount | 1/4"-20 Female | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 5 to 18 VDC at 4 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 19.0 x 11.5 x 11.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
