Product description

The Aputure V-Screen VS-1 FineHD On-Location 7" LCD Monitor features a 7" LCD screen with a resolution of 1920 x 1200 pixels, 450 cd/m2 brightness, and a 1200:1 contrast ratio for a crisp image. It features 160° horizontal and 160° vertical viewing angles. With HDMI, SD/HD component, and composite inputs, it can handle most video signals you throw at it including UHD 30, 25, and 24 fps with the firmware 2.4 update. Built-in display functions include aspect ratio selection, center marker, monochrome display in gray, red, green, or blue, and H/V flip.

The VS-1 FineHD features front panel mounted controls for power, input selection, and menu. You can display and adjust safe area guides as well as center marker, and the monitor's flexible power options allow for powering via the coax connector or optional Sony F970, F550, and NP-FM500H type batteries. It incorporates a 1/4"-20 threaded mounting hole, and includes a ball joint accessory shoe mount and removable sun hood.
    Firmware 2.4
  • The downloadable firmware 2.4 provides improved functionality by allowing the monitor to support UHD at 30, 25, and 24 fps. If your monitor does not ship with firmware update 2.4 installed, you can download it yourself by visiting the Aputure website.
    Mounting
  • Using the 1/4"-20 threaded mounting hole on the bottom of the monitor, you can mount the monitor to your camera's accessory shoe using the included ball joint mount.
    Flexible Battery System
  • Compatible with Sony NP-F and NP-FM/QM type batteries. With an optional power adapter, you can be powering the monitor while simultaneously charging an optional battery connected to the monitor.

Display Features

    Safe Area Guides
  • The VS-1 FineHD includes the following selectable guides: 70/80/90%, as well as 1.33:1/1.66:1/1.85:1/2.35:1

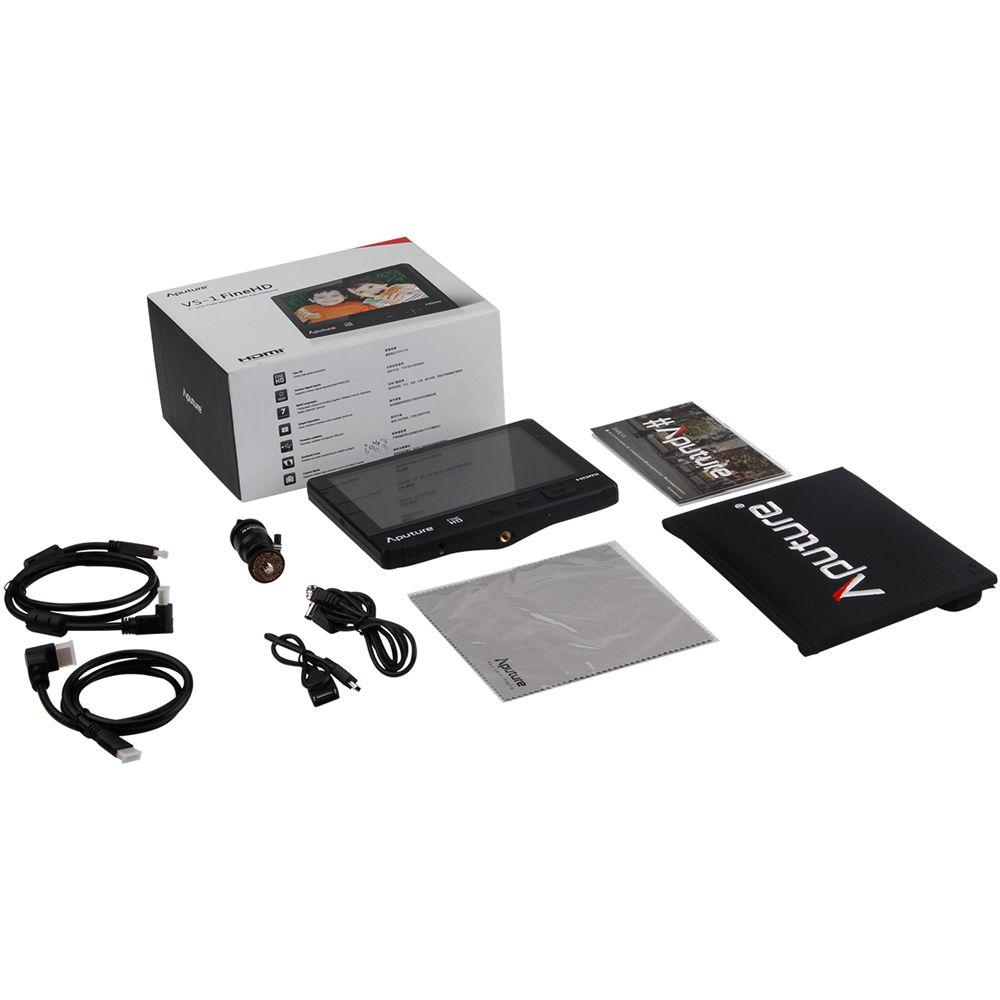

In the Box Aputure V-Screen VS-1 FineHD On-Location 7" LCD Monitor
  • HDMI Cable (Type A to Type C)
  • HDMI Cable (Type A to Type D)
  • Ball Joint Cold Shoe Mount

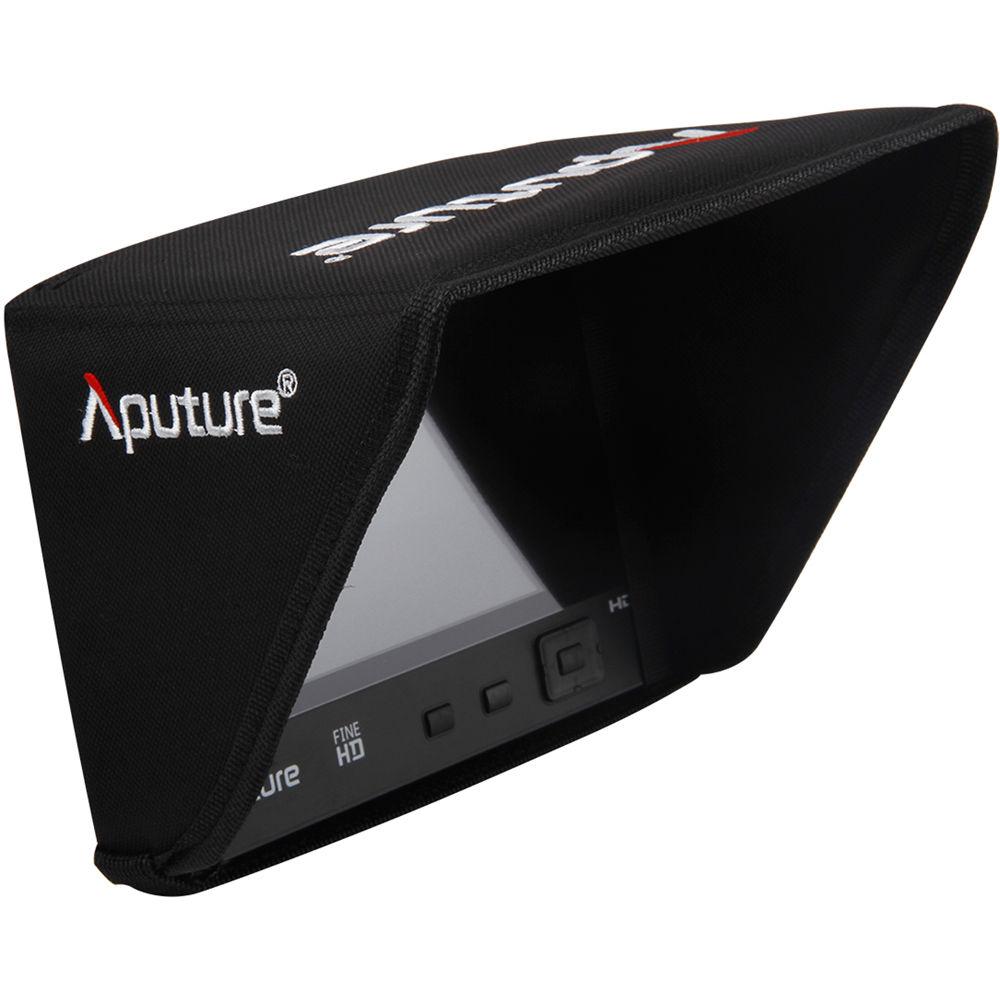

  • Folding Sunshade
  • Firmware Upgrade Cable
  • Power Cable
  • Cleaning Cloth
  • Limited 1-Year Warranty
  • User Manual PDF 1.5mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Aputure V-Screen VS-1 FineHD On-Location 7" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Aputure VS-1 Specs

    Panel Type IPS-Type LCD
    Display Size 7.0" / 17.8 cm
    Screen Resolution 1920 x 1200
    Viewing Angle Horizontal: 160°
    Vertical: 160°
    Maximum Brightness 450 cd/m2
    Contrast Ratio 1200:1
    Dot Pitch 0.07875 x 0.07875 mm
    Image Controls Color Temperature Selection, Image Flip, Screen Markers
    Video 1 x HDMI Type A Input
    1 x 3BNC (Component) Input
    1 x RCA (Composite) Input
    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker None
    Power 1 x Coax Input
    Card Slot None
    Video Format HDMI
    UHD 4K: 24/25/30
    1080p
    1080i
    720p
    480p
    NTSC
    576p
    PAL
    Component
    1080p
    1080i
    720p
    480p
    NTSC
    576p
    PAL
    Composite
    480p
    NTSC
    576p
    PAL
    DC Input Power 7 to 18 VDC at 950 mA
    Battery Type 1 x L-Series or M-Series
    Power Consumption 7 W (Maximum)
    Mounting 1 x 1/4"-20 Female
    Operating Humidity 30 to 70%
    Operating Temperature 32 to 131°F / 0 to 55°C
    Dimensions (W x H x D) 7.2 x 5.4 x 0.9" / 18.2 x 13.8 x 2.3 cm
    Weight 13.4 oz / 380 g
    Package Weight 2.4 lb
