User Manual for Aqua-Vu AV 715C Underwater Viewing System with Color Video Camera and 7" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Aqua-Vu AV 715C Underwater Viewing System
- Product category: Fishing Cameras Aqua-Vu
- Brand: Aqua-Vu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aqua-Vu Fishing Cameras
 |
User manual for the Aqua-Vu AV 715C Underwater Viewing System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aqua-Vu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aqua-Vu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aqua-Vu product will considerably shorten its lifespan!
|

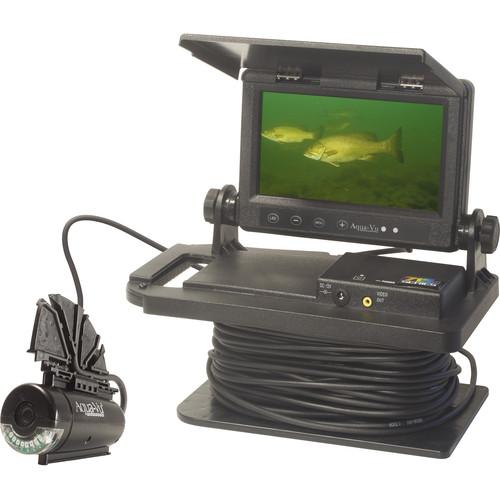

Product description A highly useful tool for fishing and underwater exploration, the AV 715c Color Underwater Video Camera with 7" LCD Monitor from Aqua-Vu allows you to study marine life and environments at a maximum depth of 50'. Stay dry topside in your boat while using the monitor to view what the camera sees below the surface. This system is ideal for saltwater, freshwater, and ice fishing, but may also be used for various other applications, such as explorations and inspections.

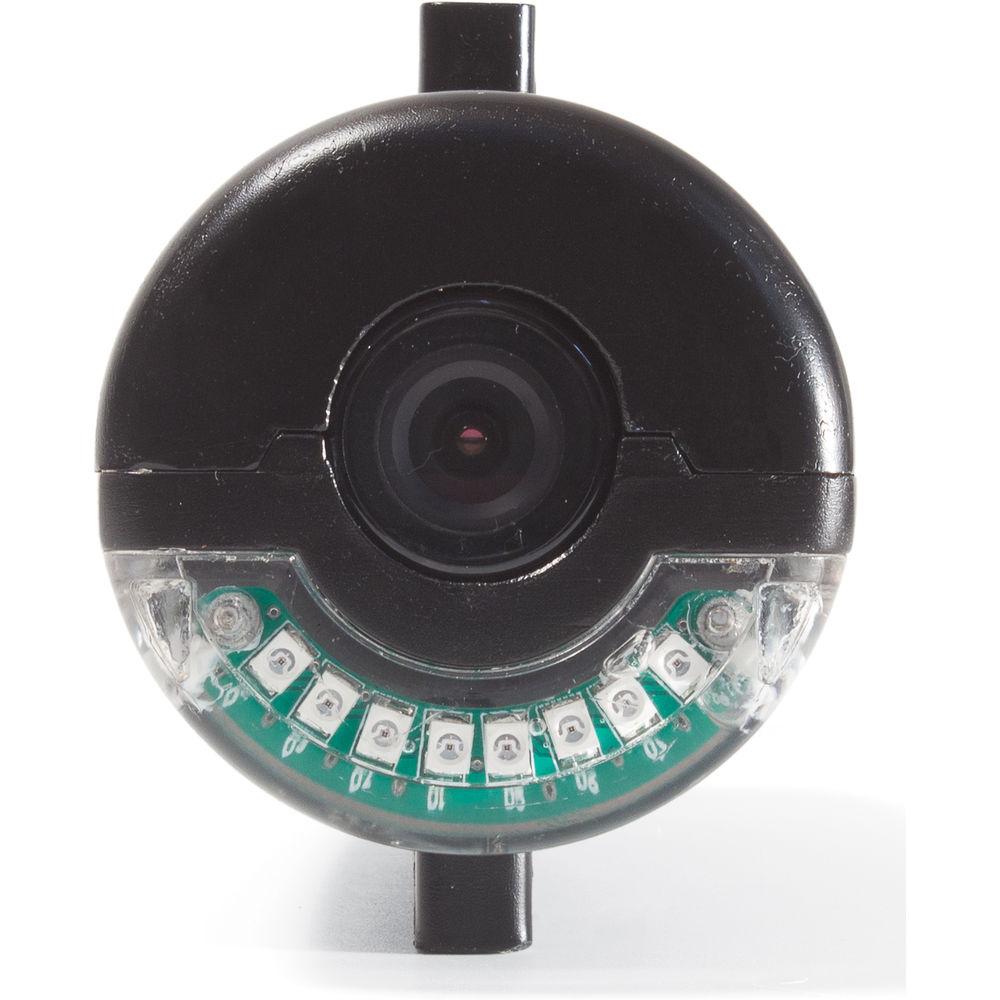

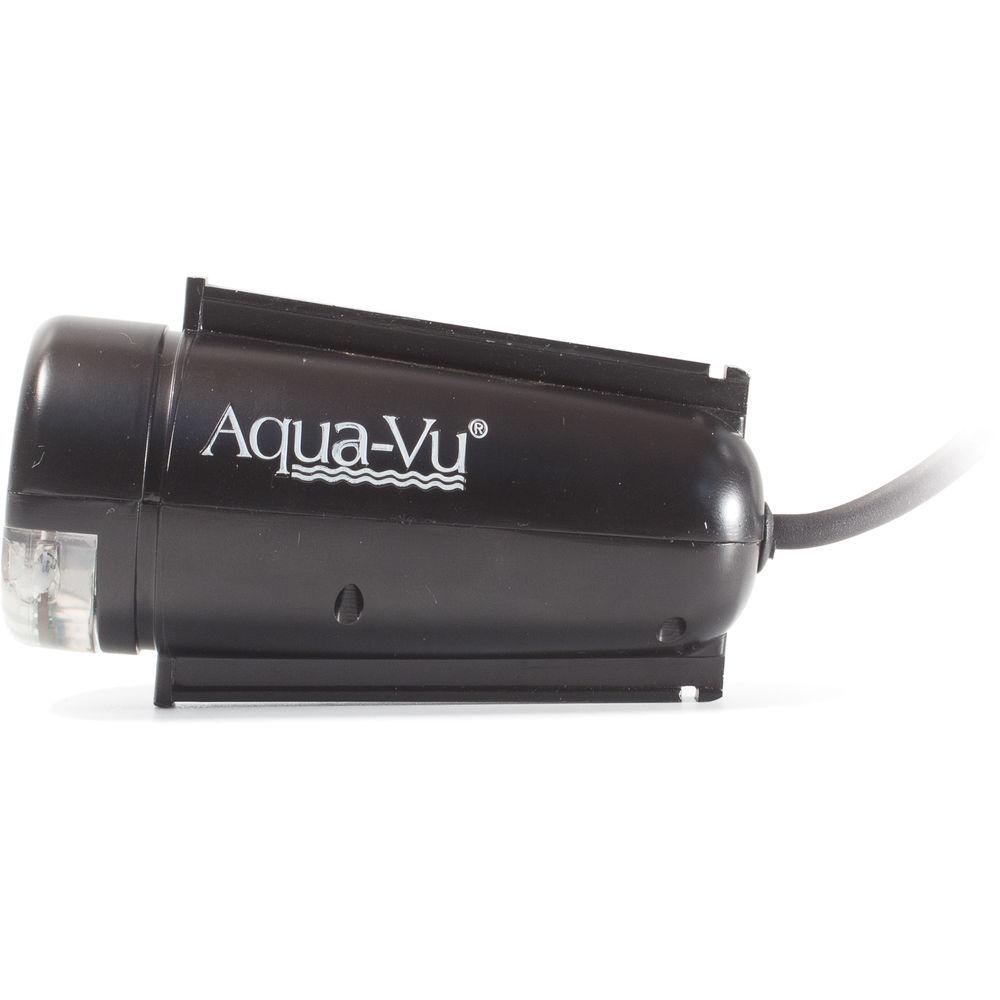

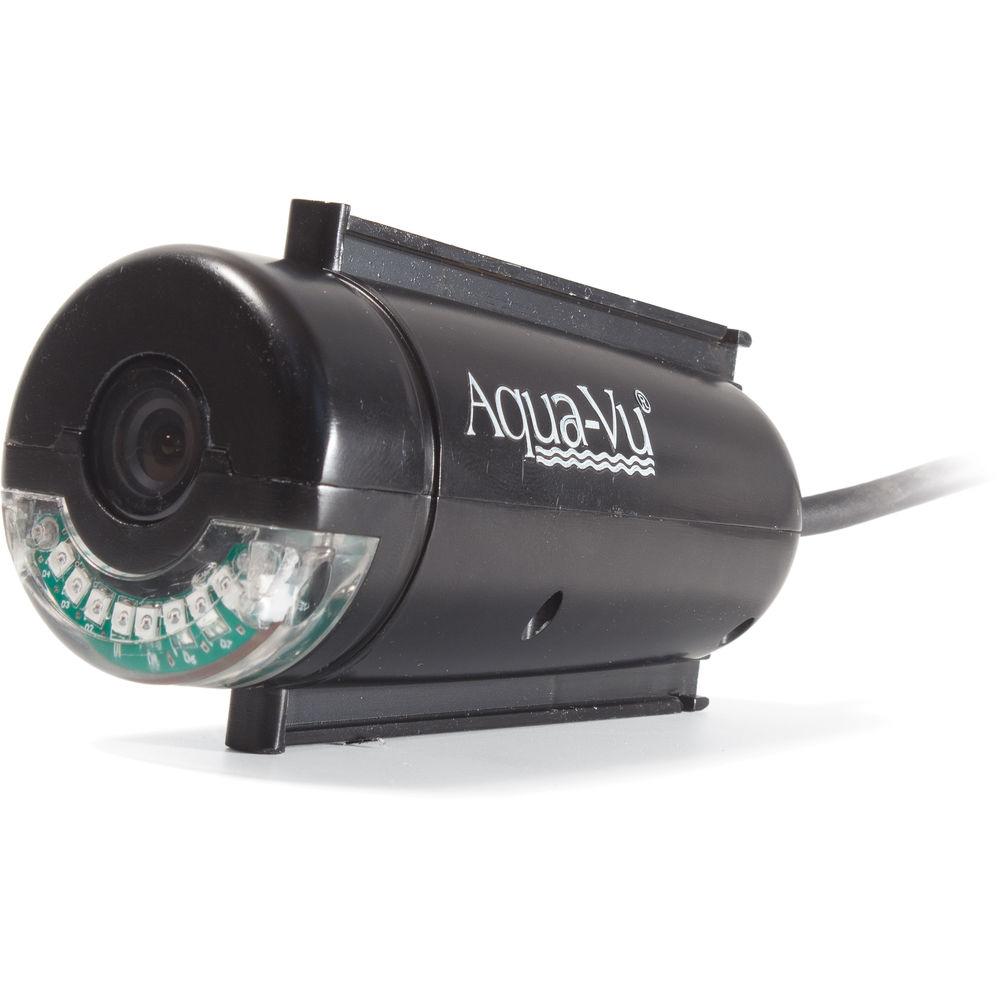

The camera features a color CMOS image sensor for streaming live video feed to the monitor, which is connected via the supplied 50' cable. Additionally, the camera is equipped with 6 LED lights to enhance visibility in dark conditions, and offers a wide 92° angle of view for ample coverage. The extremely compact form factor and a shape resembling that of a fish help you to avoid spooking the sea life you're viewing.Power to the underwater viewing system is provided by the internal, rechargeable, 12V, sealed lead acid battery, which fits securely inside the monitor base, or by an optional external battery. As an added bonus, a padded, weatherproof case is included so you can store and transport the system with ease. - Applications
-
- When fishing from a boat or pier, lower camera into the water, use the monitor to locate fish and determine species and size
- When ice-fishing, lower camera into the water through a hole in the ice, use the monitor to view fish as they approach, see how fish react to different types of bait, lures, colors, and movements (fish and view through same hole or use one hole for fishing and another for viewing)
- Exploring underwater sea life and environments
- Checking waters for safety before going swimming
- Performing inspections under your boat
- Operation
-

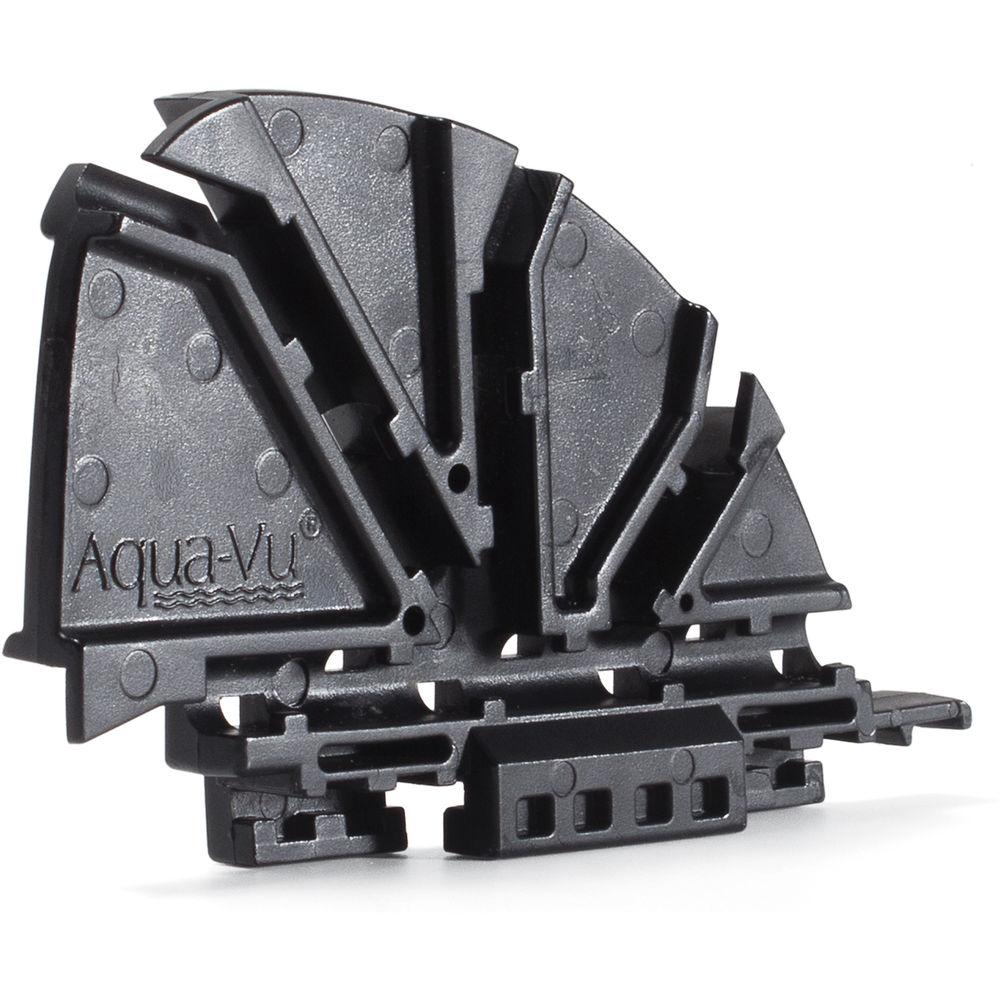

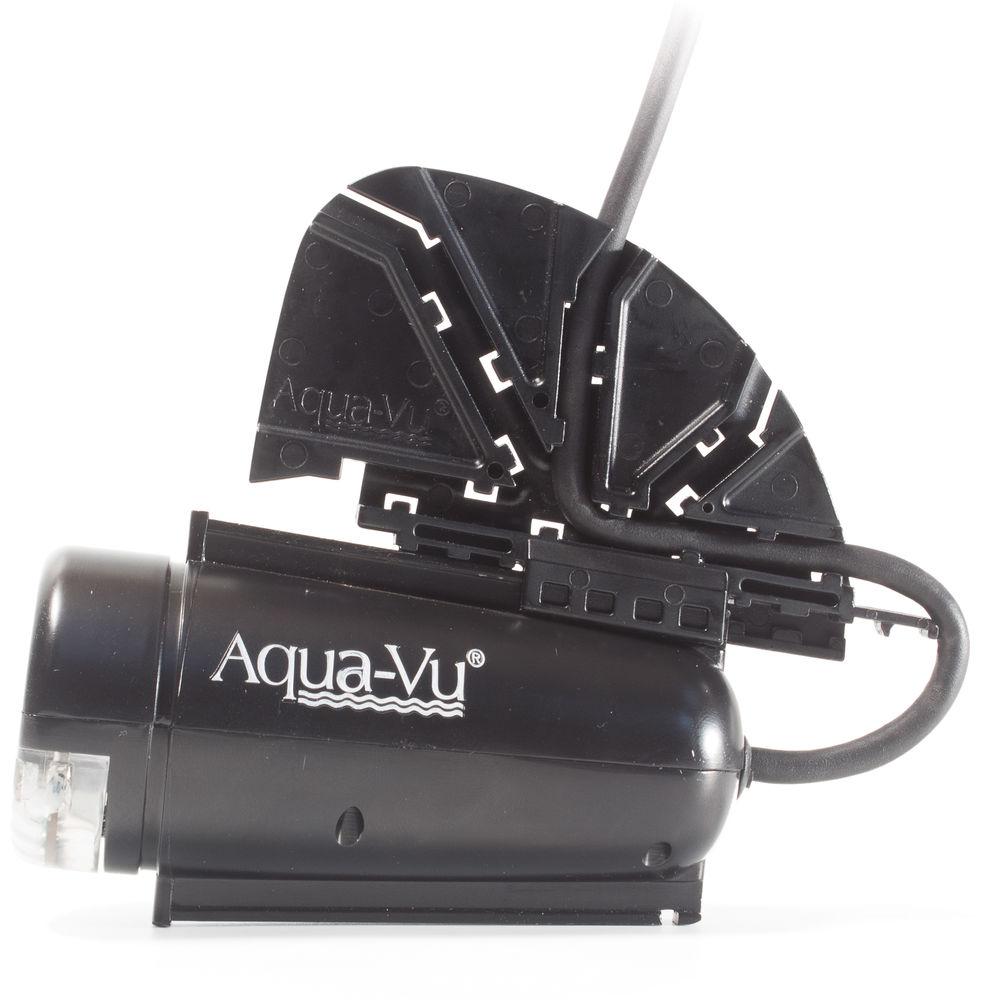

- Insert supplied cable into rear slot on camera's stabilizing fin, causing lens to point downward
- Fin keeps camera pointed in the direction your boat is traveling
- Raise or lower cable with your hand to move camera up and down
- Let cable out or take it in as needed, depending on depth and boat speed
- Recommended camera speed for optimal viewing is less than 1.7 knots / 2 mph
- Optional, adjustable ICE-POD can be set over hole when ice-fishing and can hold cable for you
- Optional MO-POD 3 motorized, remote-controlled unit offers convenient hands-free camera rotation
- Camera orientation can be controlled using optional weights
- Live Video
-
- Camera with color CMOS image sensor
- Does not capture video or photos, but streams live video from underwater to topside 7" color LCD monitor, which features adjustable viewing angle and flip-up sun shield for better visibility
- Video out jack for connecting monitor to handheld camcorder, video recorder, or a larger NTSC external monitor, such as a TV. If connecting to a camcorder, you can view and record video at the same time. Use any optional RCA-style patch cord, which comes with most camcorders
- Ideal for use on large boat with built-in video system, or in winter "fish house"
- Adjustable LED lights to enhance your view of the world beneath the surface
- Controls
-
- On/Off
- Camera LEDs
- Brightness adjustment
- Buttons are backlit when ambient light is low
- Power
-
- Runs on rechargeable, 12V, 7Ah, sealed lead acid battery, which fits securely into monitor base
- Included charger plugs directly into battery's port and other end goes into 120 VAC outlet
- Charger features LED status indicator: Red for drained or charging battery, green for 80 - 100% charged battery
- Designed to prevent overcharging
- Fully-charged battery will operate the Aqua-Vu continuously for up to 6 hr
- Optional larger, external 12V battery also available for powering the unit for a longer period of time
- Supplied power cord with cigarette lighter adapter for on-the-go charging
- Optional power cord with alligator clips available
- Viewing system is equipped with a fuse to protect against damage if battery is improperly connected
- Construction Details
-
- Depth rating: 50'
- Includes 50' of cable
- Shaped like a black fish to avoid scaring off real fish
- Corrosion-resistant to withstand effects of saltwater
- Features stainless steel hardware
- Storage and Transport
-
- Includes a padded, weatherproof protective case for safe storage and carrying
- Sun shield doubles as screen protector for travel
UPC: 656169107236 In the Box Aqua-Vu AV 715C Underwater Viewing System with Color Video Camera and 7" LCD Monitor Rechargeable 12V Sealed Lead Acid Battery Battery Charger 12V Power Cord with Cigarette Lighter Adapter Padded Weatherproof Protective Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aqua-Vu AV 715C Underwater Viewing System with Color Video Camera and 7" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAqua-Vu 200-7236 Specs | | | Image Sensor | Color CMOS | | Resolution | Not specified by manufacturer | | Lens | Angle of View: 92°
Zoom: No | | Lights | 6 adjustable LEDs | | Depth Rating | 50' / 15.25 m | | Speed | For Optimal Viewing: Less than 1.7 knots / 2.0 mph | | Integrated Sensors | No orientation, depth, temperature, or other sensors aside from CMOS chip for video feed | | Connectivity | Connects to topside monitor via 50' / 15.25 m cable (included) | | Material of Construction | Stainless steel hardware and other corrosion-resistant materials | | Power | Runs on battery in monitor base or optional external battery | | Operating Temperature | -10 to 120°F / -23.3 to 48.9°C | | Storage Temperature | Battery: 30 to 70°F / -1 to 21°C | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Controls | On/Off, camera LEDs, brightness adjustment | | Size | 7.0" / 17.8 cm | | Durability | Waterproof: IP67 rated for submersion at 5.9 - 39.4" / 15 cm - 1.0 m for 30 min | | Power | Rechargeable, 12 V, 7.0 Ah, sealed lead acid battery
Charging unit plugs into 120 VAC outlet
Optional, larger external battery available | | Charging Time | Charge battery 8.0 to 12 hr before first use
Max. Charging Time: 24 hr | | | | Package Weight | 12.565 lb | | Box Dimensions (LxWxH) | 13.8 x 12.45 x 8.05" |
