User Manual for Aqua-Vu HD10i 10" High-Definition Underwater Viewing System Click to enlarge the picture
Contents of the user manual for the Aqua-Vu HD10i 10" High-Definition Underwater Viewing
- Product category: Fishing Cameras Aqua-Vu
- Brand: Aqua-Vu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aqua-Vu Fishing Cameras
 |
User manual for the Aqua-Vu HD10i 10" High-Definition Underwater Viewing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aqua-Vu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aqua-Vu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aqua-Vu product will considerably shorten its lifespan!
|
Product description Search and explore beneath the surface, while viewing live video from the comfort of your boat, with the Aqua-Vu HD10i 10" High-Definition Underwater Viewing System. Featuring a wide-angle color camera that captures HD 720p video, along with a 10" color LCD with an anti-glare screen protector, the HD10i allows you to observe, study, and record sea life and environments--all while staying safe and dry on the deck. It also enables you to check water conditions and inspect the underside of your boat for rust, damage, and barnacles. The viewing system's camera is attached to the supplied 75' cable, which allows for the transfer of the live video to the topside monitor. It can be connected to Aqua-Vu's included Camera-Positioning Fin, as well as the optional XD Trolling Fin and Pole Attachment, to allow for effective and controlled deployment, mobility, and underwater exploration. - Applications
-
- Observing, studying, and recording marine life and environments
- Inspecting undersides of boats for rust, damage, and barnacles
- Checking water conditions
- Executing search-and-recovery missions
- Not for use in rough sea conditions and/or storms

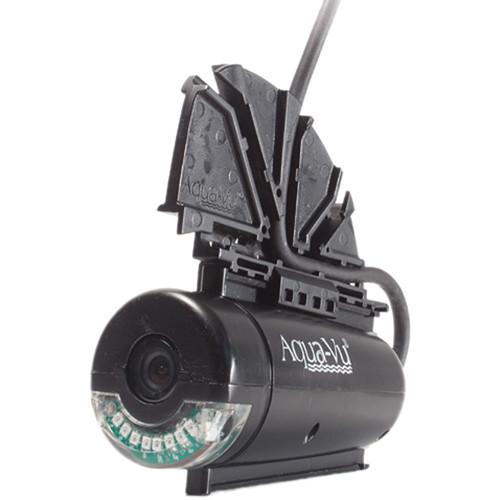

- Camera
-
- Can be deployed easily by pressing the release button on the stand
- Wide 120° angle of view
- Super Low Light Vu technology increases light sensitivity to afford better viewing in dark waters
- Records HD 720p video in color
- Sends live video to the topside monitor via the supplied 75' tether, which features depth markings
- Connects to the included Camera-Positioning Fin
- Can also be connected to the optional XD Trolling Fin with Live Strike Lure Monitoring System for fishing, and the XD Pole Attachment for looking under boats and docks
- Designed for slow drifting or trolling at speeds of 1-3 mph, though the Trolling Fin allows for stability at faster speeds
- Infrared lighting with adjustable intensity provides ample illumination while remaining invisible to sea life, so as not to scare them off as you try to record them
- Accepts the optional XD Light Attachment, which allows you to connect LED or incandescent video lights
- Compatible with the optional Motorized Ice Pod 3 Camera-Positioning Tripod, a support system designed to keep your camera steady during ice fishing

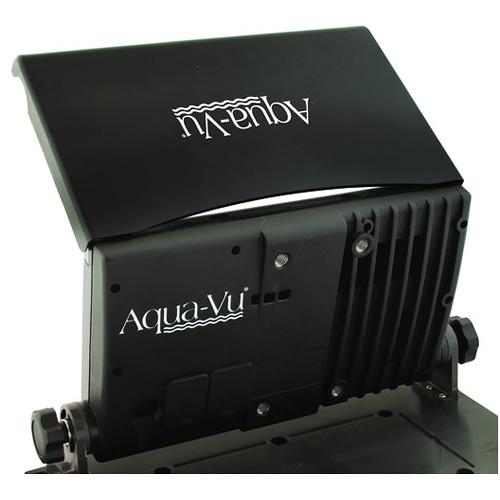

- Monitor
-
- Though designed to stay topside, the heated monitor is IP67-rated for splashes and safe immersion in water to a depth of 3.3' for 30 minutes
- Bright, 10" color LCD screen
- Resolution of 1280 x 800
- Anti-glare screen protector improves visibility in bright sunlight
- HDMI video output enables viewing on large television screens
- Compatible with an optional RAM mount for your boat
- Power
-
- Runs on a supplied 12V, 9Ah battery, which can be replenished via the 12V smart charger built into the back of the monitor
- Charger runs on an included 120 VAC power supply
UPC: 656169107526 In the Box Aqua-Vu HD10i 10" High-Definition Underwater Viewing System 75' Cable Anti-Glare Screen Protector 120V Power Supply 12V, 9Ah Battery 12V Smart Charger Soft Storage Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aqua-Vu HD10i 10" High-Definition Underwater Viewing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAqua-Vu 200-7526 Specs | | | Image Sensor | Type not specified by manufacturer | | Low Light Rating | .01 Lux | | Resolution | HD 1280 x 720p | | Angle of View | 120° | | Focus | Auto | | Exposure Control | Auto | | Lights | Adjustable infrared lighting
Optional XD Attachment enables connection of LED or incandescent video lights | | Connectivity | To Topside Monitor: 75' / 22.9 m cable | | | | Size | 10" / 25.4 cm | | Type | Color LCD | | Resolution | 1280 x 800 | | Aspect Ratio | 16:9 | | Connectivity | HDMI video output | | Waterproofing | IP67 Rating: Submersible to 3.3' / 1.0 m for 30 minutes | | | | Battery | Rechargeable 12 VDC, 9.0 Ah battery (included) | | Charger | Built-in, 12 VDC smart charger with 120 VAC power supply (included) | | | | Package Weight | 23.7 lb | | Box Dimensions (LxWxH) | 19.5 x 11.8 x 11.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
