Product description Search and explore beneath the surface, while viewing live video from the comfort of your boat, with the micro 5.0 Revolution Underwater Viewing System from Aqua-Vu. The system makes a great fish finder, taking the guesswork out of the activity by showing you exactly where the fish are and allowing you to see when they take the bait. It can also be used for marine life observation, boat inspections, and other applications. The micro-camera and its durable 60' tether are designed for submersion, while the LCD monitor is meant to stay topside but is IP67-rated for very brief submersion in shallow water.
The video feed from the camera can be displayed on a larger monitor via the RCA video-out connector. Enjoy a glare-free view as you watch the LCD, thanks to the included sun shield. Utilize the adjustable IR lighting to brighten up dark areas of the underwater world. - Applications
-
- Observing, studying, and recording marine life and environments
- Inspecting undersides of boats for rust, damage, and barnacles
- Checking water conditions
- Not for use in rough sea conditions and/or storms
- Camera
-
- Sends live video to the topside monitor via the durable 60' tether, which features a depth indicator

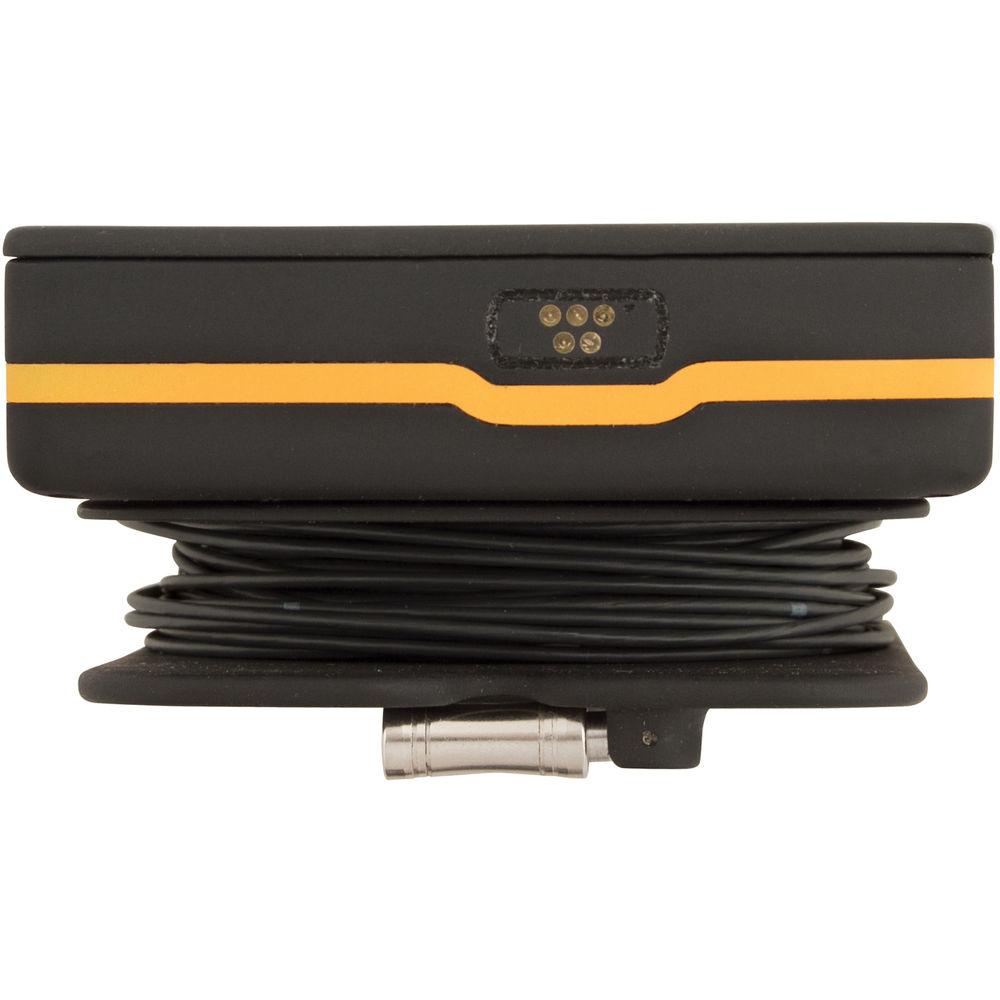

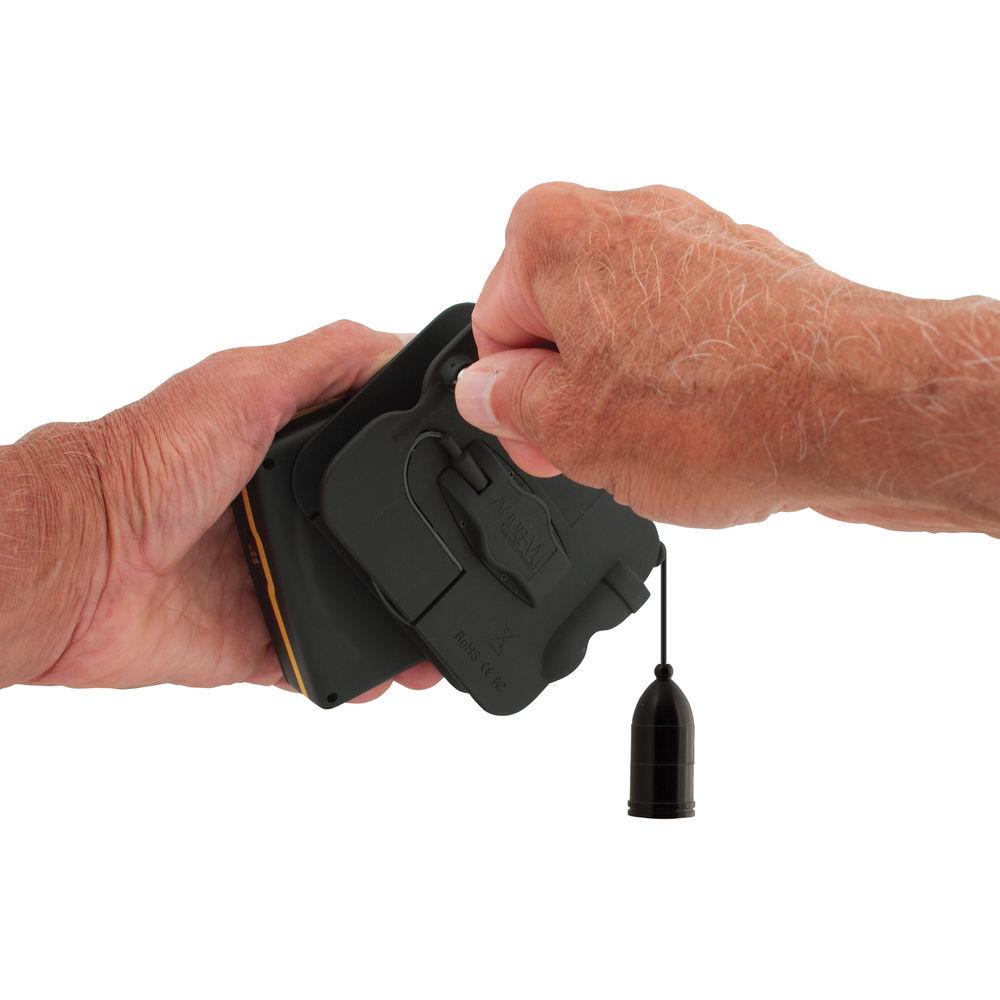

- Reel system enables easy camera deployment and retrieval
- Removable fin and clips allow you to position and steer the camera effectively
- Adjustable infrared lighting provides ample illumination while remaining invisible to sea life, so as not to scare them off as you try to record them
- Compatible with the optional Motorized Ice Pod 3 Camera-Positioning Tripod, which is designed for ice fishing
- Can also be used with the optional Pro Snake Series Camera Mount

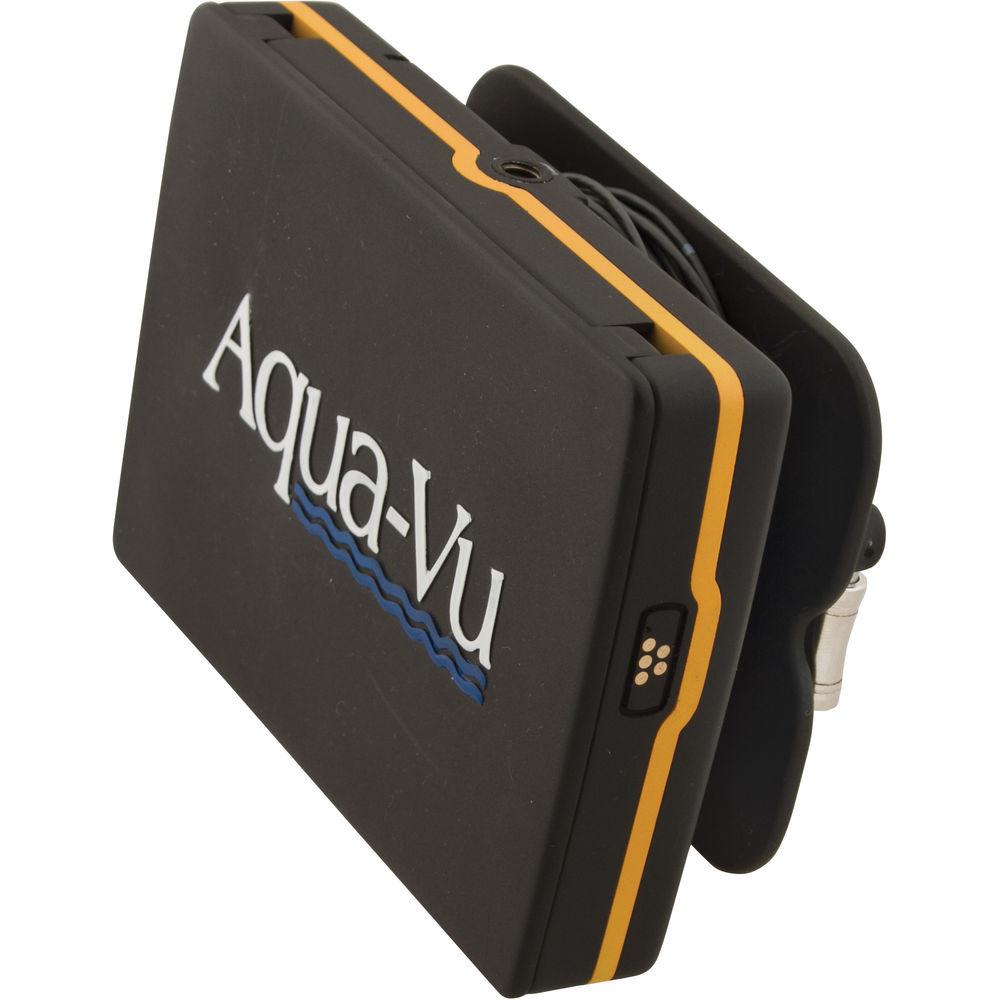

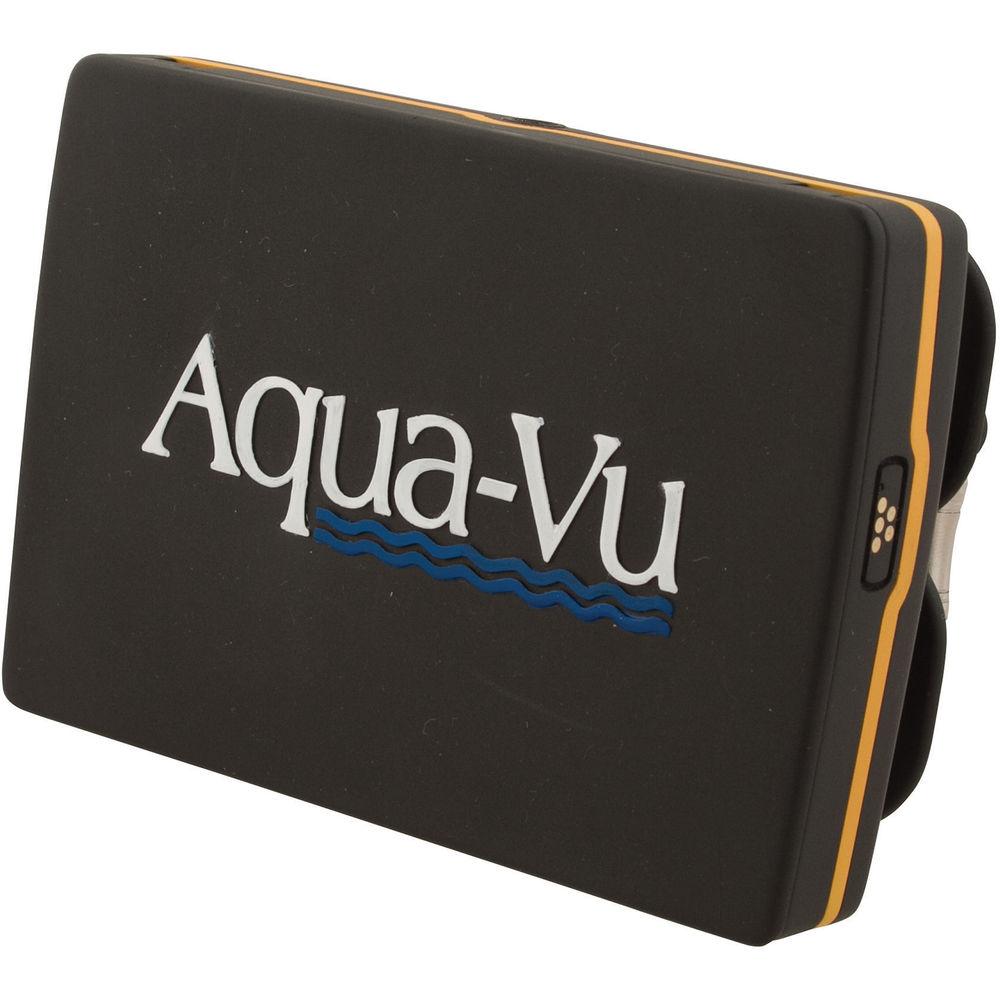

- Monitor
-
- Though designed to stay topside, the monitor is IP67-rated for splashes and safe immersion in water to a depth of 3.3' for 30 minutes

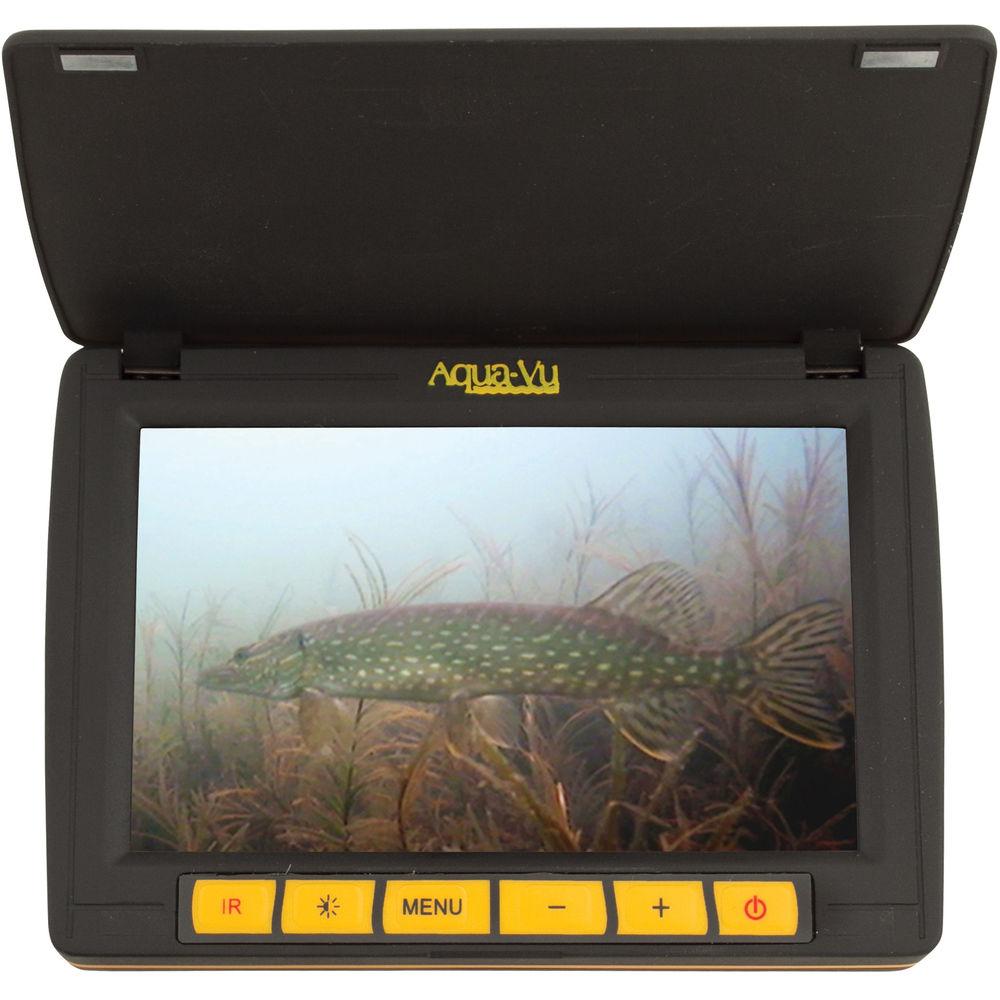

- Bright, 5" color LCD screen offers a clear view of underwater scenes--even in strong sunlight
- RCA video-out connector for viewing on a large television monitor
UPC: 656169107540 In the Box Aqua-Vu micro 5.0 Revolution Underwater Viewing System Removable Fin Set of Camera-Positioning Clips Sun Shield Rechargeable Lithium-Ion Battery Charger Base with USB Cable Wrist Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aqua-Vu micro 5.0 Revolution Underwater Viewing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAqua-Vu 100-7540 Specs | | | Focus | Auto | | Exposure Control | Auto | | Lights | Adjustable infrared lighting | | Connectivity | To Topside Monitor: 60' / 18.3 m cable | | | | Size | 5.0" / 12.7 cm | | Type | Color LCD | | Connectivity | RCA video-out | | Waterproofing | IP67 Rating: Submersible to 3.3' for 30 minutes | | | | Battery | Rechargeable lithium-ion pack (included) | | Charger | Base unit with USB cable (included)
Input Power: 100-240 VAC, 50/60 Hz, 0.2 A (max)
Output Power: 5.0 V, 1.0 A
LED Indicator: Turns green when battery is fully charged |
