Product description Capture photos and video over, under, on, or near the water's surface with your Sony Alpha a6500 or a6300 Mirrorless Digital Camera in AquaTech's ATB A6500 Water Housing, offered here in a kit with the 2-Button Pistol Grip Trigger and LP-5 Flat Lens Port. Featuring a depth rating of 33', the enclosure is designed for shallow water and surface use and shouldn't be operated at depths beyond 15' for longer than 5 min.

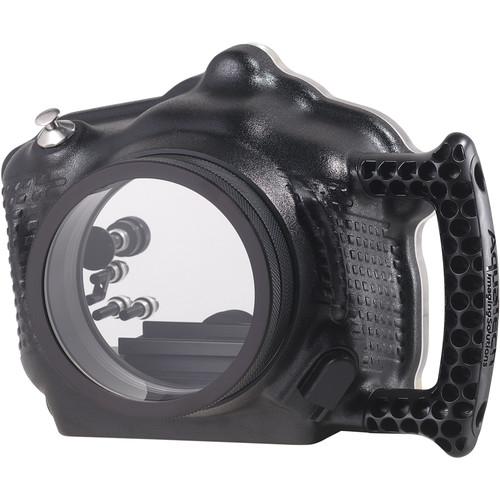

The ATB A6500's tactile, mechanical controls provide easy access to important camera functions, and its ergonomic design and removable side grip afford optimal handling and comfort. The supplied Pistol Grip allows you to aim and maneuver the housing and capture images--all with a single hand and all without camera shake. It mounts onto the bottom of the camera and is light and ergonomic in your hand. The grip's waterproof shutter release switch is highly sensitive and direct to help ensure you don't miss your shot. Additionally, the unit features dedicated focus control, though you may find that zone focus enables the sharpest images.

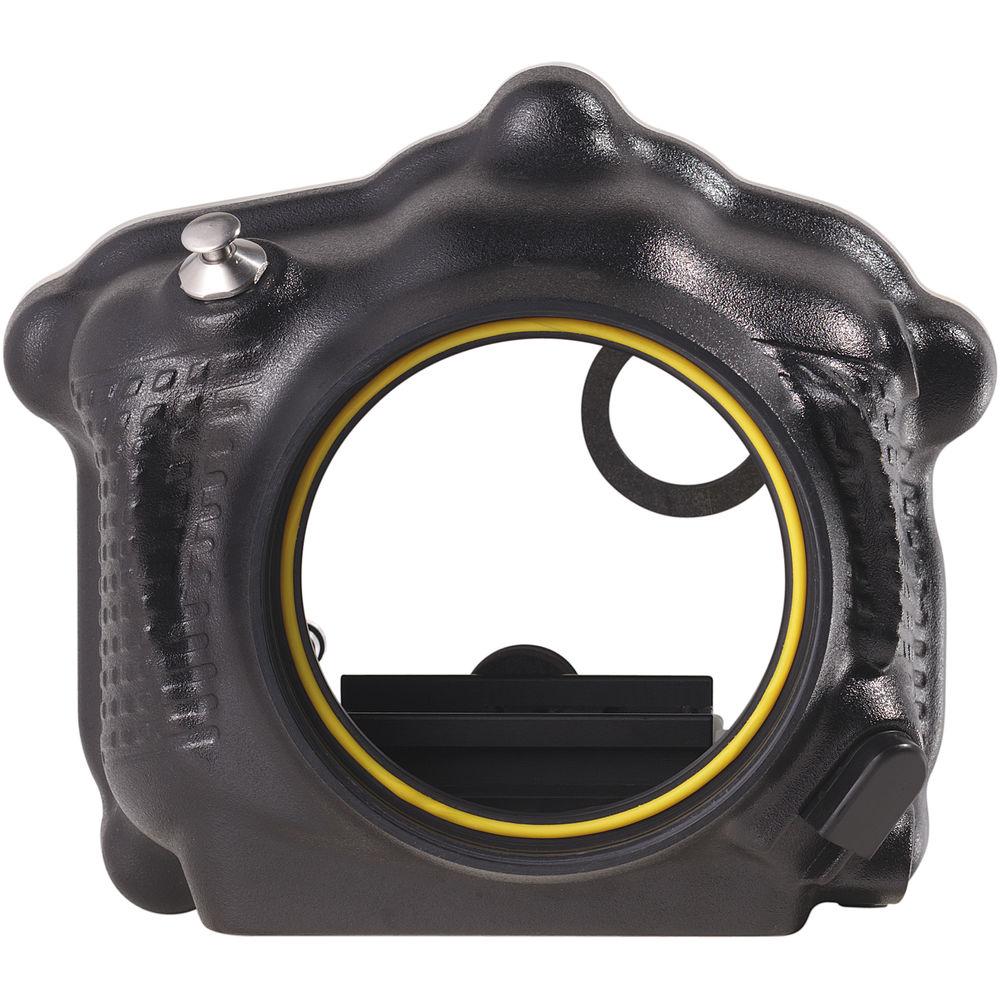

The housing body is crafted from durable polyurethane, while the controls are made of stainless steel, aluminum, and high-strength plastics. All of the aluminum parts have been anodized for resistance to corrosion and other wear and tear.
The enclosure ships with the LP-5 Port for the Sony Alpha E-Mount 35mm f/1.8, 50mm f/1.8, and 16-50mm f/3.5-5.6 lenses. It also accepts a system of optional, interchangeable LP-series ports that accommodate various other Sony lenses, as well as non-Sony lenses via adapters. For complete compatibility information, see the Port Chart. - Waterproofing
-
- Depth Rating: 33'
- Designed for shallow water and surface use, and shouldn't be operated at depths beyond 15' for longer than 5 min
- Controls, Handling and Operation
-

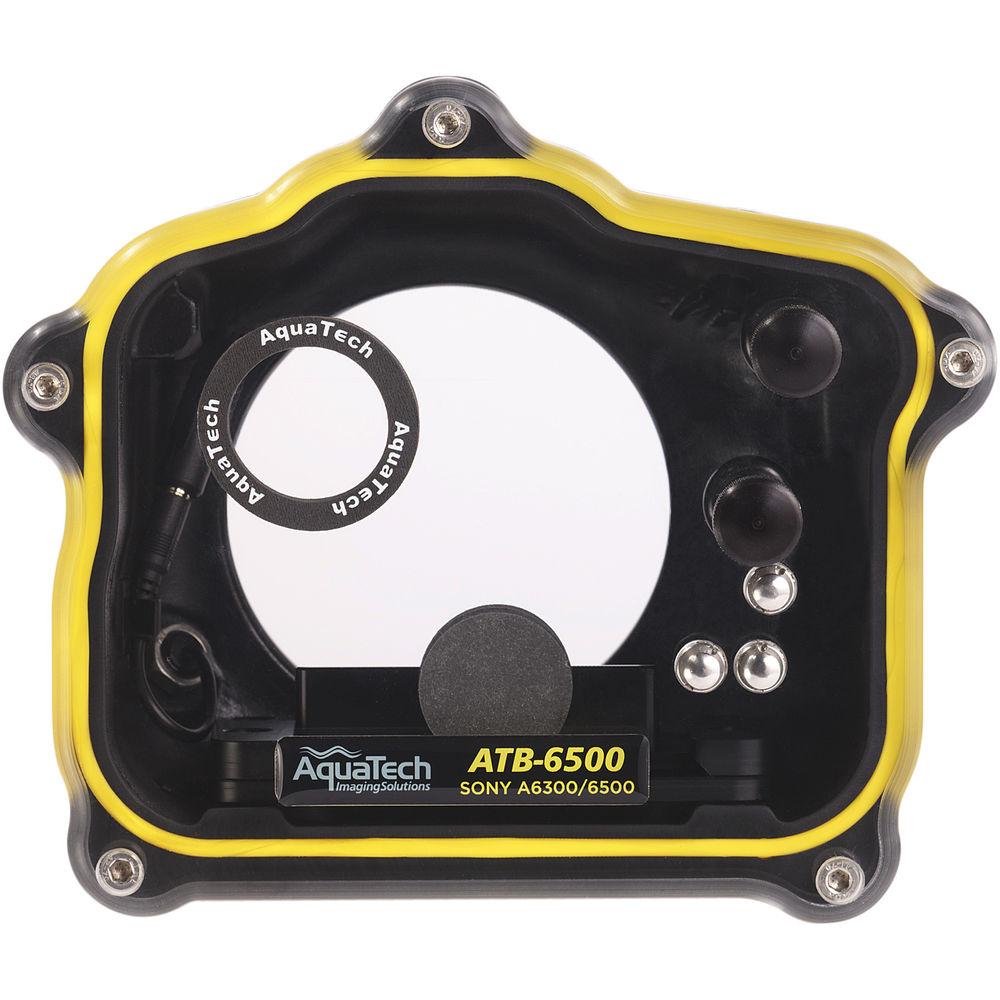

- Tactile, mechanical push-button and dial controls provide easy access to important camera functions: shutter, video recording, top dial, DISP, C3, ISO, shutter speed, aperture, set, playback, picture profile

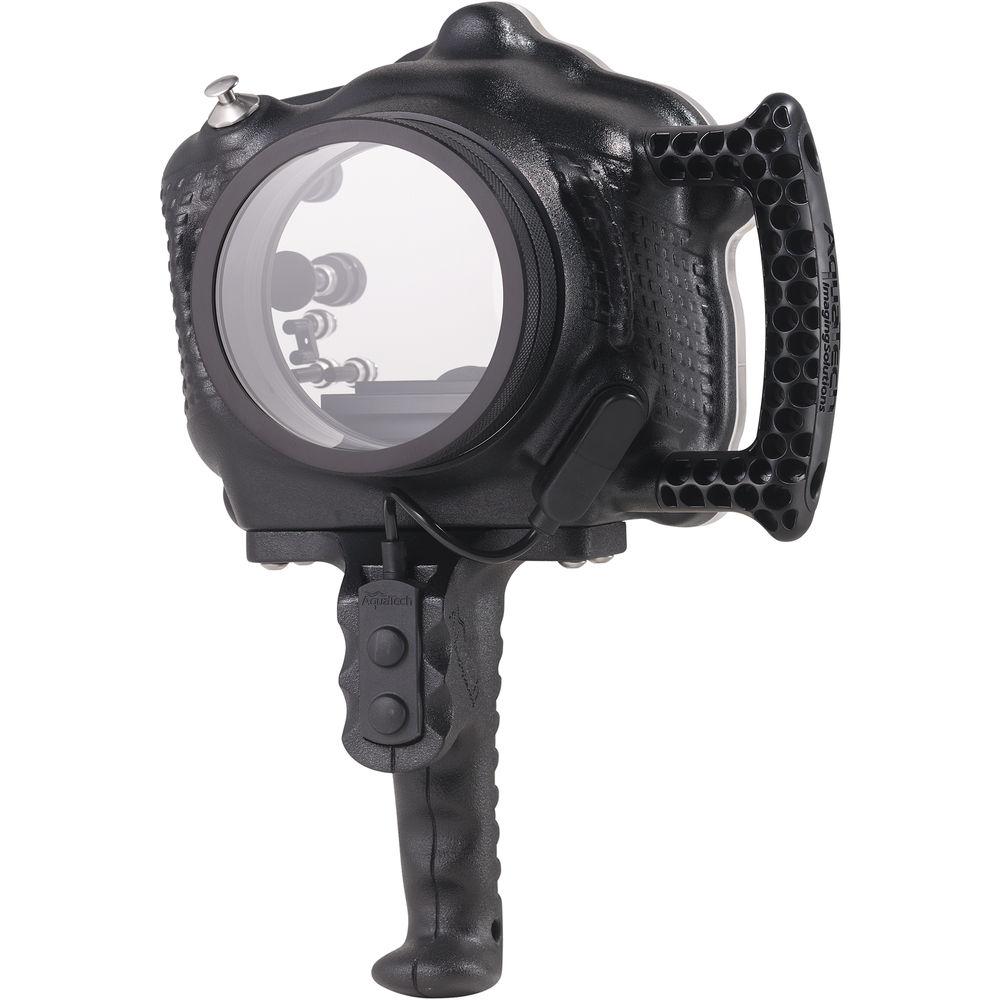

- Included Pistol Grip mounts onto bottom of housing, allowing you to aim and maneuver housing and capture images--all with a single hand and without camera shake
- Great for one-handed, run-and-gun style active shooting
- Pistol features waterproof shutter release switch, which is highly sensitive and direct, as well as dedicated focus control. Zone focus may actually end up yielding sharpest images
- Ergonomically designed housing, Pistol Grip, and removable side grip afford optimal handling and comfort
- Side grip serves as alternative to pistol grip and allows you to shoot with the manual shutter control on housing
- Construction Details
-
- Body crafted from durable polyurethane
- Controls made of stainless steel, aluminum, and high-strength plastics
- All aluminum parts anodized for resistance to corrosion
- Lens Port System
-
- Ships with LP-5 Flat Port for various prime and zoom lenses up to 61mm in length (including filter), such as Sony Alpha E-Mount 35mm f/1.8, 50mm f/1.8, and 16-50mm f/3.5-5.6
- Compatible with a system of optional, interchangeable LP-series ports that accommodate various other Sony lenses, as well as non-Sony lenses via adapters
- For complete info, see Port Chart linked above
- LP-5 features removable, replaceable, acrylic front element
- Lighting
-
- No external strobe connector and not compatible with optional flash housings
- If artificial illumination is desired, connect a constant light source such as an LED to your system
- As housing is meant for use on or relatively close to water's surface, available sunlight will be sufficient much of the time

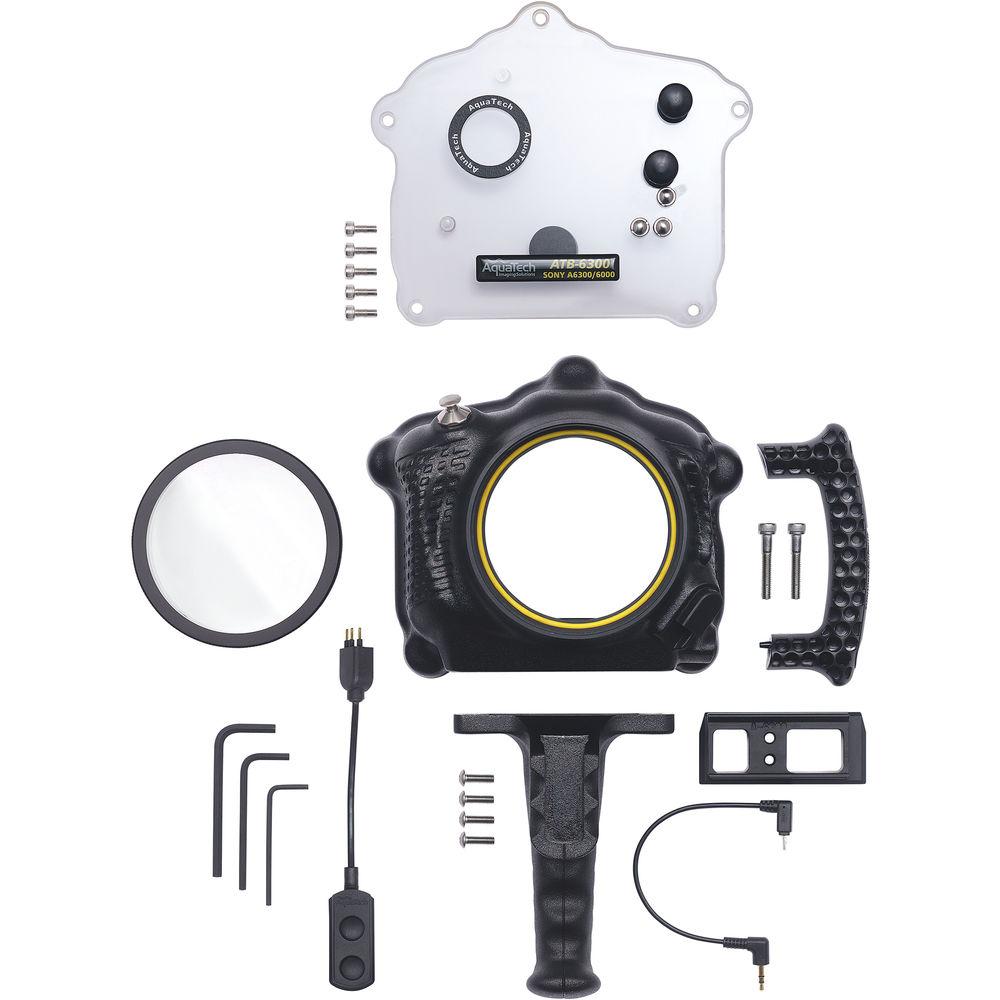

UPC: 810778011289 In the Box AquaTech ATB A6500 Water Housing Kit for Sony Alpha a6500 or a6300 with LP-5 Flat Lens Port LP-5 Flat Port Camera Plate Removable Side Grip Handle Pistol Grip Trigger Kit Cable Release Tool Kit Limited 3-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AquaTech ATB A6500 Water Housing Kit for Sony Alpha a6500 or a6300 with LP-5 Flat Lens Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAquaTech A6500 Specs | Depth Rating | 33' / 10 m | | Control Type | Mechanical push-buttons and dials | | Controls | Provide access to following camera functions: Shutter, video recording, top dial, DISP, C2, ISO, shutter speed, aperture, set, playback, picture profile | | Material of Construction | Body: Polyurethane
Lens Port: Acrylic front element
Controls: Stainless steel, anodized aluminum, and high-strength plastics | | Lens Port | Ships with LP-5 Flat Port for Sony Alpha E-Mount 35mm f/1.8, 50mm f/1.8, and 16-50mm f/3.5-5.6
Compatible with various other primes and zooms up to 61mm in length (including filter)
Housing accepts system of optional, interchangeable LP-series ports that accommodate various other Sony lenses, as well as non-Sony lenses via adapters
For complete info, see Port Chart linked in Overview | | Buoyancy | Generally positive, though may vary with choice of lens and port | | External Strobe Connector | No | | Dimensions | 6.3 x 6.7 x 4.7" / 16 x 17 x 12 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 13.2 x 10.4 x 6.4" |
